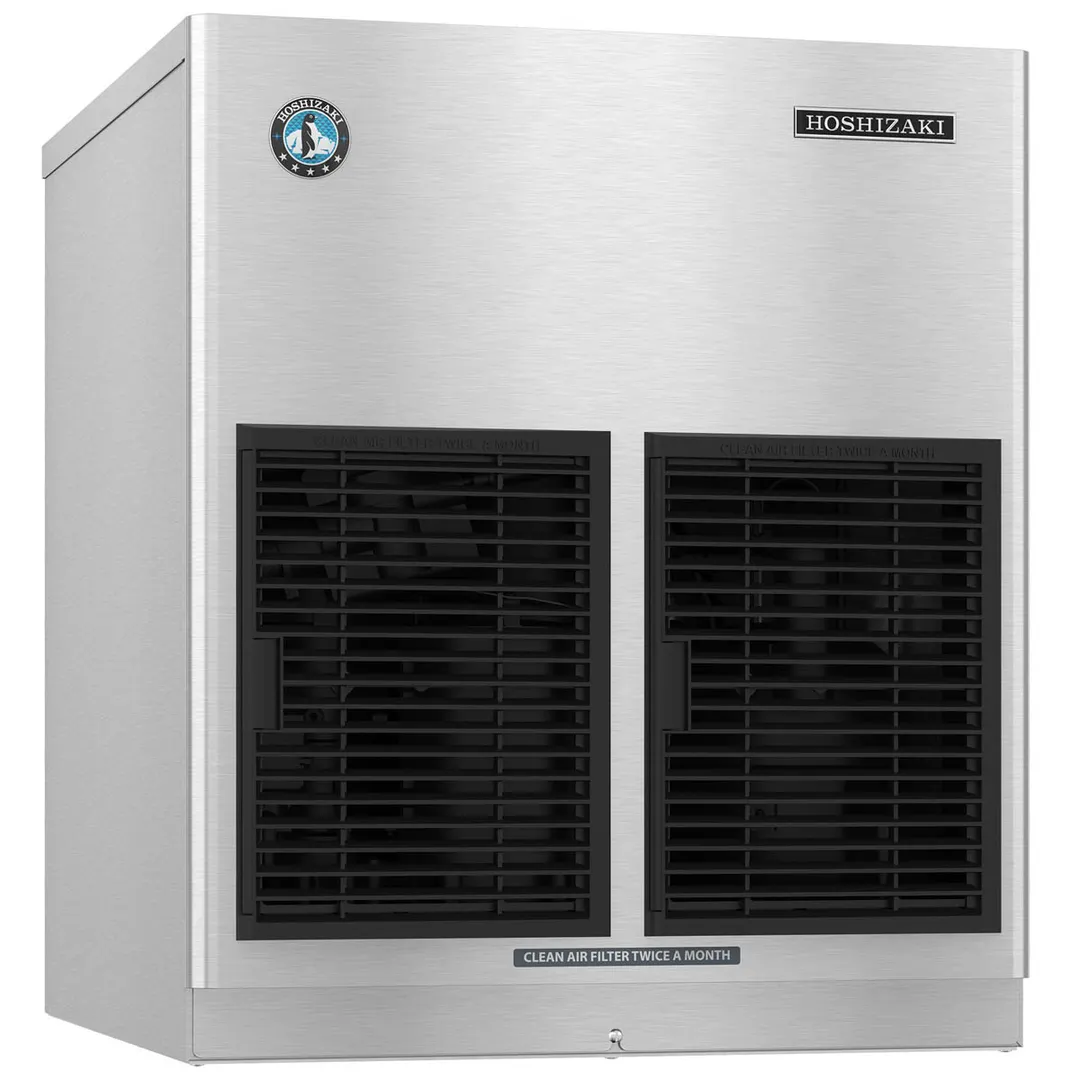

Hoshizaki F-1002MAJ-C 22" Nugget Ice Machine Head, Air Cooled, 890 lb/24 hr

Hoshizaki F-1002MAJ-C 22" Nugget Ice Machine Head

Hoshizaki F-1002MAJ-C 22" Nugget Ice Machine Head produces up to 890 lbs. (43.697 Kg) of cubelet or nugget ice per 24 hours, which makes it a perfect choice for hotels, restaurants, bars, and caterers. Cubelet ice is very popular with drink and beverage services thanks to its rapid cooling and flavor absorption features. This unit features a compact 22-inch width, allowing for two units to be installed side by side on the same ice bin, thereby saving space while doubling production capacity to 1780 lbs. (807.394 Kg).

Hoshizaki F-1002MAJ-C 22" Nugget Ice Machine Head boasts a superior design that ensures it is suitable for commercial settings while providing a practical operation. It features stainless steel housing to withstand the impacts and rigorous conditions. Furthermore, this Hoshizaki nugget ice machine is equipped with a stainless-steel auger for smooth and reliable operation. It also features Advanced CleanCycle24™, which runs 2-second flush cycles to clear sediments for pure nugget ice. Moreover, infrared bin control pauses ice production to prevent excessive production.

Technical Specifications of Hoshizaki F-1002MAJ-C 22" Nugget Ice Machine Head

• Width: 22 in (55.8 cm)
• Depth: 27.375 in (69.532 cm)
• Height: 26 in (66.04 cm)
• Production Capacity: Up to 890 lbs. (43.697 Kg) per 24 hours
• Installation Type: Modular
• Ice Type: Cubelet ice
• Condenser Type: Air-cooled
• Refrigerant: R-404A
• Energy Consumption: 4.57 kWh per 100 lb. (45.359 kg)
• Water Consumption: 12 gals (45.424 L) per 100 lb. (45.359 kg)
• Electrical Configuration: 115v/60/1-ph, 15.2 Amps
• Certifications: NSF and UL
• Net Weight: 176 lb. (79.832 kg)
• Shipping Weight: 210 lb. (95.254 kg)

Required Operating Conditions

The Hoshizaki F-1002MAJ-C 22" Cubelet Ice Machine Head offers optimal and long-time performance as long as it is correctly installed as per:

• Clearance Requirements: You should leave 6 in (15.24 cm) clearance on the rear and sides to ensure enough air intake and circulation for the machine. The unit requires 24” (60.96 cm) clearance at the top to allow the removal of the auger for maintenance or repair.
• Distance from Heat Sources: To ensure energy-efficient production, this Hoshizaki ice maker must be installed away from heat sources such as fryers, ovens, etc.
• Ambient Temperature Range: 45°F to 100°F (7.22°C to 37.78°C)
• Water Temperature Range: 45°F to 90°F (7.22°C to 32.22°C)
• Water Pressure: 10 to 113 PSIG
• Voltage Range: 104V to 127V
• Plumbing Specifications: The water supply line requires a minimum of 1/4 in (0.635 cm) nominal ID copper water tubing. The drain line requires a minimum 3/4 in (1.905 cm) nominal ID hard pipe.

Key Features of Hoshizaki F-1002MAJ-C 22" Nugget Ice Machine Head

• High Volume Ice Production: Hoshizaki F-1002MAJ-C 22" Ice Machine Head can produce up to 890 lbs. (43.697 Kg) daily. If you need higher ice production volume, you can mount 2 units side by side on the Hoshizaki ice bins to produce up to 1780 lbs. (807.394 Kg) cubelet/nugget ice.
• Space Saving Design: Featuring only a 22-inch (55.88 cm) width, this Hoshizaki ice machine can easily fit in narrow areas, providing a perfect solution for space-limited facilities. Furthermore, it occupies only a 44” (111.76 cm) floor area in your kitchen when two units are mounted together while offering a twofold ice production capacity.
• Pure Ice Production with Advanced CleanCycle24™: This Hoshizaki ice machine features an Advanced CleanCycle24™ system that runs a 2- second flush every 60 minutes and removes the sediments and dust to ensure clean and clear ice.
• Healthy Ice Production with H-GUARD Plus Antimicrobial Agent: Hoshizaki F-1002MAJ-C 22" Ice Machine Head features H-GUARD Plus Antimicrobial Agent coating on key components to inhibit bacterial activity and mold growth. This unit provides safe and healthy ice for cooling drinks and use in food and desserts.
• Sturdy Construction: All components of this Hoshizaki ice maker are protected inside a stainless-steel housing, protecting them from dust and damage. Furthermore, it has a stainless-steel auger to ensure reliable and high-quality ice production. Auger is anti-magnetic to reduce mineral build-up.
• Durable Design: To maximize the service life and minimize downtime of the Hoshizaki F-1002MAJ-C 22" Nugget Ice Machine Head, the evaporator and the refrigerant tubing are insulated with foamed-in-place polyurethane to prevent water penetration. The motor and gear train are sealed to prevent moisture-related damage. This unit boasts hardened, greaseless graphite bearings and a heavy-duty ventless gearbox for streamlined production.
• Infrared Ice Bin Control: This Hoshizaki nugget ice machine controls the ice bin ice level through built-in sensors and stops the ice machine and ice production to avoid overflowing.
• Built-in Air-Cooled Condenser: Hoshizaki F-1002MAJ-C 22" Nugget Ice Machine Head has a self-contained air-cooled condenser. Therefore, it offers easier installation and eliminates long piping processes.
• Eco-Friendly Refrigerant: This unit has an eco-friendly R-404A refrigerant that boasts zero ozone depletion potential.
• Practical Serviceability: Hoshizaki ice maker has an easy-to-remove panel for quicker access to the components for repair or maintenance.
• Superior Nugget Ice: This ice machine produces nugget or cubelet ice, which has 3/4" x 3/4" x 3/8" x 1/2" (1.9 x 1.9 x 0.95 x 1.27 Cm) dimensions. Cubelet ice is a small, soft, nugget-shaped ice. It is suitable for dispensers but is still soft enough to chew.
• Low Energy Consumption: This ice machine head uses only 4.57 kWh per 100 lb. (45.359 kg) of ice, offering high energy efficiency and lower ice production costs.
• Certifications: The Hoshizaki F-1002MAJ 22" Flake Ice Machine has NSF and UL certifications, thanks to its adherence to official regulations and guidelines.

Applications and Benefits of Hoshizaki F-1002MAJ-C 22" Nugget Ice Machine Head

The Hoshizaki F-1002MAJ-C 22" Nugget Ice Machine Head makes cubelet/nugget ice in large amounts. Therefore, it is suitable for use in:

• Restaurants, Bars, and Cafes to provide long-lasting soft ice for beverages and drinks
• Healthcare facilities and senior living centers to serve soft, chewable ice for beverages or desserts.
• Offices and Convenience stores to dispense rapid cooling ice.

What Type of Ice does the Hoshizaki F-1002MAJ-C 22" Nugget Ice Machine Head Produce?

The Hoshizaki F-1002MAJ-C 22" Nugget Ice Machine pushes out a nugget or cubelet ice, which has 3/4" x 3/4" x 3/8" x 1/2" (1.9 x 1.9 x 0.95 x 1.27 Cm) dimensions. Additionally, this cubelet ice offers rapid cooling. It soaks up the flavor, making it ideal for restaurants, bars, offices, hospitals, and convenience stores, allowing customers to enjoy refreshing drinks and beverages.

Related/Complementary Accessories for Hoshizaki F-1002MAJ-C 22" Nugget Ice Machine Head

Hoshizaki offers superb after-sales service for Hoshizaki F-1002MAJ-C 22" Cubelet Ice Machine Head with spare parts to replace worn-out ones or accessories to streamline ice production, such as:

• Hoshizaki Prefilter Cartridges: Hoshizaki cubelet ice machines feature 10” (25.4 cm) pre-filter cartridges to eliminate the large particles before the main water filter. The primary water filter maintains its performance longer, and the quality of ice production improves.
• Hoshizaki H9320-51 Water Filters: The Hoshizaki F-1002MAJ-C 22" Cubelet Ice Machine Head is equipped with a single-cartridge H9320-51 water filter, which can eliminate sediments and impurities.
• Ice Storage Bins & Ice Dispensers: Compatible with Hoshizaki BB-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500SS, B-1650SS, B-1150, B-1300, B-1500SS, B-1650SS ice bins (Sold separately)

Why Choose Hoshizaki?

Hoshizaki, with over 60 years of experience in the industry, is the leader in commercial ice machines. Its ice makers are used in more than 60 countries since they offer:

• High-capacity ice production: This unit offers a high production volume, which can be doubled by side-by-side mounting on the same ice bin.
• Reliable Warranty: 3 years parts and labor on the entire machine; 5 years parts and labor on the evaporator; 5 years parts on the compressor.
• Clean and Clear Ice: Advanced CleanCycle technology cleans the interior components every hour to clean sediments and particles.
• Certified for Safety and Sanitation: NSF and UL listed for commercial use.
• Dispensable and Chewable Ice: Hoshizaki nugget/cubelet ice is soft enough to chew and hard sufficient to dispense.
