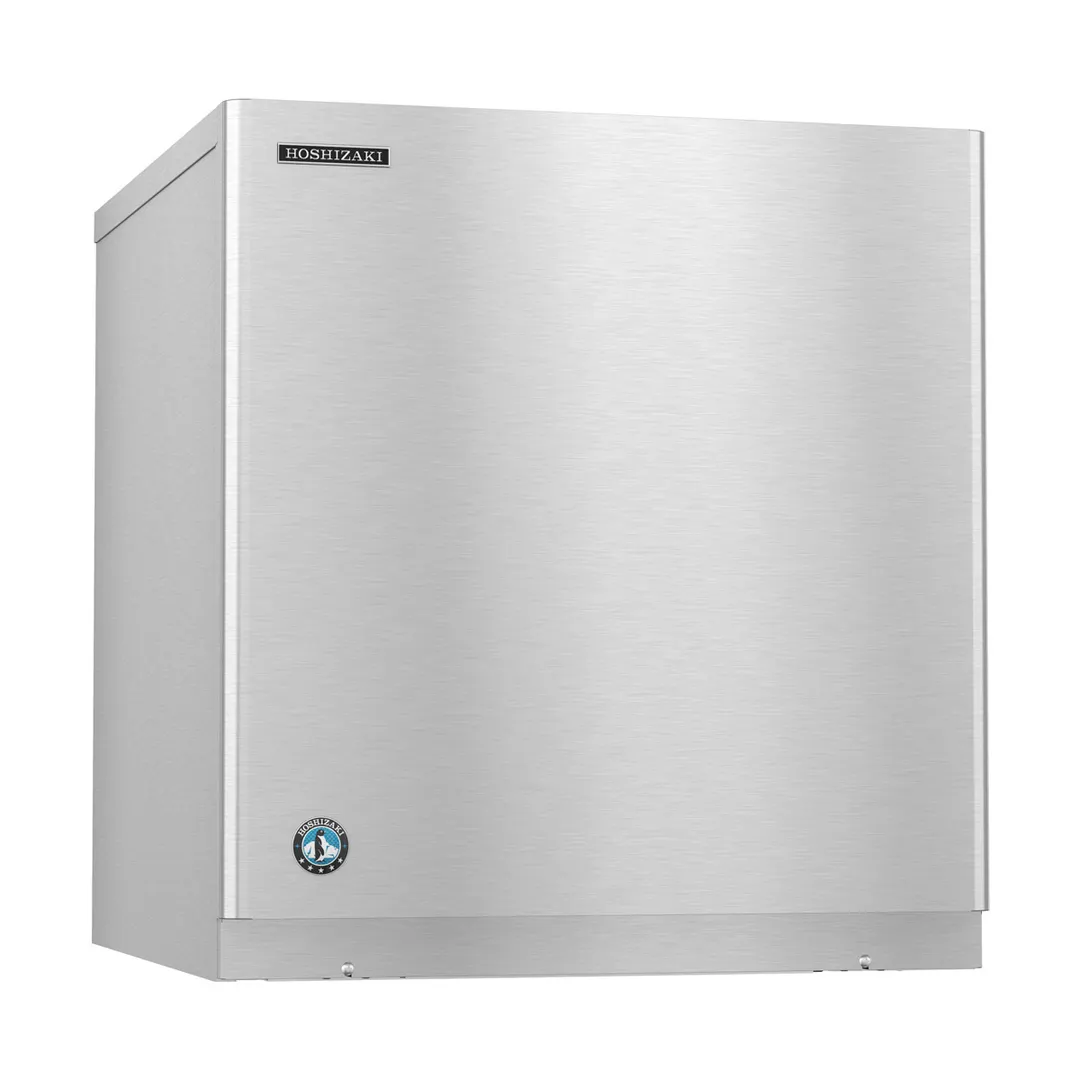

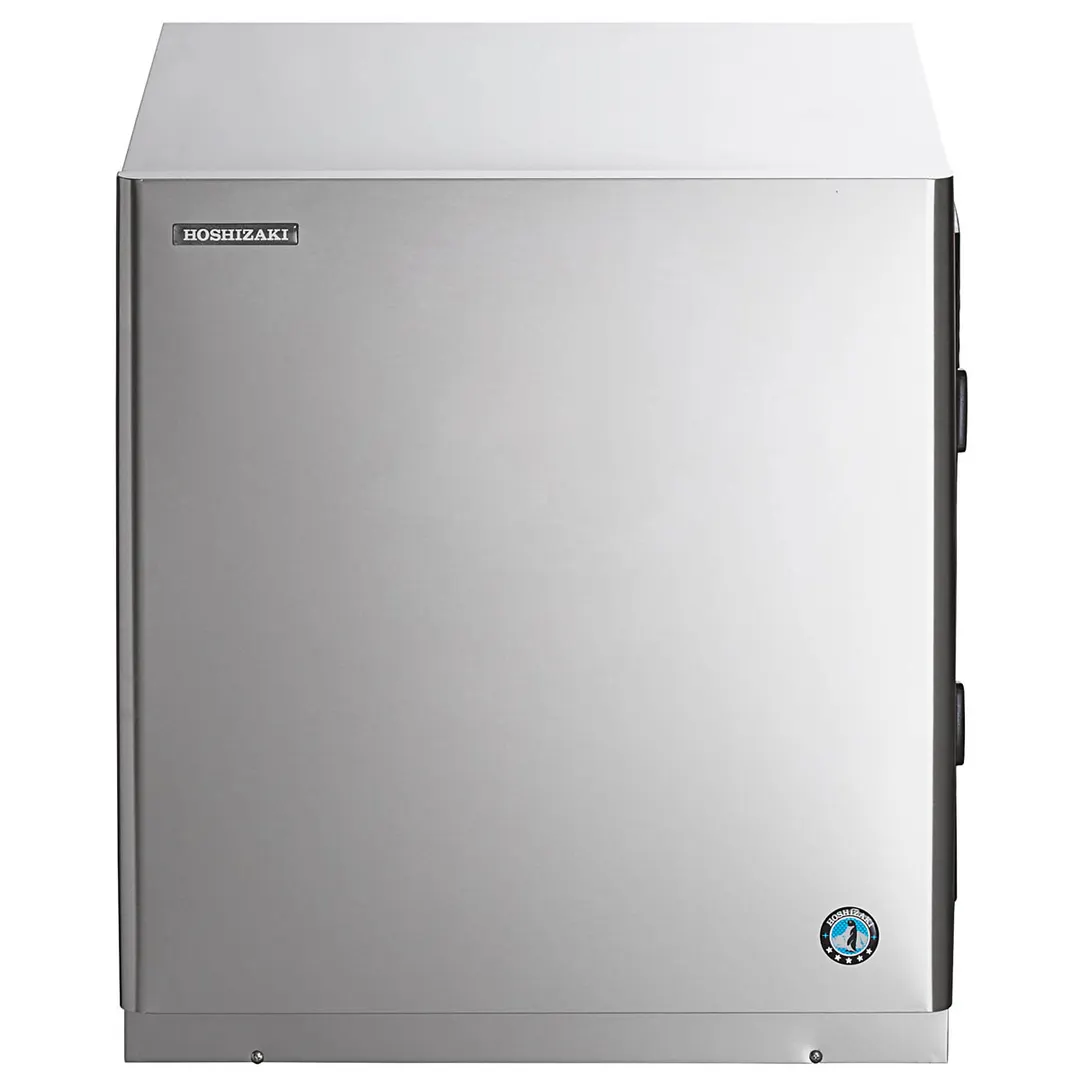

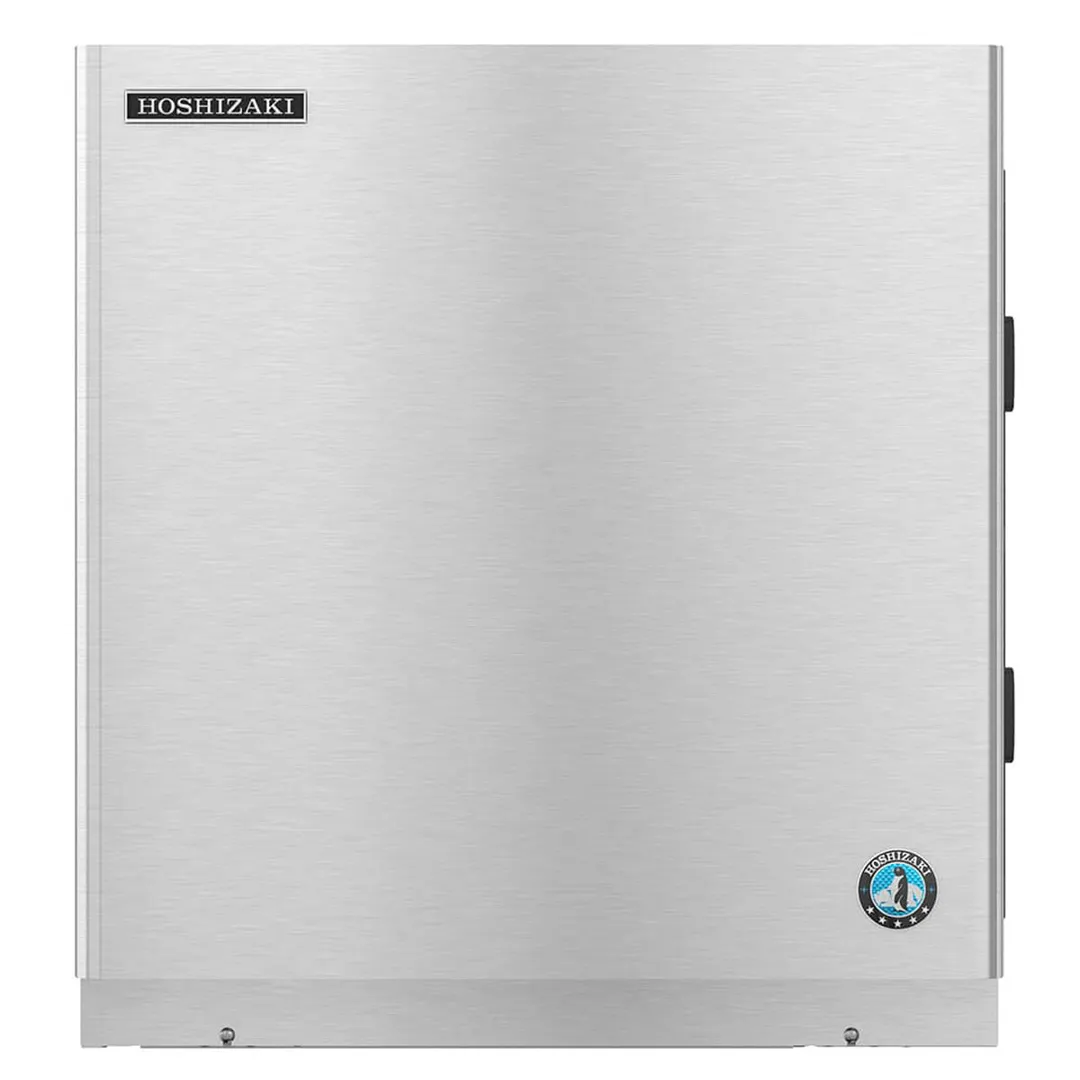

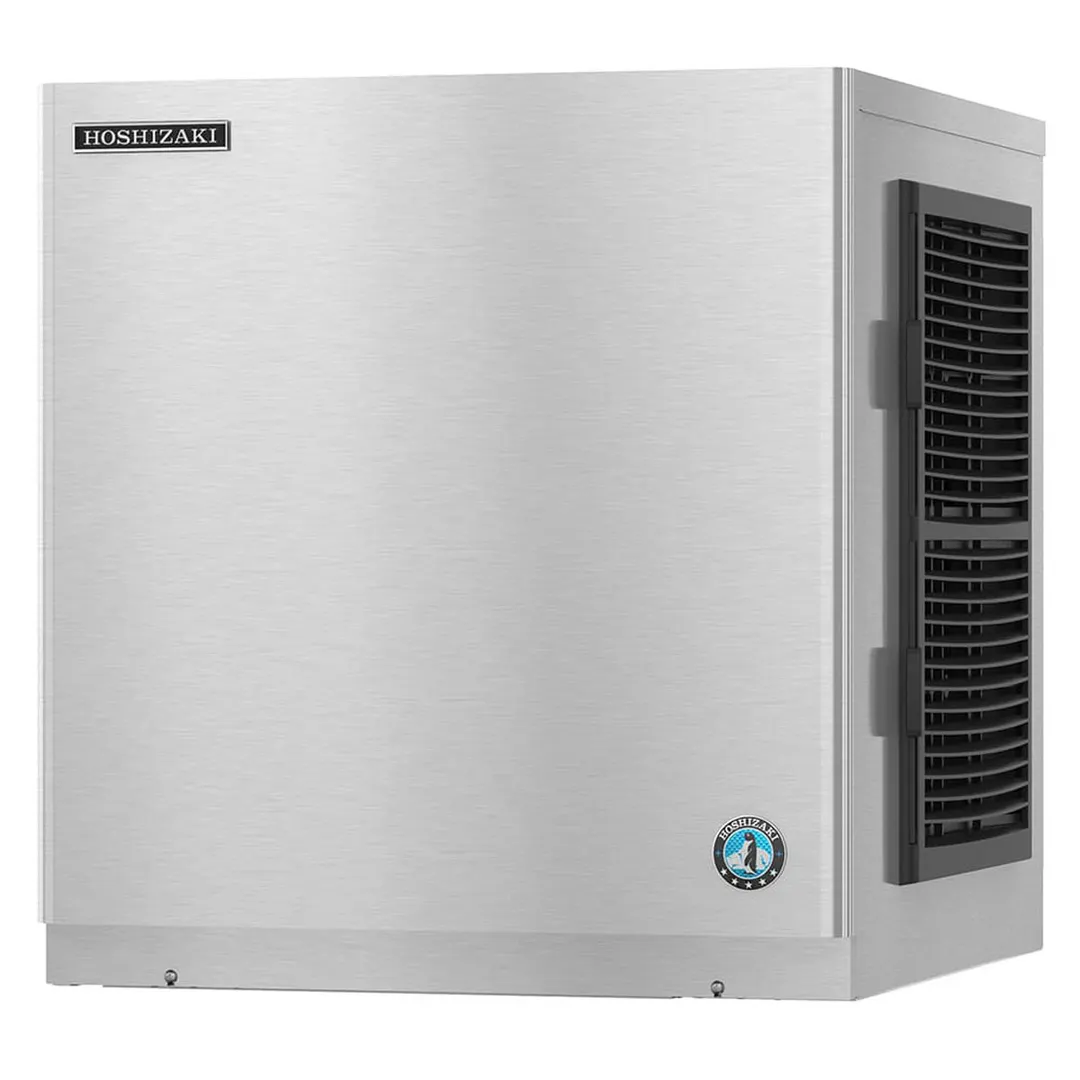

Hoshizaki Modular Crescent Cuber Air-Cooled
Features:
- Individual crescent cube
- Stainless steel evaporator
- Up to 449 lbs. of ice production per 24 hours
- Durable stainless steel exterior
- EverCheckTM alert system

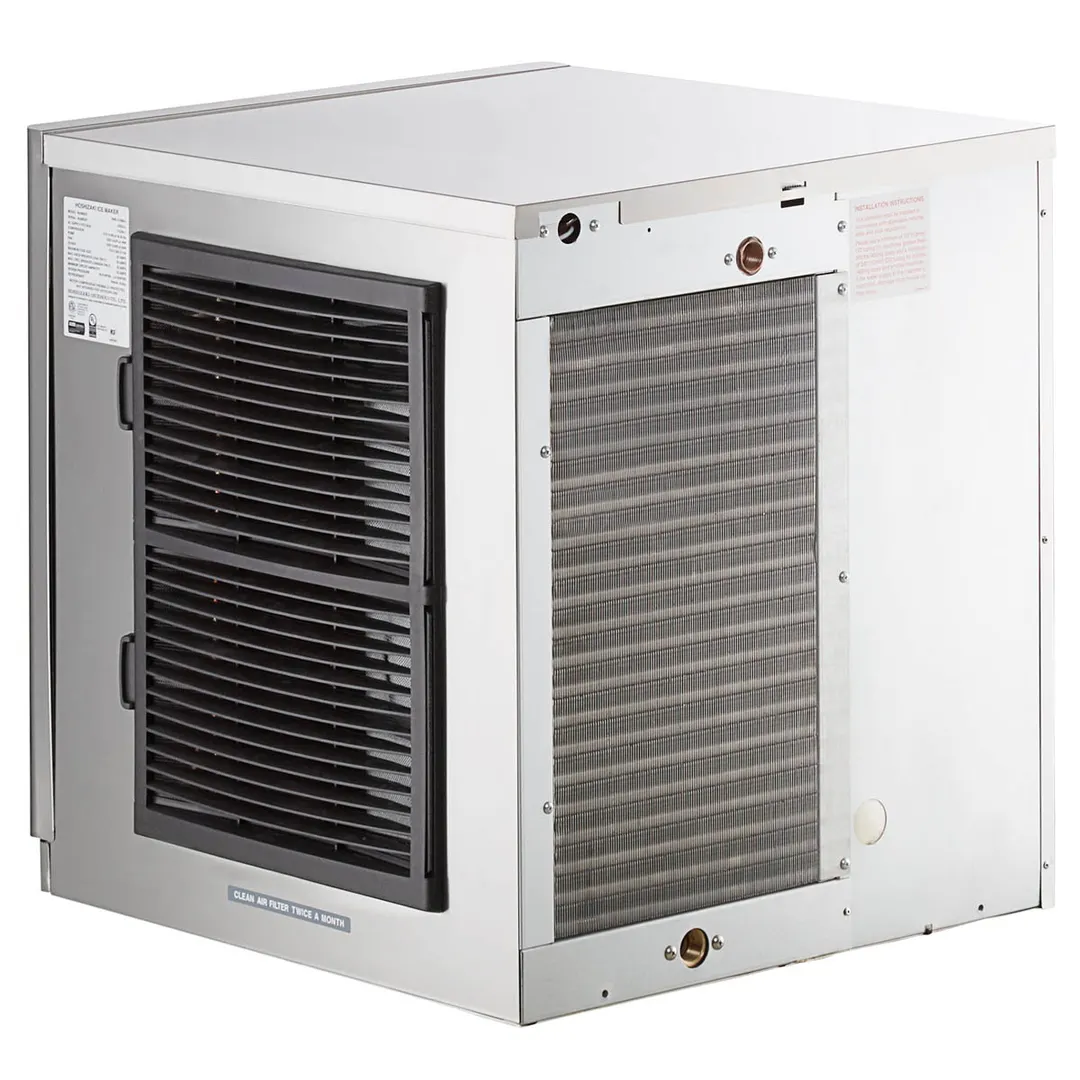

- Removable air filters (air-cooled model only)
- Designed specifically for use on ice and beverage dispener (pictured with a Lancer 22” model)
- R-404A Refrigerant
Operating Limits:
- Ambient Temp Range 45 - 100°F
- Water Temp Range 45 - 90°F
- Water Pressure 10 - 113 PSIG
- Voltage Range 104-127V
Service:
- Panels easily removed and all components accessible for service.
- For proper air circulation and ease of maintenance/service, allow 6” (15 cm) clearance at rear, left side, and top and 12” (30 cm) clearance at right side for both air-cooled and water-cooled models.
Plumbing:
- Icemaker Water Supply Line: Minimum 1/4” Nominal ID Copper Water Tubing or Equivalent
- Icemaker Drain Line: Minimum 3/4” Nominal ID Hard Pipe or Equivalent Water-Cooled Model (Lines Must Be Independent of Icemaker)
- Condenser Water Supply Line: Minimum 1/4” Nominal ID Copper Water Tubing or Equivalent
- Condenser Drain/Return Line: Minimum 1/4” Nominal ID Hard Pipe (open drain system) or Copper Water Tubing (closed loop system) or Equivalent
From The Manufacturer
Ice Maker, Cube-Style, 22"W, air-cooled, self-contained condenser, production capacity up to 418 lb/24 hours at 70°50° (351 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 115v/60/1-ph, 8.2 amps, NSF, cETLus, UL
