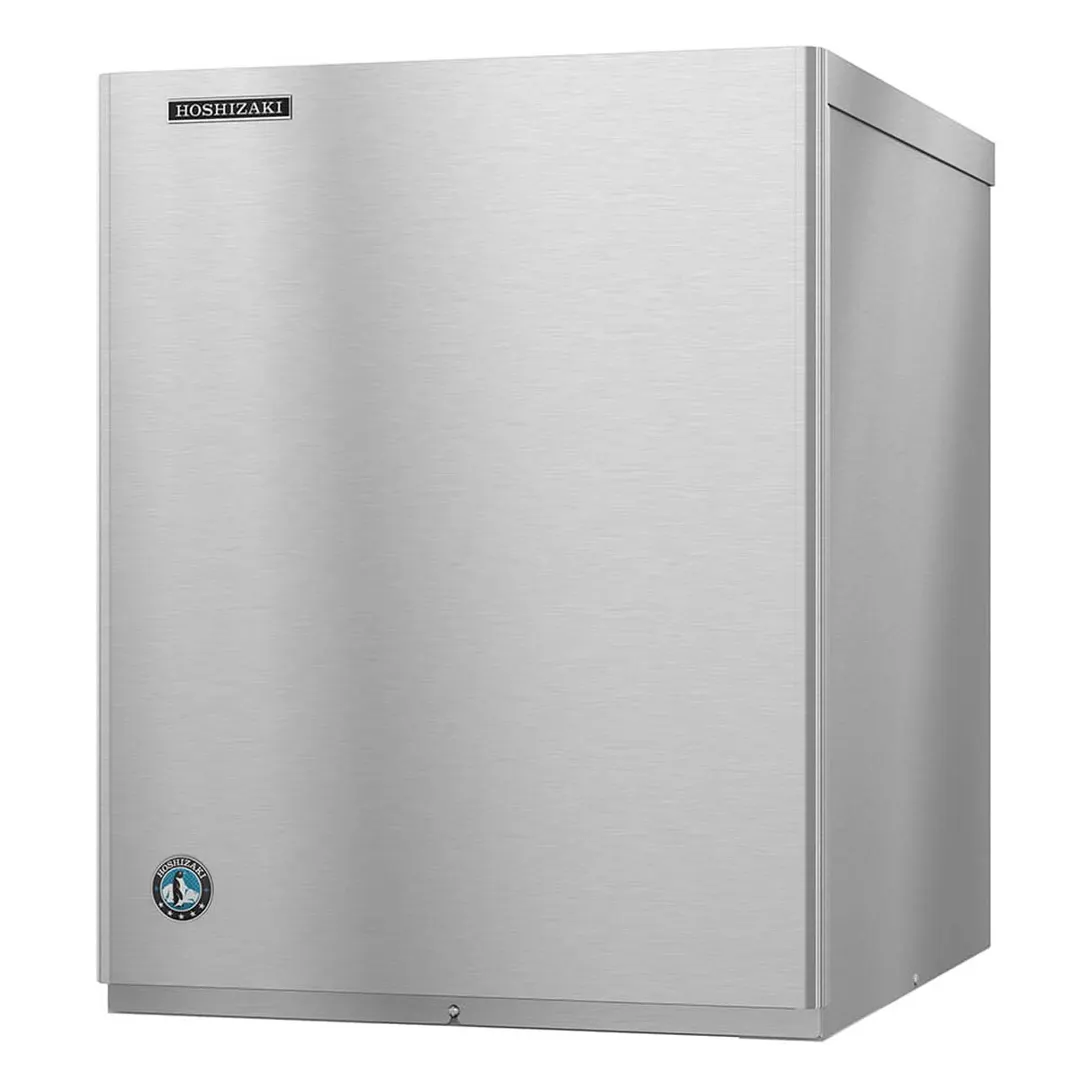

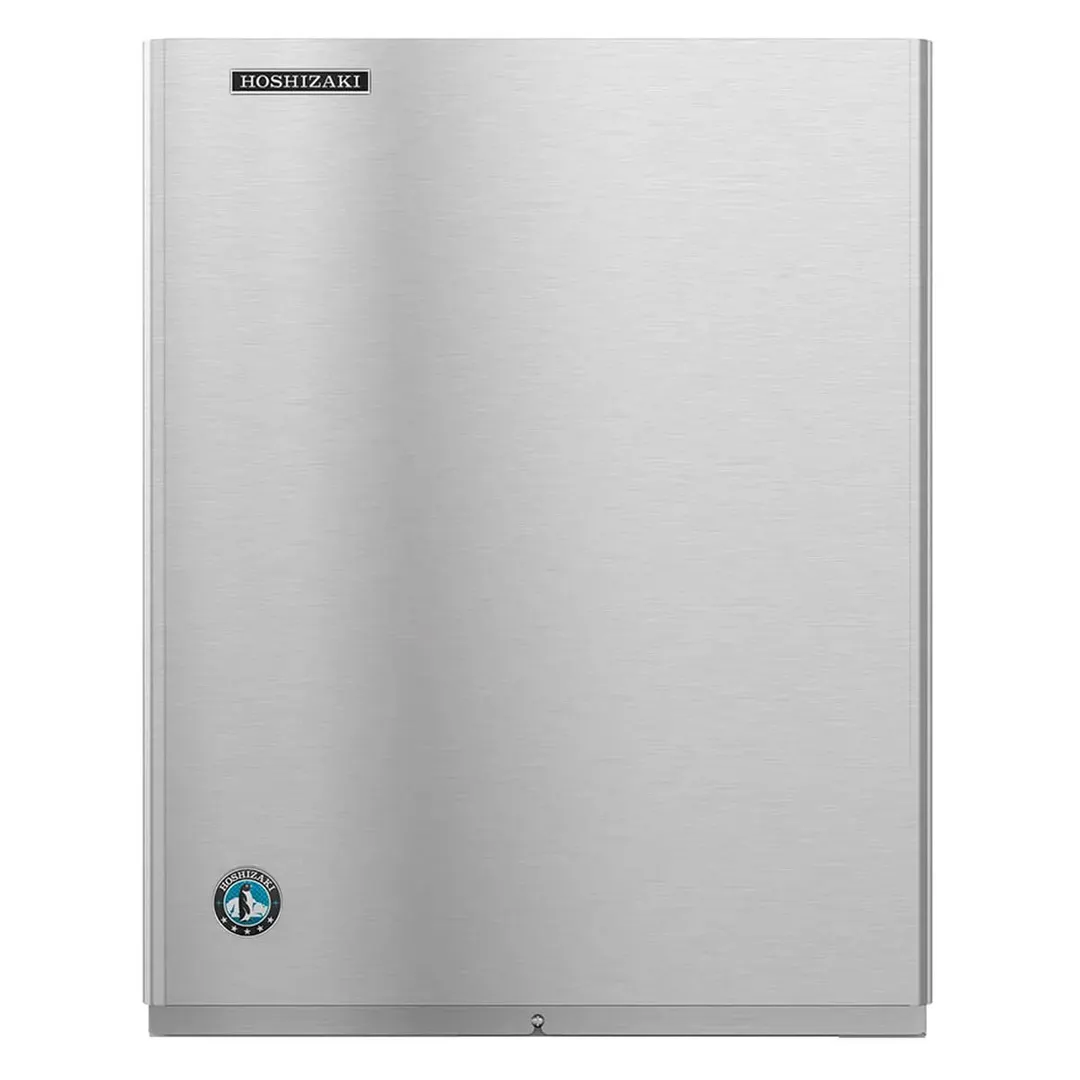

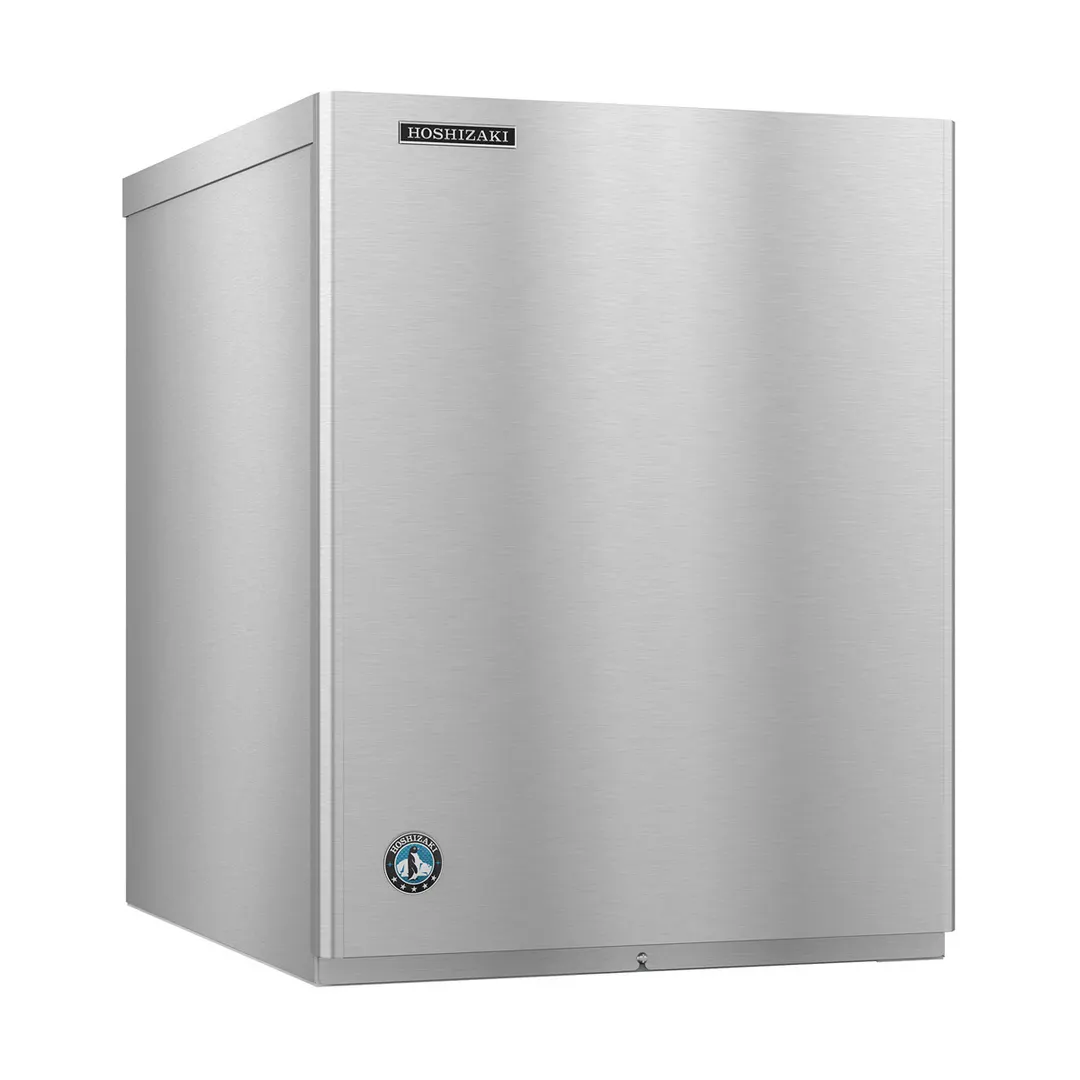

Hoshizaki Slim-Line Modular Crescent Cuber Water-Cooled Model
Features:
- Individual crescent cube
- Factory-installed ultrasonic bin control can be adjusted on site
- Simple, one-hour cleaning process
- Durable construction with fewer parts
- Self-diagnostic programming automatically adjusts to changing conditions
- Snap fit parts for easy cleaning
- Stainless steel double-sided evaporator
- CycleSaverTM design
- Protected by H-GUARD Plus Antimicrobial Agent
- EverCheckTM alert system
- Removable air filters (air-cooled model only)
- R-404A Refrigerant
Operating Limits:
- Ambient Temp Range 45 - 100°F
- Water Temp Range 45 - 90°F
- Water Pressure 10 - 113 PSIG
- Voltage Range 104 - 127V
Service:
- Panels easily removed and all components accessible for service.
- Removable/cleanable air filters. (Air-cooled model only)
- Allow 6” (15 cm) clearance at rear, sides, and top for proper air circulation and ease of maintenance/service.
Plumbing:
- Icemaker water supply line: minimum 1/4” nominal ID copper water tubing or equivalent
- Icemaker drain line: minimum 3/4” nominal ID hard pipe or equivalent Water-Cooled Model (Lines Must Be Independent of Icemaker)
- Condenser water supply line: minimum 1/4” nominal ID copper water tubing or equivalent
- Condenser drain/return line: minimum 1/4” nominal ID hard pipe (open drain system) or copper water tubing (closed loop system) or equivalent
From The Manufacturer
Ice Maker, Cube-Style, 22"W, water-cooled, self-contained condenser, production capacity up to 414 lb/24 hours at 70°/50° (383 lb AHRI certified at 90°/70°), crescent cube style, stainless steel finish, R-404A refrigerant, 115v/60/1-ph, 7.5 amps, NSF, UL
