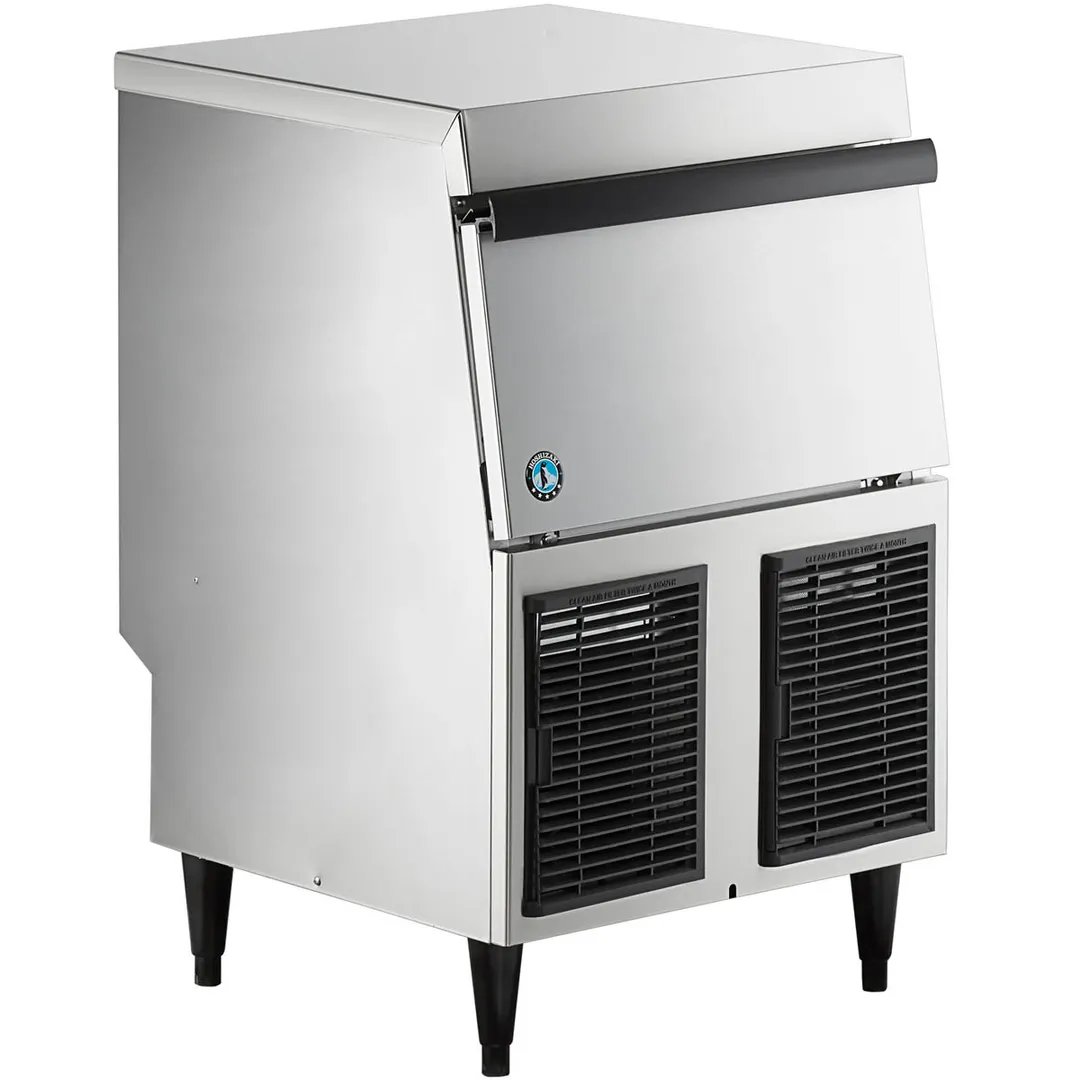

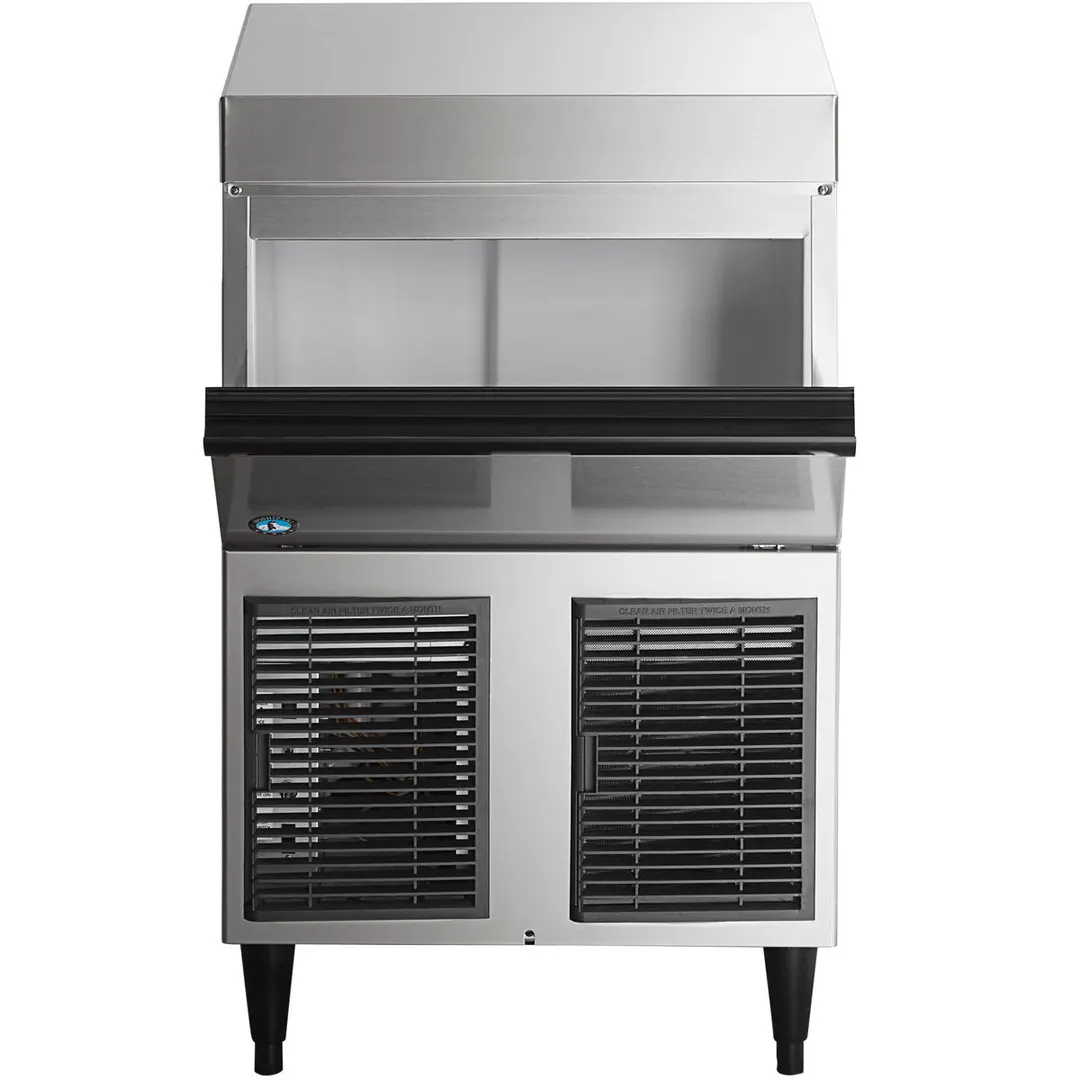

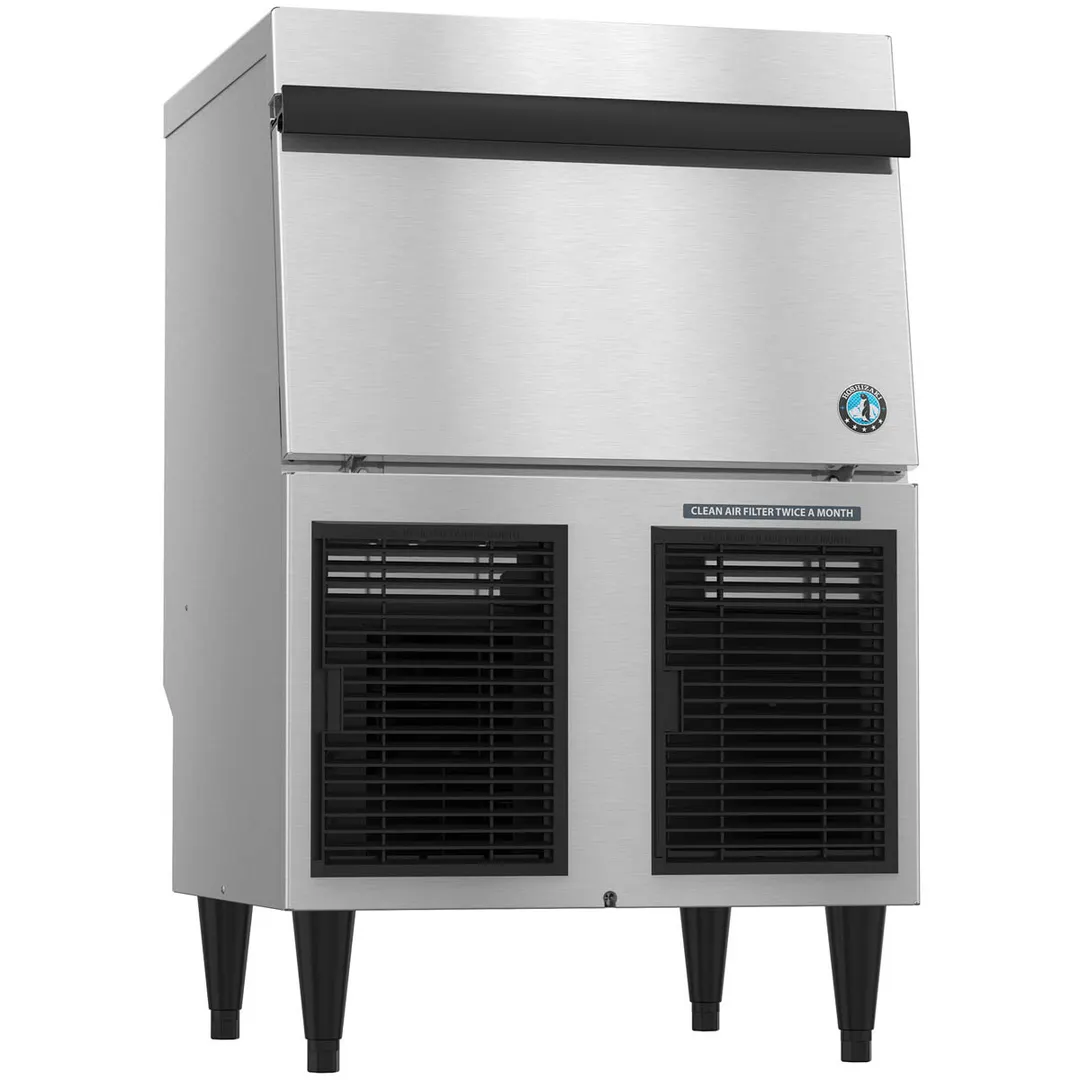

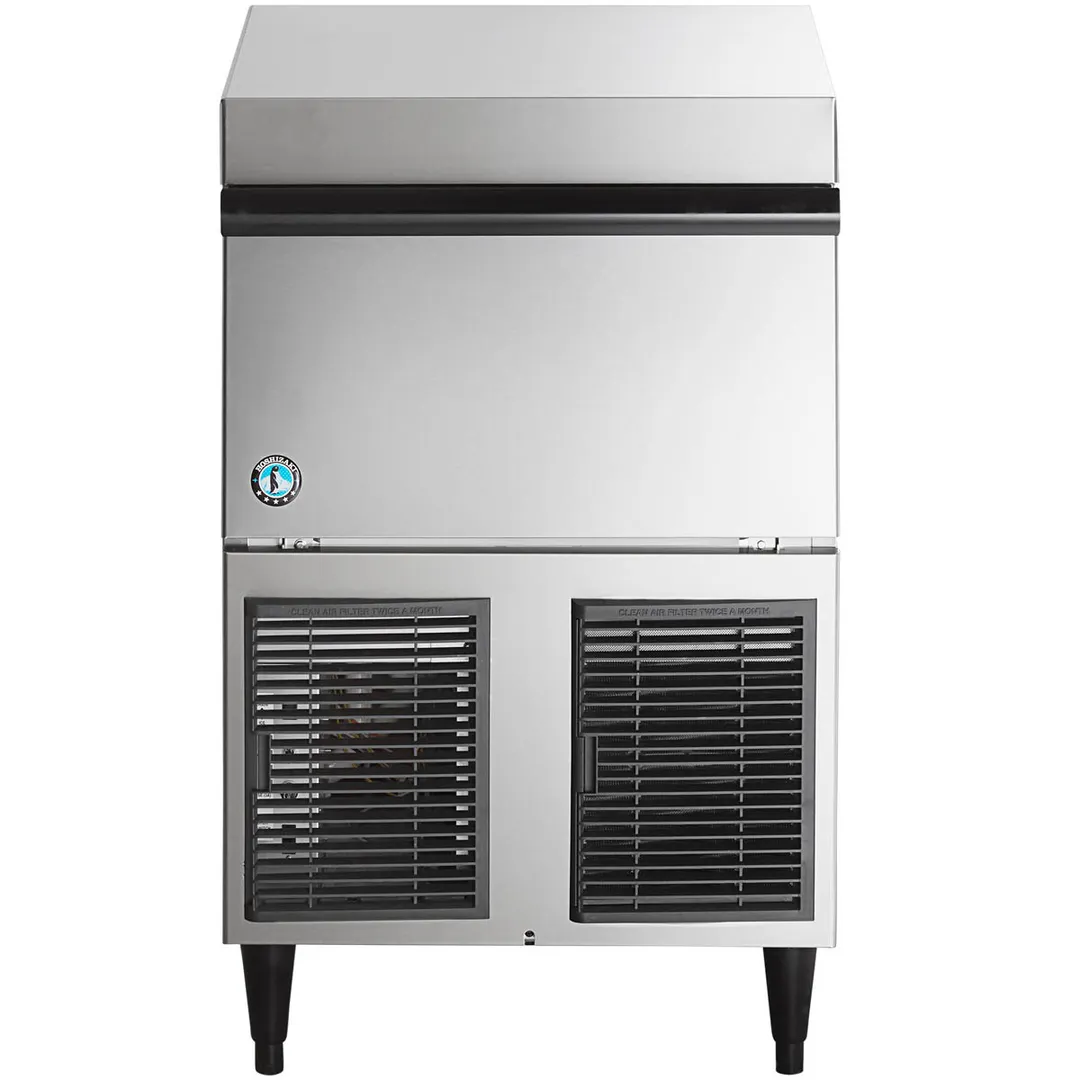

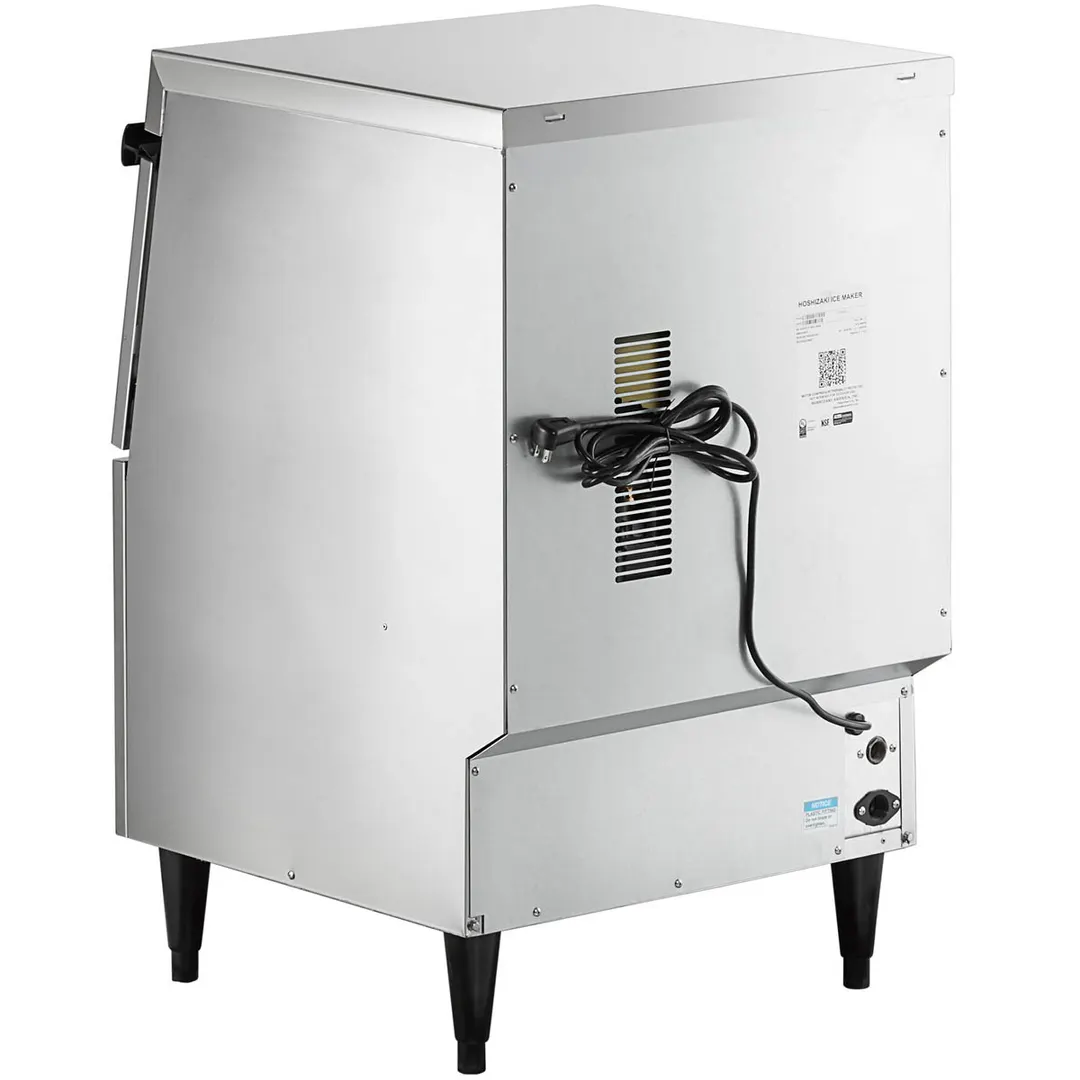

Hoshizaki F-330BAJ-C Cubelet Icemaker (Air-cooled,Built in Storage Bin)

General Info And Benefits

The F-330BAJ-C is capable of producing approximately 288 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat.

Hoshizaki F-330BAJ-C Features

Durable stainless steel exterior
Advanced CleanCycle24TM design
Stainless steel auger with greaseless bearing
F-450MAJ - Up to 492 lbs. of ice production per 24 hours
F-330BAJ-C - Up to 412 lbs. of ice production per 24 hours
Mount two units, side-by-side, in only 44” of floor space for double the amount of ice production
2 second flush cycle every hour
Flush cycle removes sediment for cleaner ice
Infrared bin control for easy cleaning and reliability
Not recommended for dispensing applications
R-404A Refrigerant

Hoshizaki F-330BAJ-C Specifications

Condenser : Air-Cooled
Ice Production (per 24 hours) : 288/214
Type of Ice : Cubelet
Dimensions : 24″ W x 26″ D x 39″ H
Net/ShipWeight(lbs.) : 148/178
Other Details : See spec. sheet

From The Manufacturer

Ice Maker with Bin, air-cooled, self-contained condenser, production capacity up to 288 lb/24 hours at 70°/50° (214 lb AHRI certified at 90°/70°), 80 lb of ice storage capacity, cubelet style, stainless steel finish, compressed cubelet style ice, R-404A refrigerant, painted legs included, 115v/60/1-ph, 7.1 amps, NSF, UL

Manufacturer	Hoshizaki
Model Number	F-330BAJ-C
Weight	178 lbs
Width	24″
Depth	26″
Height	39″
Condenser Type	air-cooled
Ice Type	nugget ice
Special Features	gravity drain
Finish	stainless steel
Voltage	115
Refrigerant Type	R-404A
Phase	1
Production per 24 hr (Lbs)	288
Bin storage capacity (Lbs)	80
