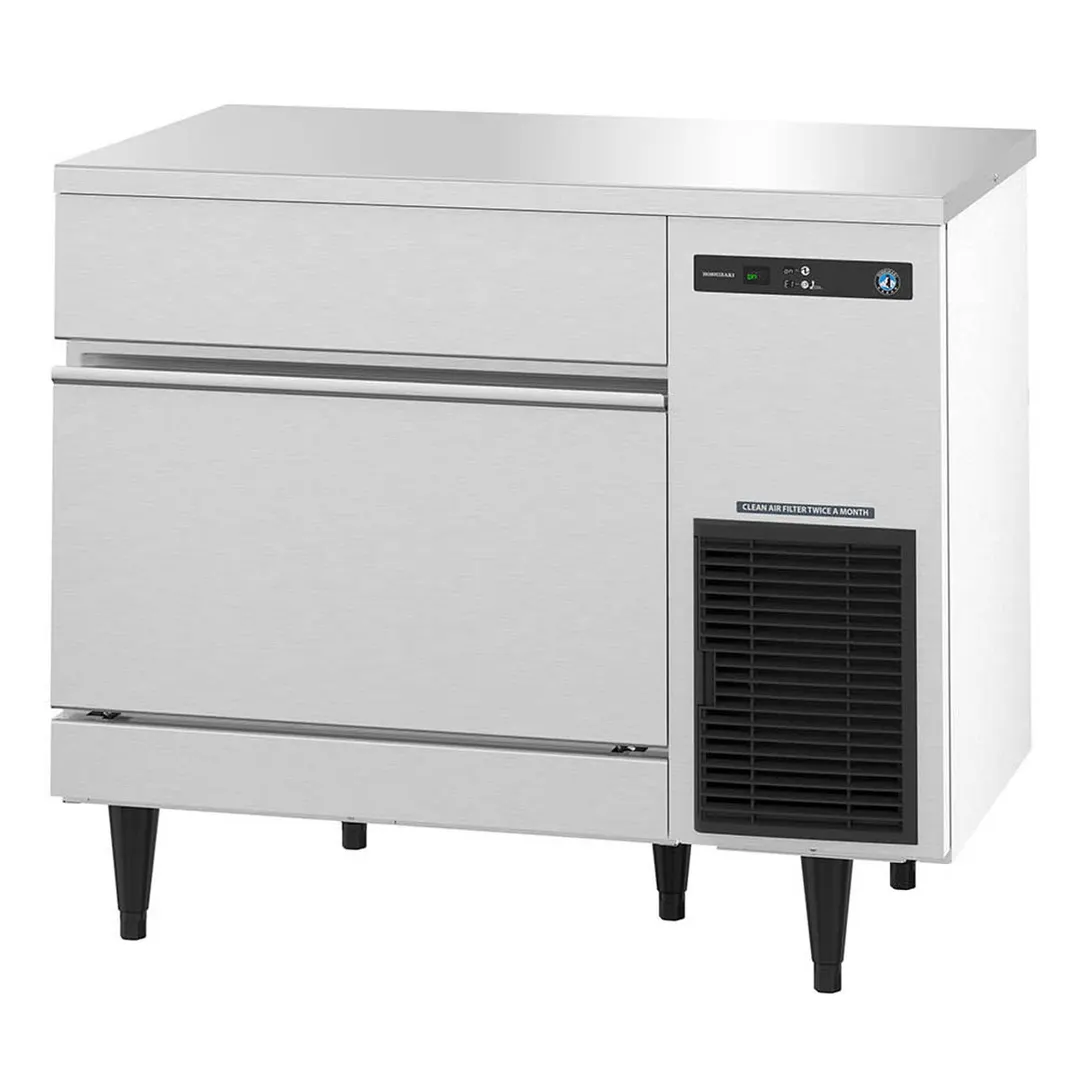

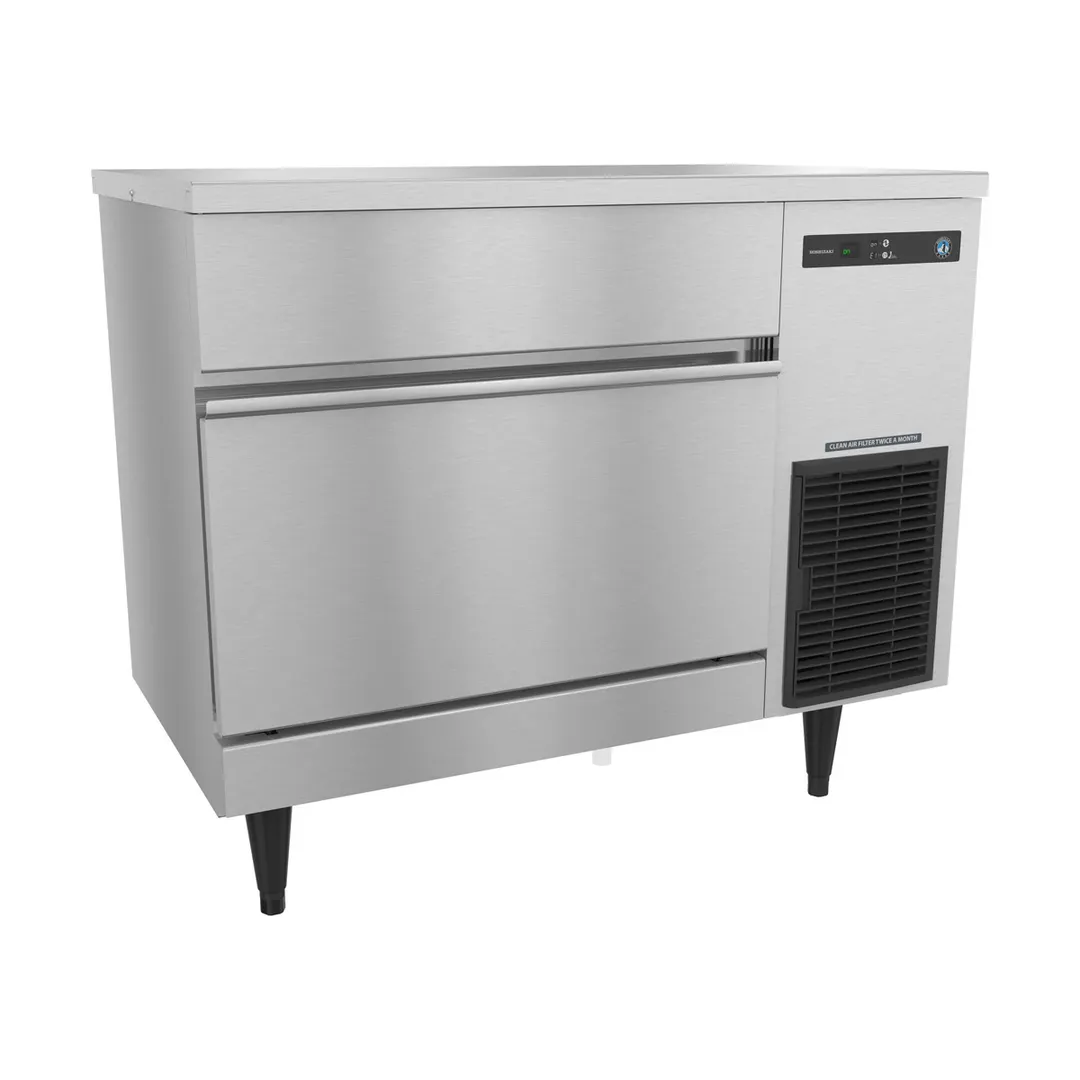

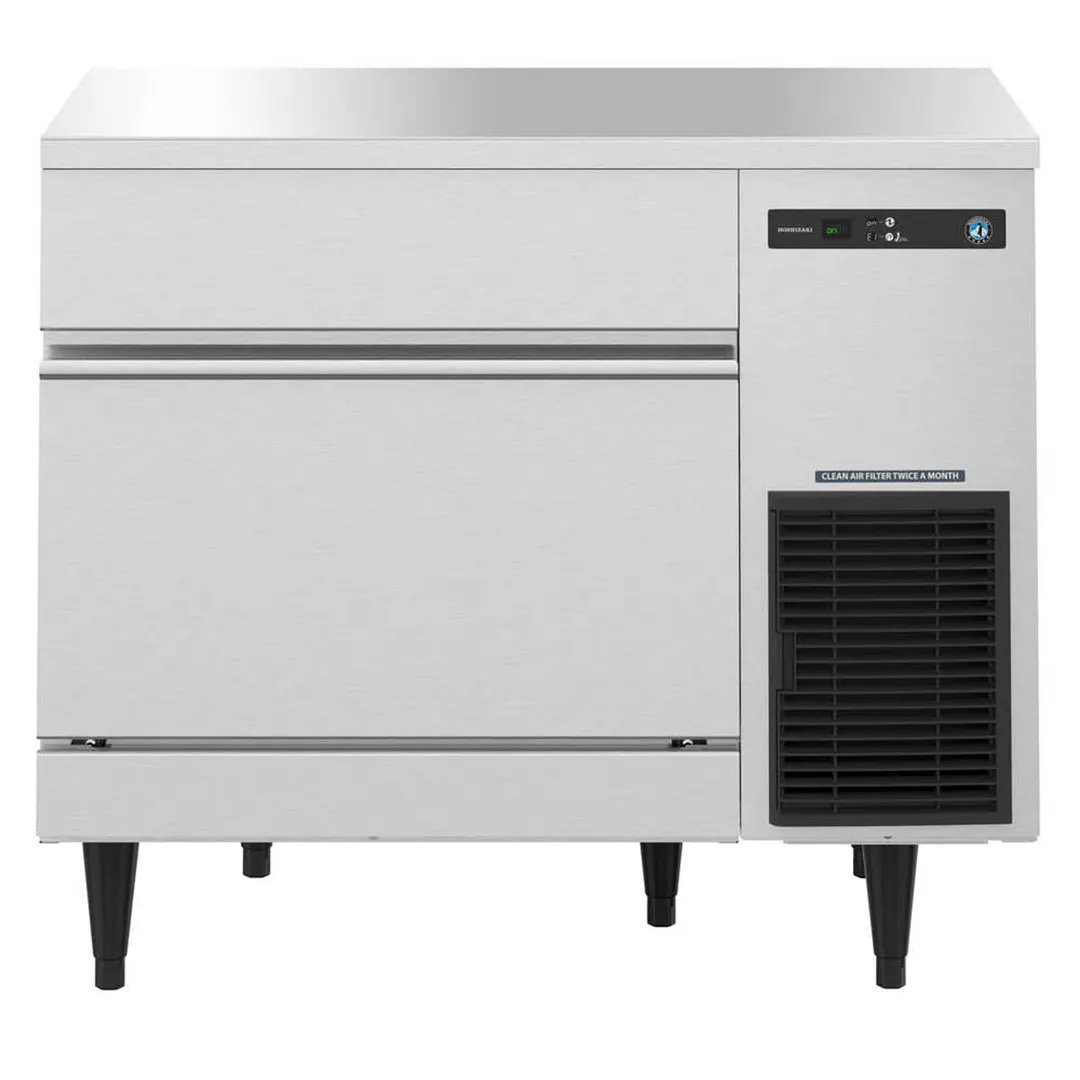

Hoshizaki IM-200BAC Square Cuber Icemaker (Air-cooled, Built in Storage Bin)

General Info

The IM-200BAC is capable of producing approximately 188 lbs of individual square cubes. The square cube shape melts very slowly, chilling beverages with very minimal dilution. This Air-cooled, Built in Storage Bin icemaker features Up to 75 lbs of built-in storage capacity (2.5ft3)*.

Hoshizaki IM-200BAC Features

Large, individual, clear square cubes
Self-contained with built-in storage bin
Each cube is made individually by a dedicated jet spray
Up to 188 lbs. of ice production per 24 hours
Built-in storage capacity 75 lbs.*
EverCheckTM alert system
Durable stainless steel exterior
Removable air filter
Ice scoop included
Five 6” adjustable legs are standard
6’ power cord with NEMA 5-15P plug
R-404A Refrigerant

Hoshizaki IM-200BAC Specifications

Condenser : Air-Cooled
Ice Production (Lbs. per 24 hours) : 188/150
Dimensions : 39-1/2″ W x 23-5/8″ D x 33- 1/2 ” H
Net / Ship Weight (lbs.) :175 / 212
Other Details : See spec. sheet

From The Manufacturer

Undercounter Ice Maker, Cube-Style, 39-1/2"W, air-cooled, self-contained condenser, production capacity up to 188 lb/24 hours at 70°/50° (150 lb AHRI certified at 90°/70°), 75 lb built-in storage capacity, stainless steel finish, individual square cube style, Evercheck™ digital control with LED display, alert system, removable filter, 6" legs, R404 refrigerant, 115v/60/1-ph, 7.5 amps, NEMA 5-15P, NSF, cETLus, UL

Manufacturer	Hoshizaki
Model Number	IM-200BAC
Weight	210 lbs
Width	39.5″
Depth	23.63″
Height	33.5″
Condenser Type	air-cooled
Ice Type	full cube
Special Features	gravity drain, digital controls
Finish	stainless steel
Voltage	115
Refrigerant Type	R-404A
Phase	1
Production per 24 hr (Lbs)	188
Bin storage capacity (Lbs)	75
