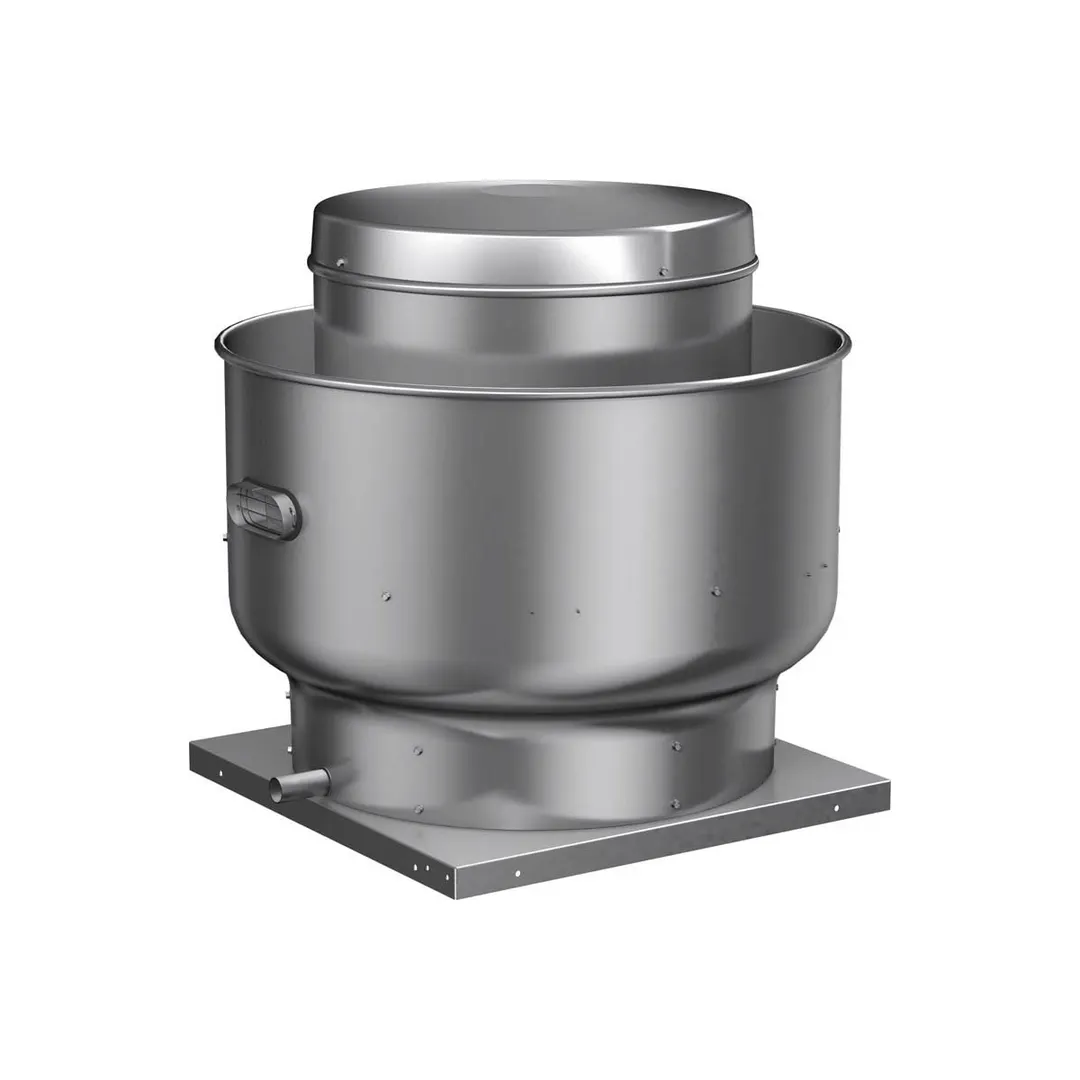

Accurex Vari-Green Direct Drive Upblast Exhaust Fan, Alum, 14700 Cfm
Features And Benefits

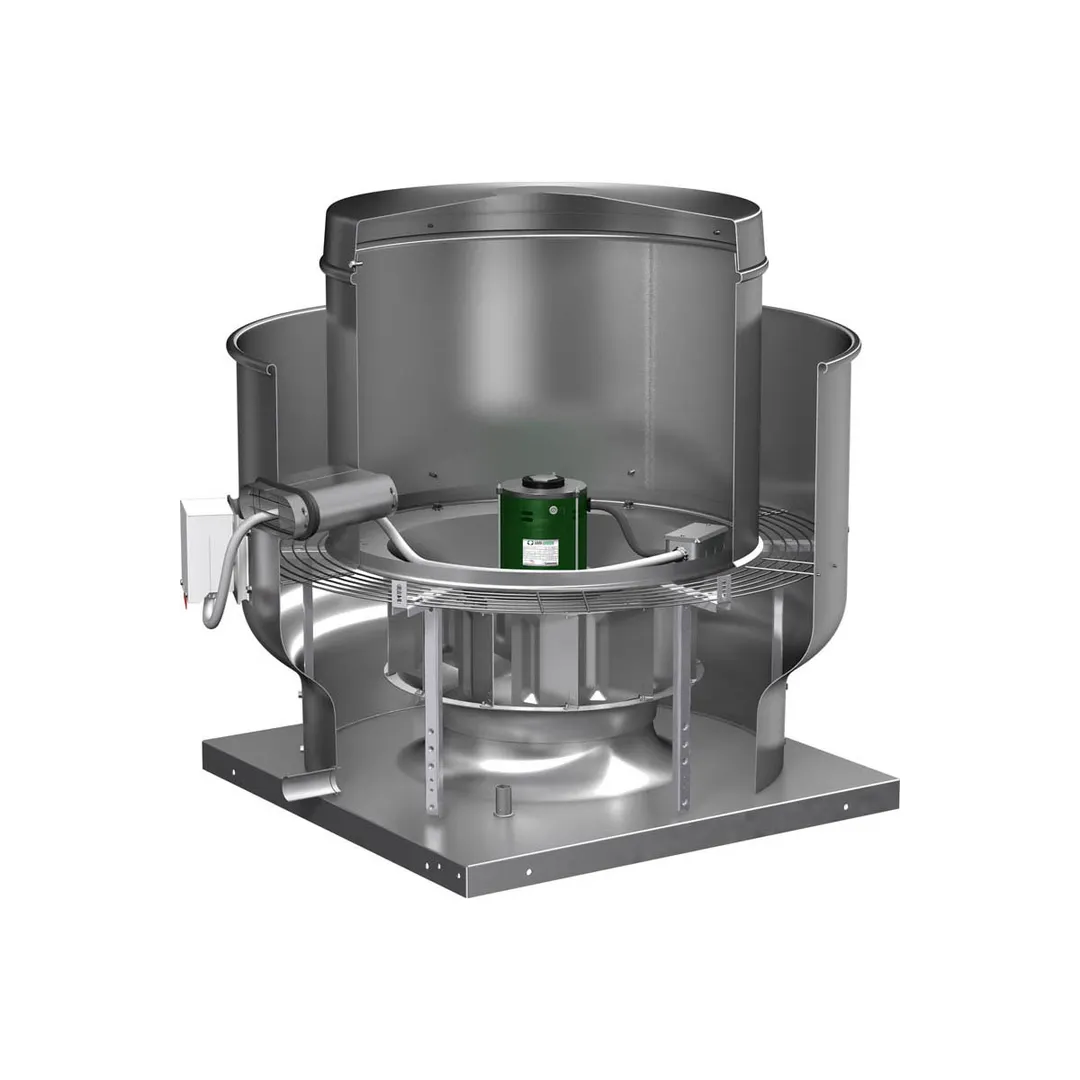

- Quiet efficiency : An aluminum, backward-inclined centrifugal wheel generates high-efficiency and minimal sound. Matched to the venturi for maximum efficiency, each wheel is robotically welded and statically and dynamically balanced for long life and quiet operation
- Prewired switches : NEMA-3R disconnect switch is factory mounted and wiring is provided from the motor as standard (other switches are available)
- Clean motor : Motor is carefully matched to the fan load and mounted out of the airstream to avoid grease build up
- Easy motor access : Motor cover constructed of aluminum with stainless steel fasteners attached for easy removal and access to the motor compartment and drive assembly
- Easy maintenance : Stainless steel fasteners allow for easy removal and access to the motor compartment and drive assembly
- Maximum motor life : Cooling fins draw outside air directly into the motor compartment; this positive motor cooling with fresh air results in maximum motor life
- Easy lift : Select models have various lifting points located on the drive frame or bearing plates
- Reduced noise and vibration : True vibration isolators contain two independent studs with rubber neoprene to support the drive assembly and wheel for long life and quiet simple system operation—no steel-on-steel contact

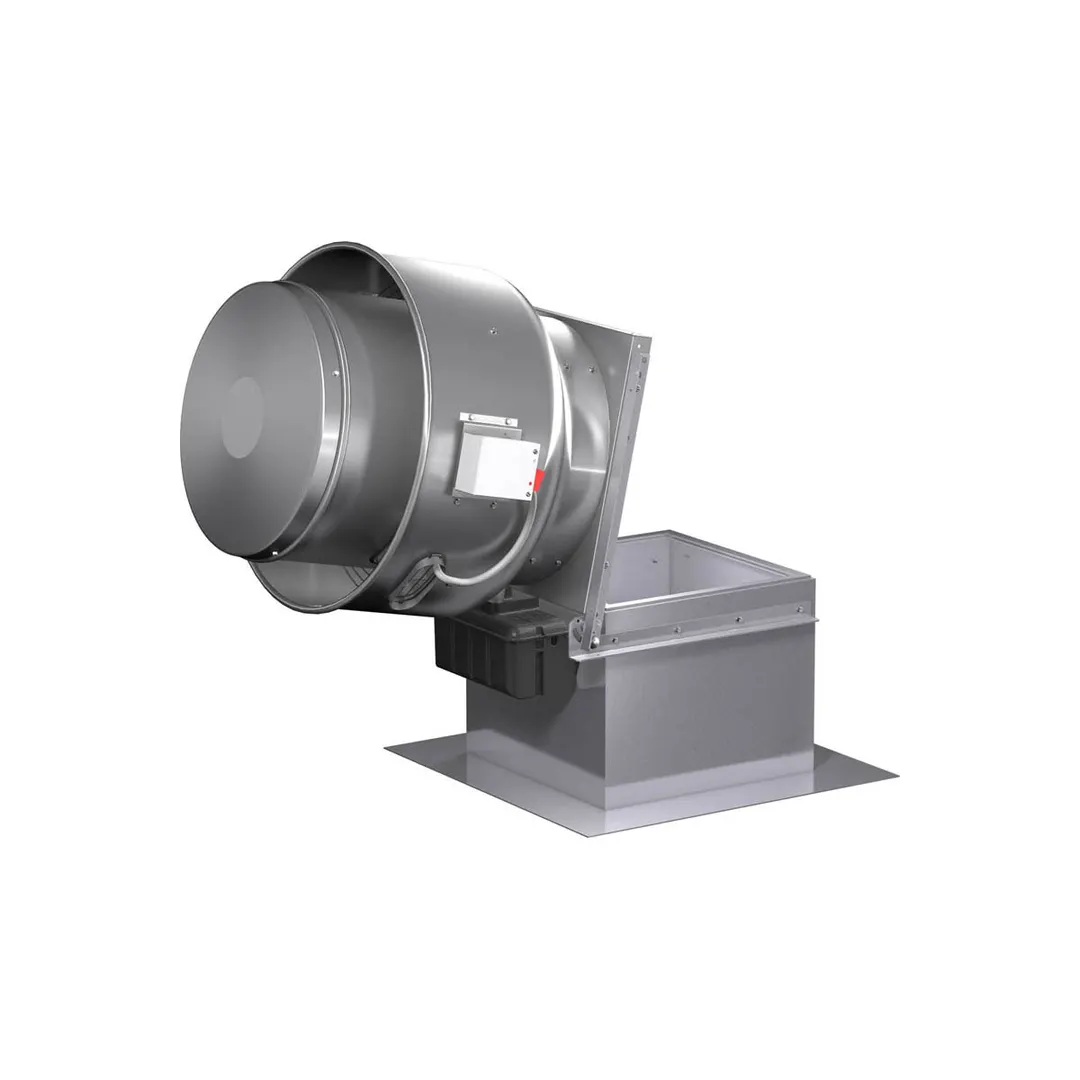

- Simple system balancing : Select the Greenheck Vari-Green® motor with integrated balancing pot or add our low cost speed controller to quickly balance your system at start-up
- Protection : One-piece, heavy-gauge aluminum windband, with a rolled bead for extra strength, directs exhaust air away from the mounting surface
- Leak-proof : One-piece windband is continuously welded to the curb cap and drain trough for grease leak-proof protection
- Easy mounting : Aluminum curb cap has pre-punched mounting holes to ensure correct attachment to the roof curb
- Single-point drain system : The drain-trough allows for one-point drainage of water, grease and other residue
From The Manufacturer
Model: XCUE-160-VG
Performance:
Volume (CFM):
SP (in. wg):
FRPM (RPM):
Motor Power (hp):
Operating Power (hp):
Voltage:
Phase:
Hertz: 2,700
1.3
1393
2
1.01
208
3
60 Cycle
Configuration:
Direct Drive Fan
Motor - High Efficiency Brushless DC - 2 hp , TEFC, 208/60/3, 1725 rpm - Factory Mounted
Motor - Vari-Green EC motor
Control - 0-10VDC Input
UL/cUL 762 Listed - "Power Ventilators for Rest. Exh. Appliances"
Switch, NEMA-3R, Toggle, Shipped with Unit
Junction Box Mounted & Wired
Hinge, Factory Installed
Grease Trap (PN 475538)
Unit Warranty: 1 Yr (Standard)
Accessories:
High Temp Curb Seal Rated for Continuous Duty at 1500 F (Factory Attached)
Model: GPI-26-G22
Dimension:
Tag Quantity Width Length Height
KEF - 1, Roof Curb 1 26 26 22
Configuration:
Flat Roof, Welded with Insulation
Material - Galvanized
Nominal Curb Size
Model: XMSF-P115-H20-VG
Performance:
Volume (CFM):
SP (in. wg):
FRPM (RPM):
Motor Power (hp):
Operating Motor Power (hp):
Voltage/Hertz/Phase: 2,160
0.5
1514
1
0.686
115/60/1
Configuration:
Air Flow Arrangement: Outdoor Air Only
Weatherhood: Aluminum Mesh, 21x21x1 - (2)
Damper: Inlet
Outdoor Air Intake Position: End
Discharge Position: Bottom
Coating: Galvanized
Insulation: None
Access Side: Right-Hand
Unit Warranty: 1 Yr (Standard)
Model: TAP-GPI
Dimension:
Tag Quantity Width Length Height
MUA - 1, Roof Curb 1 22.6 40.6 12
Configuration:
Surface Mounted Sound Curb
Material - Galvanized
Nominal Curb Size
Images are for reference. Color, configuration, dimensions and what's included vary by model.
