Precise Gas Control for Commercial Kitchens

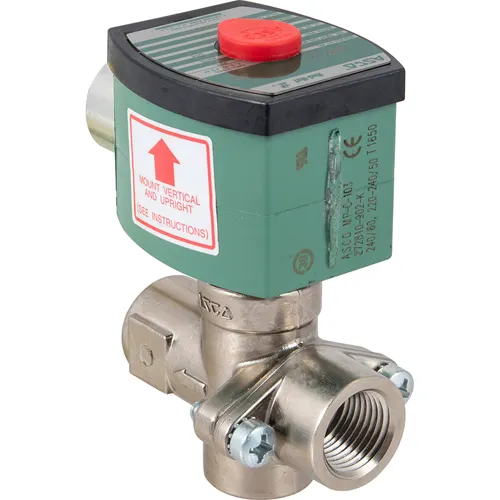

The AllPoints 8405486 solenoid valve delivers reliable, nickel‑plated brass control for gas lines, keeping your kitchen’s burners operating safely and efficiently.
Key Features
- 1/2" NPT inlet and outlet provide standard brass connections for easy installation.
- Nickel‑plated finish resists corrosion in high‑heat commercial environments.
- Normally‑closed design operates at 240 V AC, 20.1 W, ensuring fail‑safe shutoff.
- Compact dimensions – Depth 3‑1/2" (89 mm), Height 4‑3/8" (111 mm), Width 2‑1/16" (52 mm).
- UL listed and rated for up to 15 psi, supporting safe gas pressure control.
From The Manufacturer
Solenoid Valve 1/2" Npt Inlet And Outlet, Depth: 3-1/2", Depth: 89Mm, Height: 4-3/8", Height: 111Mm, Length: 6Ftwire, Leads, Length: 1.8Mwire Leads, Material: Brass, National Pipe, Taper: 1/2"Inlet And Outlet, Plating: Nickel-Plated, Pressure: 15Psimaximum, Temp Range: 192 Maximumc, Temp Range:, 380 Maximumf, Terminals: Wire Leads, Product Type: Normally, Closed, Ul Listed: Y, Voltage: 240V Ac, Wattage: 20.1 W, Weight: 2.065Lb, Width: 2-1/16", Width: 52Mm,
Images show the product series. Color, configuration, included items and accessories vary by model.
