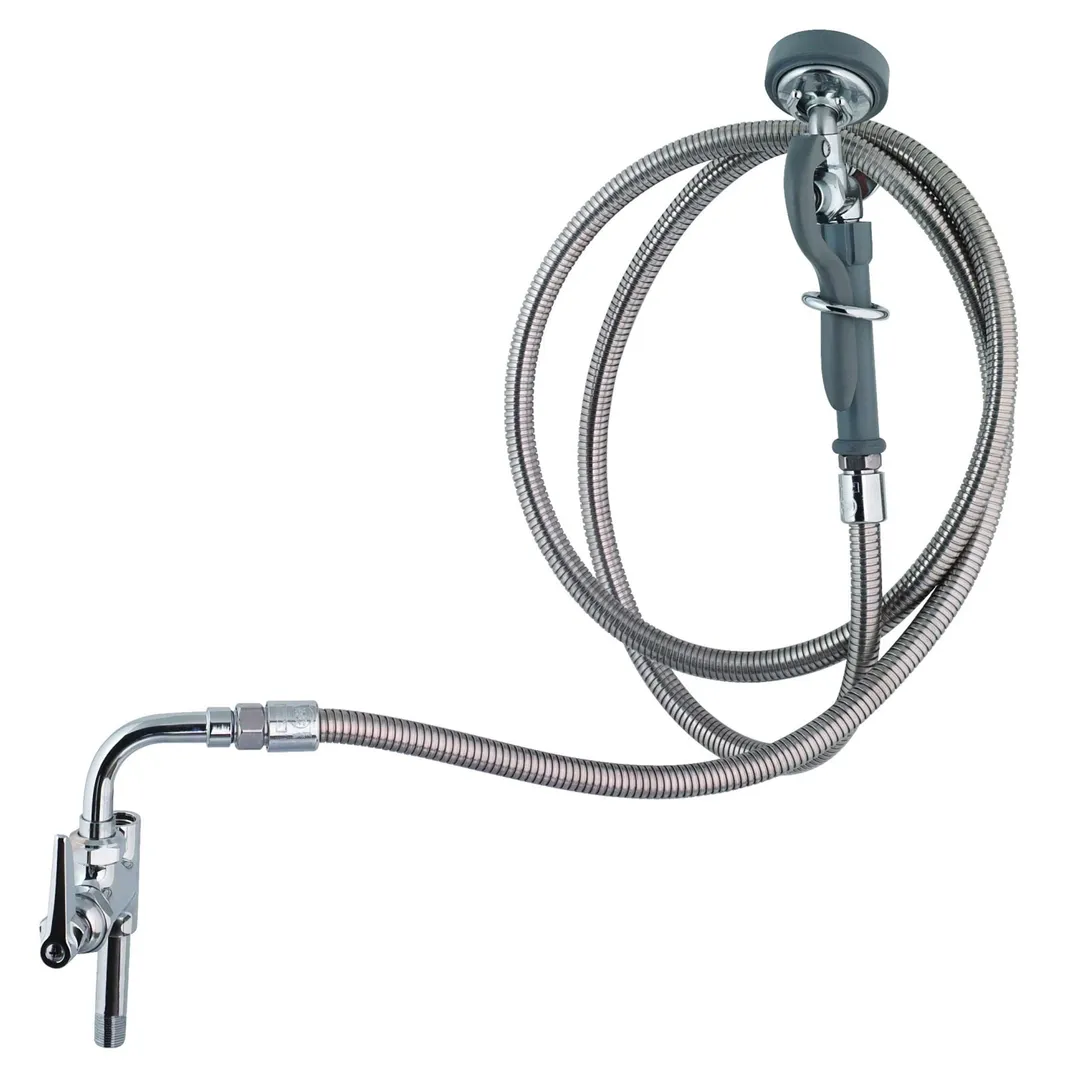

T&S Brass B-0165 Pre-Rinse Accessories: Washdown Hose Unit
General Info
The B-0165, Washdown hose unit with polished chrome plated brass body, compression cartridge with spring check, lever handle, 104" flexible stainless steel hose with heat resistant handle, 90 swivel adapter arm, 1.15 GPM angled spray valve and hanger hook.
T&S Brass B-0165 Features
- Washdown hose unit w/ polished chrome plated brass body
- 104” flexible stainless steel hose w/ heat resistant gray handle and hold down ring
- 90 swivel adapter arm
- 1.42 GPM angled spray valve
- Quarter-turn Eterna compression cartridge with spring check
- Lever handle w/ color coded index
- Hose hanger hook
- 3/8" NPT female outlet
- 3/8" NPT male inlet
- Material: Polished chrome plated brass body, swivel arm & spray valve body, stainless steel hose and chrome plated metal handle
T&S Brass B-0165 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 1.42 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Spray Assembly & Utility hose, for use with Pre-Rinse Units, diverter valve, 8 ft. flexible stainless steel hose, angle spray valve with auto shut off, hanger hook, operate from same line as pre-rinse
