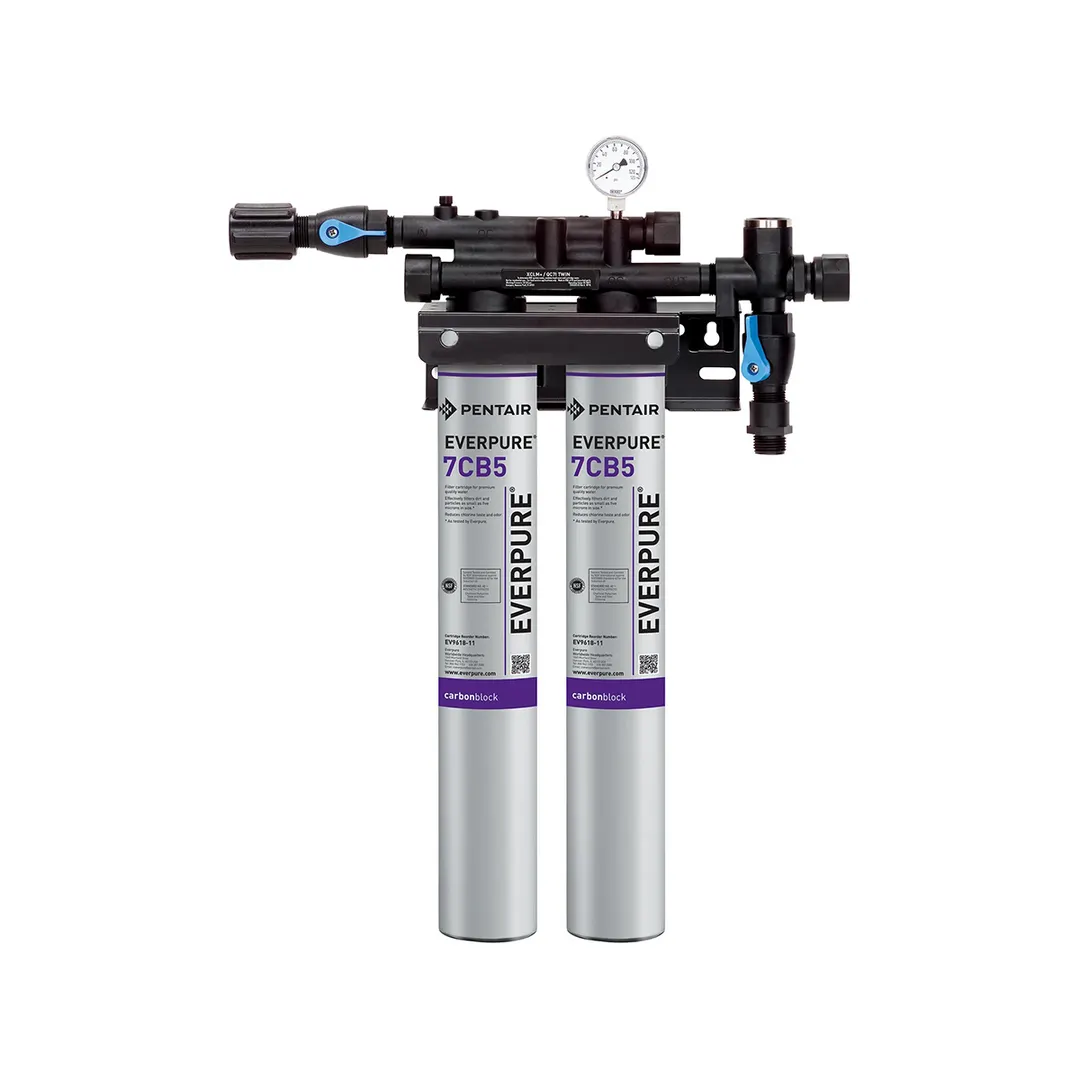

Cleveland FLT0043 High Hardness Water Filter, Above 170 Ppm
Standart Features
- A total system delivering high quality filtered water with cleaning and deliming capabilities
- Filters incoming water to improve the performance, maximize energy efficiency and increase the life of steam equipment
- Dual cartridge design provides enhanced performance for low or high flow capacity steamers and flexibility for expanding to meet future needs
- Reduces chlorine-induced corrosion
- System is simple to install, operate and maintain
- Service Flow Rate: Maximum 2.5 gpm (9.5 Lpm) single cartridge Maximum 5.0 gpm (18.9 Lpm) dual cartridge
Installation & Operating Tips
- Choose a mounting location suitable to support the full weight of the system when operating.
- Use minimum 1/2" inlet water line (3/4" preferred).
- Connect the system to the boiler water only. Do not connect system to the condenser.
- Install vertically with cartridges hanging down.
- Allow 21⁄2" (6.35 cm) clearance below the cartridge for easy cartridge replacement.
- Flush cartridges by running water through system for five (5) minutes at full flow.
- Change Cartridge on a regular six (6) month preventative maintenance program, when capacity is reached or when pressure falls below 10 psi (0.7 bar).
- Service flow rate must not exceed 2.5 gpm (9.46 Lpm) for single cartridge systems or 5.0 gpm (18.92 Lpm) for dual cartridge systems.
- Always flush the filter cartridge at time of installation and cartridge change.
From The Manufacturer
High Hardness water filter, above 170 PPM
