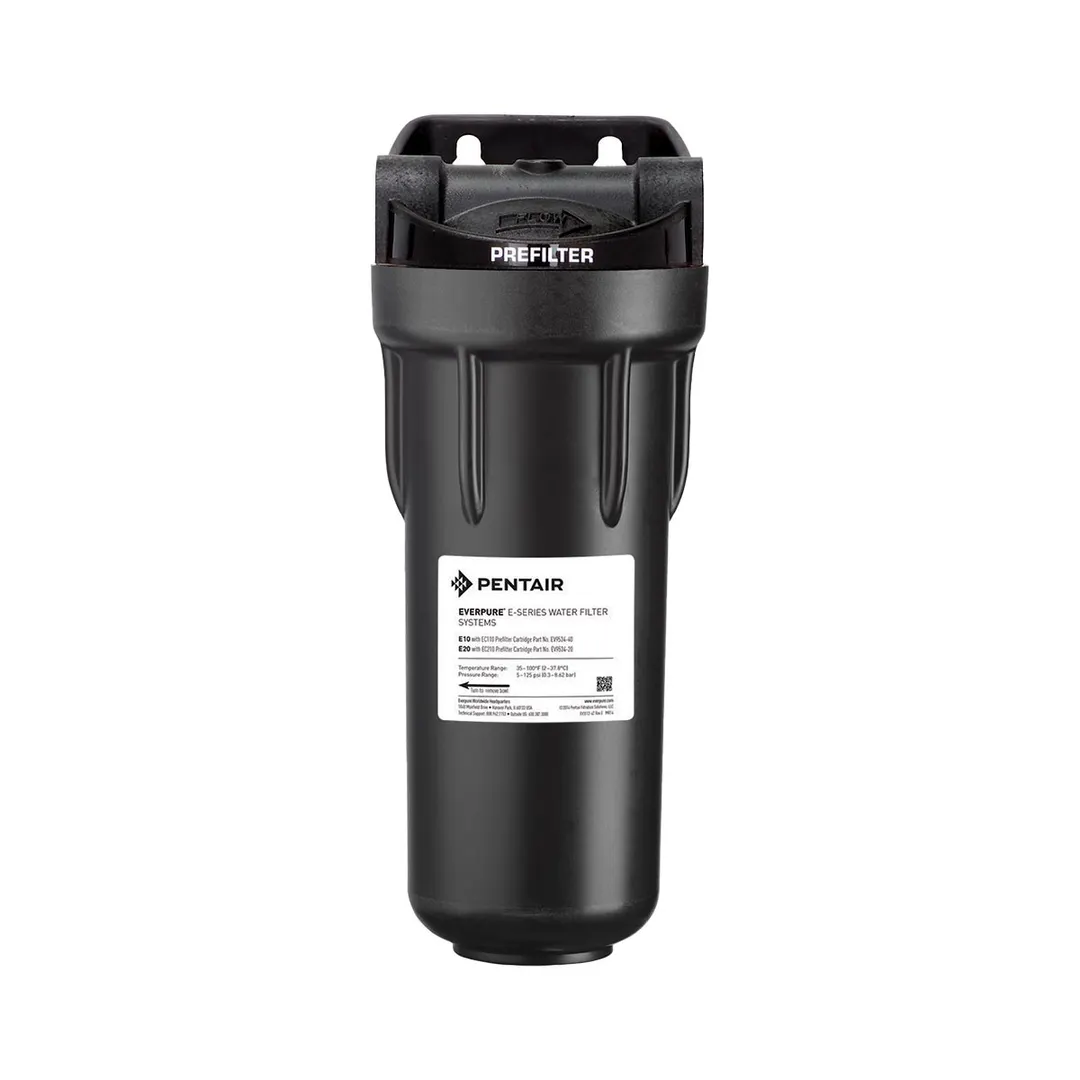

Everpure EV979580 E-Series 10" Prefilter System with 10.0 Micron and 4.0 GPM, 3/4" Inlet, 3/4" Outlet
Features And Benefits
- Filters out larger dirt and rust particles
- Durable slim bowl design makes cartridge change outs easy to handle
- Extends the life of primary filter cartridges 10" bowl design accepts most 10" drop in cartridges
- Tightly spun Everpure EC110 sediment cartridge delivers 10-micron nominal filtration
Installation Tips
- Choose a mounting location suitable to support the full weight of the system when operating.
- Make sure to properly lubricate o-ring prior to use.
- Use 3/4" water line (optional reducer bushings included).
- Install vertically with bowl hanging down.
- Allow 2 ½" (6.35 cm) clearance below the cartridge for easy cartridge replacement.
Operation Tips
- Inspect Everpure EC110 Cartridge periodically to determine dirt load.
- Replace Everpure EC110 Cartridge wher dirt has penetrated through to the inner core of the cartridge.
- Do not exceed service flow rate.
- Inspect o-ring during each cartridge change. Lubricate and/or replace if necessary.
From The Manufacturer
E-SERIES 10" Prefilter System, E-SERIES 10", (1) Everpure® E-SERIES 10" course prefilter, 4.0 gpm, 3/4" inlet, 3/4" outlet
