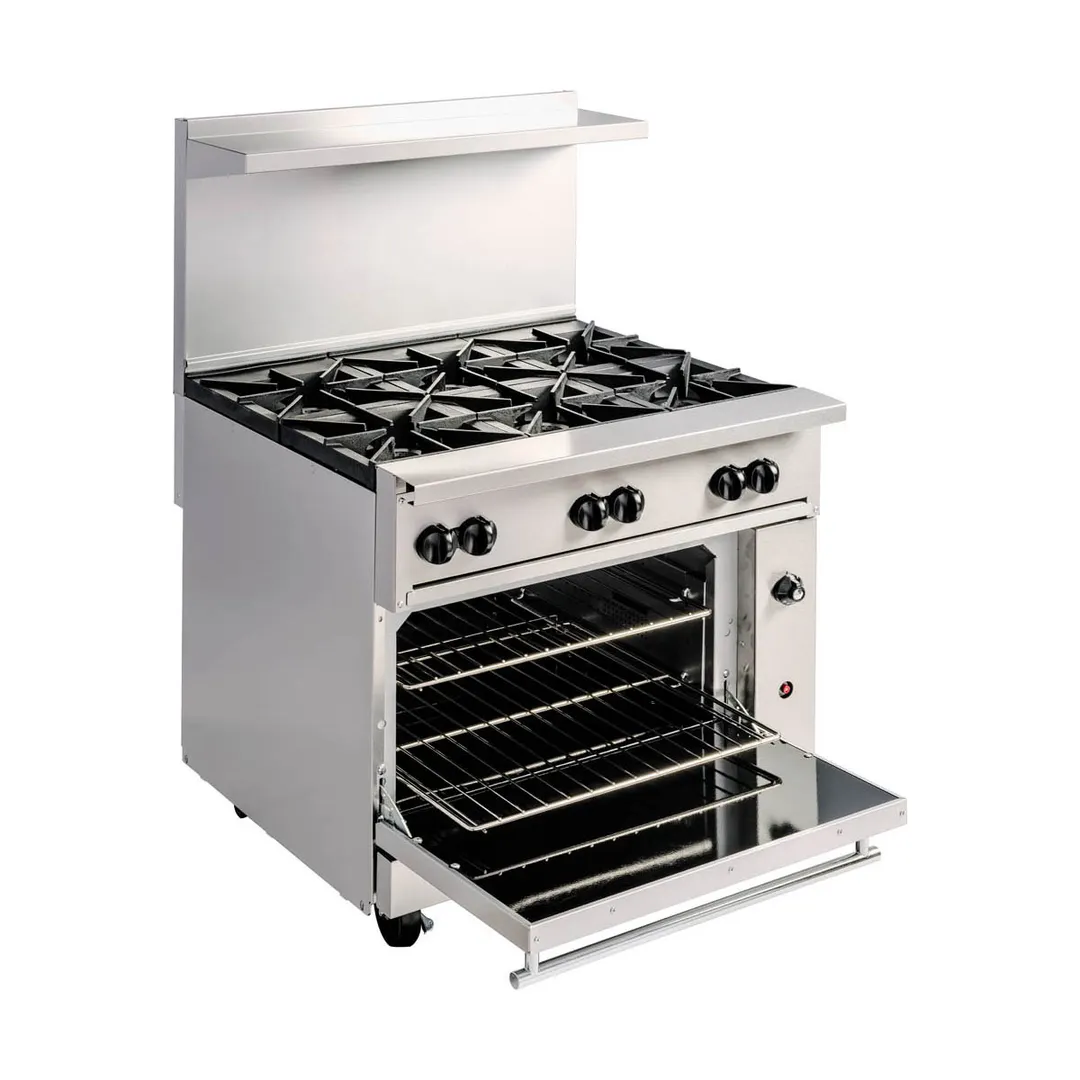

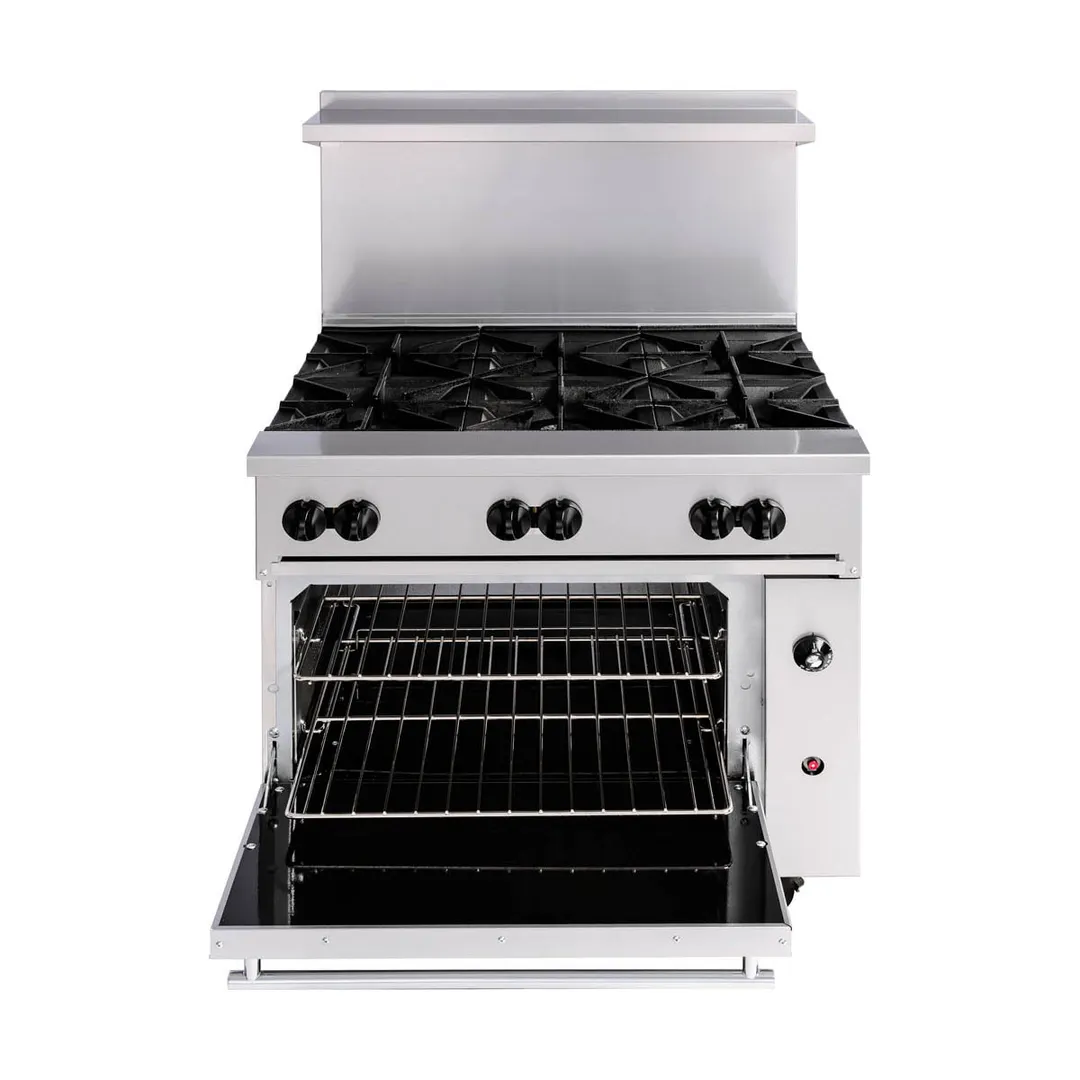

Vulcan CHALLENGER XL GAS RESTAURANT RANGE 6 OPEN BURNERS 36" WIDE GAS RANGE
36" wide gas restaurant range, Wolf Challenger XL Model
No. C36S-6BN. Fully MIG welded aluminized steel frame
for added durability. Stainless steel front, sides, backriser,
highshelf and 6" adjustable legs. Extra deep crumb tray with
welded corners. Six 30,000 BTU/hr. open top burners with liftoff burner heads. Energy saving flashtube open burner ignition
system (one pilot for every two burners) shrouded for reliability.
Heavy duty cast grates, easy lift-off 12" x 12 1⁄2" in the front
and 12" x 14 1⁄2" in the back to better accommodate stock pots
or large pans. Grates have a built in aeration bowl for greater
efficiency. Burner knobs are cool to the touch, high temperature
material. One oven: 35,000 BTU/hr. standard bakers depth
ovens with porcelain oven bottom and door panel, measures
27"d x 26 3⁄8"w x 14"h. Oven thermostat adjusts from 250°F
to 500°F with a low setting. Oven is supplied with two racks,
two rack guide sets, and four rack positions. Oven door is
heavy duty with an integrated door hinge/spring mechanism
requiring no adjustment. 3⁄4" rear gas connection and pressure
regulator. Total input 215,000 BTU/hr.
C36S-6BN: 1 Standard Oven / Natural Gas
C36S-6BP: 1 Standard Oven / Propane
C36C-6BN: 1 Convection Oven / Natural Gas
C36C-6BP: 1 Convection Oven / Propane
Fully MIG welded frame
Stainless steel front, sides, backriser, lift-off high shelf
6" stainless steel adjustable legs
Six open top burners, each burner is 30,000 BTU/hr.
with lift-off burner heads
Shrouded flash tube pilot system (one pilot per
Heavy duty cast grates, easy lift-off 12" x 121⁄2" in front
and 12" x 141⁄2" in the rear
Extra deep pull out crumb tray with welded corners
35,000 BTU/hr. baker’s depth standard oven cavity.
Full size sheet pans fit side-to-side or front-to-back.
Oven thermostat adjusts from 250°F to 500°F
Two oven racks and four rack positions
35,000 BTU/hr. convection oven in place of standard oven,
24"d x 26 3⁄8"w x 13 7⁄8"h (115v - 1 phase blower motor
4 amp, 6' cord and plug), includes three oven racks. Full
size sheet pans only fit side-to-side in convection oven.
Convection oven motor requires field attachment.
