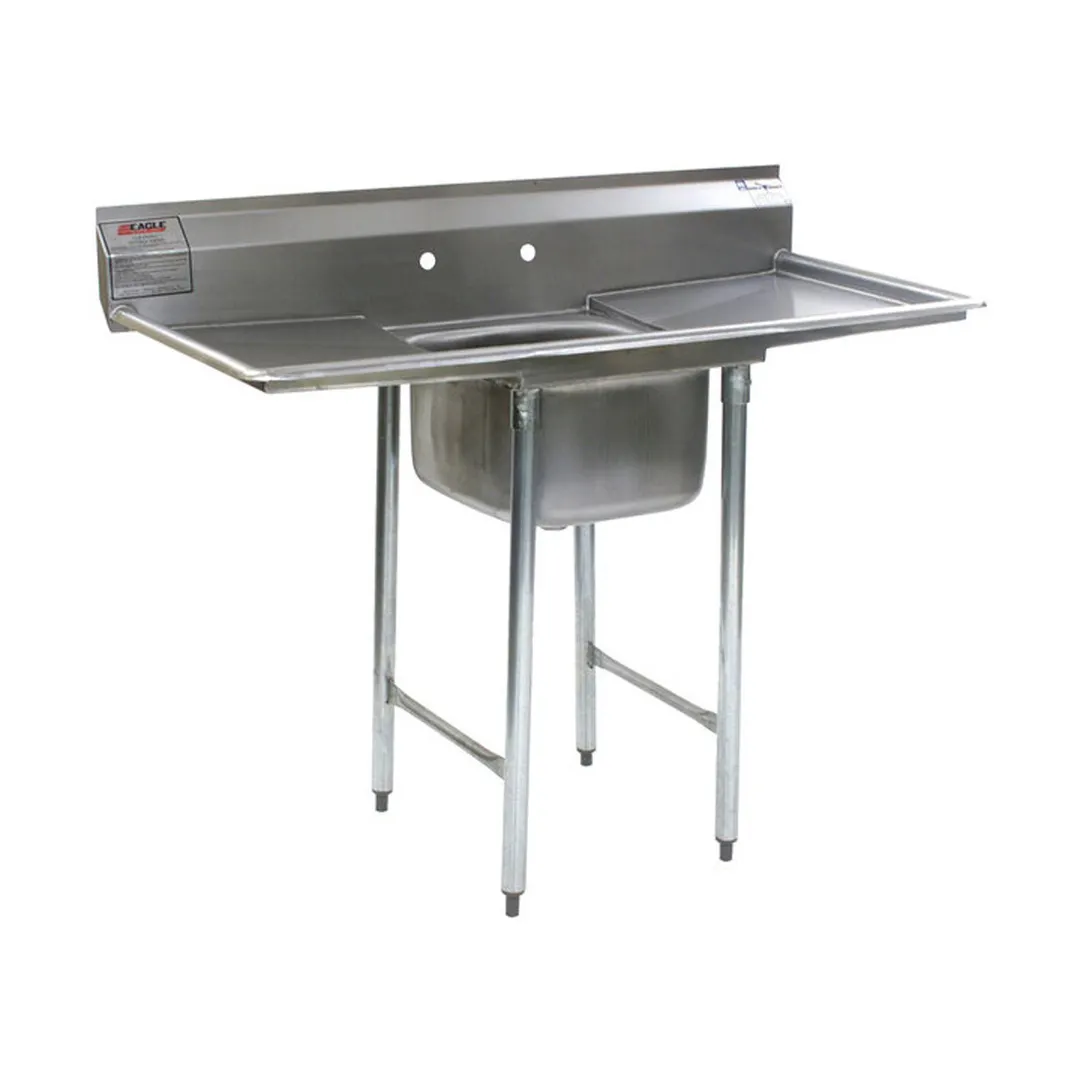

Name: Eagle Group 2424-1-24-16/3 72" One Compartment Sink, 24"W x 24"L Bowl With 2 Drainboards
Brand: Eagle Group
SKU: EAG-2424-1-24-16/3
Price: 1670.44 USD
Availability: InStock

Eagle Group 72" (1) One Compartment Sink-24"W x 24"L Bowl, With 2 Drainboards

Design and Construction Features

Entire assembly is fuse welded and planished, pro vid ing a one-piece seamless sink unit.
34 1⁄2˝ to 35 1⁄2˝ (876 to 902mm) working height.

Top

All partitions have euro-style front edge.
8˝ (203mm) splash features 2˝ (51mm) return to wall on 45° angle, with 1˝ (25mm) upturn.
1 1⁄8˝ (29mm) faucet holes punched on 8˝ (203mm) centers.

Legs

1 5⁄8˝ (41mm)-diameter heavy-gauge galvanized tubing.
High-impact cor ro sion-resistant 1˝ (25mm) ad just able bullet feet.
Leg locations fall directly under sink bowl, providing increased stability and maximum weight support.

Sink Bowl

13 3⁄8˝ (340mm)-deep compartment.
12-gauge leg gussets welded to a die-cut heavy-gauge reinforcing plate underneath sink bowl.
Drain hole is 3 1⁄2˝ (89mm)-diameter, recessed, and complete with 1 1⁄2˝ (38mm) IPS basket-type waste drain, which is shipped loose.

From The Manufacturer

Utility Sink, one compartment, 72-1/4"W x 28"D, 16/304 stainless steel construction, 24" x 24" x 13-3/8" deep compartment, 24" drainboards on left & right, 8"H backsplash with 1" upturn, 8" OC splash mount faucet holes, 2" euro-style front edge & rolled side edges, includes 3-1/2" basket drain, galvanized legs with adjustable plastic bullet feet

Manufacturer	Eagle Group
Model Number	2424-1-24-16/3
Weight	108 lbs
Width	72.25″
Depth	28″
Height	43.5″
Compartment (front - back)	24"
Compartment Width (side - side)	24"
Drainboards	with left & right-hand drainboards
Base Type	legs
Base Construction	galvanized
Splash Height	8"
Top Gauge	16 gauge
Top Stainless Series	300 series
Sink Depth (rim - drain)	13-3/8"
Certifications	Made in USA

	Eagle Group 2424-1-24-16/3 72" One Compartment Sink, 24"W x 24"L Bowl With 2 Drainboards	Eagle Group 2424-1-24-16/4 72" One Compartment Sink, 24"W x 24"L Bowl With 2 Drainboards	Eagle Group 2472-3-24-16/3 120" Three Compartment Sink, 24"W x 24"L Bowl With 2 Drainboards	Eagle Group 2472-3-16/3-1X 73" Three Compartment Sink, 24"W x 24"L Bowl Without Drainboard	Eagle Group 2424-1-16/3 25" One Compartment Sink, 24"W x 24"L Bowl Without Drainboards	Eagle Group 2448-2-24-16/3 96" Two Compartment Sink, 24"W x 24"L Bowl With 2 Drainboards	Eagle Group 2472-3-16/3 73" Three Compartment Sink, ,24"W x 24"L Bowl Without Drainboard	Eagle Group 2472-3-24-16/4 120" Three Compartment Sink, 24"W x 24"L Bowl With 2 Drainboards	Eagle Group 2124-1-18-16/3 60" One Compartment Sink, 24"W x 21"L Bowl With 2 Drainboards
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping
Certifications	CertificationsMade in USA	CertificationsMade in USA	CertificationsMade in USA	CertificationsMade in USA	CertificationsMade in USA	CertificationsMade in USA	CertificationsMade in USA	CertificationsMade in USA	CertificationsMade in USA
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)72.25	WIDTH (SIDE - SIDE)72.25	WIDTH (SIDE - SIDE)120.25	WIDTH (SIDE - SIDE)73.38	WIDTH (SIDE - SIDE)25.38	WIDTH (SIDE - SIDE)96.25	WIDTH (SIDE - SIDE)73.38	WIDTH (SIDE - SIDE)120.25	WIDTH (SIDE - SIDE)60.25
Manufacturer	ManufacturerEagle Group	ManufacturerEagle Group	ManufacturerEagle Group	ManufacturerEagle Group	ManufacturerEagle Group	ManufacturerEagle Group	ManufacturerEagle Group	ManufacturerEagle Group	ManufacturerEagle Group
Splash Height	Splash Height8"	Splash Height8"	Splash Height8"	Splash Height8"	Splash Height8"	Splash Height8"	Splash Height8"	Splash Height8"	Splash Height8"
Drainboards	Drainboardswith left & right-hand drainboards	Drainboardswith left & right-hand drainboards	Drainboardswith left & right-hand drainboards	Drainboardswithout drainboards	Drainboardswithout drainboards	Drainboardswith left & right-hand drainboards	Drainboardswithout drainboards	Drainboardswith left & right-hand drainboards	Drainboardswith left & right-hand drainboards
Base Construction	Base Constructiongalvanized	Base Constructiongalvanized	Base Constructiongalvanized	Base Constructiongalvanized	Base Constructiongalvanized	Base Constructiongalvanized	Base Constructiongalvanized	Base Constructiongalvanized	Base Constructiongalvanized
Base Type	Base Typelegs	Base Typelegs	Base Typelegs	Base Typelegs	Base Typelegs	Base Typelegs	Base Typelegs	Base Typelegs	Base Typelegs
Overall Length	Overall Length70" - 79"	Overall Length70" - 79"	Overall Length120" - 124"	Overall Length70" - 74"	Overall Length20" - 29"	Overall Length95" - 99"	Overall Length70" - 74"	Overall Length120" - 124"	Overall Length60" - 69"
Top Gauge	Top Gauge16 gauge	Top Gauge16 gauge	Top Gauge16 gauge	Top Gauge16 gauge	Top Gauge16 gauge	Top Gauge16 gauge	Top Gauge16 gauge	Top Gauge16 gauge	Top Gauge16 gauge
Top Stainless Series	Top Stainless Series300 series	Top Stainless Series400 series	Top Stainless Series300 series	Top Stainless Series300 series	Top Stainless Series300 series	Top Stainless Series300 series	Top Stainless Series300 series	Top Stainless Series400 series	Top Stainless Series300 series
Compartment Width (side - side)	Compartment Width (side - side)24"	Compartment Width (side - side)24"	Compartment Width (side - side)24"	Compartment Width (side - side)24"	Compartment Width (side - side)24"	Compartment Width (side - side)24"	Compartment Width (side - side)24"	Compartment Width (side - side)24"	Compartment Width (side - side)24"
Compartment (front - back)	Compartment (front - back)24"	Compartment (front - back)24"	Compartment (front - back)24"	Compartment (front - back)24"	Compartment (front - back)24"	Compartment (front - back)24"	Compartment (front - back)24"	Compartment (front - back)24"	Compartment (front - back)21"
Sink Depth (rim - drain)	Sink Depth (rim - drain)13-3/8"	Sink Depth (rim - drain)13-3/8"	Sink Depth (rim - drain)13-3/8"	Sink Depth (rim - drain)13-3/8"	Sink Depth (rim - drain)13-3/8"	Sink Depth (rim - drain)13"	Sink Depth (rim - drain)13-3/8"	Sink Depth (rim - drain)13-3/8"	Sink Depth (rim - drain)13-3/8"
Special Features	Special Features-	Special Features-	Special Features-	Special Featuresflyer	Special Features-	Special Features-	Special Features-	Special Features-	Special Features-

Manufacturer	Eagle Group
Model Number	2424-1-24-16/3
Weight	108 lbs
Width	72.25″
Depth	28″
Height	43.5″
Compartment (front - back)	24"
Compartment Width (side - side)	24"
Drainboards	with left & right-hand drainboards
Base Type	legs
Base Construction	galvanized
Splash Height	8"
Top Gauge	16 gauge
Top Stainless Series	300 series
Sink Depth (rim - drain)	13-3/8"
Certifications	Made in USA
