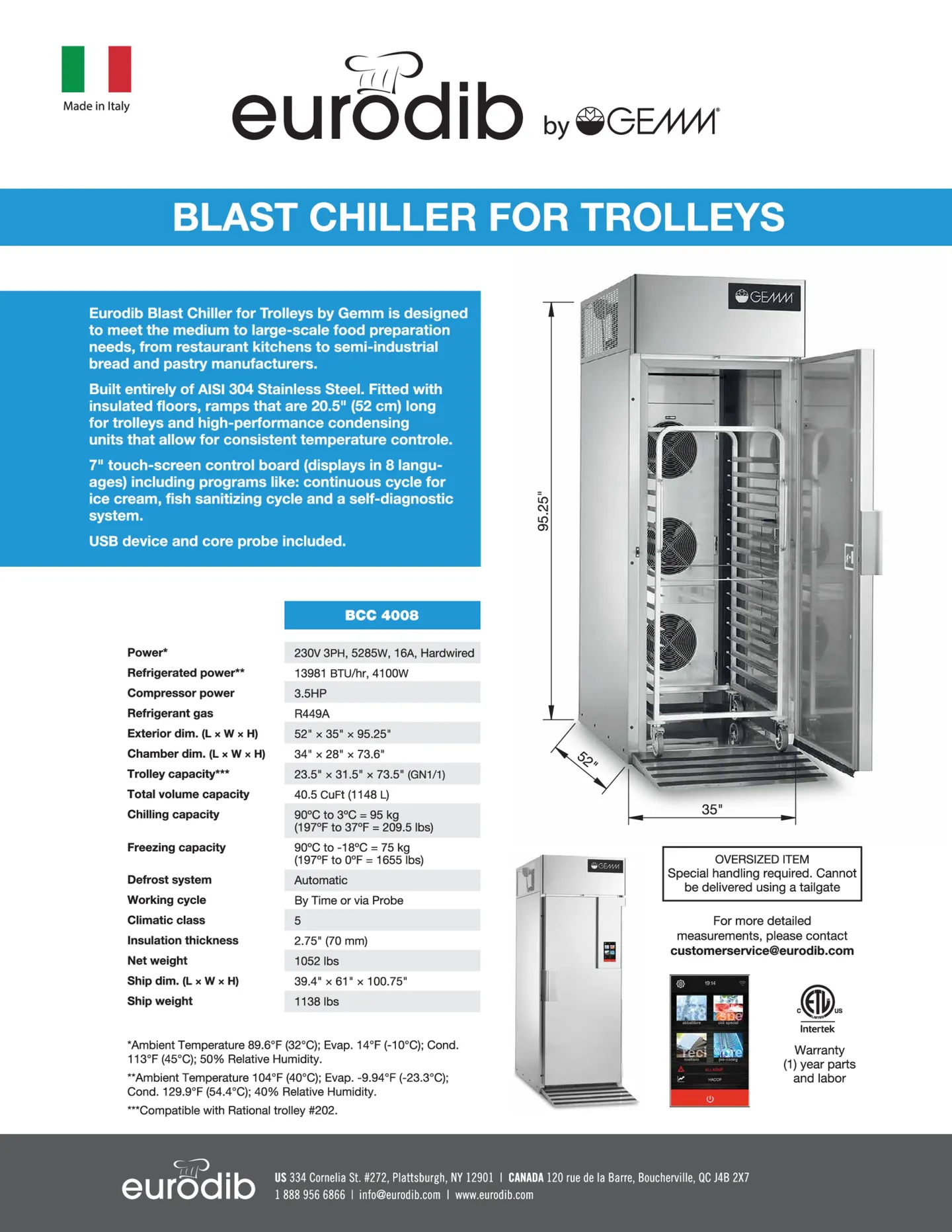

Eurodib Bcc4008 Gemm 52" Roll-in Blast Chiller/freezer Overview
GENERAL FEATURES
- Working cycle: by time or probe
- Core probe ("L" handle) included for core temperature control
- Automatic core probe detection: switch to probe mode
- Internal LED light
- Immediate fan interruption upon door opening
- Heated frame and threshold, three-chamber magnetic seal, compensation valve
- Internal stainless steel AISI 304 finish and rounded corners with R=15 mm
- Insulating panels (100 mm thick): injected with CFC and HCFC-free polyurethane foam of 42 Kg/m between two AISI 304 stainless steel sheets, with thermal transmittance of U=0.23 W/m2K
- Insulated (90 mm) and reinforced floor in 15/10 mm AlSI 304 stainless steel
- Suitable for recessed floor installation
- Standard ramp included (20.5")
INTERNAL FEATURES
- No. 1 vertical evaporator
- high thermal exchange coefficient
- Multi-circuit
- Anticorrosion cataphoresis treatment
- Air conveyors facilitate high performance without dehydrating products
- Evaporators equipped with no. 3 fans.Air speed: 0.7-7 m/s, variable through the control board. Air range for each evaporator: 10,500 m%/h
- Automatic defrost outside working cycles only
- Accessible evaporator wall to facilitate cleaning and maintenance
- Stainless steel bumper
CONTROL PANEL
- Hard/soft chilling and blast freezing
- Customize the parameters of each cycle: time, ventilation speed, temperature, etc.
- Create your own recipe book: save up to 100 different chilling/freezing cycles
- Special preset cycles: pre-cooling, ice cream hardening, room drying, fish sanitation
- Manual and automatic defrost
- Customized blast chilling cycle: create 4 distinct phases according to time, room temperature, product temperature and ventilation
- Automatic storage function and option to save the recipe at the end of each new cycle
- Preset recipes included
- Continuous diagnostic and alarm display
From The Manufacturer
Gemm® Commercial Blast Chiller/Freezer, reach-in, single section, self-contained, (15) 18" x 26" pan capacity, 209.5 lb. capacity (chilling) or 165.5 lb. capacity (freezing), 197°F to 37°F chilling, 197° to 0°F freezing, 7" touch screen control board, 8 language options, self diagnostic system, continuous & fish sanitizing cycles, auto defrost with pause, (1) solid hinged door, AISI 304 stainless steel interior & exterior, insulated floors, with 20-1/2" ramp, R449A, 3.5 HP, 5285 watts, 230v/60/3-ph, 16 amps, cord, hardwire, Made in Italy
