Garland US Range Freezer Base Equipment Stand

Standard Features

Stainless steel exterior front and sides
ABS interior door front and cabinet sides, stainless steel interior top, rear and bottom
Santoprene magnetic door gasket
Heavy-duty stainless steel drawer slides with stainless steel bearings.
Center located, flush mounted handle
Front face mounted scroll type thermometer
6" (152mm) mechanical with removable front panel for all refrigerant and electrical connections
6" (152mm) adjustable legs
Vertically mounted blower coil, HFC-404A refrigerant
Removable track assembly drawers with a 10 year warranty for parts
Standard drawers with mullion between drawers accommodates 12"x 20" x 4" deep hotel pans

Specifications

Stainless steel exterior front and sides. ABS interior door front and cabinet sides, and stainless steel interior top, rear and bottom. Santoprene magnetic door gasket. Galvanized steel bottom and back of base. CFC free foamed in place insulation. Removable stainless steel roller drawer assembly with self lubricating rollers. Roller assemblies carry a 10 year parts warranty. Standard drawers accommodate 12" x 20" x 4" deep hotel pans (GN 1/1 pans, 100mm deep for CE models). HFC-404A refrigerant refrigeration system supplied with electric condensate evaporator, solenoid and thermostat. Units must be hard-wired on site. Vertically mounted blower coil on inside cabinet. 6" (152mm) mechanical section for all refrigerant, and electrical connections. Units equipped with scroll type thermometer, (CE units have digital thermometer). 6" (152mm) adjustable legs standard.

From The Manufacturer

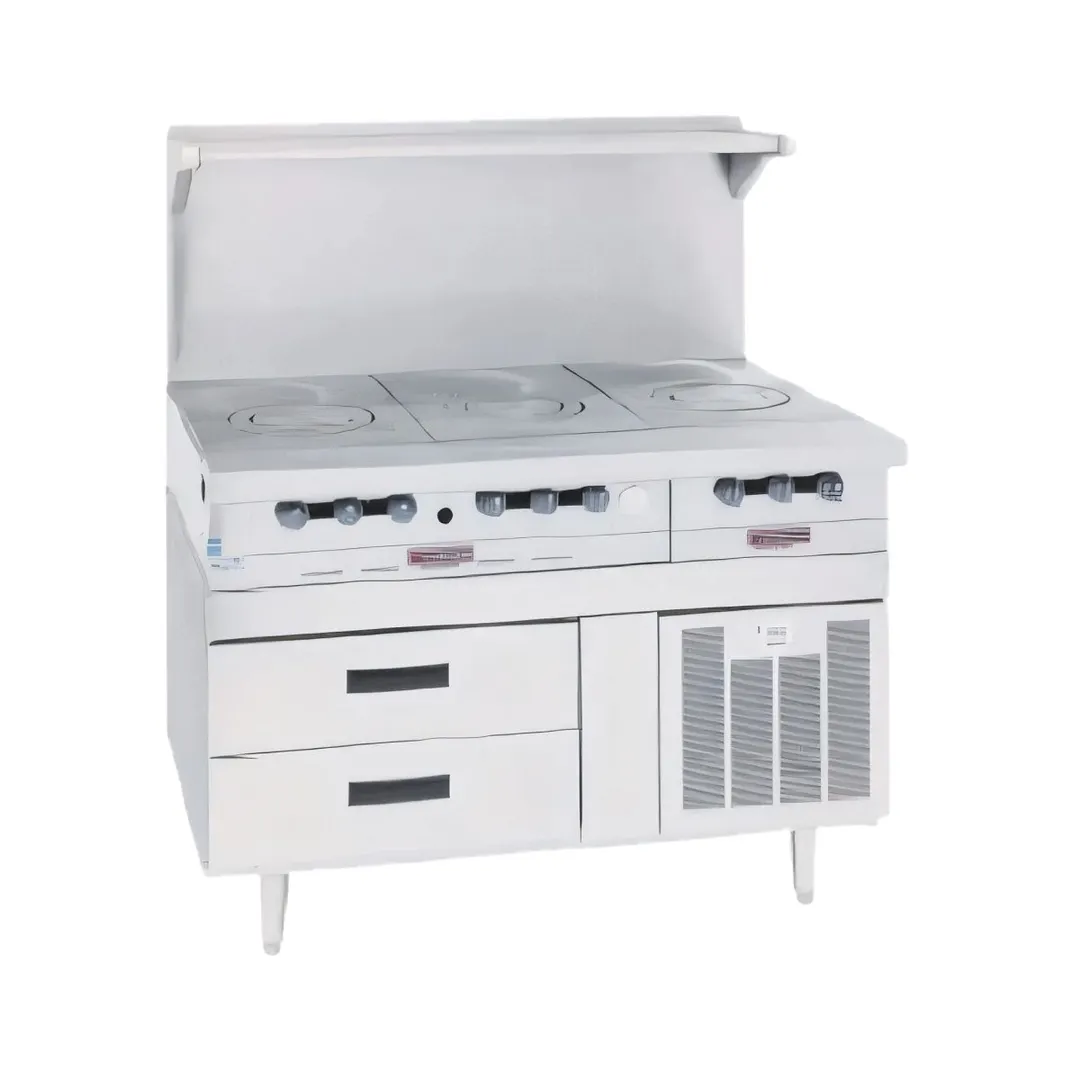

Arctic Fire Freezer Base, remote refrigeration, 46" W, one-section, (2) self-closing drawers with center pull handles, stainless steel exterior, 6" stainless steel legs (available only when ordered with Master Series modular cook tops) 115v/60/1-ph, 1.5 amps (Garland)

Manufacturer	Garland US Range
Model Number	GN17FR46
Weight	322 lbs
Width	46″
Depth	32.75″
Height	27″
Base Type	freezer
Size	1 section
Drawer Qty	2 drawers
Refrigeration	remote (refrigeration not included)
Compressor HP	1/3 HP
Exterior Finish	all stainless steel exterior
Top Finish	stainless steel top
Top Style	overhang, marine edge
Pan Capacity	(4) 12" x 20"
