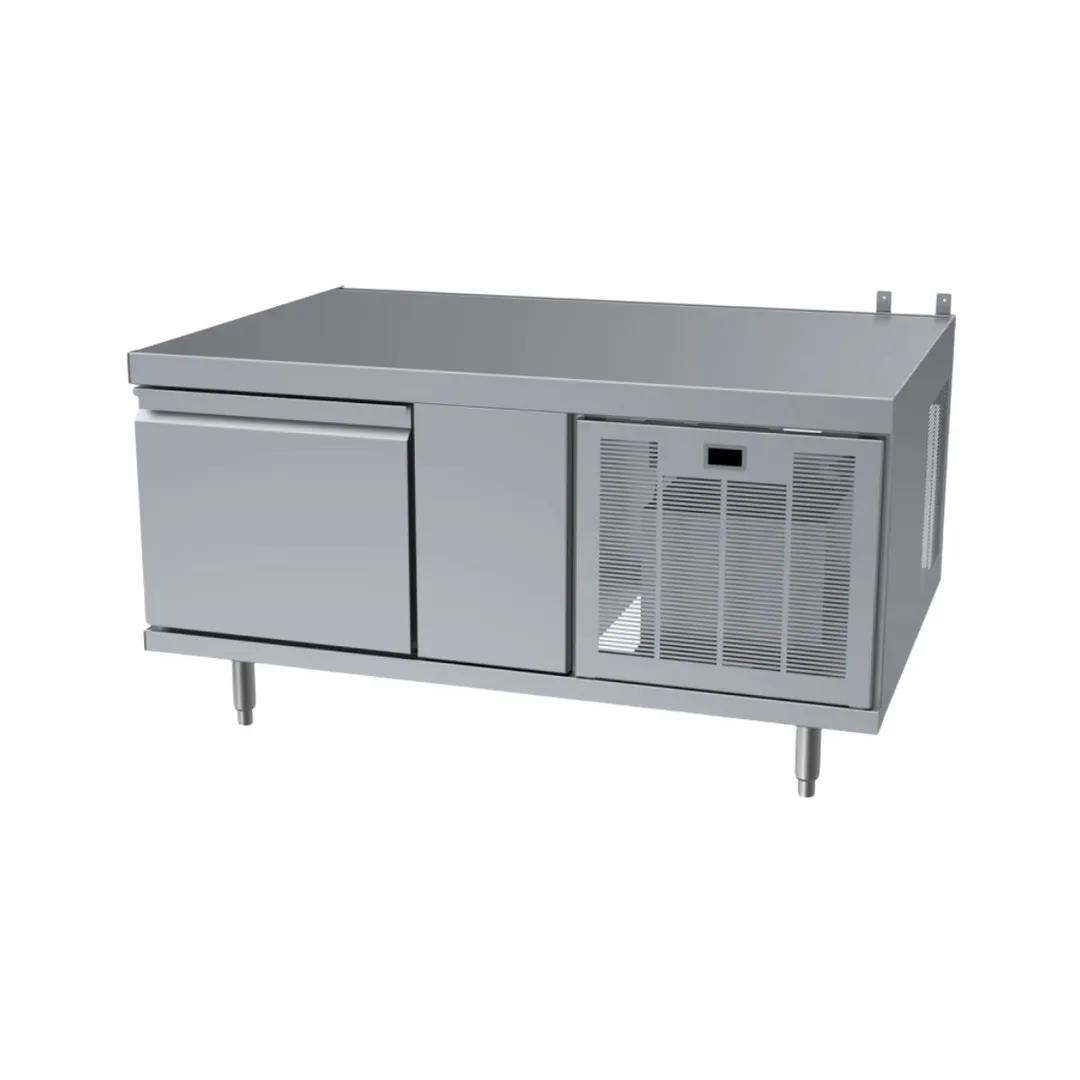

Garland US Range Freezer Base Equipment Stand

Standard Features

Stainless steel exterior front and sides
ABS interior door front and cabinet sides, stainless steel interior top, rear and bottom
6" (152mm) adjustable legs
Compressor housing located on right end of unit standard
Santoprene magnetic door gasket
Heavy-duty stainless steel drawer slides with stainless steel bearings.
Center located, flush mounted handle
Front face mounted scroll type thermometer
Compressor Tropicalized to 100° F (38°C)
5 year replacement parts compressor warranty; first year parts and labor
Removable track assembly drawers with a 10 year warranty for parts
Standard drawers with mullion between drawers accommodates 12"x 20" x 4" deep hotel pans
Vertically mounted blower coil, HFC404A refrigerant
Freezer units have electric condensate evaporator

Specifications

Stainless steel exterior front and sides. ABS interior door front and cabinet sides, and stainless steel interior top, rear and bottom. Santoprene magnetic door gasket. Galvanized steel bottom and back of base. CFC free foamed in place insulation. Removable stainless steel roller drawer assembly with self lubricating rollers. Roller assemblies carry a 10 year parts warranty. Standard drawers accommodate 12" x 20" x 4" deep hotel pans HFC-404A refrigerant refrigeration system supplied with condensate evaporator. 6' cord and plug (North American models only come with NEMA 5-15 plug.). Vertically mounted blower coil on inside cabinet. Units equipped with scroll type thermometer, 6" (152mm) adjustable legs standard.

From The Manufacturer

Polar Cuisine Freezer Base, self-contained refrigeration, 48" W, one-section, (2) 19" drawers, stainless steel exterior, 6" stainless steel legs (available only when ordered with Cuisine Series modular cook tops) 115v/60/1-ph, 8.2 amps, (U S Range)

Manufacturer	Garland US Range
Model Number	UN17FC48
Weight	340 lbs
Width	48″
Depth	32.75″
Height	26.19″
Base Type	freezer
Size	1 section
Drawer Qty	2 drawers
Refrigeration	self-contained, side mounted
Compressor HP	1/5 HP
Exterior Finish	all stainless steel exterior
Top Finish	stainless steel top
Top Style	marine edge
Pan Capacity	(2) 12" x 20"
