Logix Series Heated humidified cabinets are perfect for moisture-sensitive foods, such as pasta, veggies, sauces, burgers, chicken, and more...
Why use?
Logix2 cabinets are designed for the budget-conscious, with lightweight, sturdy aluminum construction. Logix2 cabinets are perfect for the operator looking for a versatile holding and proofing cabinet. Unlike many other heater proofers on the market, they have humidity in both the proofer mode and the heater mode.

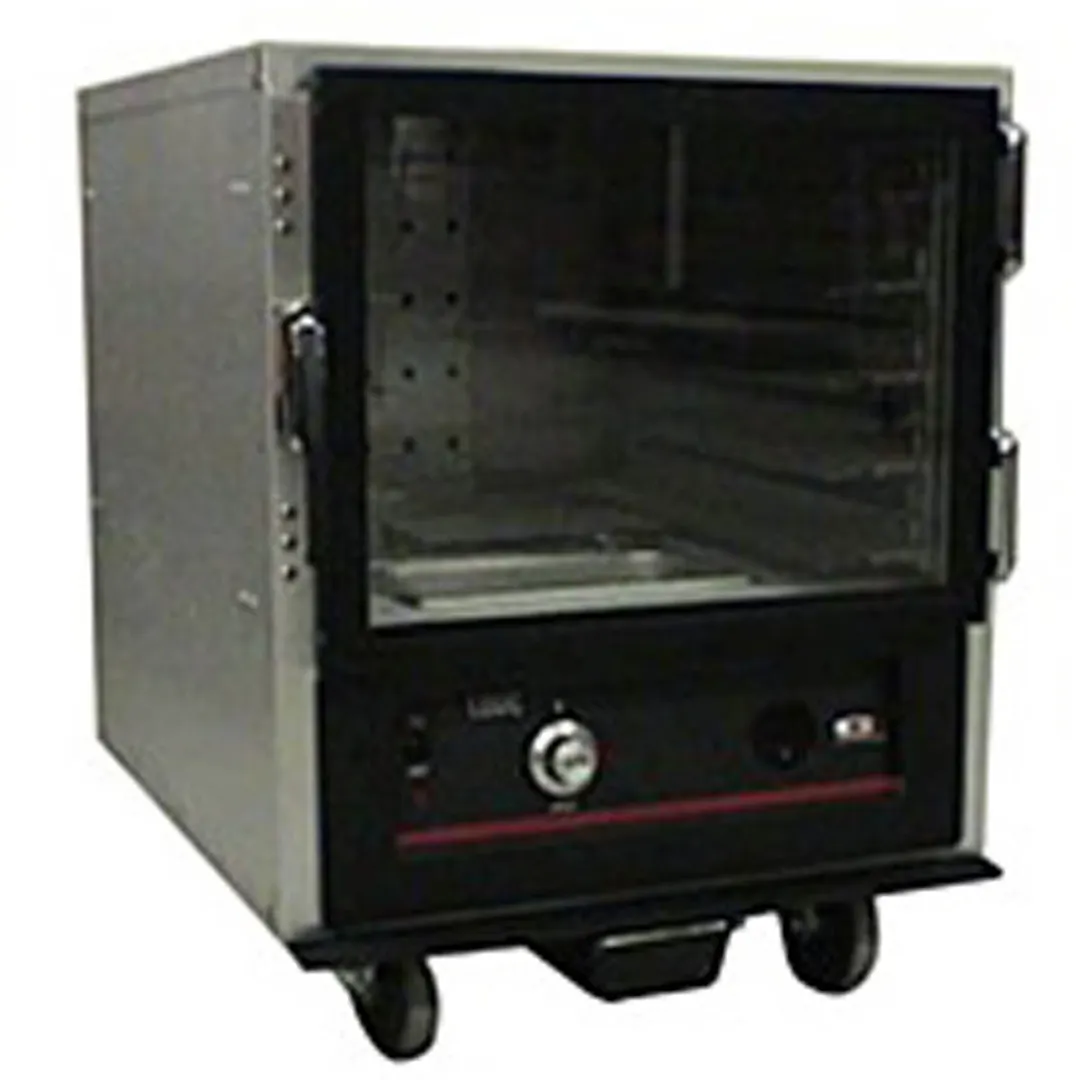

Carter-Hoffman HL2-8 Benefits
Field Riversible Doors
Wobble-free single pane tempered glass door for easy viewing of cabinet contents, with magnetic door latch and heavy-duty hinges. Full perimeter santoprene gasket attached to door for best seal.
Precision Engineered Heat & Humidity System
Heat duct provides even and efficient heating throughout the entire cabinet for safe and consistent results. Quick heat and humidity recovery. Proofing and holding can be accomplished in one cabinet. Unit provides full power to both heating and humidity elements regardless of whether you are holding or proofing
Four Sizes and Pan Slides
HL2 series cabinets are available in undercounter, 1/2 size, 3/4 size and full size.Universal wire slides at fixed spacing of 3”. Assemblies removable. Hold 18”x26” sheet pans, 12”x20” steam table pans, 2/1 or 1/2 G/N pans. Adjustable universal stainless steel pan slides or fixed angle pan slides are optional.
Easy-To-Use Dial Control
From proofing to holding, control heat and humidity with separate analog dials and master on/off switch. Temperature range of 85O F to 190O F. Easy to read digital thermometer and recessed control dials, angled for easier reach. Proofing and holding capability in single cabinet. Cabinet can be operated without humidity.
Carter-Hoffman HL2-8 Technical Information
Construction
Welded & riveted single wall, non-insulated cabinet construction with cabinet welded to base.
Cabinet Material and Base Frame
All aluminum construction; .063 aluminum exterior with 2V finish. Base frame:.125 natural aluminum
Casters
5” diameter casters with rubber tread. Four swivel casters. Two casters fitted with brakes
Door
Single panel tempered glass door set in extruded aluminum frame. Field reversible. Drip trough at base of door. High temperature santoprene gasket mounted to door.
Hinges
Adjustable edge mount hinges with chrome plate finish.
Drip Trough
Full width aluminum drip trough with 1/2” drain located in center. Located at base of cabinet. Includes plastic catch pan
Tray Tack Assemblies
Universal wire slides at fixed spacing of 3”. Assemblies removable. Hold 18”x26” sheet pans, 12”x20” steam table pans, 2/1 or 1/2 G/N pans.
Thermometer
Digital thermometer with remote sensing bulb and sensing bulb protector. Displays temperature in one degree increments
Controls
.Dial type controls. One dial for heat and one dial for humidity level. Set temperature dial at 3 and humidity dial at 7+ for proofing (approximate temperature of 85 O -100 O F and 90-95% humidity).
Heat & Humudity System
Bottom mounted heater with one 1700 watt coiled incoloy-sheathed heating element. High impedence protected fan motor. Water reservoir with 350 watt element affixed to bottom. Blower fan circulates air and humidity. Full range thermostat and on/off switch with power indicating light. Separate dial controls for heat and humidityottom mounted heater with one 1700 watt coiled incoloysheathed heating element. High impedence protected fan motor. Blower fan circulates air. Full range thermostat and on/off switch with power indicating light. Dial control for heat settings
Electrical Characteristics
Operates on 120 volts, 60 cycle, single phase, 2100 watts, 17.5 amps. Eight foot rubber cord with 3 prong grounding plug. NEMA 5-20P. See low wattage options below
Performance
Capable of heating to 190 O F (88 O C). Preheat to 160 O F (71 O C) in approximately 20 minutes. 95% maximum relative humidity. Low wattage options will affect cabinet performance.
Water Reservoir
Bottom mounted stainless steel water reservoir is part of heater assembly. Element mounted below pan to provide active humidification. Manual fill. Capacity 2.5 quarts
