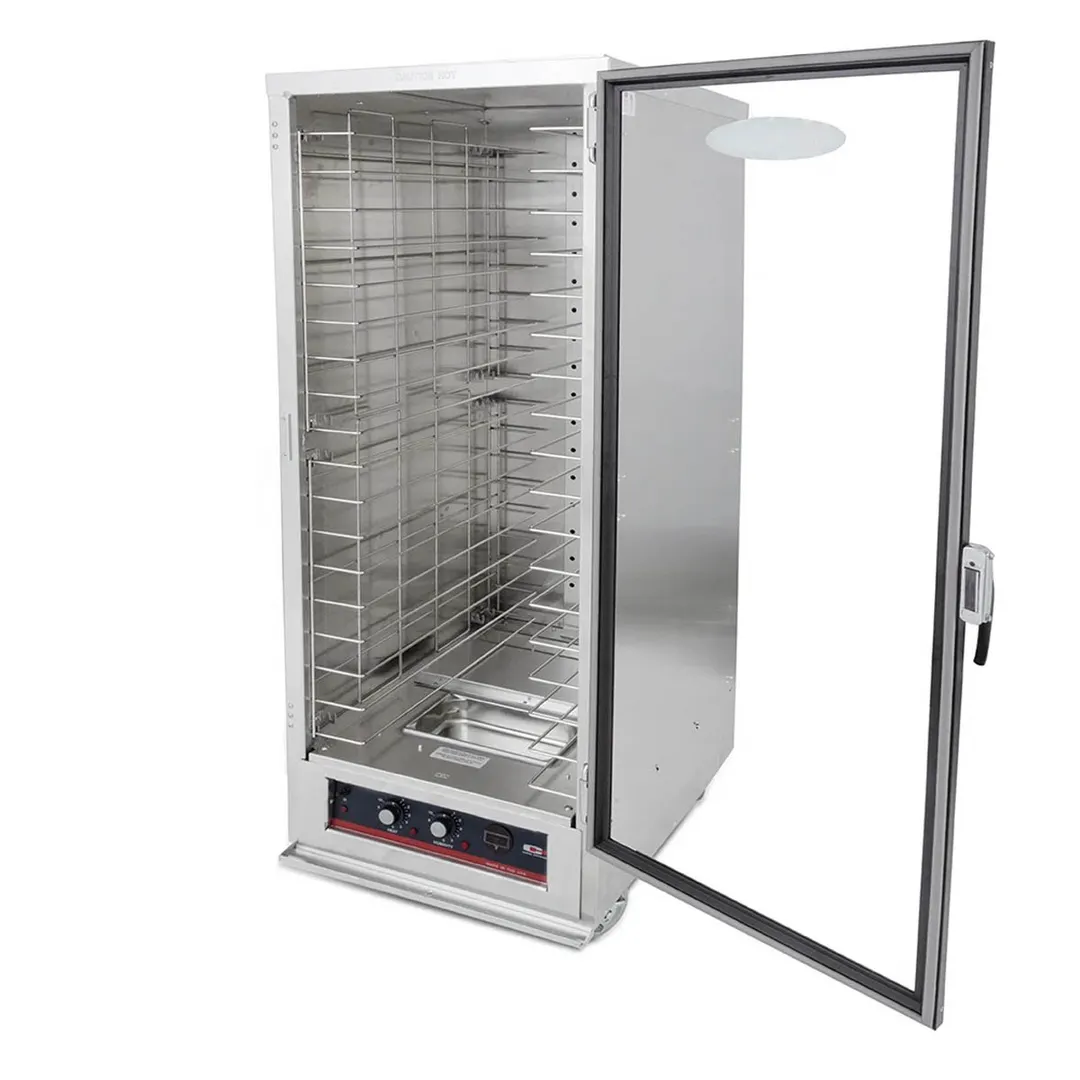

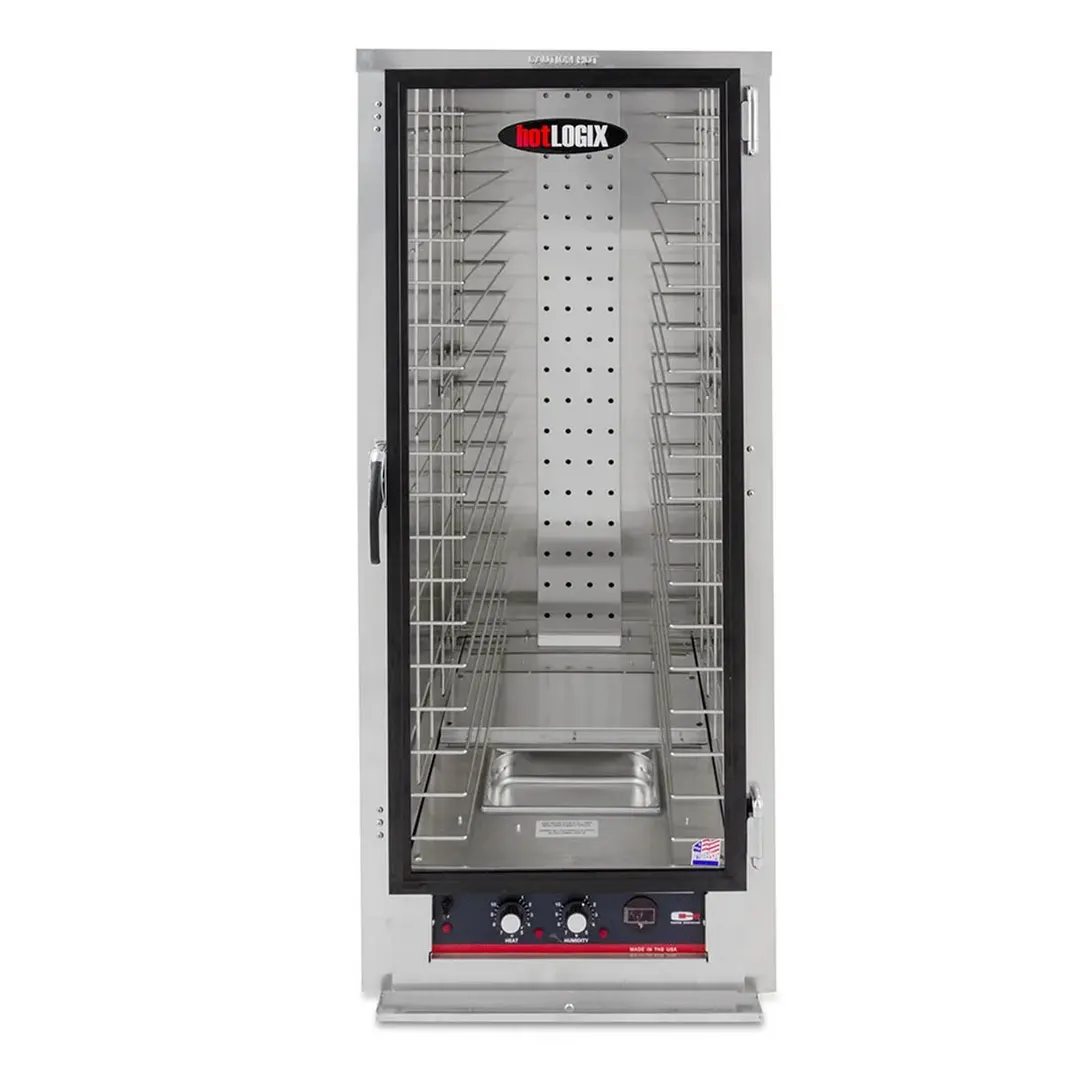

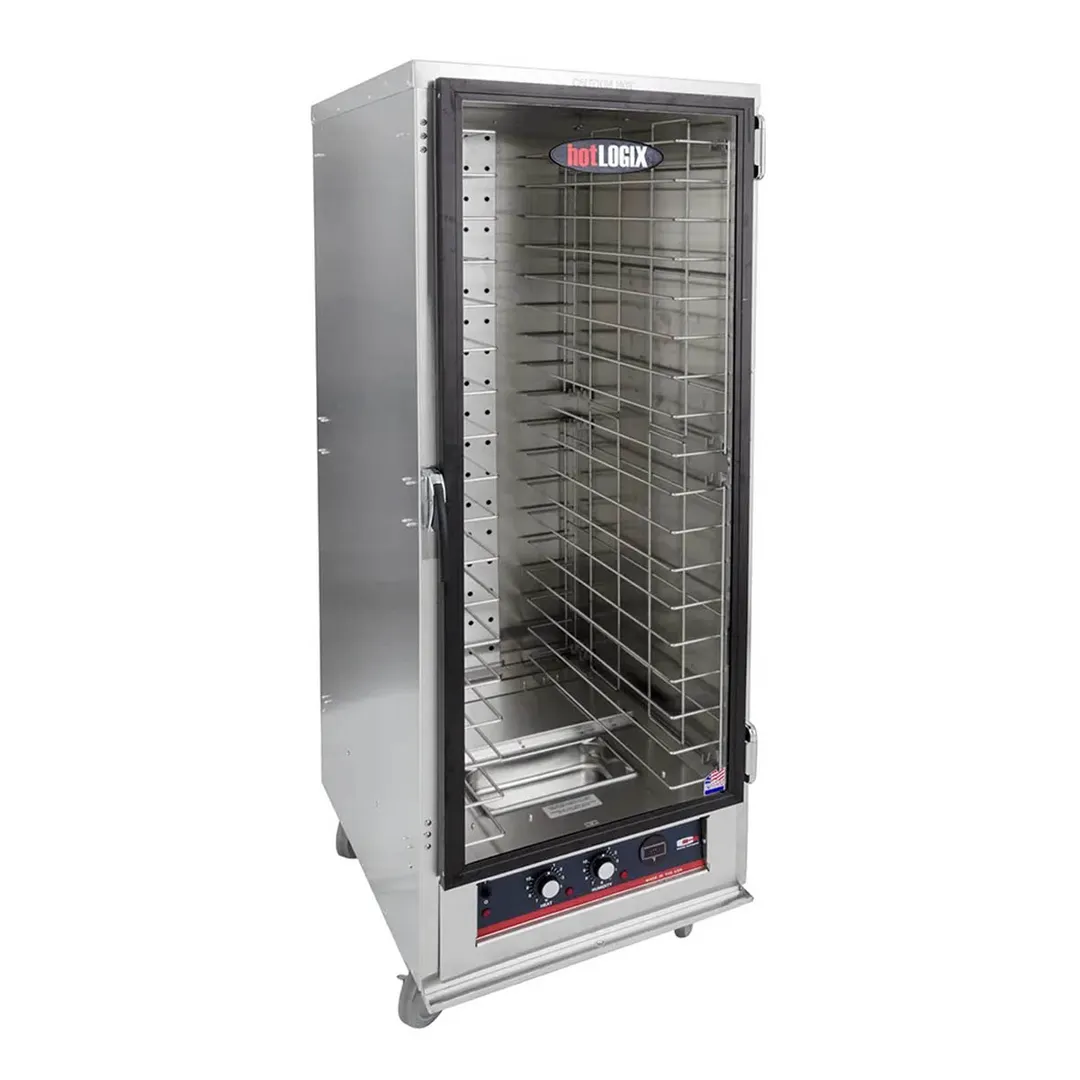

Carter-Hoffmann HL4-18 hotLOGIX Heated Holding & Proofing Cabinet , Full Height, Insulated

General Info

hotLOGIX HL4 Series Heated Humidified Food Holding Cabinets are designed to hold cooked food warm and ready for serving. They can also be used for proofing. They are constructed of lightweight, sturdy aluminum and feature a removable bottom-mounted heating module with recessed dial controls for heat and humidity. They come in under-counter, half height, ¾ height and full height.

Carter-Hoffmann HL4-18 Standard Features

• Recessed manual dial control for easy temperature setting; digital thermometer
• Removable, bottom mounted blower heater, capable of heating to 190°F (88°C); pre-heat to 160°F (71°C) in approximately 30 minutes
• Capable of heating to 190°F (88°C); pre-heat to 160°F (71°C) in approximately 30 minutes
• Proofing mode: set temperature dial at 3 and humidity dial at 7+ (approximate temperature of 85-100°F and 90-95% humidity)
• Double wall, insulated aluminum construction; .063 exterior with 2V finish; .125 natural aluminum base frame
• Single-pane, tempered glass door set in extruded aluminum frame with santoprene gasket; heavy-duty edge mounted chrome-plated latch with magnetic catch
• 5” diameter casters with rubber tread, all-swivel, two fitted with brakes; adjustable edge mount hinges with chrome plate finish
• Adjustable, removable tray racks with universal wire slides; fixed pacing at 3”
• Accommodates 12”x20”x2.5” steam table pans, 18”x26” sheet pans and GN 2/1 or 1/2 pans
• Available in 4 sizes: under-counter, ½ height, ¾ height and full height

Carter-Hoffmann HL4-18 Specifications

• Pan Capacity :
  • 12”x20” / GN 1/1 Pans: 36
  • 18”x26” / GN 2/1 Pans: 18
• Overall Dimensions (in/mm) : 70-5/8" 1780mm H X 31-1/2" 800mm D X 26-1/2" 673mm W
• Caster Diameter in (mm) : 5" 127mm
• Shipping weight lbs(kgs) : 218(99)
• Other Details : See spec. sheet
