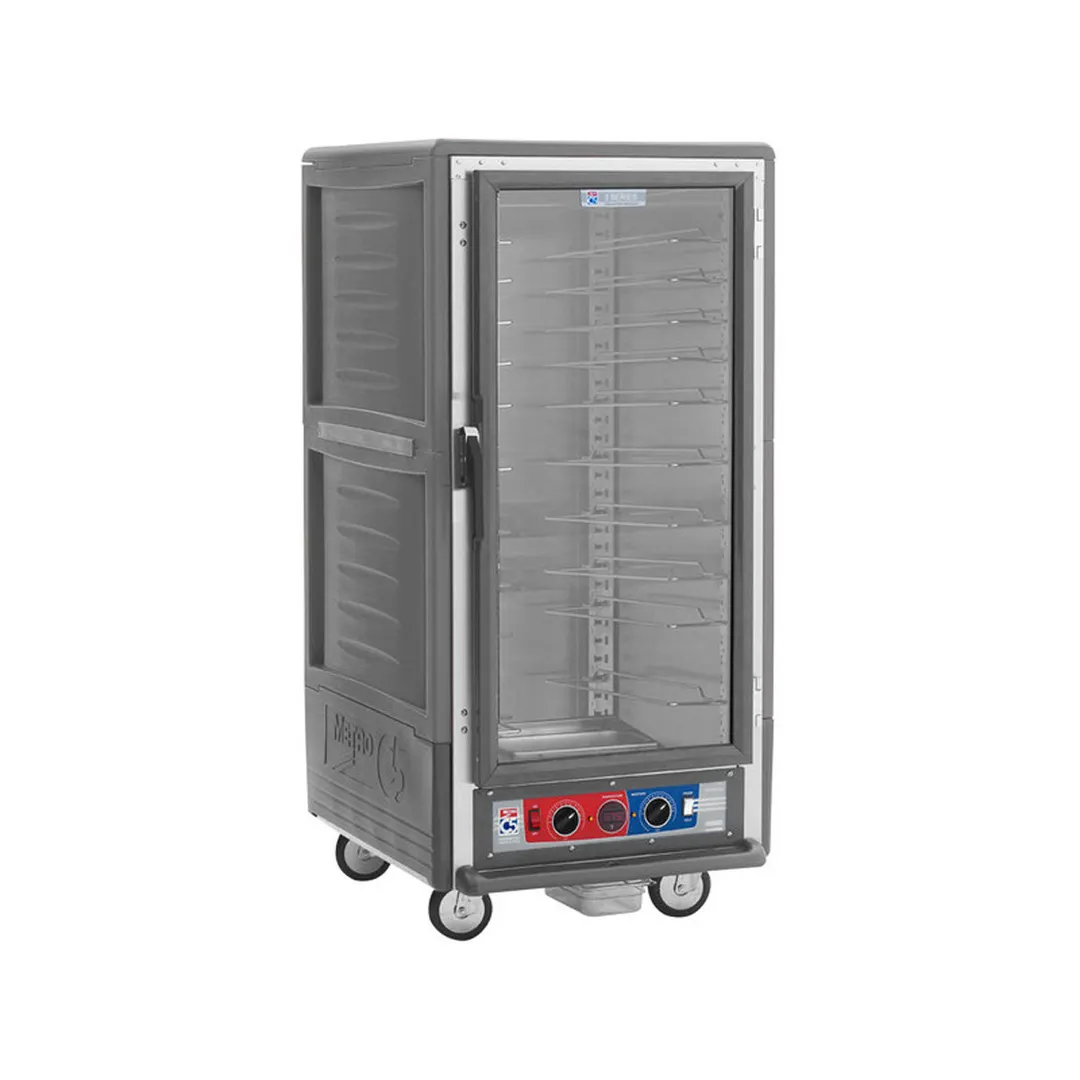

Metro C537-CFC-U-GY C5 3 Series Insulated Armour® Holding And Proofing Cabinet

General Info

3/4 Height, Insulated Holding/Proofing Cabinet with Full Length Clear Door. Cool-to-touch design provides energy efficiency at a lower initial investment. Durable polymer Insulation Armour insulates the cabinet and is dent, impact, and stain resistant.

Colors Type

Insulation Armour is available in Red, Blue, or Gray standard and in other colors on a promotional basis or upon request.

Control

Three modules are available: Holding, Moisture, and Combination Proof and Hold. All feature an easy-to-read digital thermometer, recessed control dials, a master on/off switch, and power indicator lights

Metro C537-CFC-U-GY Specifications

Product Width :27.625″
Product Depth : 31.5″
*Product Height : 59″
Approximate Package Weight : 144 lbs.
Material : Aluminum/Polymer
Color : Gray
*Cabinet Height : 3/4 Height
Number of Doors : 1
Module Type : Combination
Front Door Style : Full Length Clear Door
*Slide Type : Universal Wire
Reach-in or Pass-Thru : Reach-In
Electrical : 120V, 60Hz, 2000W
Other Details :See spec. sheet

From The Manufacturer

C5™ 3 Series Heated Holding & Proofing Cabinet, with Grey Insulation Armour™, mobile, 3/4 height, insulated, clear polycarbonate door, removable bottom mount control module, thermostat to 200°F, universal wire slides on 3" centers, adjustable on 1-1/2" increments (14) 18" x 26" or (26) 12" x 20" x 2-1/2" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF

Manufacturer	Metro
Model Number	C537-CFC-U-GY
Weight	144 lbs
Width	27.63″
Depth	31.5″
Height	59″
Load Type	reach-in
Installation Type	mobile
Cabinet Size	3/4 height
Sections	1 section
Pan Capacity (18" x 26")	(14) pans
Pan Capacity (12"x20")	(26) pans
Module Type	combination
Door Type	clear door(s)
Door Style	full door(s)
Number of Doors	1 door
Slide Spacing (in)	3"
Color	gray
Insulation	insulated
Control Location	bottom
Exterior Finish	all aluminum exterior
Interior Finish	aluminum interior
Interior configuration	universal wire slides
Voltage	120
Control Type	thermostatic control
Certifications	NSF, cULus
Phase	1
Wattage	2000 watts

	Metro C537-CFC-U-GY 3/4 Height Heated Holding & Proofing Cabinet w/ Grey Insulation Armour, Clear Door	Metro C537-CLFC-U-GY 3/4 Height Heated Holding & Proofing Cabinet w/ Grey Insulation, Clear Door, Lower Wattage	Metro C537-MFC-U-GY 3/4 Height Moisture Heated Holding & Proofing Cabinet w/ Grey Insulation, Clear Door	Metro C537-CLFS-U-GY 3/4 Height Heated Holding & Proofing Cabinet w/ Grey Insulation, Solid Door, Lower Wattage
Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping
Wattage	Wattage2000 watts	Wattage1440 watts	Wattage2000 watts	Wattage1440 watts
Certifications	CertificationsNSF, cULus	CertificationsNSF, cULus	CertificationsNSF, cULus	CertificationsNSF, cULus
Voltage	Voltage120	Voltage120	Voltage120	Voltage120
Phase	Phase1	Phase1	Phase1	Phase1
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)27.63	WIDTH (SIDE - SIDE)27.63	WIDTH (SIDE - SIDE)27.63	WIDTH (SIDE - SIDE)27.63
Manufacturer	ManufacturerMetro	ManufacturerMetro	ManufacturerMetro	ManufacturerMetro
Exterior Finish	Exterior Finishall aluminum exterior	Exterior Finishall aluminum exterior	Exterior Finishall aluminum exterior	Exterior Finishall aluminum exterior
Interior Finish	Interior Finishaluminum interior	Interior Finishaluminum interior	Interior Finishaluminum interior	Interior Finishaluminum interior
Sections	Sections1 section	Sections1 section	Sections1 section	Sections1 section
Door Style	Door Stylefull door(s)	Door Stylefull door(s)	Door Stylefull door(s)	Door Stylefull door(s)
Pan Capacity (18" x 26")	Pan Capacity (18" x 26")(14) pans	Pan Capacity (18" x 26")(14) pans	Pan Capacity (18" x 26")(14) pans	Pan Capacity (18" x 26")(14) pans
Insulation	Insulationinsulated	Insulationinsulated	Insulationinsulated	Insulationinsulated
Control Location	Control Locationbottom	Control Locationbottom	Control Locationbottom	Control Locationbottom
Slide Spacing (in)	Slide Spacing (in)3"	Slide Spacing (in)3"	Slide Spacing (in)3"	Slide Spacing (in)3"
Installation Type	Installation Typemobile	Installation Typemobile	Installation Typemobile	Installation Typemobile
Cabinet Size	Cabinet Size3/4 height	Cabinet Size3/4 height	Cabinet Size3/4 height	Cabinet Size3/4 height
Control Type	Control Typethermostatic control	Control Typethermostatic control	Control Typethermostatic control	Control Typethermostatic control
Color	Colorgray	Colorgray	Colorgray	Colorgray
Interior configuration	Interior configurationuniversal wire slides	Interior configurationuniversal wire slides	Interior configurationuniversal wire slides	Interior configurationuniversal wire slides
Door Type	Door Typeclear door(s)	Door Typeclear door(s)	Door Typeclear door(s)	Door Typesolid door(s)
Number of Doors	Number of Doors1 door	Number of Doors1 door	Number of Doors1 door	Number of Doors1 door
Load Type	Load Typereach-in	Load Typereach-in	Load Typereach-in	Load Typereach-in
Module Type	Module Typecombination	Module Typecombination	Module Typemoisture	Module Typecombination
