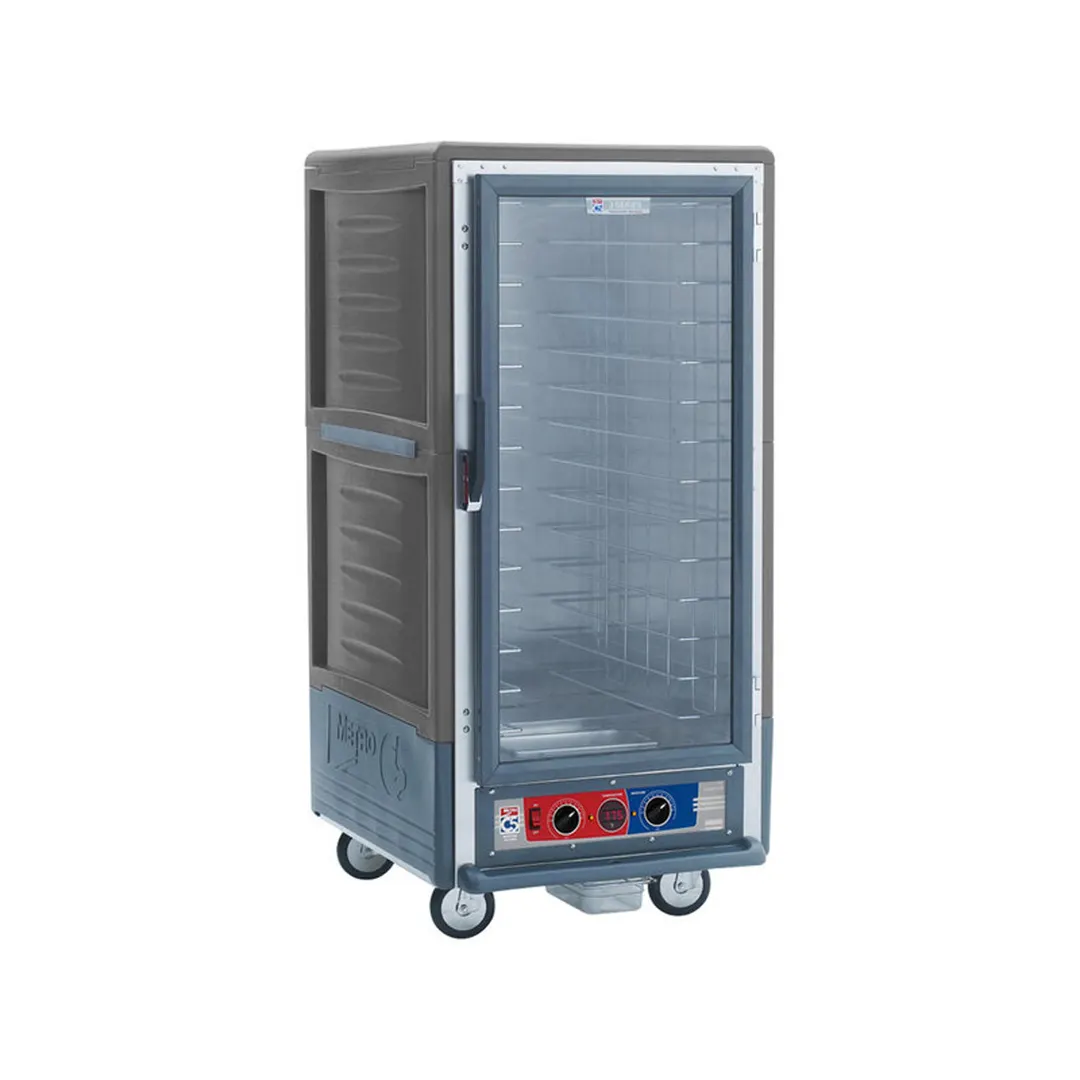

Metro C537-MFC-4-GY C5 3 Series Insulated Armour® Heated Holding and Proofing Cabinet

General Info and Benefits

3/4 Height, Insulated Moisture Heated Holding/Proofing Cabinet with Full Length Clear Door. Cool-to-touch design provides energy efficiency at a lower initial investment. Durable polymer Insulation Armour insulates the cabinet and is dent, impact, and stain resistant.

Colors Types

Insulation Armour is available in Red, Blue, or Gray standard and in other colors on a promotional basis or upon request.

Controls Modules

Three modules are available: Holding, Moisture, and Combination Proof and Hold. All feature an easy-to-read digital thermometer, recessed control dials, a master on/off switch, and power indicator lights.

Metro C537-MFC-4-GY Specifications

Product Width :27.625″
Product Depth : 31.5″
*Product Height : 59″
Approximate Package Weight : 173 lbs.
Material : Aluminum/Polymer
Color : Gray
*Cabinet Height : 3/4 Height
Number of Doors : 1
Module Type : Moisture
*Front Door Style : Full Length Clear Door
*Slide Type : Fixed Wire
Reach-In or Pass-Thru : Reach-In
*Electrical : 120V, 60Hz, 2000W
Other Details :See spec. sheet

From The Manufacturer

C5™ 3 Series Moisture Heated Holding & Proofing Cabinet, with Grey Insulation Armour™, mobile, 3/4 height, insulated, clear polycarbonate door, removable bottom mount control module, thermostat to 200°F & moisture control, fixed wire slides on 3" centers (14) 18" x 26" or (26) 12" x 20" x 2-1/2" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF

Manufacturer	Metro
Model Number	C537-MFC-4-GY
Weight	173 lbs
Width	27.63″
Depth	31.5″
Height	59″
Load Type	reach-in
Installation Type	mobile
Cabinet Size	3/4 height
Sections	1 section
Pan Capacity (18" x 26")	(14) pans
Pan Capacity (12"x20")	(26) pans
Module Type	moisture
Door Type	clear door(s)
Door Style	full door(s)
Number of Doors	1 door
Slide Spacing (in)	3"
Color	gray
Insulation	insulated
Control Location	bottom
Exterior Finish	all aluminum exterior
Interior Finish	aluminum interior
Interior configuration	fixed wire slides
Voltage	120
Control Type	thermostatic control
Certifications	NSF, cULus
Phase	1
Wattage	2000 watts
