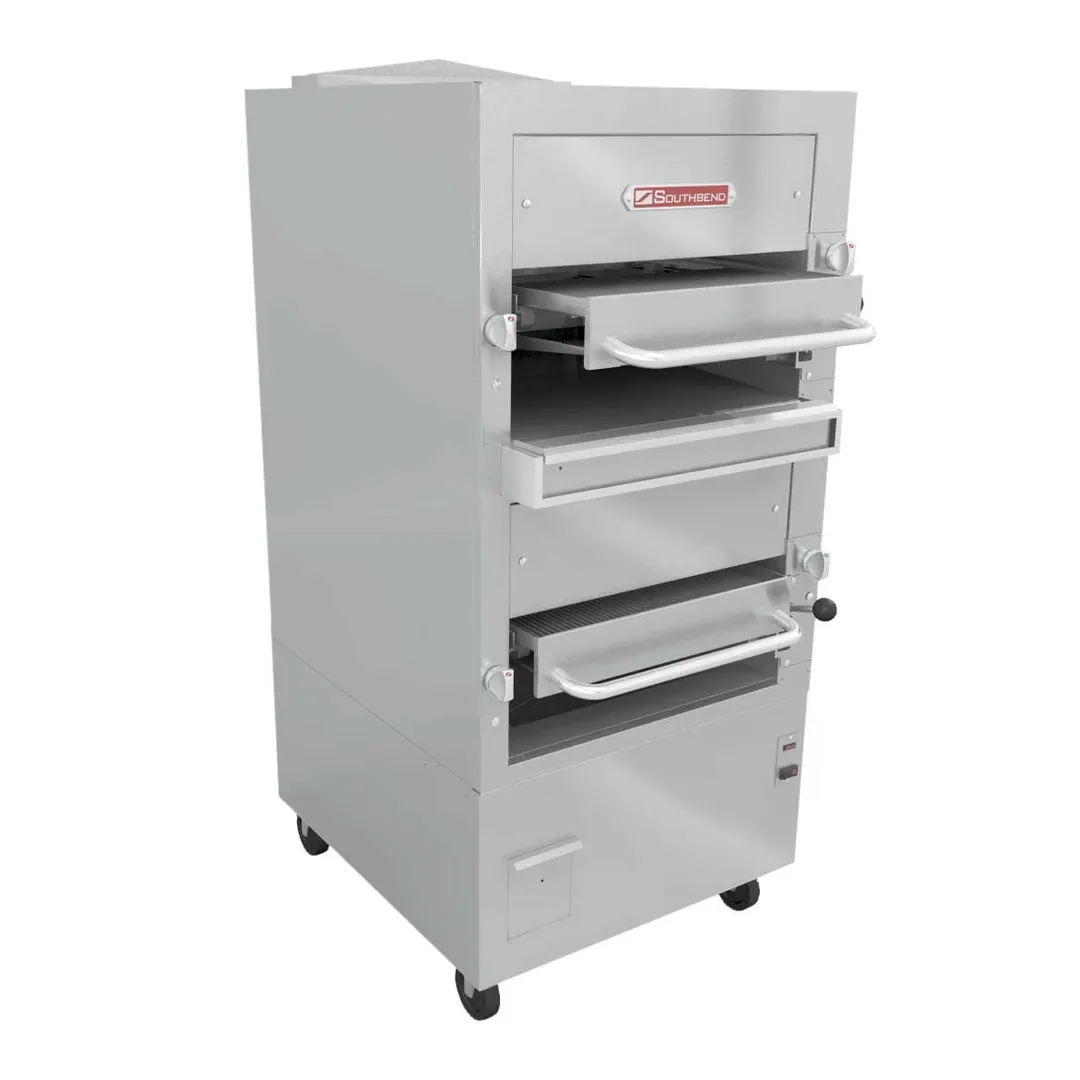

Southbend 234R Radiant Broiler, Gas, 34", Double-Deck

Why Use Southbend Radiant Broiler?

Southbend’s Double Radiant Broilers combine speed, efficiency, and output in a broiler that just won’t quit. From the rugged, welded steel broiler grids to the dependable grid adjustment mechanism, Southbend’s Broilers are built tough to last.

Southbend 234R Features

• Total BTU: 220,000 BTU NAT (180,000 BTU LP)
• 34” wide x 72-1/2” high including 6” stainless steel legs
• 2” Flue Collar
• Stainless steel front, sides, top and legs
• Interior shelving made of high-heat aluminized steel
• Equipped with twin burner controls
• Easy grip, spring balance adjusting lever

Southbend 234R Specification

• Exterior Finish: Top, front, and sides are 430 stainless steel #3 polish. Aluminized steel back
• Broiler: Double deck radiant broiler with 4 Schwank broiler burners at 55,000 BTU NAT (45,000 BTU LP) with separate controls. Constant-burning pilot lighters. Overall dimensions: 34” wide x 37” deep x 72-1/2” high (not including vent) with two adjustable grids. Fully insulated lining and burner box.
• Schwank Broiler Burners: Radiant burners with ceramic tile catalysts -proven capable of withstanding extreme high temperatures without deteriorations or disintegration.
• Broiler Grid: Roll-out broiler grid is 24-1/2” wide and 28” deep (rolls out to 17-1/4”), with four height positions. The front 3” receive less heat so can be used as a holding area.
• Legs: Stainless steel 6” adjustable legs standard
