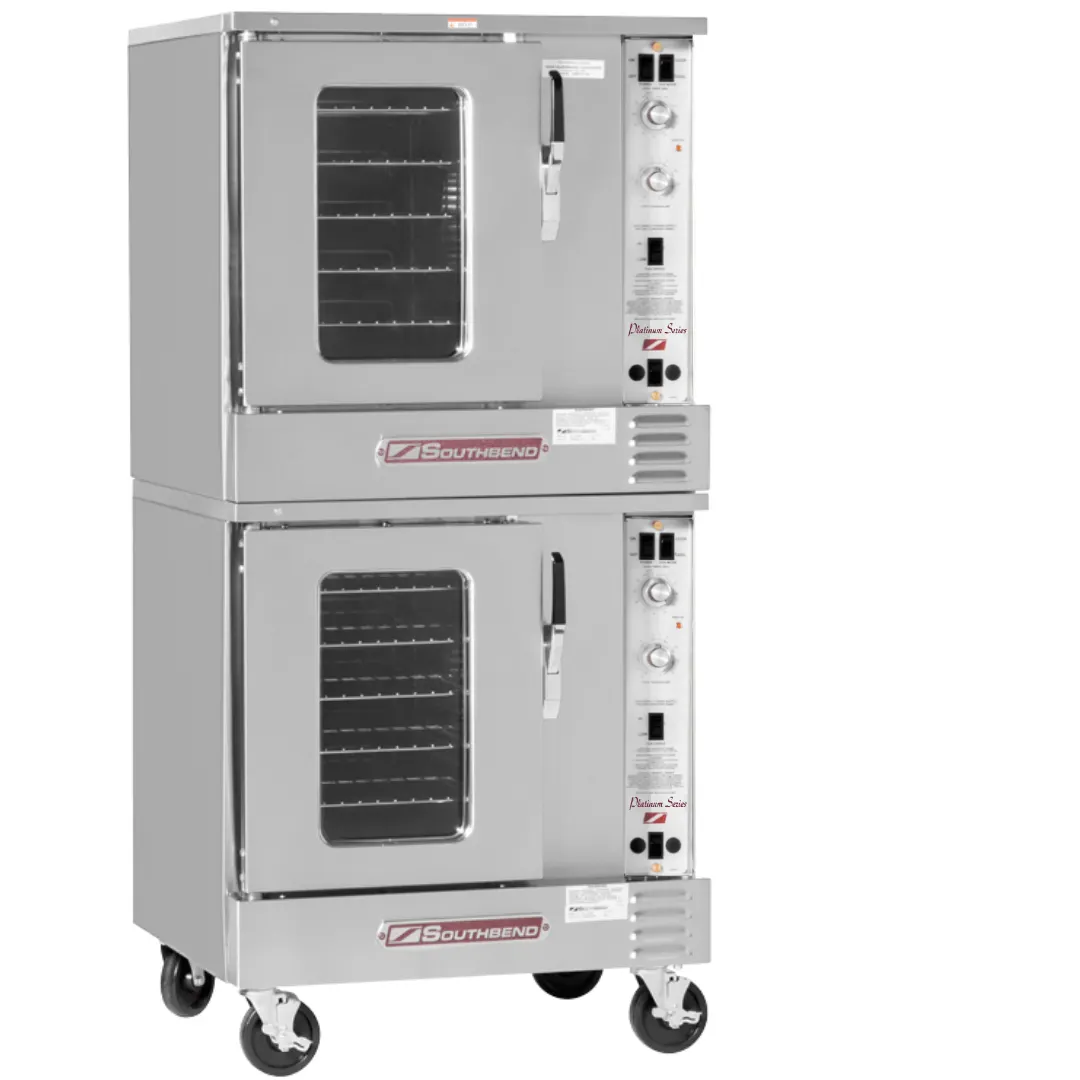

Southbend PCHE15S/S-V Electric Convection Oven

Standart Features

• 7.5 kW high efficiency heating elements per deck.
• Available in standard depth
• Double deck convection oven is 64” in height
• Patented “plug-in, plug-out” control panel - easy to service
• Stainless steel front, sides and top
• Single door with windows (Full 180° opening)
• Coved, fastener-free, porcelain enamel finish interior
• Two speed, 1/2 hp, fan motor
• 11-position rack guides and 5 plated oven racks
• Solid state temperature controls
• Forced cool down fan mode
• Oven “heat” light cycles with heating elements
• (1) year limited parts and labor warranty
• Standard Controls : 140°F to 500°F solid state thermostat and 60 minute mechanical cook timer.

Standart Construction Specifications

• Exterior Finish: Stainless steel front, top, and sides. Back is aluminized steel.
• Doors: Single door with window. Stainless steel construction, heavyduty welded steel frame and 5/8” diameter hinge pin.
• Oven Interior: Porcelain enamel finish, coved, fastener free.
• Rack and Rack Guides: Heavy-duty removable wire rack guides spaced on 1-5/8” centers offer 11 different rack positions. 5 wire racks provided with each oven.
• Blower Fan and Motor: 1/2hp, 2-speed motor, 1710/1120 r.p.m
• Oven Heating: Oven heating is regulated by an adjustable solid state thermostat control. Blower fan circulates air within the cavity “scrubbing” heat to the oven interior for even heat distribution within the cavity. Manual reset high
• limit temperature control protects the oven from overheat condition.
• Control Panel: Located on front, at right side of oven, away from heat zone. Removable panel opens downward for easy servicing.
• Legs: 6” stainless steel legs standard.
• Electrical System: The sheath type electrical heating elements located at the rear of the oven function as a single heating unit with a combined rating of 7.5 kW per deck. Available voltages include 208, 240, 380, and 480 VAC single or three phase, 50/60 Hz. Ovens equipped with 480VAC single or three phase heating elements use 240V controls and motors and do not require separate electrical lead wires
