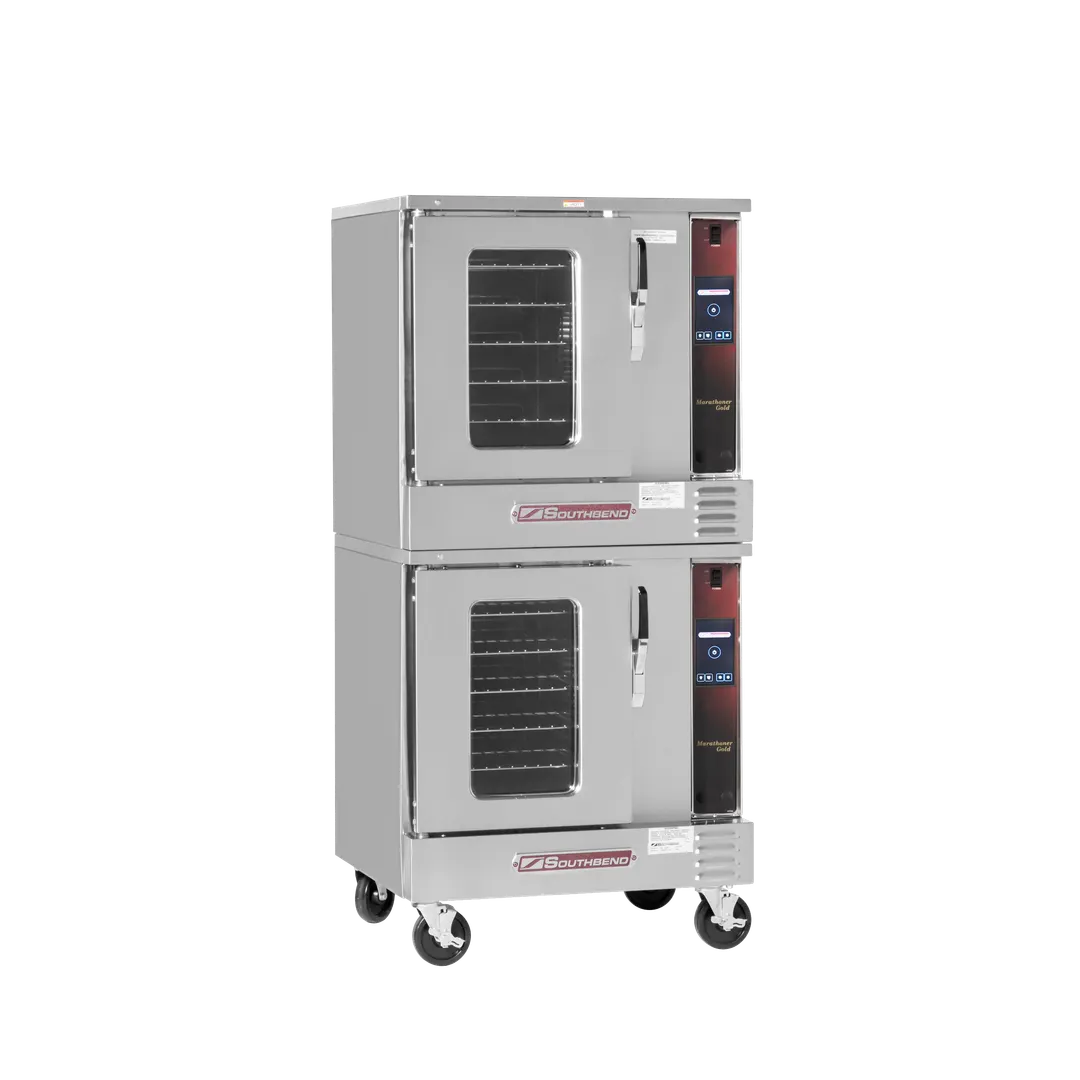

Southbend Double-Deck Half-Size Gas Convection Oven w/ Touch Screen Controls
Standard Features
- 30,000 BTU (NAT or LP)
- Available standard depth
- Double deck convection oven is 64” in height with 6’’ casters
- Patented “plug-in, plug-out” control panel
- Stainless steel front, sides and top
- Single door with window (Full 180° opening)
- 11-position rack guides and 5 plated oven racks
- Electronic ignition with solid state temperature controls
- Forced cool down fan mode
- Oven “heat” light cycles with burners
- (1) year limited parts and labor warranty
- Touchscreen Controls : 150°F to 550°F temperature controller with 140°F to 200°F “Hold” thermostat. Digital display shows time and temperature. A fan cycle timer pulses the fan. Recipes can be created and used in oven group 'Rack' mode to cook multiple items at once on different timers.
Standart Construction Specifations
- Exterior Finish: Stainless steel front, top, and sides. Back is aluminized steel.
- Door: Single door with window. Stainless steel construction, heavy-duty welded steel frame and 5/8” diameter hinge pin.
- Oven Interior: Porcelain enamel finish, coved, fastener free.
- Rack and Rack Guides: Heavy-duty removable wire rack guides spaced on 1-5/8” centers offer 11 different rack positions. 5 wire racks provided with each oven.
- Blower Fan and Motor: 1/2hp, 2-speed motor, 1710/1120 r.p.m motor mounted to the right side.
- Oven Heating: 30,000 BTU (NAT or LP). Oven heating is regulated by an adjustable, solid state thermostat control. Jet Stream style burners direct flame towards rear of combustion chamber. Combustion products are drawn into oven interior and recirculated prior to venting.
- Electronic Ignition: Hot surface ignitor with flame safety device.
- Control Panel: Located on front, at right side of oven, away from heat zone. Removable panel opens downward for easy servicing.
- Legs: 4” stainless steel legs standard.
WARRANTY & SERVICE REQUEST
“Do you need service? Is your product under warranty? Please fill out the form at the link below.”
Warranty & Service Request FormFrom The Manufacturer
Platinum Double Convection Oven, Half Size, Gas 30,000 BTU's each, Standard Depth, Touch Controls
