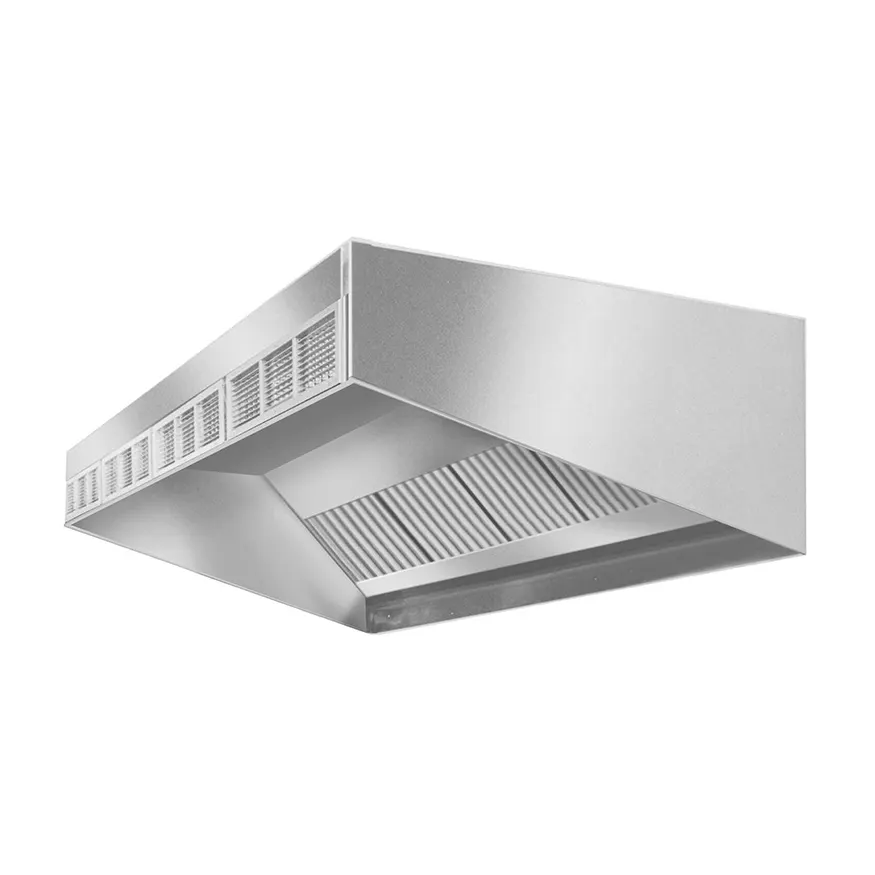

Eagle Group SPEC AIR® Ventilation Hoods—Front Discharge Make-Up AirExhaust Models
Short Form Specifications
Allheavy gauge type 430 stainless steel. Constructed per NFPA 96with all seams welded liquid tight. Make-up air suppliedthrough the hood, independent of ventilation system.Furnished with full length stainless steel grease trough;grease container; UL classified aluminum removable filters;UL vapor-proof incandescent light fixture; 3˝ airspace at rear,front and rear mounting channels; exhaust and supply collars.
Design and Construction Features
- For use in commercial cooking such as restaurants,kitchens, fast food and deli.
- Front discharge make-up air exhaust ventilation hoodssupply make-up air through the hood at ceiling level,therefore independent of other ventilation systems.
- Regular HEF Series and short front HESFA Series models(for low ceilings) are available.
- All models are 51˝ (1295mm) front-to-back and24˝ (610mm) high.
- Supplies make-up air through the hood, independent ofother ventilation systems.
- Heavy gauge type 430 stainless steel hood surfaces.
- Seams on the canopy are continuously liquid-tight.
- U.L.-listed vapor-proof incandescent light fixtures.
- U.L.-classified aluminum filters removable for easy cleaning.
- Full-length grease trough.
- Removable grease container.
- 3˝ (76mm) air space at rear.
- Exhaust and supply collars.
- Front and rear mounting channels.
- Regular and short front models.
From The Manufacturer
SpecAIR® Exhaust Hood, wall type, 138"W, 51"D, 3" air space at rear, make-up air compensating with front grills, short front, 24"H at back, all stainless steel construction, NFPA-96, NSF
