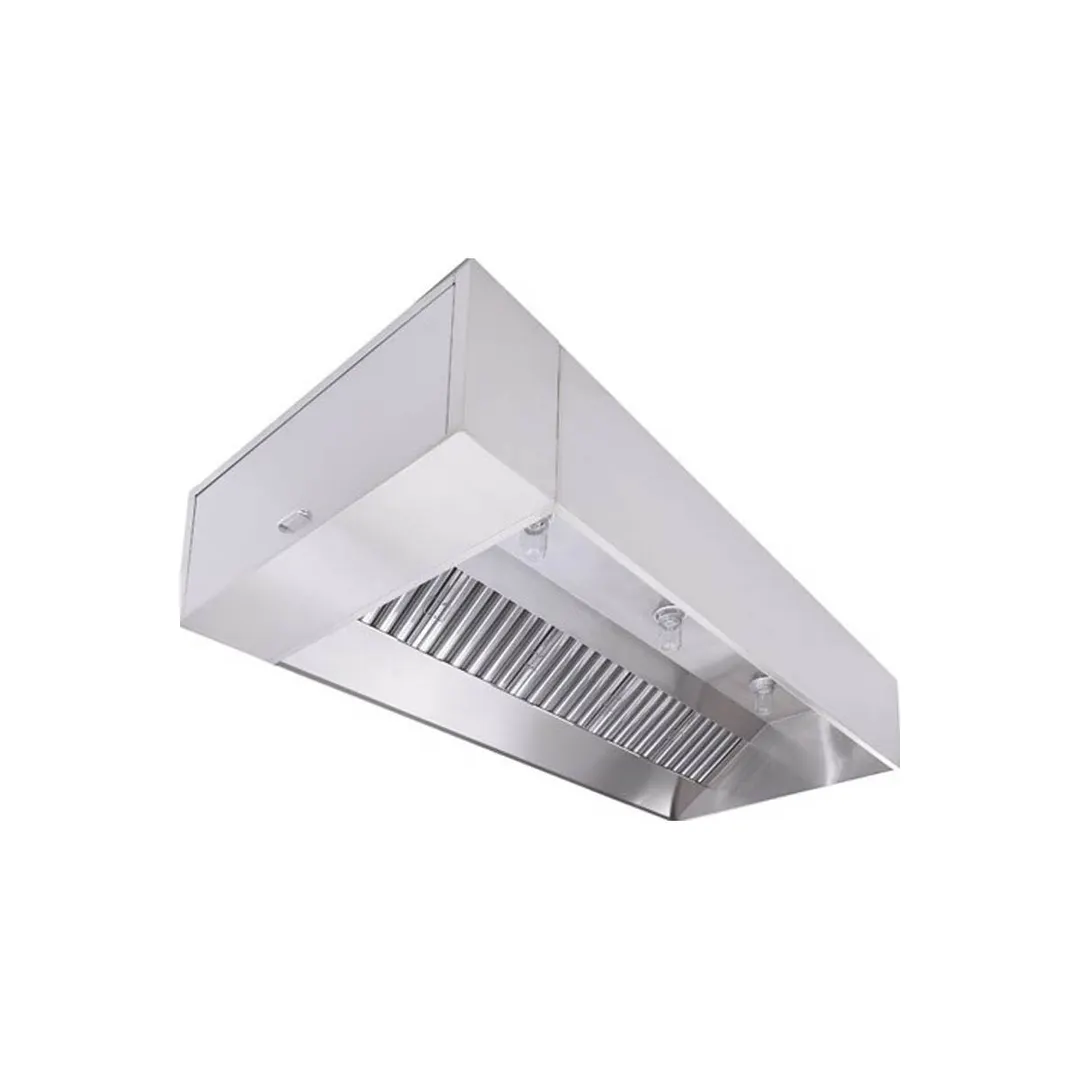

EconAir EX-2 14ft Exhaust Hood
Features
- ETL Listed and ETL Sanitation Listed Product
- Superior Exhaust Flow Rates
- Exceptional Capture and Containment of Cooking Vapors
- Wall or Back-to-Back Island Configurations
- Front Design Directs Air into Filters
- Stainless Steel Construction
- Double Wall, Insulated Front
- Heavy Duty Grease Baffle Filters
- Grease Drain System
- Pre-punched Hanging Angles
- Factory Pre-wired Lighting
Specifications
- Description: The model EX-2 is a Type I, wall mounted or double island, exhaust canopy used for collection and removal of grease-laden vapors and smoke over all types of restaurant equipment.
- Application: The hood shall provide flexibility in designing kitchen ventilation equipment and shall be tested and listed for use over 450ºF light/medium duty cooking surfaces; 600ºF heavy duty cooking surfaces; and up to 700°F extra heavy duty cooking surfaces.
- Construction: The hood shall be constructed of type 430 stainless steel with #3 or #4 polish where exposed. All seams shall be welded or in conformance with UL 710 standards. Unexposed surfaces shall be constructed of aluminized steel. Individual component construction shall be determined by manufacturer and ETL. Construction shall be dependent on the structural application to minimize distortion and other defects. All seams, joints and penetrations of the hood where grease-laden vapors and exhaust gases are present must be liquid-tight, continuous external weld in accordance with NFPA 96.
- Certifications : The hood shall be ETL Listed, comply with UL 710 Standards and shall be built in accordance with NFPA96. Hood shall be tested for compliance with the ETL Sanitation Mark.
From The Manufacturer
- 5424EX-2-PSP-F - 14ft 0" Long Exhaust-Only Wall Canopy Hood with 16" Wide Front Perforated Supply Plenum with Built-in 3" Back Standoff x 1
- 430 SS Where Exposed x 1
- L55 Series E26 Canopy Light Fixture - High Temp Assembly, Includes Clear Thermal and Shock Resistant Globe (L55 Fixture), Bulbs By Others x 4
- FILTER - 20" tall x 16" wide Kleen-Gard Stainless Steel Baffle Filter with Handles and Bottom Hanging Hook, UL Classified x 10
- EXHAUST RISER - Factory installed 16" Diameter X 4" Height x 2
- Utility Cabinet on the Right Side 12.00" Width x 54.00" Length x 24.00" Height x 1
- SUPPLY RISER - 12"x 28" Supply Riser with Volume Dampers x 4
- 1/2 Pint Grease Cup New Style, Flanged Slotted x 2
- Electrical Package Installation in Utility Cabinet by Plant x 1
