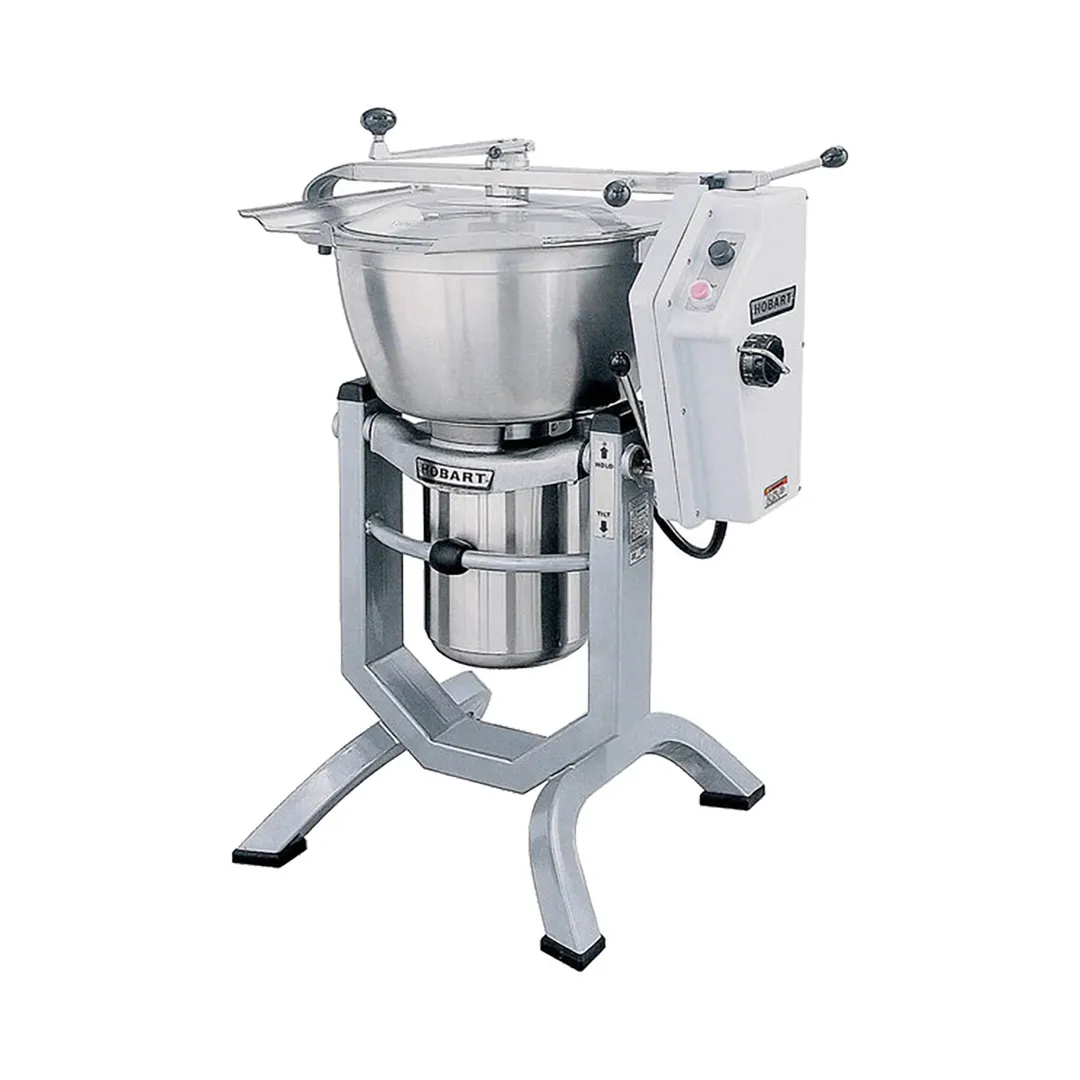

Hobart HCM450-66 Vertical Cutter Mixer, Canada Configuration

Specifier Statement

Specified cutter mixer has a 45-quart manually operated mixing baffle, polypropylene strainer basket with cut/mix attachment and knead/mix attachment. Unit has a 6 foot power cable with plug and power receptacle.

Standart Features

• 5 HP motor
• 45-quart capacity stainless steel bowl with pouring lip
• Durable steel base with epoxy enamel finish
• Electromechanical safety interlocks
• Start/stop push button switches
• 5 minute timer with “hold” and “jog” settings
• Counterbalanced clear Lexan® polycarbonate bowl cover with stainless steel support bar
• Bowl tilt lever
• Stainless steel mixing baffle with pour-through center shaft
• 2 blade cut/mix knife
• Knead/mix attachment
• Polypropylene strainer basket
• 6' power cable, plug and receptacle

Specifications

• Motor: Dual voltage configuration with thermal overload protection, single speed, 1140 RPM, totally enclosed, externally fan cooled, ball bearings, grease packed and sealed. Motor shaft is stainless steel.
• Electrical: 200/60/3 and 230/60/3 – U L Listed.
• Controls: Magnetically operated start and stop selectors are completely sealed and washable. All electrical controls are housed in a high impact resistance, reinforced polyester enclosure.
• Power Cable, Plug and Receptacle: 6 foot, flexible type “SO” cable with grounding polarized plug. A grounding polarized power receptacle is furnished. See chart for proper size and voltage.
• Branch Power Circuit Requirements: 200 or 230/60/3 machine should be connected to a 30 amp service, 22 amps drawn
• Bowl, Bowl Cover: 45-quart bowl will tilt 90 degrees to a pour height of 15 3⁄8" from the floor. All stainless steel. Cover is 3 ⁄16" clear Lexan® Polycarbonate that seals effectively without a gasket. Counterbalanced for ease of handling. Cover support bar is stainless steel.
