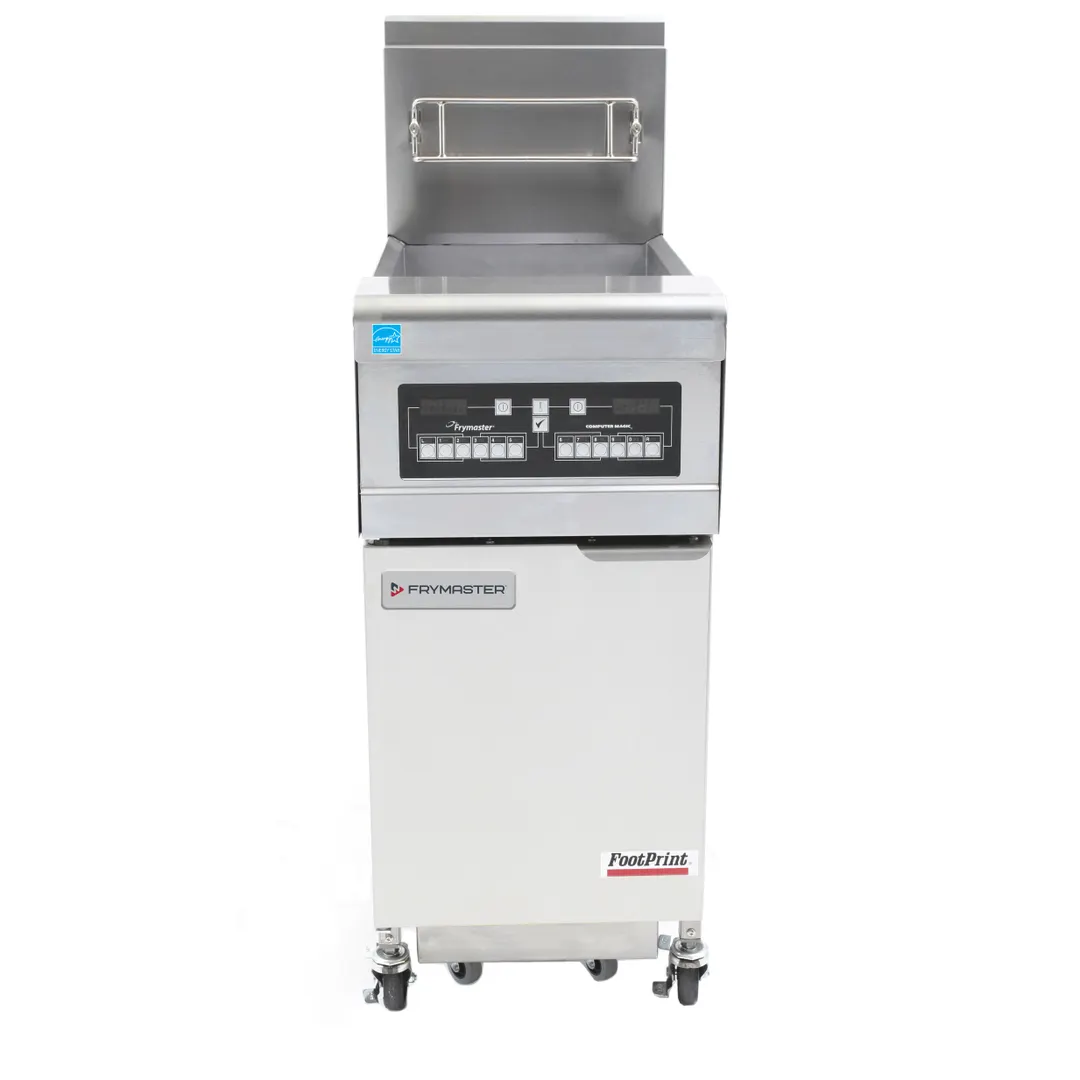

Frymaster H55 Fryers with Filtration (FPH155)
Why use H55 Gas Fryers?
The product is designed for trouble-free filtering of fryer batteries without wasting valuable space. Frymaster’s H55 is a premium open-pot fryer that combines state-of-the-art technology with decades of frying experience and customer satisfaction to set the standard for high-efficiency frying. The ENERGY STAR® rated H55 fryer saves thousands of dollars annually on energy costs. H55 fryers have long been the trusted choice of chains and independent operators worldwide because their efficient, state-of-the-art heat transfer system, precise controls and durability have stood the test of time.
Infrared burners and blower system delivers an ultra-refined air-gas mixture so the fryer operates well in any gas application such as at high altitudes, in environments where air circulation is sub-optimal or when the heating value of the gas is diminished.
Filtration System
Frymaster’s renowned, built-in filtration system puts filtration where it’s most convenient to use -- right within the fryer battery -- eliminating the need for additional floor and storage space.
Filtration Process and Advantages
The filtering process is fast and easy, encouraging frequent filtering -- a critical part of maximizing oil life, especially with trans-fat free oils. It is also sequential, so one fryer may be filtered while the others are still in use. It is engineered with features that allow added convenience, easier serviceability and allows for using three different filter mediums with one pan.
This system is enhanced with a gravity draining system that allows residual oil to drain into the filter pan so that drain lines are always open. The filter, housed beneath two Frymaster fryers or one fryer and a spreader, is capable of filtering up to six fryers, individually, without having to be moved from fryer to fryer, saving valuable labor. One fifty-pound fryer can be filtered in about four minutes, while other fryers in the battery keep on cooking.
Other Details
Large sump with secure hold-down ring ensures proper vacuum and superior oil filtration. The stainless steel filter pan slides out easily over floor mats and uneven floor tiles.
Frymaster H55 Standard Features
- Baskets:Two twin per frypot
- Boil-out: Boil-out temperature control
- Built-in Filtration: See spec sheet
- Burners: Infrared burners.
- Capacity: 50-lb oil capacity.
- Cleaning: Ample cleaning space when filter pan is removed.
- Controllers:Digital
- Design:Open-pot design (split or full), easy to clean
- Drain: Large 3-inch round drain line creates 13% more capacity for oil to drain freely
- Drain Safety Switch:Drain safety switch on all Frymaster filter system fryers.
- Gas Connection:See spec sheet
- Ignition:Electronic ignition.
- Melt Cycle:Automatic
- Temperature Probe:Center-mounted, RTD 1° compensating temperature probe
Frymaster *FPH155 Technical Specifications
- W x D x H :15.63 x 29. 63 x 45.63 Inches
- Weight: 306 lb
- Power Input Type:Gas - Natural
