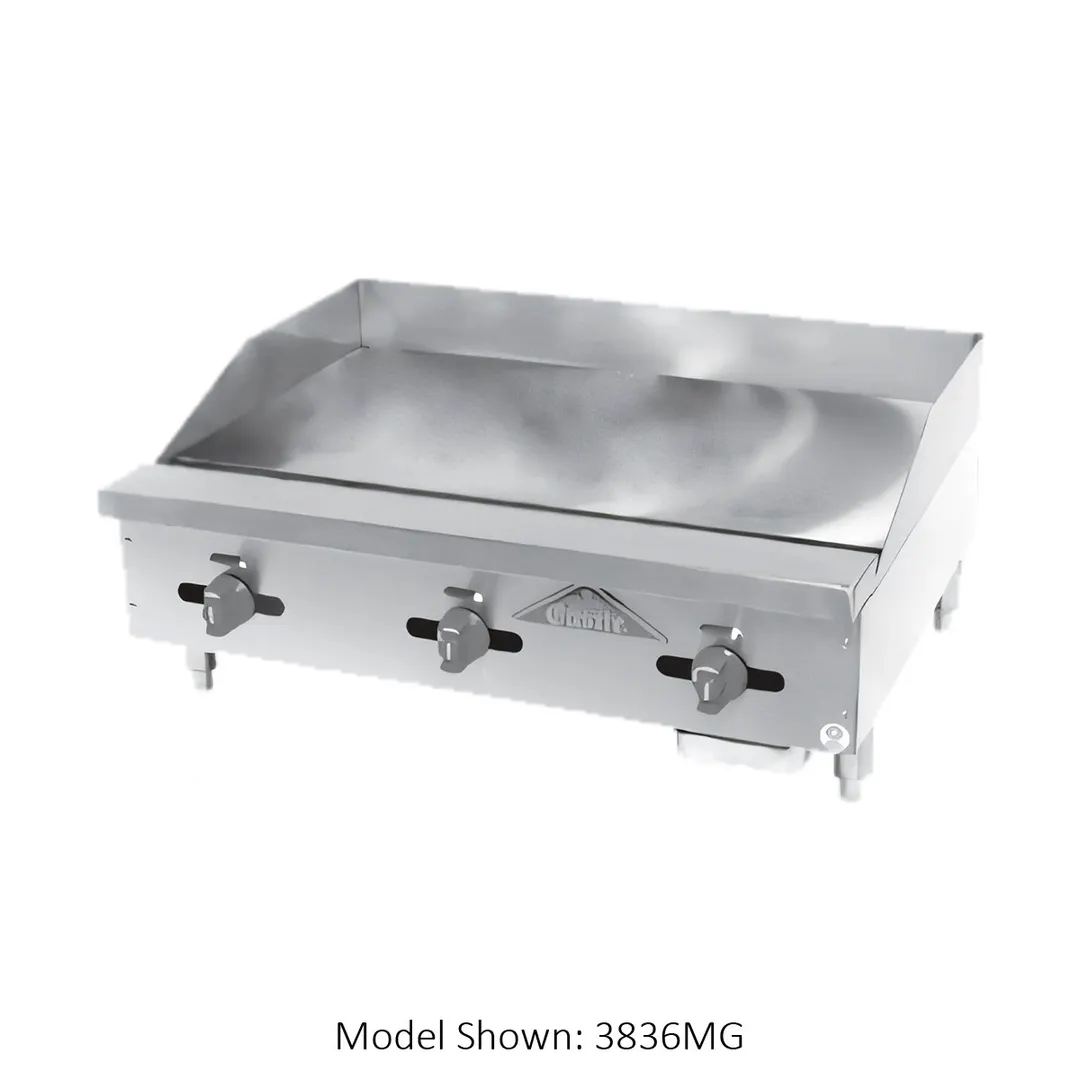

Comstock-Castle 3836TG 36" Countertop Gas Griddle with Thermostat / Solid State Controls, 90.000 BTU

Comstock-Castle 3836TG Standart Features

Construction

Easy cleaning, corrosion resistant stainless steel. Welded frame with insulated side panels. Stainless steel front control panel. 4˝ wide stainless steel bull nose landing across the front is a functional work area for service plates and work utensils as well as control protection Installation clearances for non-combustible surfaces are 0˝ on the sides and 0˝ in the rear, combustible surfaces are 6˝ on the sides and 6˝ in the rear

Controls

Equipped with brass gas valves and automatic standing pilots. Pressure regulators are set at the factory for the type of gas specified. Optimal pressures are 4˝ WC for natural gas & 10˝ WC for propane. Throttling thermostat controls are available, adjusting from 150F to 450F to provide accurate temperature control to +/- 20F of set point. Manifold size is ¾˝ NPT. All controls are tested and confirmed in good working order. Installation, calibration and adjustments are the responsibility of the buyer.

Burners

12˝ incremental griddles feature 30,000 BTU burners, one for each 12˝ increment. 18˝, 30˝ & 42˝ models feature 2˝, 4˝ & 6˝ burners respectively, each rated at 18,000 BTU.

Griddle Plate

30˝ deep cooking surface for large volume cooking, ¾˝ thick for even efficient heat distribution & fast recovery and highly polished to minimize food sticking. 1˝ plates also available. 4˝ high stainless steel splash guard is standard, higher & lower sides are also available. A large drain slot channels grease into the large capacity, seamless grease drawer.

Accessories & Options

Thermostats, safety pilot controls, chrome griddle surfaces, grooved griddle surfaces, extra tall splash guards, gas hoses, knob protectors, carrying handles, spatulas, scrapers and matching equipment stands.

Comstock-Castle 3836TG Specification

Diner Series Griddle, countertop, gas, 36" wide x 38" deep frame, 36" wide x 30" deep x 3/4" thick polished steel griddle plate, (3) thermostat controls, 4" splash guard on back & ends, 3-1/2" wide front grease trough, large removable grease drawer, stainless steel exterior, 75,000 BTU, NSF
