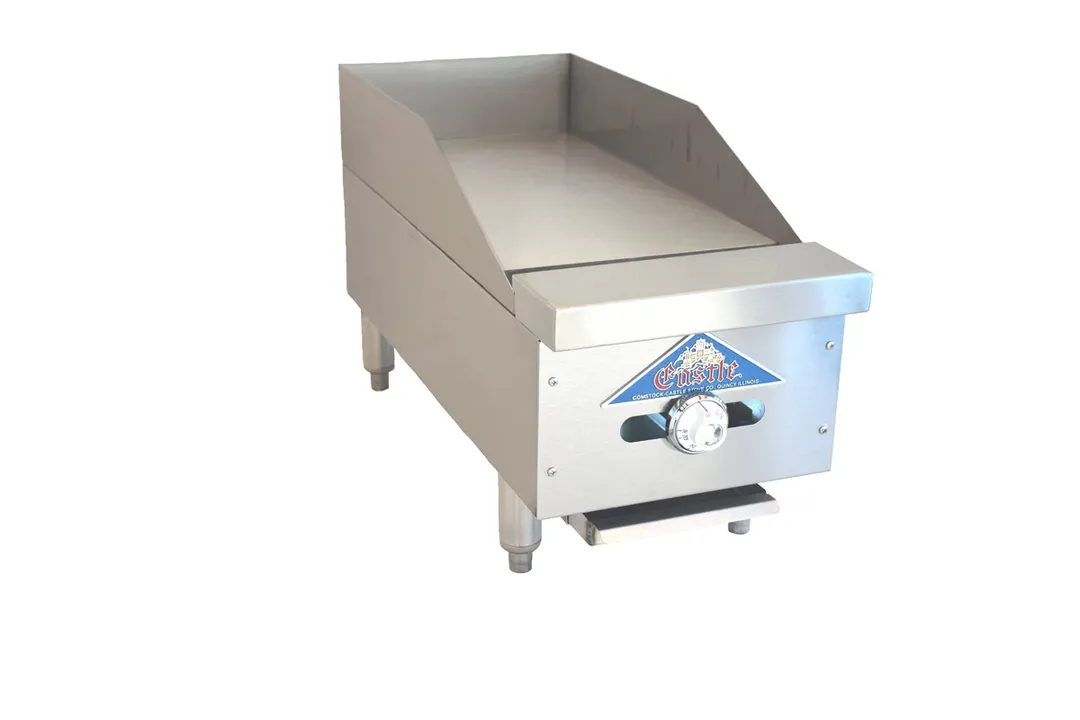

Comstock-Castle FHP18-18T 18" Countertop Gas Griddle with Thermostatic Controls, 36.000 BTU

Comstock-Castle FHP18-18T Standart Features

Construction

Easy cleaning, corrosion resistant stainless steel finish, welded with angle iron and aluminized inner framing. Sturdy 5˝ heavy duty stainless pipe legs with adjustable feet. 4˝ wide stainless steel bull nose landing across the front is a functional work area for service plates and work utensils as well as control protection. Double wall construction with heavy insulation for cooler operation. Installation clearances for non-combustible surfaces are 0˝ on the sides and 0˝ in the rear, combustible surfaces are 4˝ on the sides and 5˝ in the rear.

Griddle Plate

Highly polished to minimize food sticking. ¾˝ thick plate is standard, 1˝ thick is available. 4˝ high splash guard is standard. Higher sides are also available. 21¼˝ deep cooking surface with front, cold zone grease trough. Grease drain slot is 3.5˝ x 1˝ and feeds into a seamless, deep, removable grease drawer.

Controls

Equipped with throttling thermostats with temperature range from 150F to 450F and provides precise temperature control, brass gas valves and automatic standing pilots. Pressure regulators are set at the factory for the gas specified. Optimal pressures are 4˝ WC for natural gas and 10˝ WC for propane. Manifold size is ¾˝ NPT. All controls are tested and confirmed in good working order. Calibration and adjustments are the responsibility of the owner

Burners

12˝ incremental griddles feature 20,000 BTU cast iron “H” pattern burners, one for each 12˝ increment. 18˝, 30˝, 42˝, 54˝ & 66˝ models feature 2, 4, 6, 8 & 10 straight burners respectively, each rated at 18,000 BTU.

Match-Up

FHP Series griddles are designed to match up with FHP char-broilers and hot plates.

Accessories

1˝ thick plates, chrome plating, grooved surfaces, custom splash guards, safety pilot controls, gas hoses, grill scrapers, spatulas, cleaning supplies, carrying handles, knob protectors and matching equipment stands.

Comstock-Castle FHP18-18T Specification

Griddle, countertop, gas, 18" wide x 21" deep x 3/4" thick polished steel griddle plate, (1) thermostatic control, 4" splash guard on back & ends, 3-1/2" wide front grease trough, removable grease drawer, stainless steel exterior, 4" stainless steel legs, 30,000 BTU, NSF, ETL
