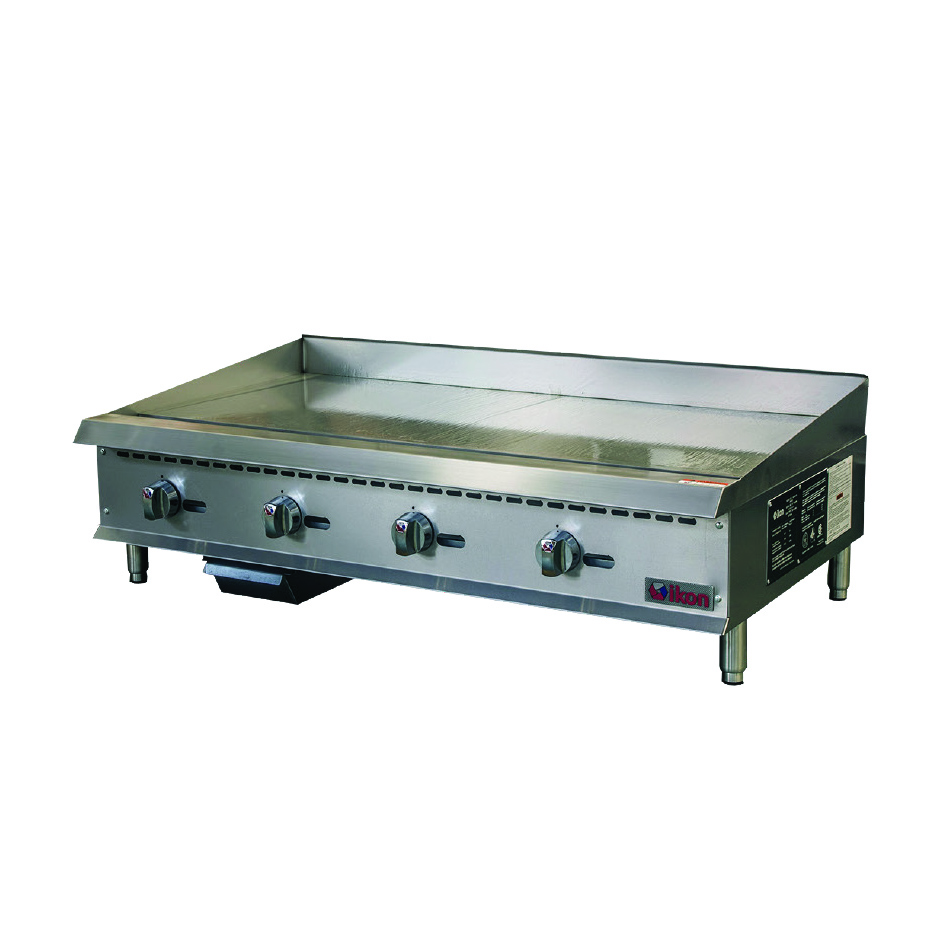

Name: IKON IMG-48 48" Countertop Gas Griddle, Manual Controls, 3/4" Seel Plate, 120.000 BTU
Brand: IKON
SKU: MVP-IMG-48
Price: 1281.25 USD
Availability: InStock

The Ikon Manual Control Griddles

Ikon IMG-48 Features

The continous 30,000 BTU output per burner provides even heat to the 3/4” thick polished steel griddle plate
The Ikon Manual Control Griddles are available in 12”, 24”, 36”, 48” & 60” widths
Adjustable manual gas controls provide easy and safe operations
Pilot light can be lit from the front for ease of use
“U” shape burners provide even heat distribution every 12”
Easy to remove 3-1/4” grease drawer with “weep hole” and baffle
Back and side splash guards fully welded to griddle plate
Flue located on back of unit for ample ventilation
Adjustable stainless steel legs, non-skid feet
Grease trough is standard 4” spatula width
Griddle is fully serviceable from the front
Available in Natural gas(NG) or Liquid propane(LP)
A conversion kit is supplied with each unit
“Cool-to-the-touch” front s/s edge
Gas control knob every 12”
All stainless steel cabinet
Double wall insulated sides

Gas Requirements

A conversion kit is supplied with each unit.In order to avoid any waranty issues, conversion of your unit must be completed by an authorized Ikon service agent.
Natural Gas or Liquid Propane (LP) Gas main supply required
3/4” NPT gas connection
30,000 BTU’s per burner
One pilot light per burner
Natural gas 4” W.C., LP gas 10” W.C.

From The Manufacturer

IKON Cooking Griddle, gas, countertop, 48" W x 34.4" D, adjustable manual control, front lit pilot light, (4) 30,000 BTU U-shape burners, 3/4" polished steel griddle plate, (4) gas control knobs, double wall insulated sides, welded back & side splash guards, rear flue, removable 3-1/4" grease drawer with weep hole & baffle, 4" wide grease trough, stainless steel cabinet, stainless steel adjustable legs, non-skid feet, 120,000 BTU total, CSA-Sanitation, CSA Star, CSA Flame

Manufacturer	IKON
Model Number	IMG-48
Weight	355 lbs
Width	48″
Depth	34.4″
Height	15.5″
Exterior Finish	stainless steel front & sides
Plate Thickness	3/4"
Controls	manual controls
Griddle Plate Finish	smooth steel
Installation Type	countertop
Number of Burners	4 burners
Total BTU	120,000
Cooking Surface Width	47.5"
Cooking Surface Depth	21"
Griddle Style	flat top (standard)
