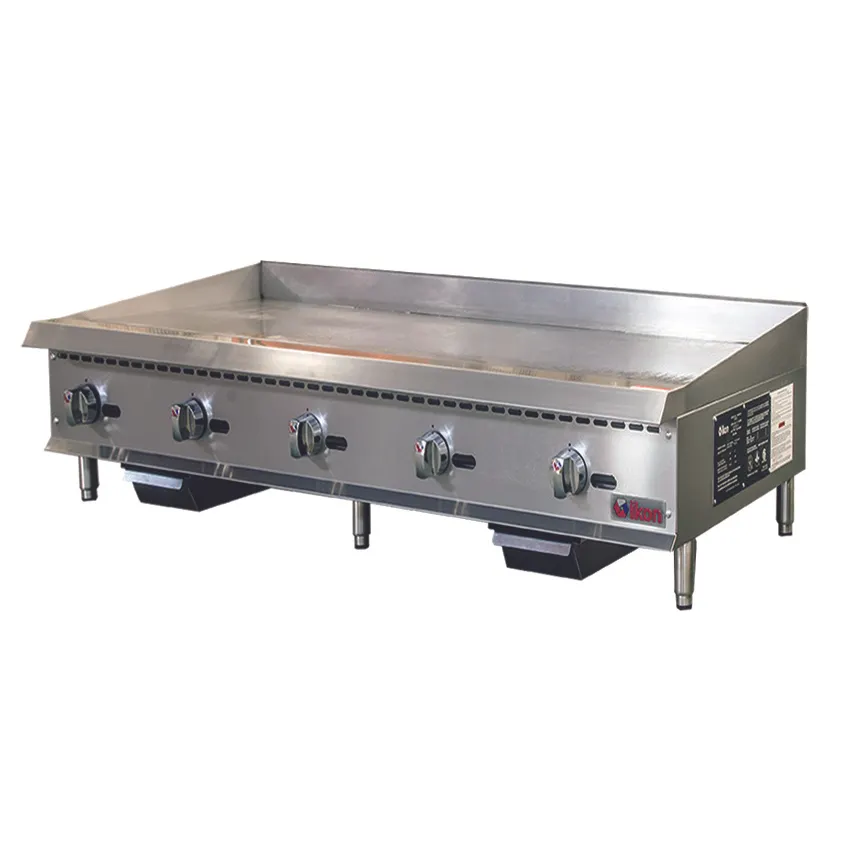

The Ikon Manual Control Griddles
Ikon IMG-60 Features
- The Ikon Manual Control Griddles are available in 12”, 24”, 36”, 48” & 60” widths
- The continous 30,000 BTU output per burner provides even heat to the 3/4” thick polished steel griddle plate
- Adjustable manual gas controls provide easy and safe operations
- Pilot light can be lit from the front for ease of use
- “U” shape burners provide even heat distribution every 12”
- Easy to remove 3-1/4” grease drawer with “weep hole” and baffle
- Back and side splash guards fully welded to griddle plate
- Flue located on back of unit for ample ventilation
- Adjustable stainless steel legs, non-skid feet
- Grease trough is standard 4” spatula width
- Griddle is fully serviceable from the front
- Available in Natural gas(NG) or Liquid propane(LP)
- A conversion kit is supplied with each unit
- “Cool-to-the-touch” front s/s edge
- Gas control knob every 12”
- All stainless steel cabinet
- Double wall insulated sides
Gas Requirements
- A conversion kit is supplied with each unit.In order to avoid any waranty issues, conversion of your unit must be completed by an authorized Ikon service agent.
- Natural Gas or Liquid Propane (LP) Gas main supply required
- 3/4” NPT gas connection
- 30,000 BTU’s per burner
- One pilot light per burner
- Natural gas 4” W.C., LP gas 10” W.C.
From The Manufacturer
IKON Cooking Griddle, natural gas, countertop, 60" W x 34.4" D, adjustable manual control, front lit pilot light, (5) 30,000 BTU U-shape burners, 3/4" polished steel griddle plate, (5) gas control knobs, double wall insulated sides, welded back & side splash guards, rear flue, removable 3-1/4" grease drawer with weep hole & baffle, 4" wide grease trough, stainless steel cabinet, (6) stainless steel adjustable legs, non-skid feet, 150,000 BTU total, CSA-Sanitation, CSA Star, CSA Flame (ships with LP gas conversion kit)
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
