The Ikon Thermostat Control Griddles
Ikon ITG-36 Features
- The Ikon Thermostat Control Griddles are available in 24”, 36”, 48” & 60” widths
- The continous 30,000 BTU output per burner provides even heat to the 1” thick polished steel griddle plate
- Adjustable manual gas controls provide easy and safe operations
- “U” shape burners provide even heat distribution every 12”
- Easy to remove 3-1/4” grease drawer with “weep hole” and baffle
- Back and side splash guards fully welded to griddle plate
- Flue located on back of unit for ample ventilation
- Adjustable stainless steel legs, non-skid feet
- Grease trough is standard 4” spatula width
- Griddle is fully serviceable from the front
- Available in Natural gas(NG) or Liquid propane(LP)
- A conversion kit is supplied with each unit
- “Cool-to-the-touch” front s/s edge
- Gas control knob every 12”
- All stainless steel cabinet
- Double wall insulated sides
- Temperature Range: 200F-450F
Gas Requirements
- A conversion kit is supplied with each unit.In order to avoid any waranty issues, conversion of your unit must be completed by an authorized Ikon service agent.
- Natural Gas or Liquid Propane (LP) Gas main supply required
- 3/4” NPT gas connection
- 30,000 BTU’s per burner
- One pilot light per burner
- Natural gas 4” W.C., LP gas 10” W.C.
From The Manufacturer

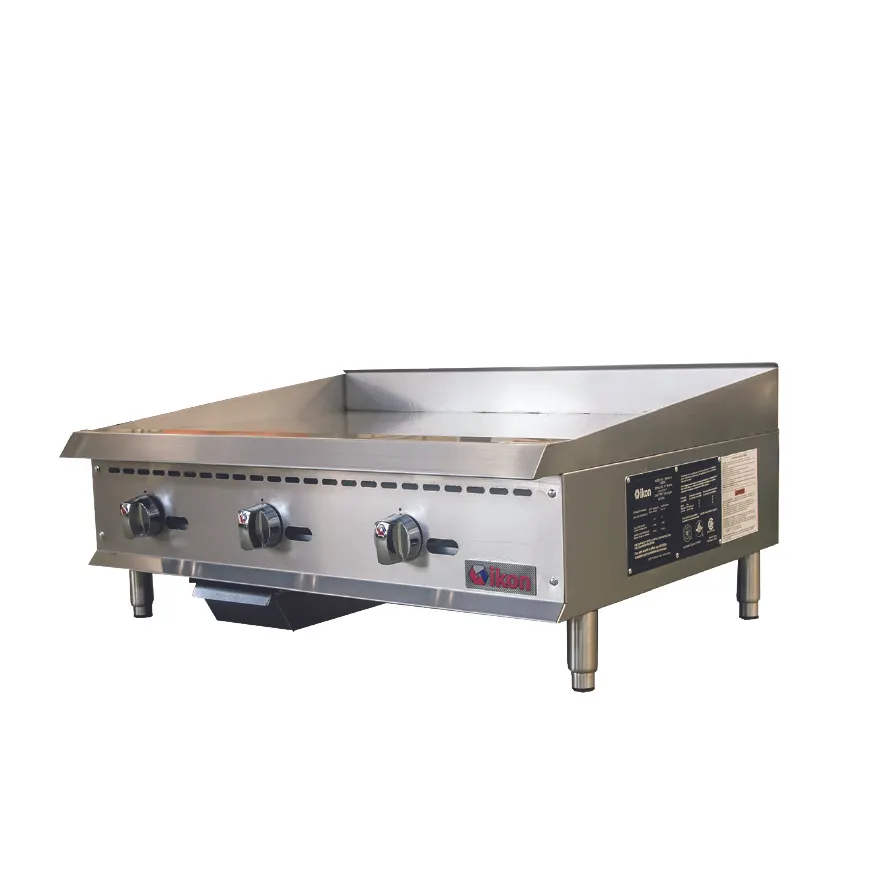

IKON Cooking Griddle, gas, countertop, 36" W x 34.4" D, adjustable manual thermostatic control, front lit pilot light, (3) 30,000 BTU U-shape burners, 1" thick polished steel griddle plate, (3) gas control knobs, double wall insulated sides, welded back & side splash guards, rear flue, removable 3-1/4" grease drawer with weep hole & baffle, 4" wide grease trough, stainless steel cabinet, stainless steel adjustable legs, non-skid feet, 90,000 BTU total, CSA-Sanitation, CSA Star, CSA Flame
