The Ikon Thermostat Control Griddles
Ikon ITG-48 Features
- The Ikon Thermostat Control Griddles are available in 24”, 36”, 48” & 60” widths
- The continous 30,000 BTU output per burner provides even heat to the 1” thick polished steel griddle plate
- Adjustable manual gas controls provide easy and safe operations
- “U” shape burners provide even heat distribution every 12”
- Easy to remove 3-1/4” grease drawer with “weep hole” and baffle
- Back and side splash guards fully welded to griddle plate
- Flue located on back of unit for ample ventilation
- Adjustable stainless steel legs, non-skid feet
- Grease trough is standard 4” spatula width
- Griddle is fully serviceable from the front
- Available in Natural gas(NG) or Liquid propane(LP)
- A conversion kit is supplied with each unit
- “Cool-to-the-touch” front s/s edge
- Gas control knob every 12”
- All stainless steel cabinet
- Double wall insulated sides
- Temperature Range: 200F-450F
Gas Requirements
- A conversion kit is supplied with each unit.In order to avoid any waranty issues, conversion of your unit must be completed by an authorized Ikon service agent.
- Natural Gas or Liquid Propane (LP) Gas main supply required
- 3/4” NPT gas connection
- 30,000 BTU’s per burner
- One pilot light per burner
- Natural gas 4” W.C., LP gas 10” W.C.
From The Manufacturer

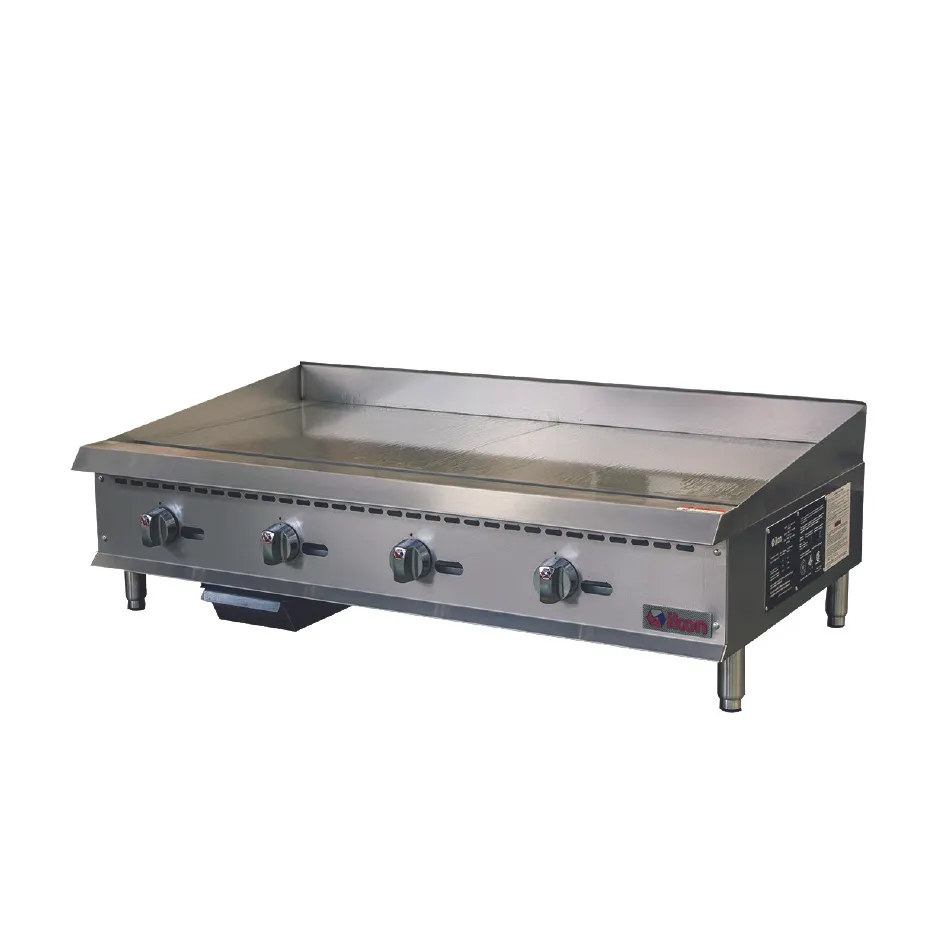

IKON Cooking Griddle, natural gas, countertop, 48" W x 34.4" D, adjustable manual thermostatic control, front lit pilot light, (4) 30,000 BTU U-shape burners, 1" thick polished steel griddle plate, (4) gas control knobs, double wall insulated sides, welded back & side splash guards, rear flue, removable 3-1/4" grease drawer with weep hole & baffle, 4" wide grease trough, stainless steel cabinet, stainless steel adjustable legs, non-skid feet, 120,000 BTU total, CSA-Sanitation, CSA Star, CSA Flame (ships with LP gas conversion kit)
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
