The Star Max Griddles are the cornerstone of every fast-moving, smooth-running commercial kitchen
Why use Grill Express?
Grill Express sandwich grills are designed to offer reliable commercial-grade performance at an affordable price. These units feature cast iron platens for increased durability. The temperature is controlled by an easy to use thermostat for quick adjustments. The grill is ideal for fast and simple cooking of sandwiches, quesadillas, steak, chicken, or any other product that can be grilled.
Star-Max manual gas griddles are a perfect match for the budget minded operator. For breakfast, lunch or dinner, the Star-Max manual control griddles out-perform the competition. Star-Max® griddles feature 1” thick polished steel griddle plate and are available in 15”, 24” 36” and 48” widths. 28,300 BTU aluminized burner every 12” of width controlled by a modulating thermostatic.
Technical Information
Gas griddles are constructed with stainless steel panel and double wall aluminized steel side panels. Griddle plate is 1” (2.54 cm) thick, 4-1/2” high tapered wrap-around stainless steel splash guard come standard. Unit has a 3-1/4” (8.3 cm) wide front grease trough with grease chute and a 4-1/2 quart (4.26 L) stainless steel grease drawer. Unit is heated by 28,300 BTU aluminized steel burner for every 12” (30.5 cm) of griddle width and is controlled by a modulating thermostat embedded into griddle plate.
Thermostat knobs are protected by a stainless steel bull nose front.An automatic safety pilot is provided for each burner. Griddles are supplied with 4” (10.2 cm) high die cast nickel plated steel legs that have a 1-3/8” (3.5 cm) adjustment. Gas connection is 3/4” N.P.T. male and a convertible pressure regulator is provided. Units are approved for installation within 6” (15.2 cm) of combustible and non-combustible surfaces and are UL Gas certified and UL EPH sanitation listed.

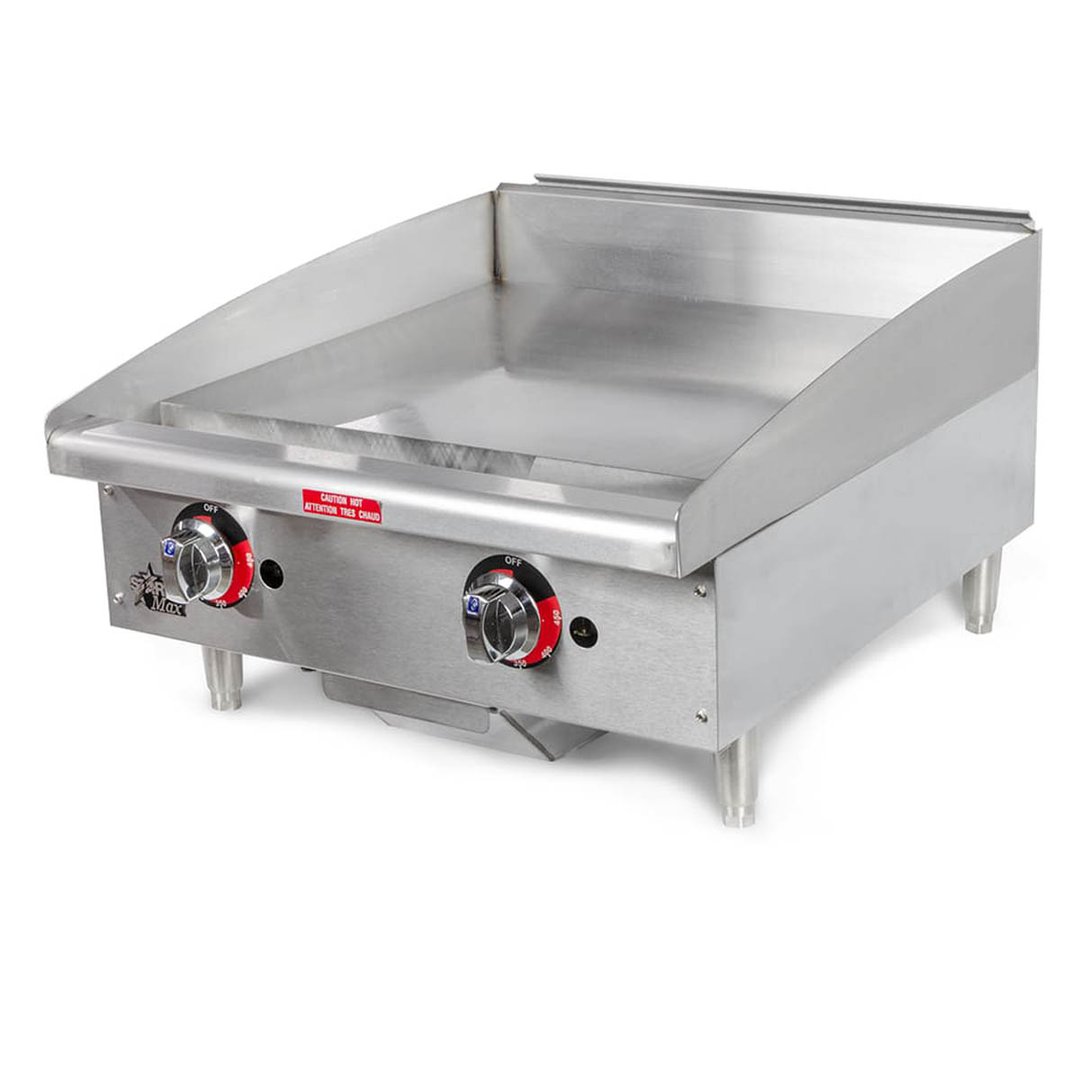

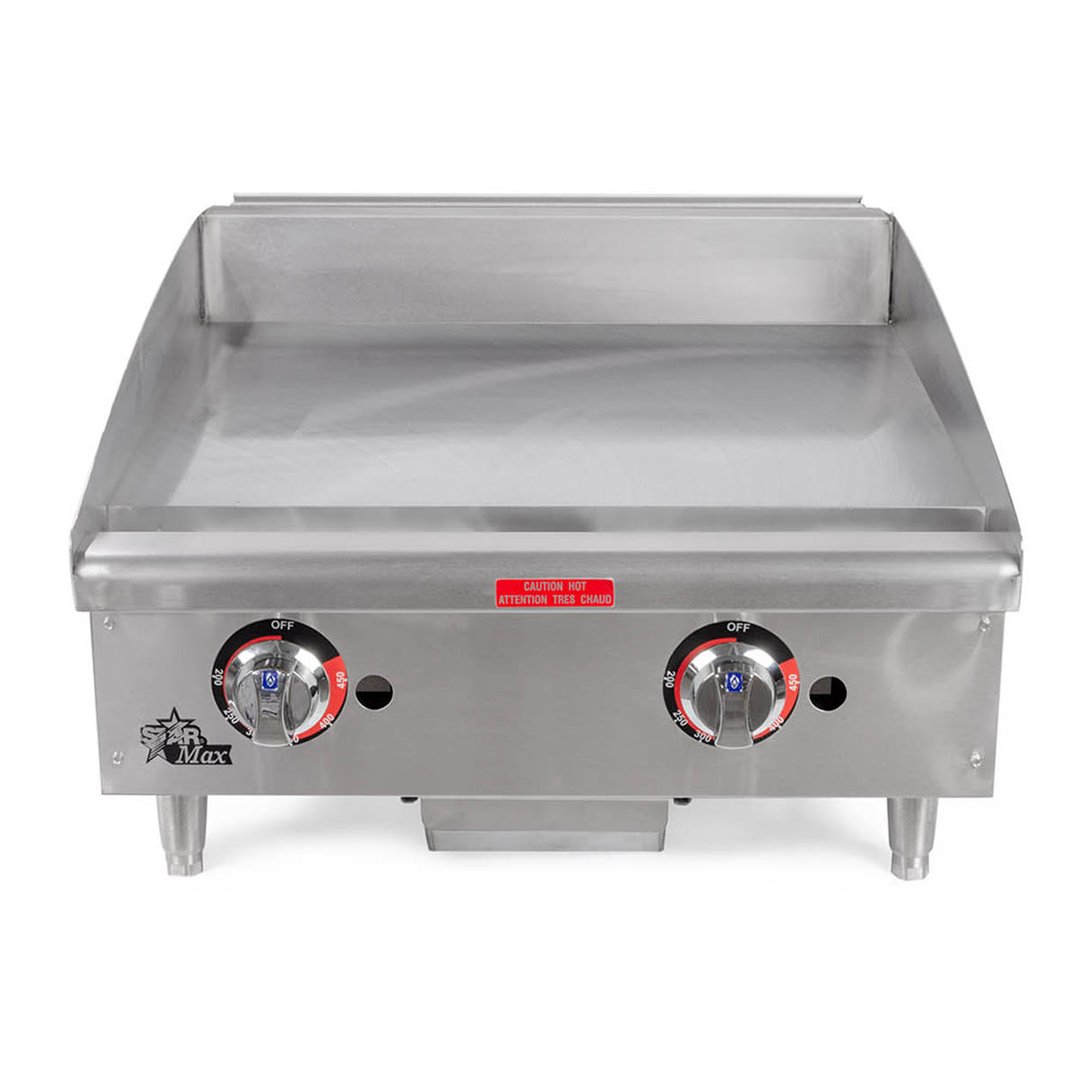

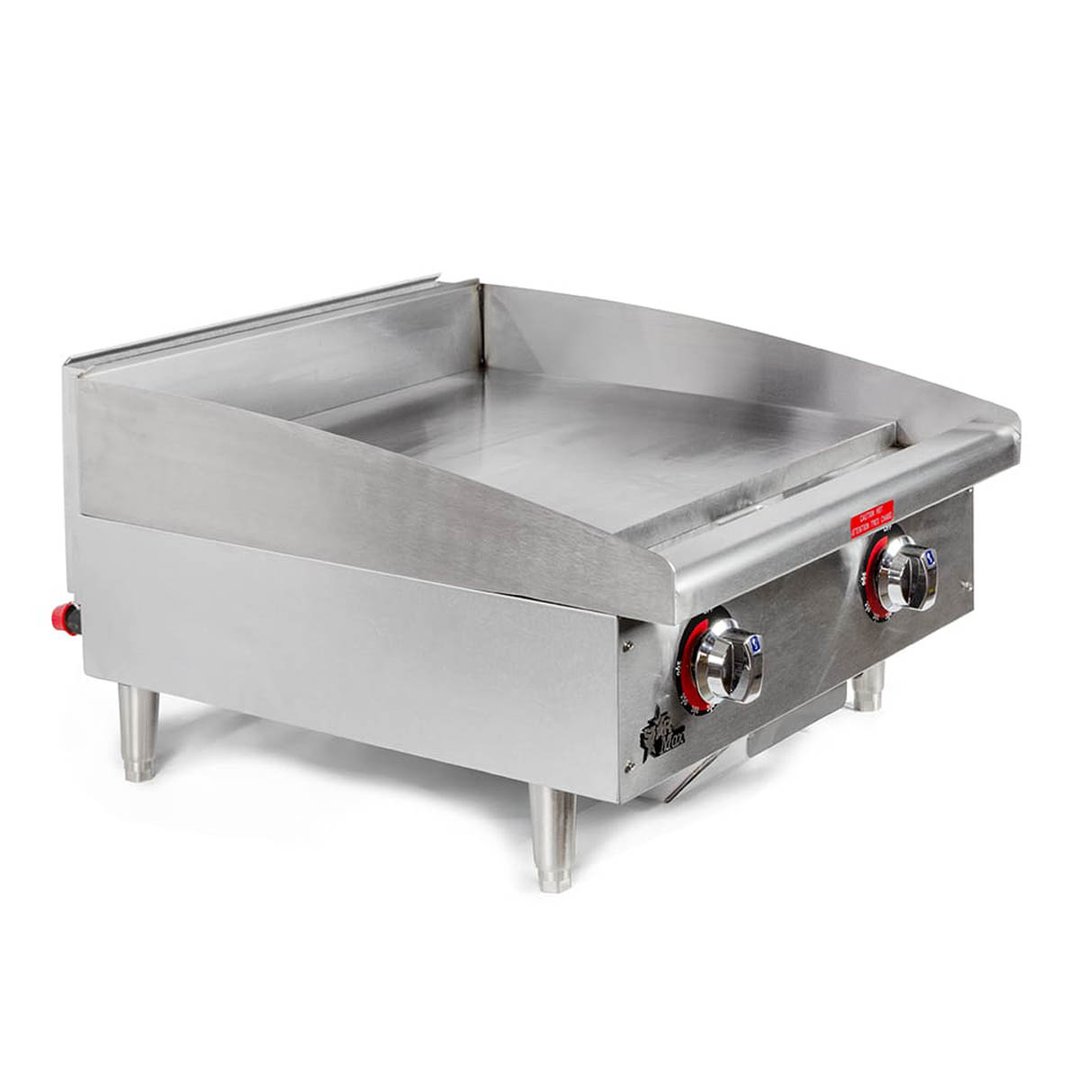

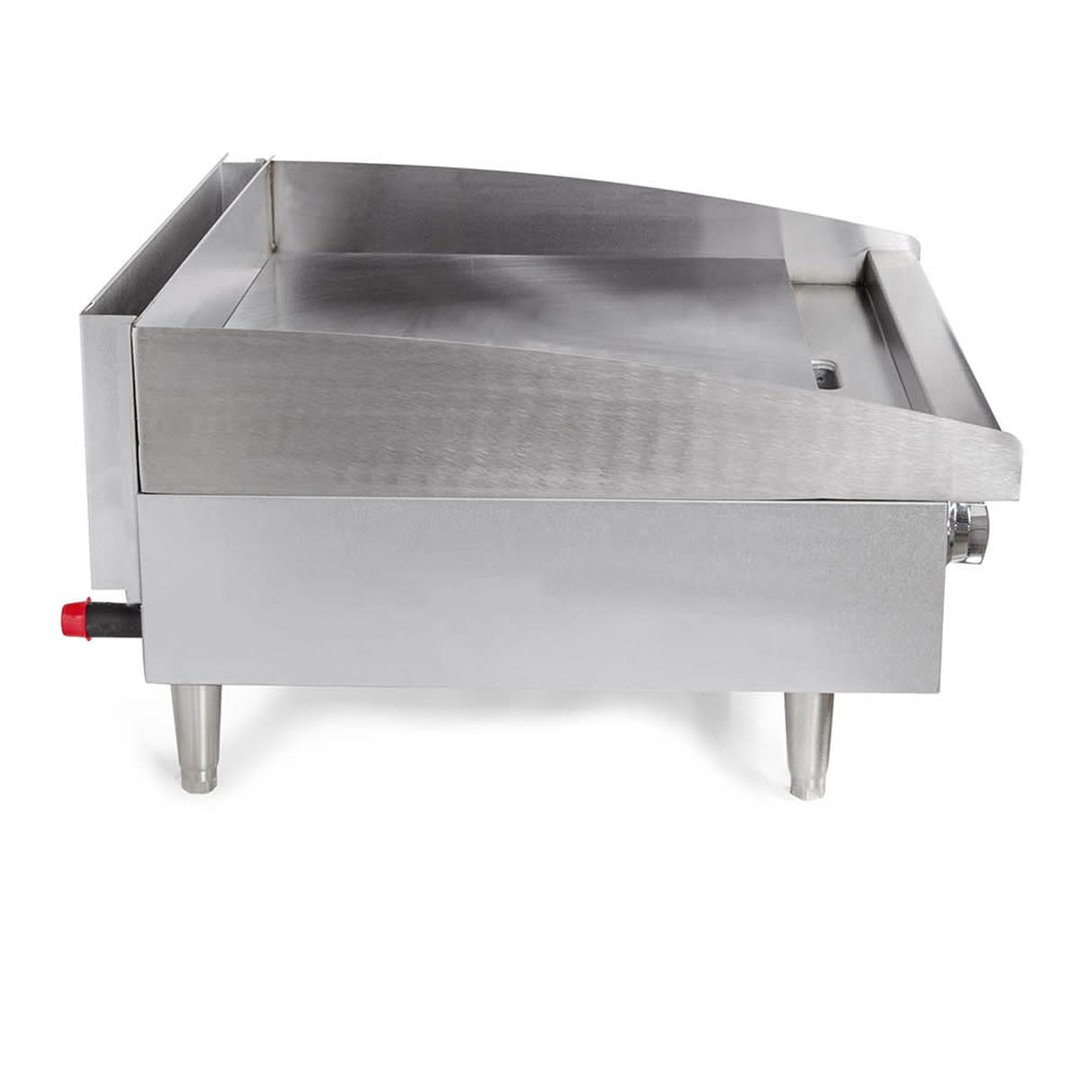

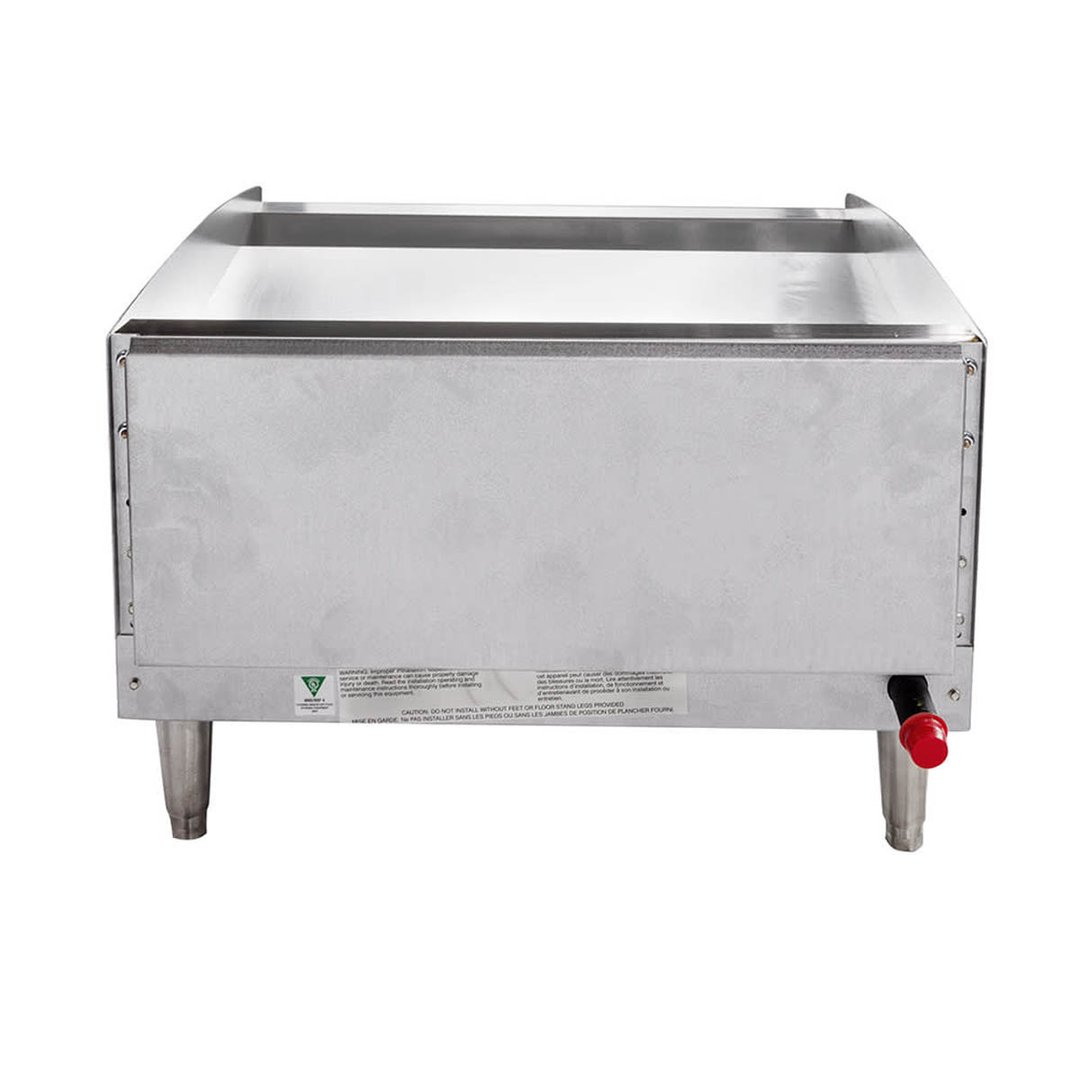

Star Max 624TF Features
- Modulating thermostat inserted into the griddle plate 3/16” from the cooking surface, adjusts from 150° to 450°F providing quick response to surface temperature change
- 28,300 BTU aluminized U-shaped steel burner every 12” of cooking surface provide even heat distribution
- Heavy-duty all-welded body construction with stainless steel front, bull nose and 4-1/2” high tapered splash guard
- Cool-to-the-touch stainless steel bull nose front provides knob protection and comfortable work zone
- Spatula wide 3-1/4” front grease trough and grease chute for easy cleaning
- All units shipped for Natural Gas Service with LP conversion kit and reversible regulator
- Highly polished 1” thick polished steel or chrome plate

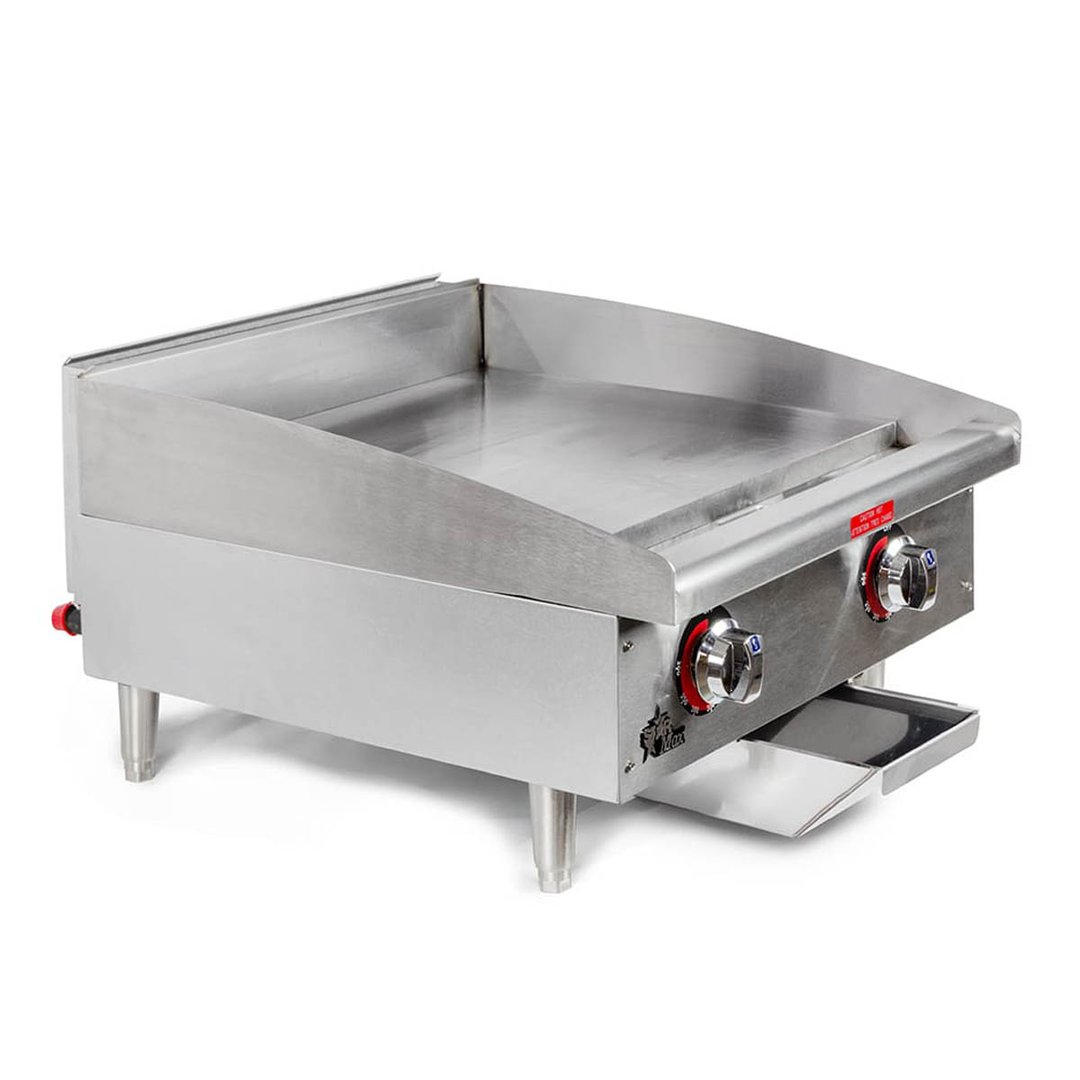

- Large 4-1/2 quart stainless steel grease drawer
- Heavy-duty 4” adjustable legs
- Available in 15”, 24”, 36” and 48” widths
- Heavy duty chrome plated cast zinc knobs
