Star Manual & Embedded Thermostatic Gas Griddles
FEATURES:
- Highly polished 1” thick polished steel or chrome plate
- Modulating thermostat inserted into the griddle plate 3/16” from the cooking surface, adjusts from 150° to 450°F providing quick response to surface temperature change
- Available in 15”, 24”, 36” and 48” widths
- Heavy duty chrome plated cast zinc knobs
- 28,300 BTU aluminized U-shaped steel burner every 12” of cooking surface provide even heat distribution
- Heavy-duty all-welded body construction with stainless steel front, bull nose and 4-1/2” high tapered splash guard
- Cool-to-the-touch stainless steel bull nose front provides knob protection and comfortable work zone

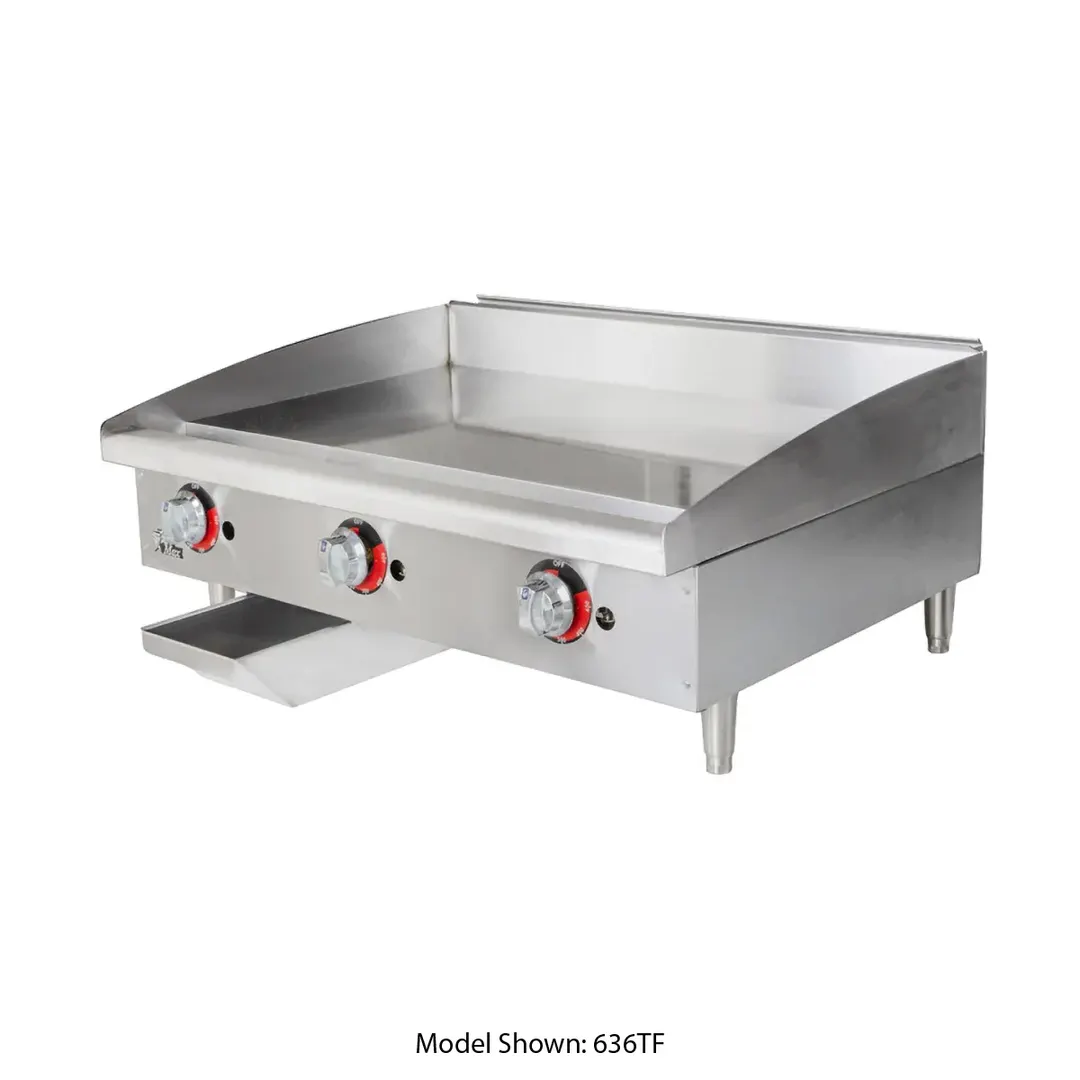

- Spatula wide 3-1/4” front grease trough and grease chute for easy cleaning
- Large 4-1/2 quart stainless steel grease drawer
- All units shipped for Natural Gas Service with LP conversion kit and reversible regulator
- Heavy-duty 4” adjustable legs
DESCRIPTION:
- Star-Max®manual gas griddles are a perfect match for the budget minded operator. For breakfast, lunch or dinner, the Star-Max manual control griddles out-perform the competition. Star-Max® griddles feature 1” thick polished steel griddle plate and are available in 15”, 24” 36” and 48” widths. 28,300 BTU aluminized burner every 12” of width controlled by a modulating thermostatic, 3/4” N.P.T. male gas connection with convertible pressure regulator, and 4” adjustable legs. Griddles operate on Natural or Propane gas.
SPECIFICATIONS:
- Gas griddles are constructed with stainless steel panel and double wall aluminized steel side panels. Griddle plate is 1” (2.54 cm) thick, 4-1/2” high tapered wrap-around stainless steel splash guard come standard. Unit has a 3-1/4” (8.3 cm) wide front grease trough with grease chute and a 4-1/2 quart (4.26 L) stainless steel grease drawer. Unit is heated by 28,300 BTU aluminized steel burner for every 12” (30.5 cm) of griddle width and is controlled by a modulating thermostat embedded into griddle plate. Thermostat knobs are protected by a stainless steel bull nose front. An automatic safety pilot is provided for each burner. Griddles are supplied with 4” (10.2 cm) high die cast nickel plated steel legs that have a 1-3/8” (3.5 cm) adjustment. Gas connection is 3/4” N.P.T. male and a convertible pressure regulator is provided. Units are approved for installation within 6” (15.2 cm) of combustible and non-combustible surfaces and are UL Gas certified and UL EPH sanitation listed.
From The Manufacturer

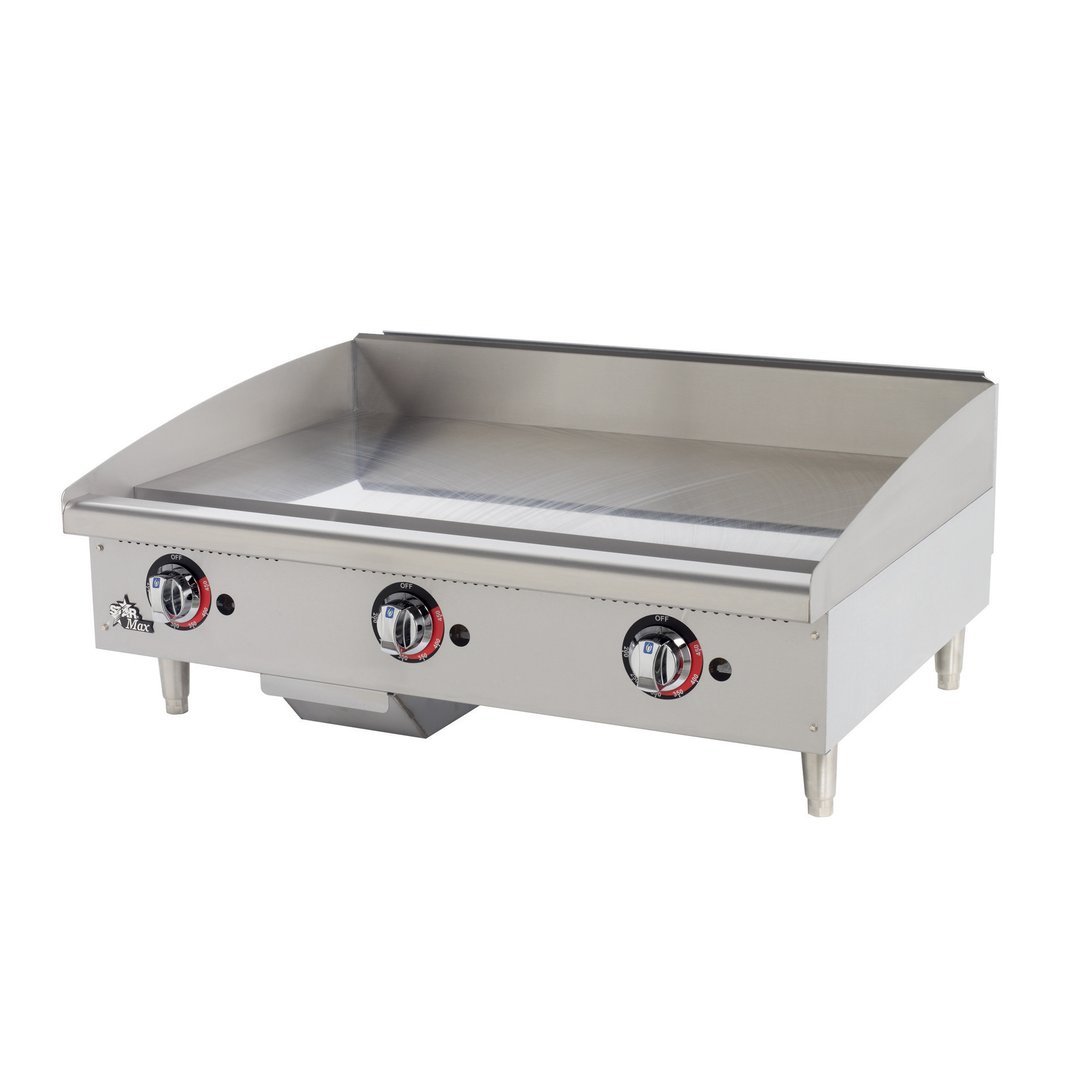

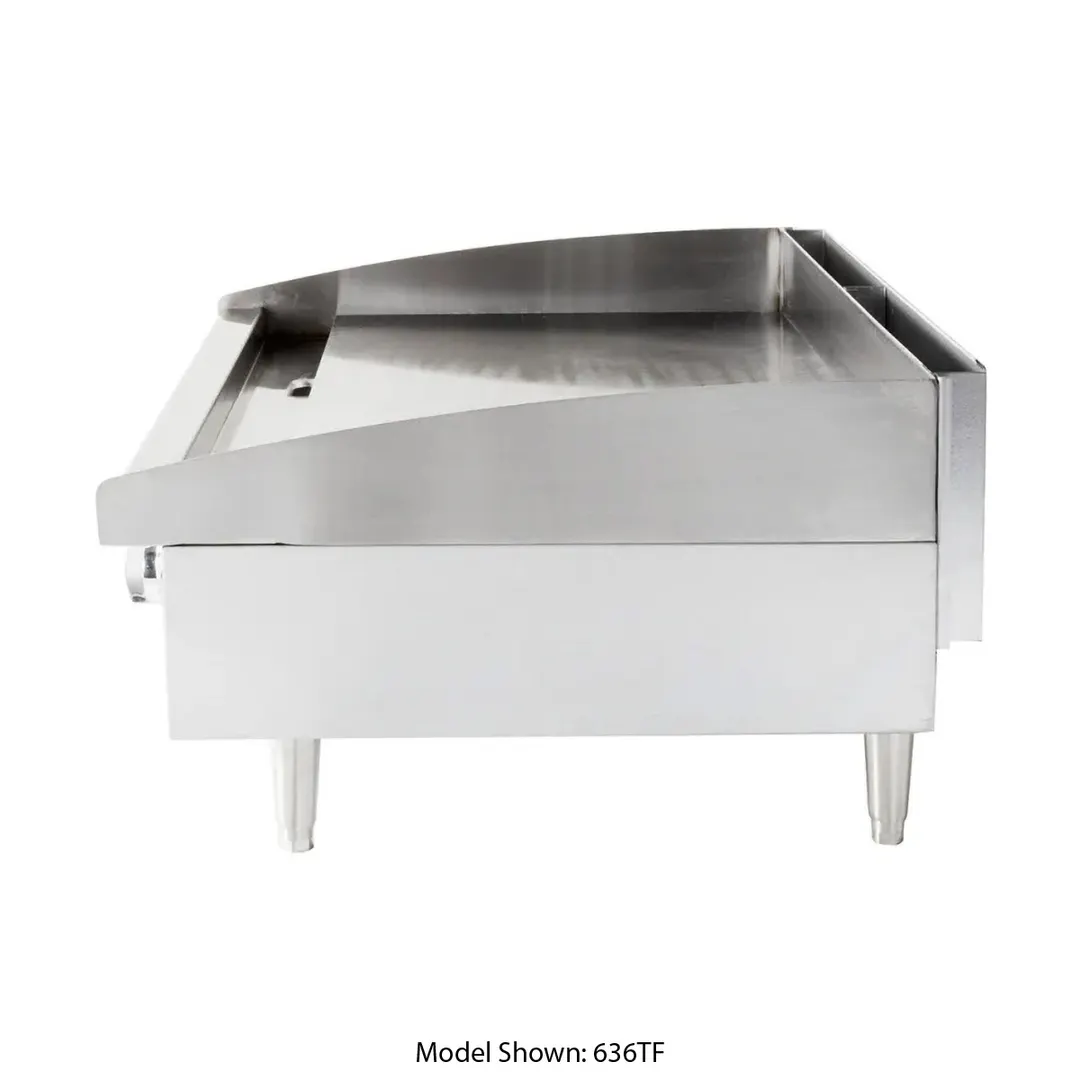

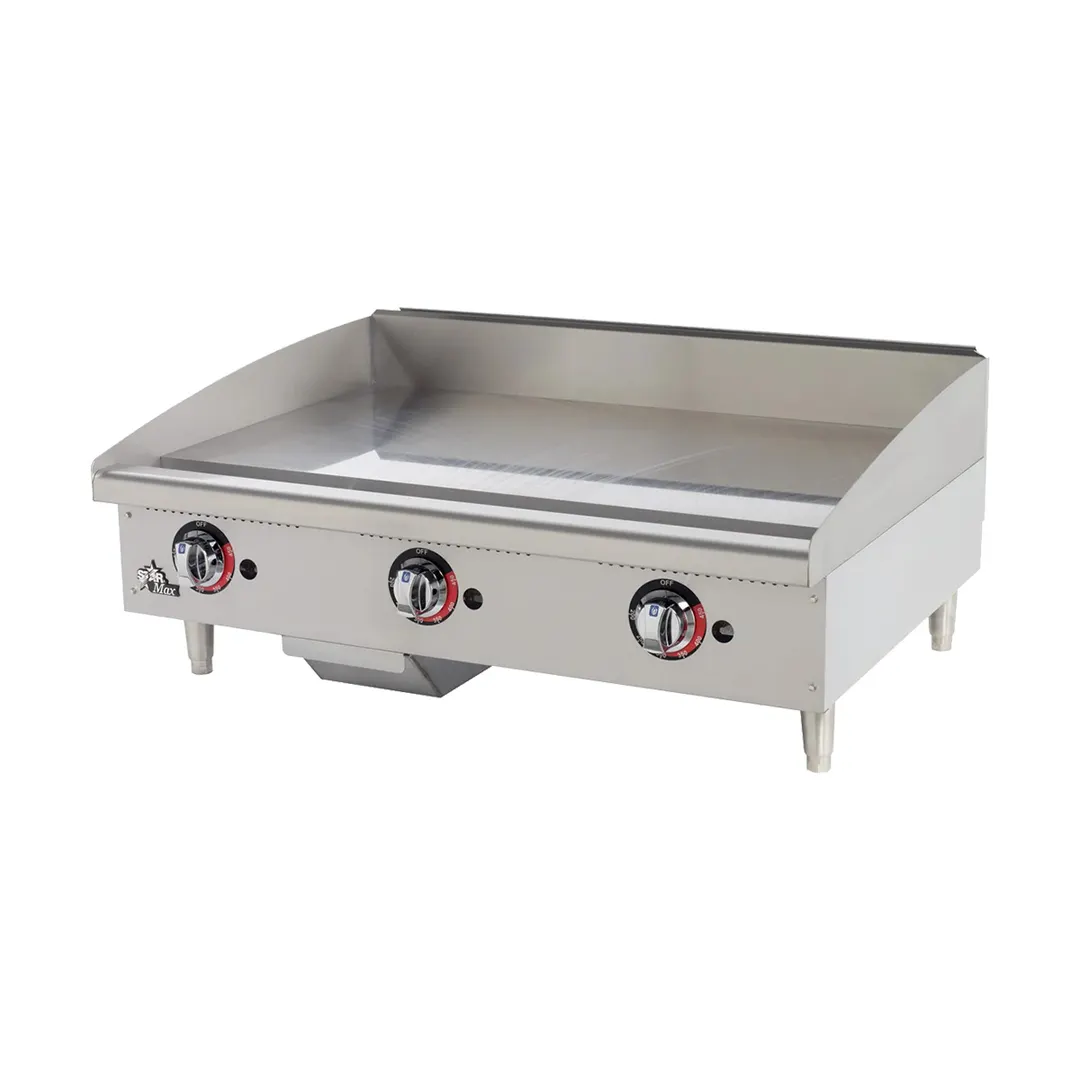

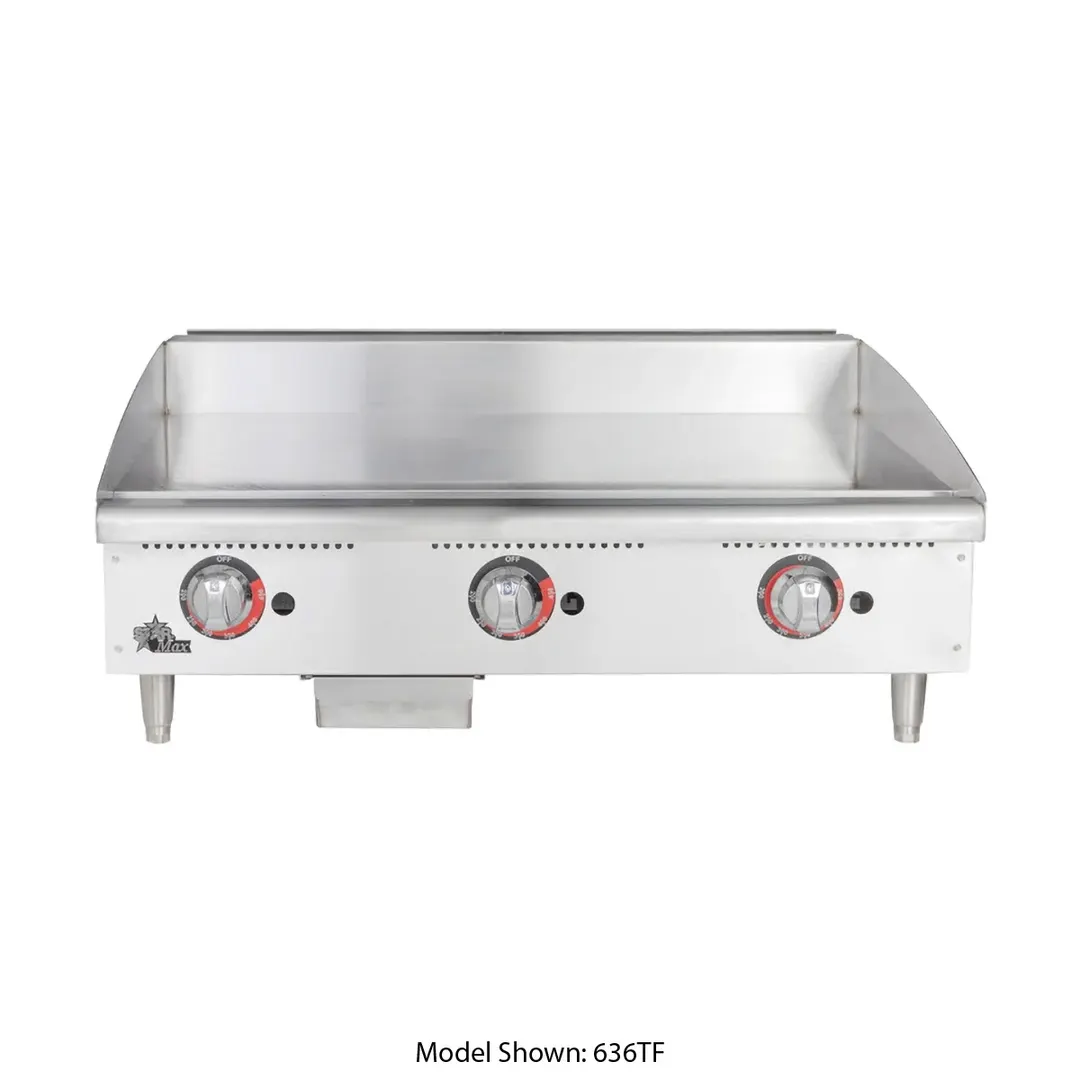

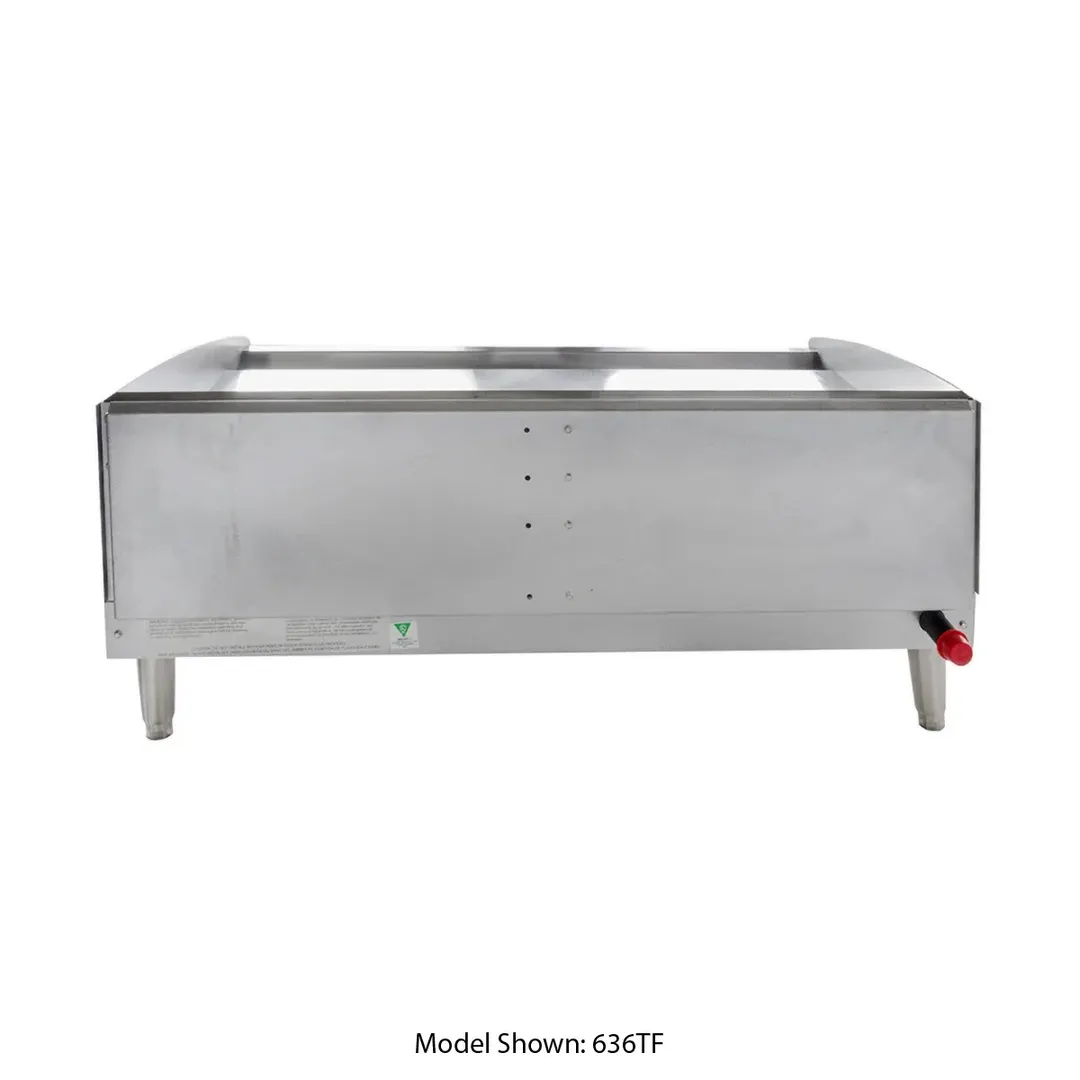

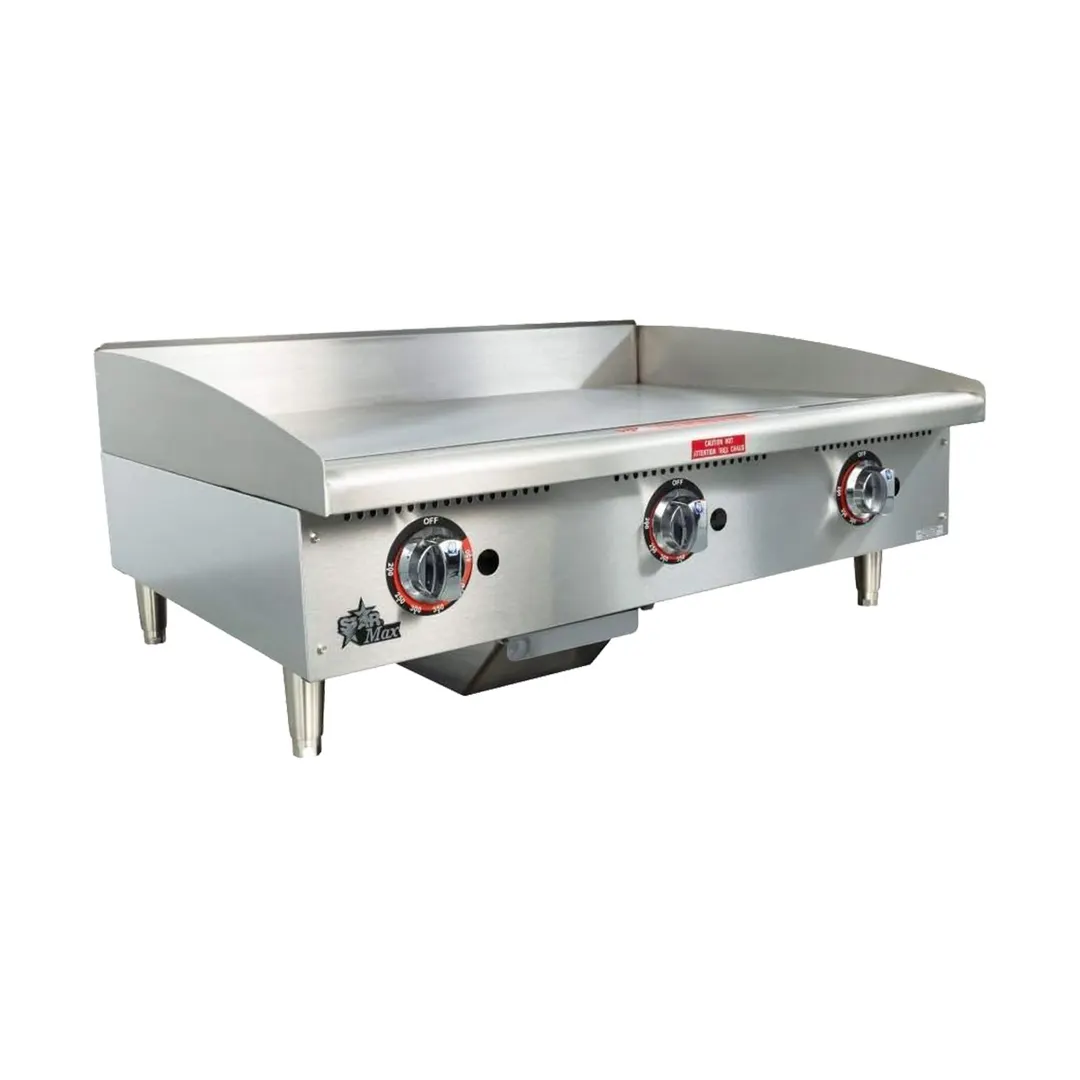

Star-Max® Heavy Duty Griddle, gas, countertop, 36" W x 21" D cooking surface, 1" thick steel griddle plate, electronic snap-action thermostat every 12", heavy duty knobs, wrap-around stainless steel splash guard, grease trough & stainless steel drawer, welded steel frame with stainless steel front, 4" legs, 84,900 BTU, cULus, UL EPH Classified, Made in USA, (ships Natural gas includes LP conversion kit)
