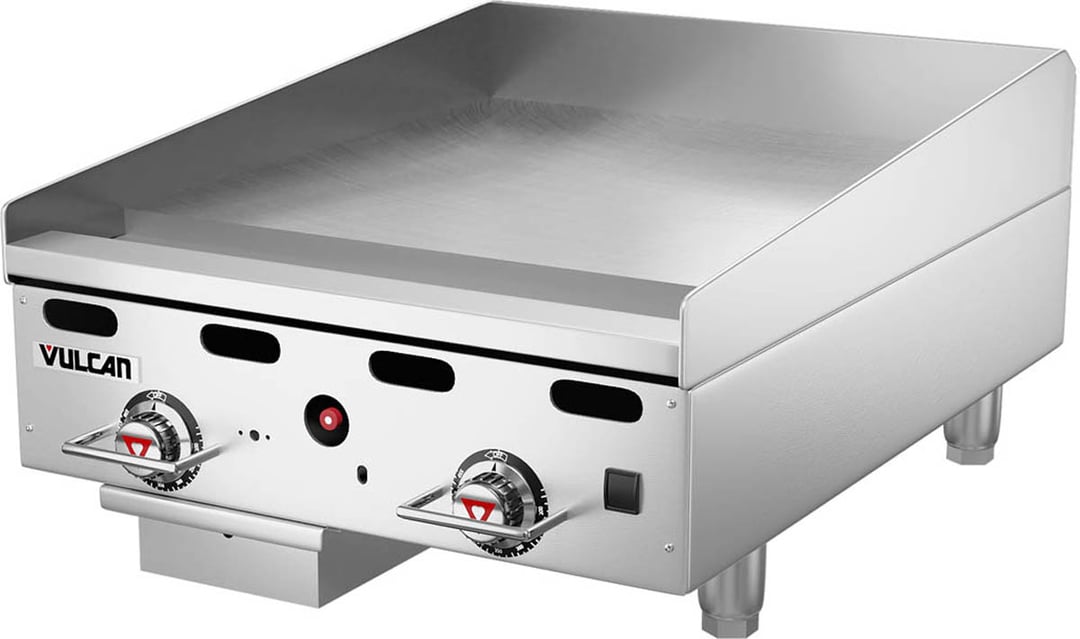

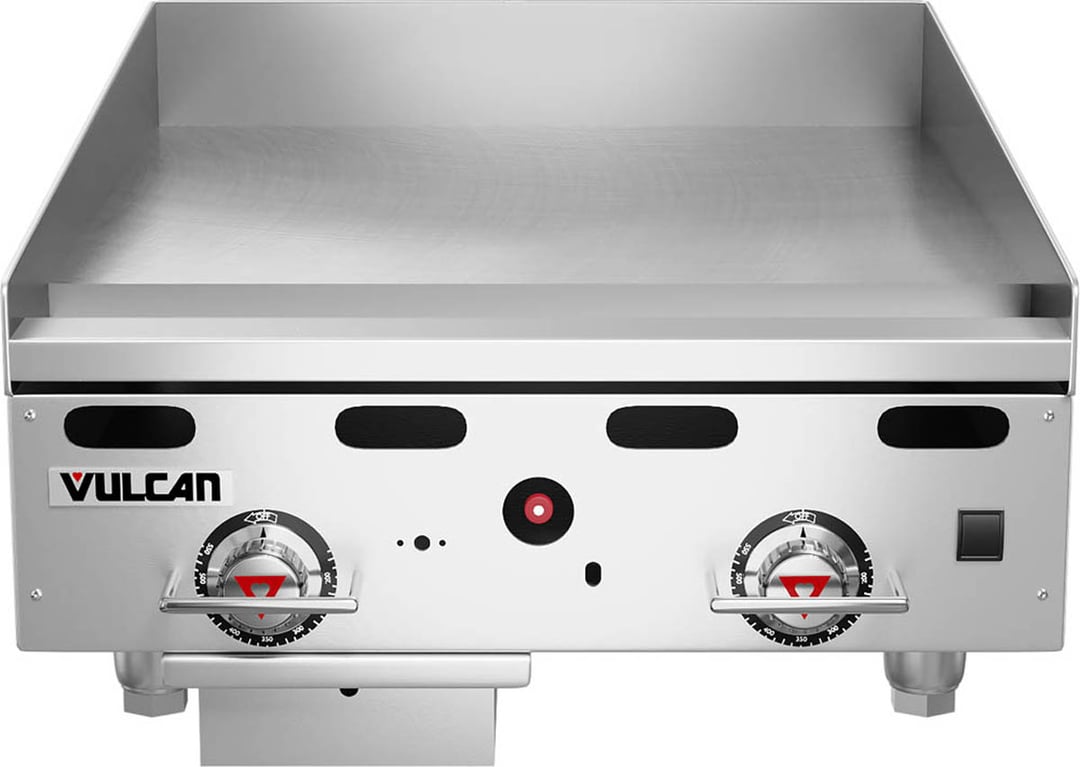

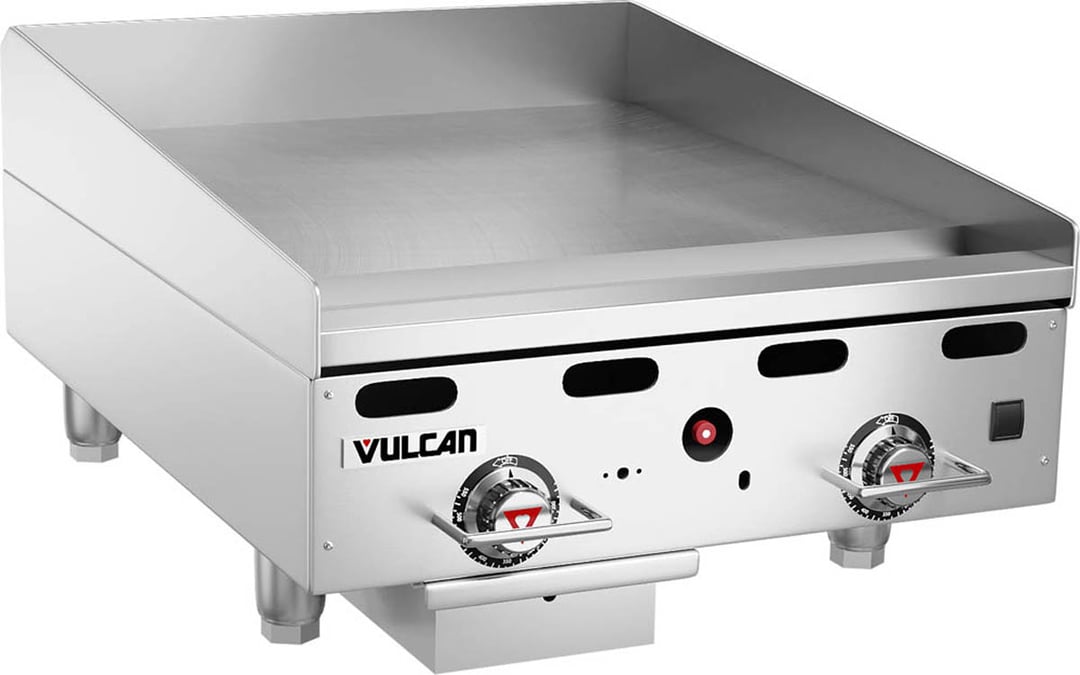

Vulcan MSA SERIES HEAVY DUTY GAS GRIDDLES
SPECIFICATIONS
Low profile heavy duty gas griddle, Vulcan MSA Series. Stainless steel front, sides and front top ledge. Fully welded stainless and aluminized steel body frame. 11" low profile cooking height on 4" legs. 1" thick polished steel griddle plate with 12 gage, 4" stainless steel back and tapered side splashes. Grease chute is fully welded to stop grease migration. One 27,000 BTU/hr. “U” shaped aluminized steel burner and mechanical snap action thermostat for each 12" of griddle width. Chrome thermostat knob guards. Temperature adjusts from 200° to 550°F. One pilot safety for every two burners. 3½" wide stainless steel grease trough. ¾" rear gas connection and gas pressure regulator.
Exterior Dimensions:
- MSA24: 24" w x 24" d griddle plate x 33" d x 15 ½" h on 4" legs.
- MSA36: 36" w x 24" d griddle plate x 33" d x 15 ½" h on 4" legs.
- MSA48: 48" w x 24" d griddle plate x 33" d x 15 ½" h on 4" legs.
- MSA60: 60" w x 24" d griddle plate x 33" d x 15 ½" h on 4" legs.
- MSA72: 72" w x 24" d griddle plate x 33" d x 15 ½" h on 4" legs.
STANDARD FEATURES
- Stainless steel front, sides and front top ledge with “Cool Bullnose” design.
- Fully welded stainless and aluminized steel chassis frame.
- 11" low profile cooking height on 4" adjustable legs
- 1" thick polished steel griddle plate with 12 gauge, 4" stainless steel back and tapered side splashes.
- Spatula wide 3 ½" grease gutter and chute is fully welded for easier cleaning and to stop grease migration.
- One 27,000 BTU/hr. “U” shaped aluminized steel burner for every 12" of griddle width.
- One embedded snap action thermostat per burner with temperature adjust from 200°F to 550°F on Steel or Chrome plate. Temperature adjusts from 200°F to 450°F on Rapid Recovery™ plate.
- Large 6 quart stainless steel grease drawer (2 drawers on 60" and 72" models).
- Heavy duty chromed thermostat knob guards.
- One pilot safety valve for every two burners. Safety will completely shut off gas to pilot and burners if pilot extinguishes.
- Manual ignition.
- Bottom heat shields.
- ¾" rear gas connection and gas pressure regulator.
- One year limited parts and labor warranty.
From The Manufacturer
Heavy Duty Griddle, countertop, gas, 24" W x 24" D cooking surface, 1" thick polished steel griddle plate, embedded mechanical snap action thermostat every 12", millivolt pilot safety, manual ignition, low profile, stainless steel front, sides, front grease trough, 4" back & tapered side splashes, 4" adjustable legs, 54,000 BTU, CSA Star, CSA Flame, NSF
