Vulcan VCRG-M RESTAURANT SERIES GAS GRIDDLES
SPECIFICATIONS
Low profile gas griddle Vulcan VCRG Series. Stainless steel front, sides and front top ledge. Fully welded stainless and aluminized steel body frame. 12 1⁄2" cooking height on 4" legs. 1" thick polished steel griddle plate welded to stainless steel back and tapered side splashes. One 25,000 BTU/hr. “U” shaped aluminized steel burner and infinite heat control for each 12" of griddle width. 4 1⁄2 quart capacity grease can. 3⁄4" rear gas connection and convertible gas pressure regulator for LP service
Exterior Dimensions:

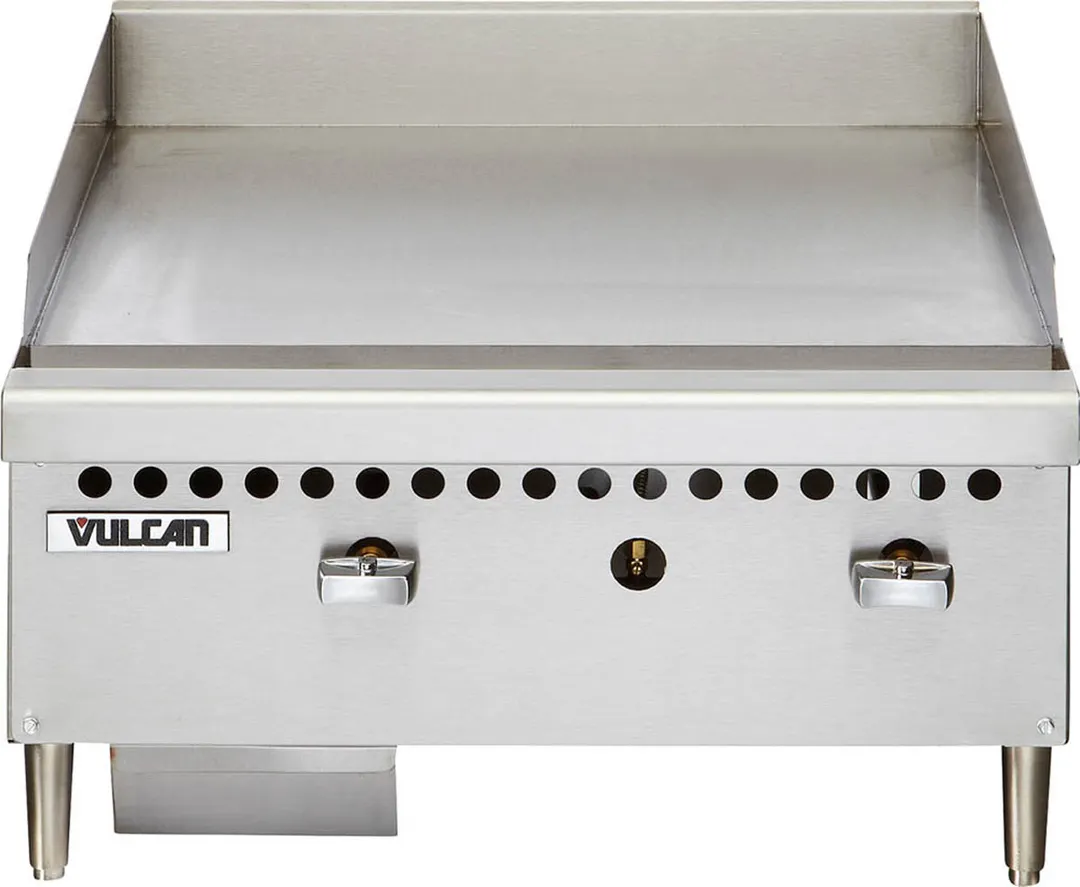

- VCRG24-M: 24" w x 20 1⁄2" d griddle plate x 27" d x 16" h on 4" legs.

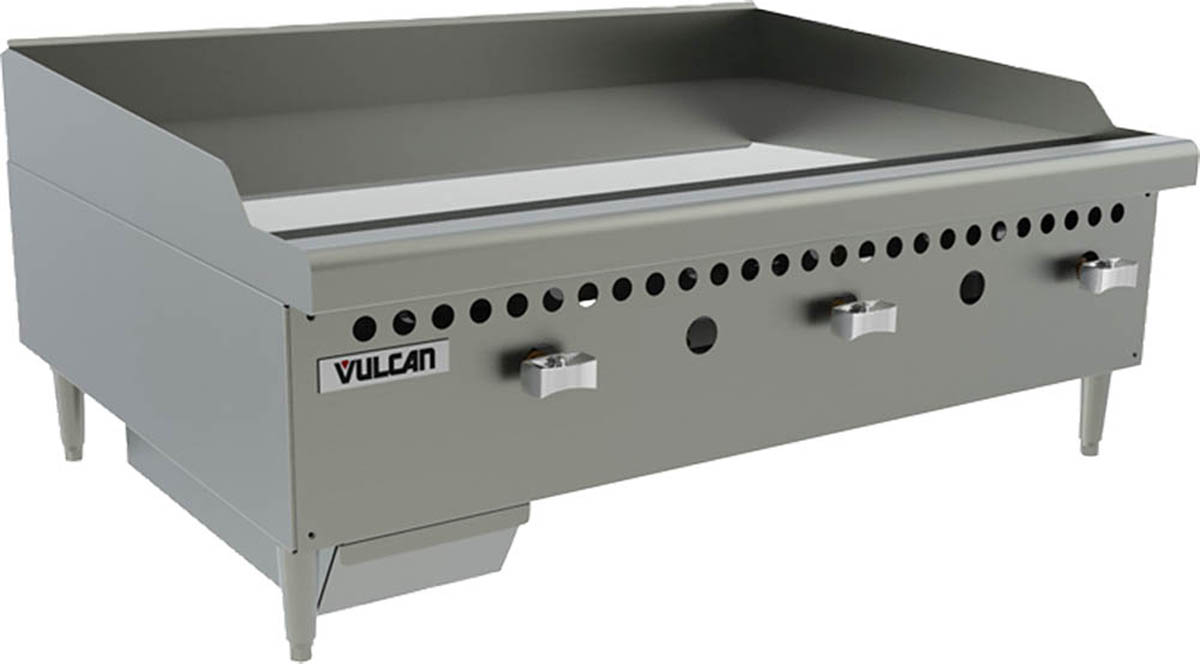

- VCRG36-M: 36" w x 20 1⁄2" d griddle plate x 27" d x 16" h on 4" legs.

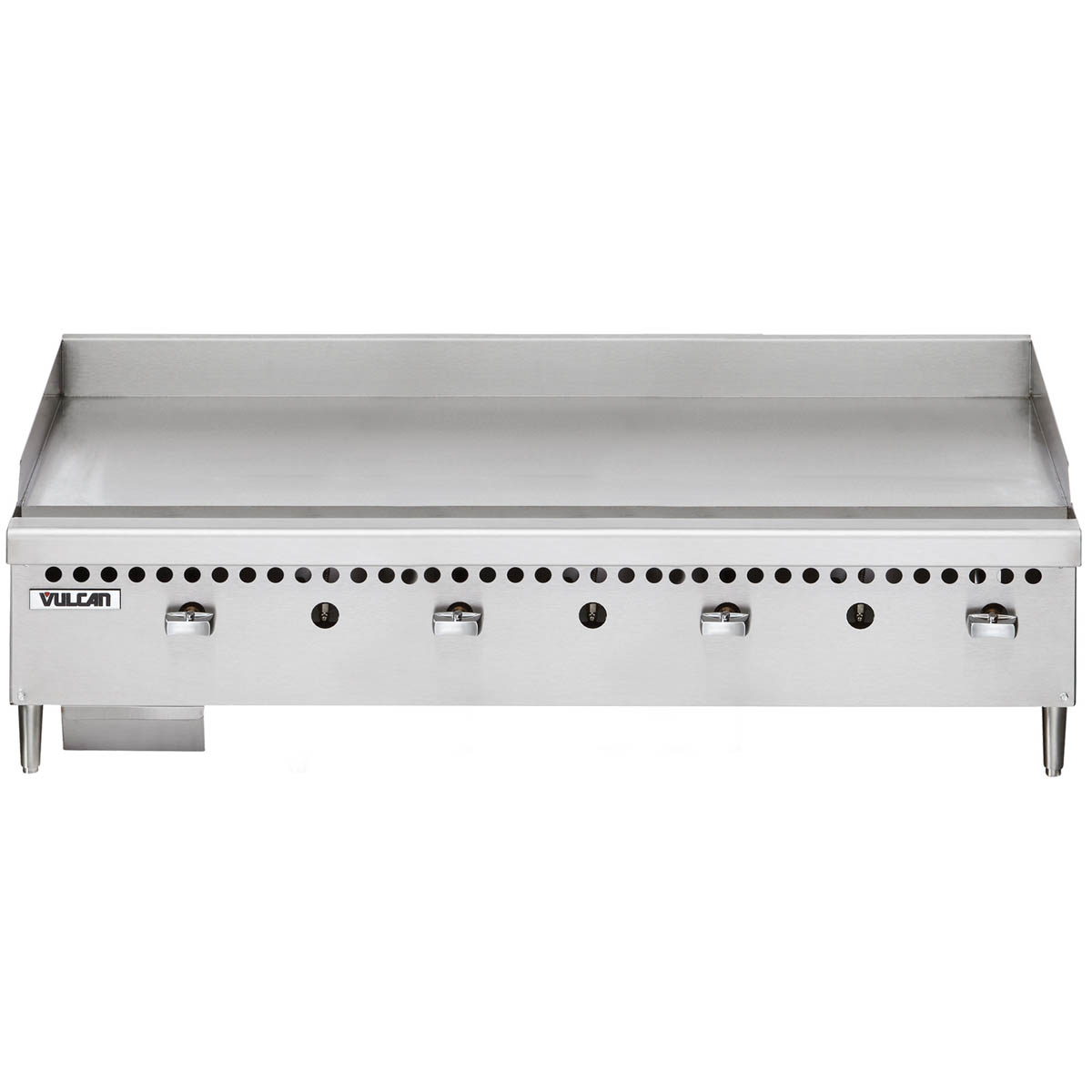

- VCRG48-M: 48" w x 20 1⁄2" d griddle plate x 27" d x 16" h on 4" legs.
STANDARD FEATURES
- 1" thick polished steel griddle plate welded to 31⁄4" stainless steel back, tapered side splashes and stainless steel grease trough.
- Fully welded stainless and aluminized steel chassis frame.
- 12 1⁄2" cooking height on 4" adjustable legs.
- One 25,000 BTU/hr. “U” shaped aluminized steel burner for every 12" of griddle width.
- One infinite heat control valve per burner.
- Standing pilot ignition system
- High capacity 4 1⁄2 quart capacity grease can

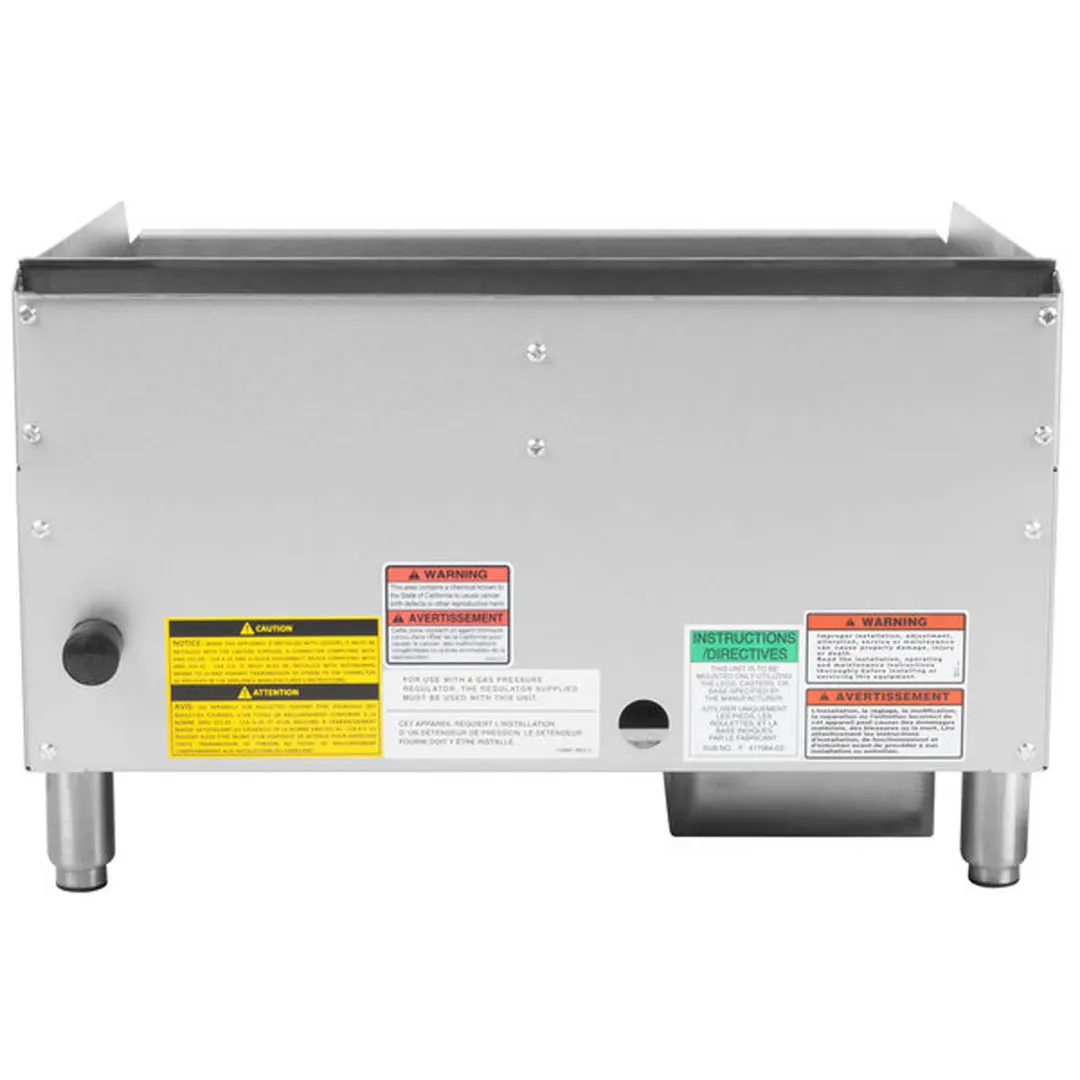

- 3⁄4" rear gas connection and convertible gas pressure regulator for LP service
- Constructed standard for natural gas service. LP conversion kit supplied with unit.
- One year limited parts and labor warranty.
From The Manufacturer
Griddle, countertop, gas, 24" W x 20-1/2" D cooking surface, 1" thick polished steel griddle plate, (2) burners, fully welded, manual control valve every 12", low profile, 4-1/2" grease can capacity, (1) drawer, stainless steel front, sides & front top ledge, 4" adjustable legs, 50,000 BTU, CSA, NSF
