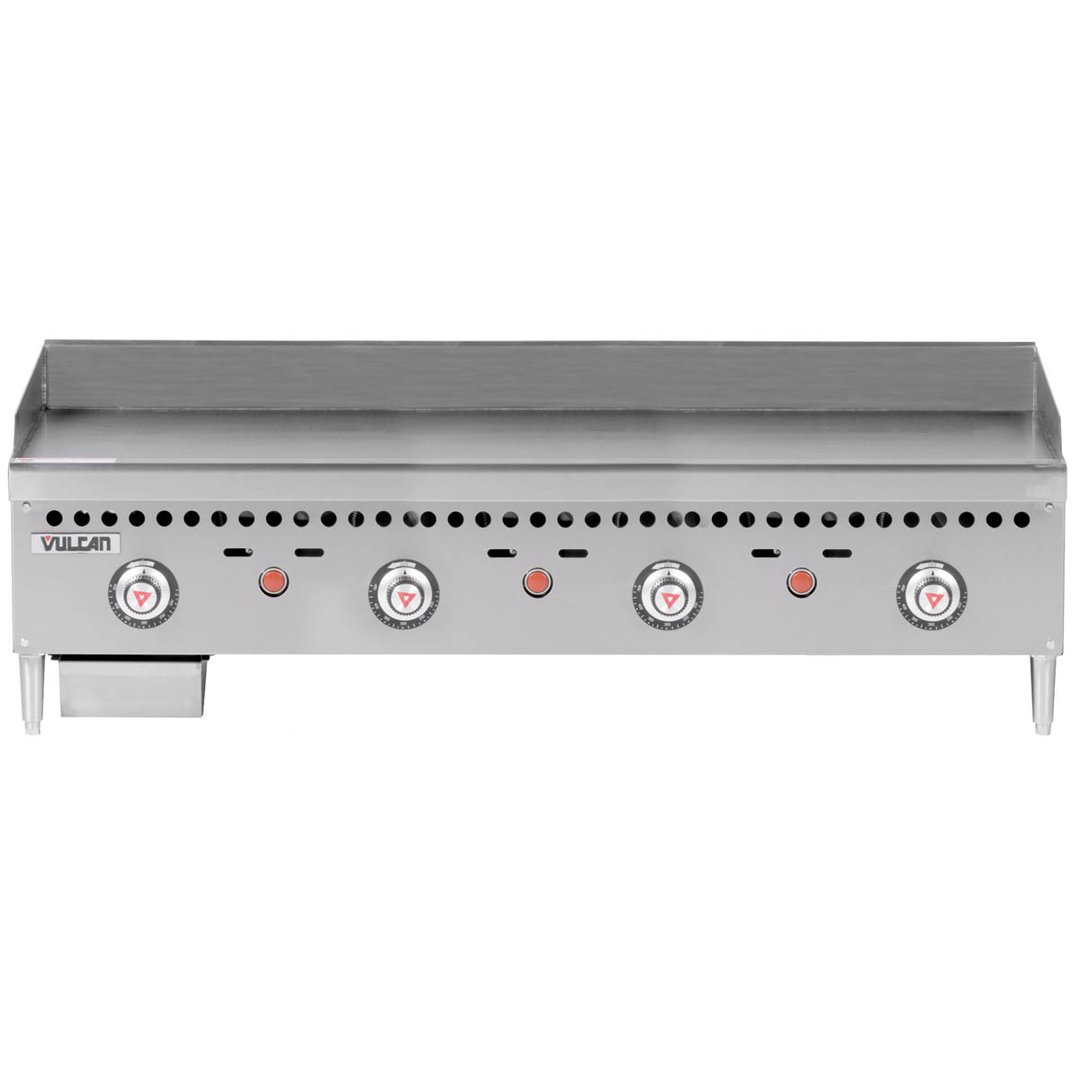

Vulcan VCRG-T RESTAURANT SERIES GAS GRIDDLES
SPECIFICATIONS
Low profile Vulcan VCRG-T Series. Stainless steel front, sides and front top ledge. Fully welded stainless and aluminized steel body frame. 12 1⁄2" cooking height on 4" legs. 1" thick polished steel griddle plate welded to stainless steel back and tapered side splashes. One 25,000 BTU/hr. “U” shaped aluminized steel burner and embedded, mechanical snap action thermostat for each 12" of griddle width. Temperature adjusts from 200° to 450°F. One pilot safety for every two burners. 4 1⁄2 quart capacity grease can. 3⁄4" rear gas con
Exterior Dimensions:
- VCRG24-T: 24" w x 201⁄2" d griddle plate x 27" d x 16" h on 4" legs.
- VCRG36-T: 36" w x 201⁄2" d griddle plate x 27" d x 16" h on 4" legs.
- VCRG48-T: 48" w x 201⁄2" d griddle plate x 27" d x 16" h on 4" legs.
STANDARD FEATURES
- 1" thick polished steel griddle plate welded to 31⁄4" stainless steel back, tapered side splashes and stainless steel grease trough.
- Fully welded stainless and aluminized steel chassis frame.
- 12 1⁄2" cooking height on 4" adjustable legs.
- One 25,000 BTU/hr. “U” shaped aluminized steel burner for every 12" of griddle width.
- One embedded, mechanical snap action thermostat per burner for high performance and optimal response time.
- Temperature adjust from 200° to 450°F.
- One pilot safety valve for every two burners. Safety will completely shut off gas to pilot and burners if pilot extinguishes
- High capacity 41⁄2 quart capacity grease can.
- 3⁄4" rear gas connection and convertible gas pressure regulator for LP service.
- Constructed standard for natural gas service. LP conversion kit supplied with unit.
- One year limited parts and labor warranty.
From The Manufacturer
Griddle, countertop, gas, 48" W x 20-1/2" D cooking surface, 1" thick polished steel griddle plate,(4) burners, fully welded, embedded mechanical snap action thermostat every 12", millivolt pilot safety, low profile, 4-1/2" grease can capacity, heavy gauge (1) drawer, stainless steel front, sides & front top ledge, 4" adjustable legs, 100,000 BTU, CSA, NSF
