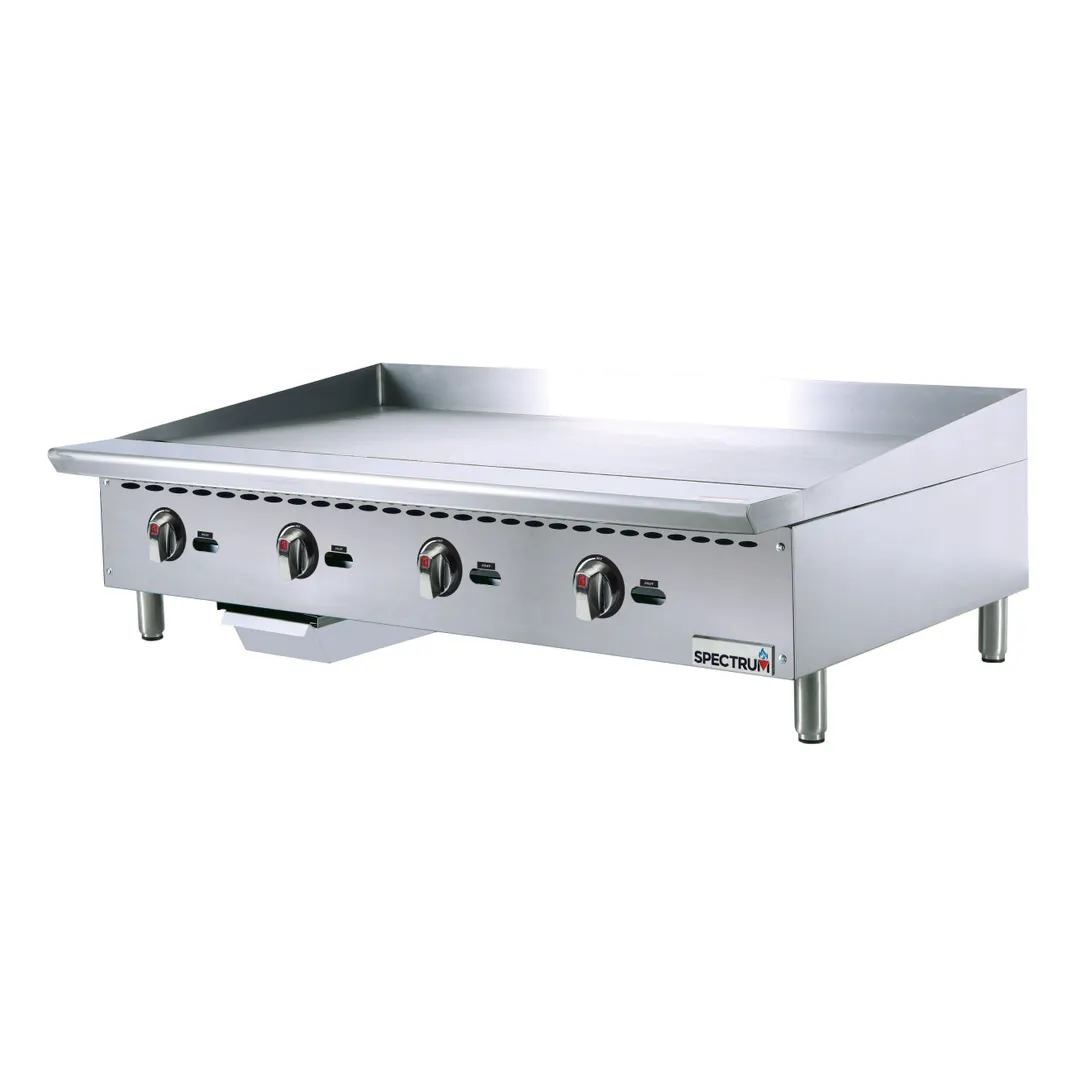

Winco NGGD-48M Spectrum™ Gas Griddle-48″ Wide, Natural / LP

General Info

Spectrum griddles are designed with durable stainless steel construction and cool-touch front plate rail that runs the full length. These units are equipped with infinite heat controls, high-performance burners, and removable grease drawer.

Winco NGGD-48M Standard Features

High performance burners, each with output of 30,000 BTUH
Infinite heat controls
5” wide cool-touch stainless steel front plate rail provides safety and knob protection
Stainless steel insulated double-wall body, adjustable legs 4” to 6” and grease drawer with weep hole and baffle; non-skid feet
3/4” polished steel griddle plate with side and back splash guard
3-1/2” full width grease trough
Standing pilot ignition system, one per burner
3/4” rear gas connection with regulator
Conversion kit allows the use of propane or natural gas
One year parts and labor warranty

Winco NGGD-48M Specifications

Description : 48” Gas Griddle, 4 Heat Zones
UOM : Set
Case : 1
Burner : 4
Total BTU/HR : 120,000
Dimensions : 48” L x 34-7/16” D X 15-1/2” H
Grate Surface :48” x 20-3/4”
Ship Weight : 355 lbs (161 kg)
Other Details : See spec. sheet

From The Manufacturer

Spectrum™ Griddle, gas, countertop, cooking surface: 48" x 20-3/4" cooking surface, (4) 30,000 BTU burners, infinite heat controls, standing pilot light, 3/4" polished steel plate, side and back splash guard, stainless steel insulated double-wall body and cool-touch front plate rail, 3-1/2" full width grease trough, grease drawer with weep hole and baffle, 3/4" rear gas connection with regulator, LP conversion kit, adjustable legs, non-skid feet, 120,000 BTU, CSA-Sanitation, CSA Flame, CSA Star (Qty Break = 1 each)

Manufacturer	Winco
Model Number	NGGD-48M
Weight	358.25 lbs
Width	48″
Depth	34.37″
Height	15.5″
Installation Type	countertop
Number of Burners	4 burners
Griddle Style	flat top (standard)
Griddle Plate Finish	smooth steel
Controls	manual controls
Plate Thickness	3/4"
Exterior Finish	all stainless steel exterior
Certifications	CSA Star, CSA Flame, CSA-Sanitation
Total BTU	120,00
Cooking Surface Width	48"
Cooking Surface Depth	20.75"
