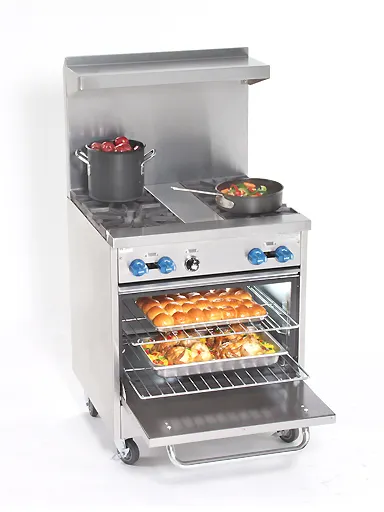

Comstock-Castle F326 30" Gas Restaurant Range

$4,279.00
Free Shipping
Comstock-Castle F326 30" Gas Restaurant Range
The image above may not exactly represent the product
credit key Net 30 or as low as 104.46/mo width
credit key Credit Key
Apply Now
Financing Available
?

Small payments, big returns—view financing details now!

Resources
Comstock-Castle F326 Specs
ManufacturerComstock-Castle
Model NumberF326
Weight400 lbs
Depth30.5
Height59
Exterior Finishall stainless steel exterior
Width30
Top(4) open burners
Control Typemanual control
Ventbackriser with hi-shelf
Installation Typefreestanding
Number of Burners4 burners
Total BTU138,000
Base Typeoven base
Oven Typestandard oven
Number Of Ovens1
Top Configurationburner
Range Typestandard duty/restaurant range
Burner BTU24,000 & 30,000
Oven BTU30,000
Description
Reviews

The Comstock-Castle F326 Gas Restaurant Range

Comstock-Castle F326 Standart Features

Ovens

26½˝ wide x 22˝ deep x 14½˝ high. One heavy duty chrome plated wire rack is standard with 3 rack positions spaced approximately 2¾˝ apart with 5¾˝ between the top rack position and the ceiling. Easy cleaning porcelain coated and aluminized steel oven linings are standard. The oven features a durable cast iron “H” pattern burner rated at 30,000 BTUH. A special designed baffle directs heat for superior air circulation.

Open Burners

Four 24,000 BTUH “star” pattern burners without gaskets is standard. The large 7˝ flame spread offers a more efficient burn pattern for small to large pots. Crumb trays catch all spillage. Top grates are 12˝ x 12˝ cast iron with a spillover bowl that also reflects heat for added efficiency. A 6˝ spacer divides the left and right burner sections. Stainless steel bullnose-rail is safely flush with the cook tops and functional to straddle pots, skillets and plates and also serves as control protection.

Construction

Easy cleaning, stainless steel finish, sturdily welded with angle iron and corrosion resistant aluminized steel framing. High back splash and shelf is standard. Sturdy 6˝ stainless steel pipe legs with adjustable feet. Double wall construction with heavy fiberglass insulation assures heat retention for daily money saving fuel efficiency and offers the best installation clearances in the industry. Non-combustible surfaces are 0˝ on the sides and 0˝ in the rear, combustible surfaces are 2˝ on the sides and 2˝ in the rear. Char-Ranges are to be installed in non-combustible locations only

Controls

500° thermostat, 100% safety oven shut off, automatic standing pilot and durable brass burner valves. Pressure regulators are set at the factory for the type of gas specified. Optimum pressures are 4˝ WC for natural gas and 10˝ WC for propane. Manifold size is ¾˝ NPT. All controls are tested and confirmed in good working order. Calibration and installation adjustments are the responsibility of the buyer.

Griddles & Char-Broilers

Only available 18˝ wide. Griddles feature a 21¼˝ deep grilling surface and ¾˝ thickness, 1˝ thick plates are available Two, “string” burners rated at 18,000 BTUH each for griddles or 20,000 BTUH each for char-broilers. A spatula wide grease trough leads to a front draining, 3½˝ x 1˝, grease slot which feeds through a shoot into an easily removable, large capacity, grease drawer. Char-broilers feature heavy, quick heating angle iron radiants to hold temperatures in excess of 700°. 6˝ wide heavy cast iron char grates feature a cast-in trough in each angled blade to channel grease to the front trough for reduced flare-up and maximum flavor. Each section is reversible for sloping or level cooking. 4˝ high stainless steel splashguards on 3 sides, higher custom sides are available to meet local fire codes.

Accessories & Options

Extra oven racks, casters, pizza decks, chrome and / or grooved griddle plates, griddle thermostats and / or safety pilot controls, lift off griddles, gas hoses and quick disconnects.

Comstock-Castle F326 Specification

Range, gas, 30" wide, (4) 24,000 BTU star burners with 12" square cast iron grates, middle spacer, standard oven with enamel lining, (1) rack, stainless steel exterior, back riser & high shelf, 6" stainless steel legs, 37" tall to cook surface, 126,000 BTU, NSF

From The Manufacturer

Range, gas, 30" wide, (4) Four star burners (Front burner 24,000 BTU) (Rear burner 30,000 BTU) with 12" square cast iron grates, middle spacer, standard oven with enamel door & bottom linings, (1) rack with 3 positions, stainless steel exterior, back riser & high shelf, 6" stainless steel legs, welded frame, 37" tall to cook surface, 138,000 BTU, NSF, ETL
