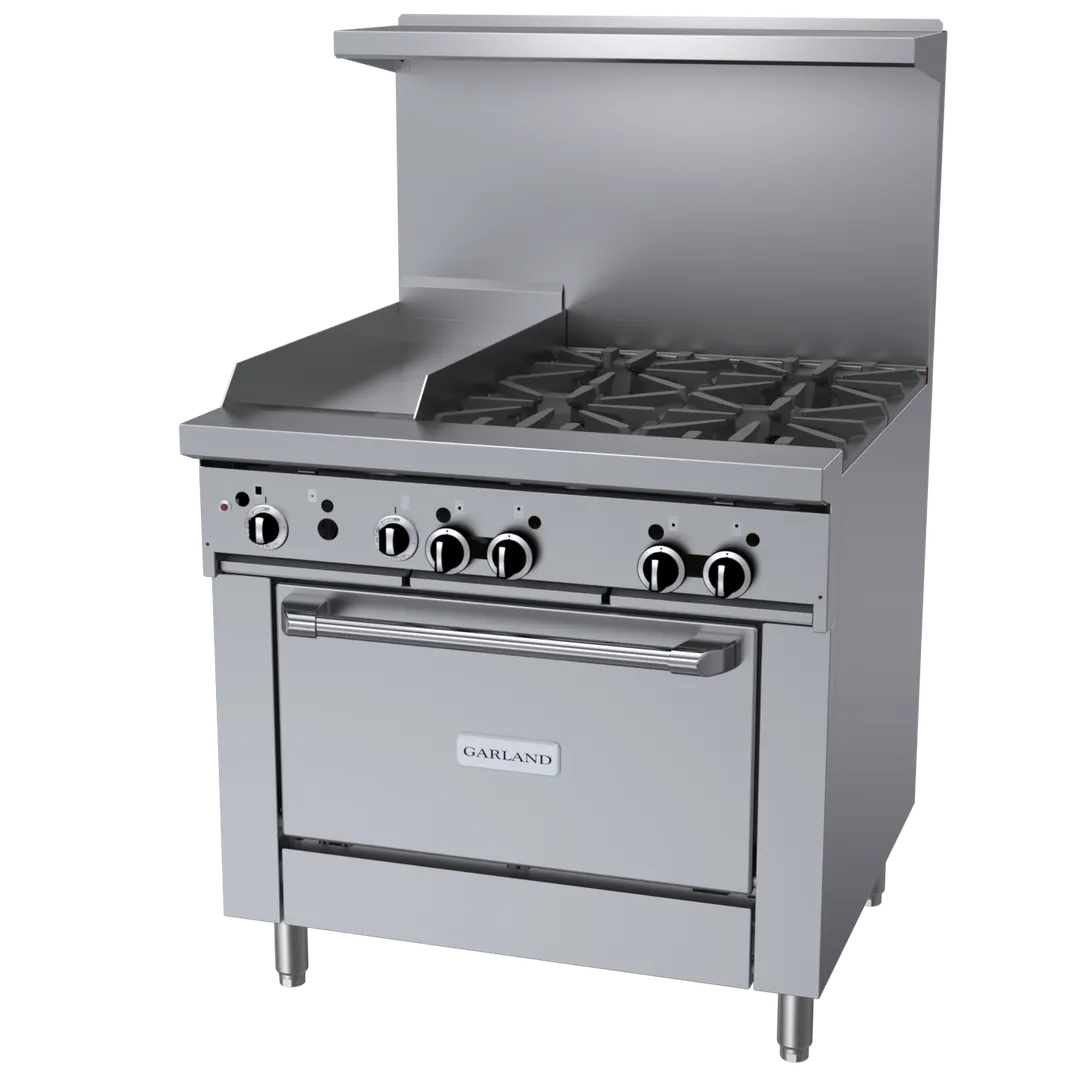

Garland US Range GFE36-4G12C Gas 36" Restaurant Range

Standard Features

Flame-failure protection: all burners
Electric spark ignition on all burners, requiring single-phase 115V 60Hz or 240V 50Hz (specify) prefix GFE models
Large 27" (686mm) work top surface
Stainless steel front and sides
Stainless steel 5" (127mm) plate rail
Stainless steel low-profile backguard
12" (305mm) section stamped drip trays w/ dimpled bottom
6" (152mm) adj. stainless steel legs
Large, heavy-duty knobs
Gas regulator
Reinforced chassis
Easy to access oven pilot
Convection oven w/3 nickel-plated oven racks and removable rack guides w/1/3HP 120v 60 Hz single-phase fan motor
Snap-action modulating oven thermostat low to 500° F
Large porcelain oven interior
Square door design with strong, "keepcool" oven door handle

Standard on Applicable Models

Ergonomic split cast-iron top ring grates
26,000 BTU/7.61 kW 2-piece cast-iron Starfire® open top burner
5/8" (15mm) thick steel griddle plate with thermostatic griddle control 175° to 425° F ( 79° to 218°C), 23” (584mm) working depth surface, on right; optional on left
Front-serviceable griddle
4-1/4" (108mm) wide grease trough
18,000 BTU/5.27 kW cast iron "H" style griddle burner per 12" (305mm) width of griddle

From The Manufacturer

GFE Starfire Pro Series Restaurant Range, gas, 36", flame failure protection, electric pilot ignition, (4) 26,000 BTU open burners, cast iron top & ring grates, (1) 12" griddle, thermostat control 175° - 425°F, 5/8" thick smooth steel plate, convection oven with 3-position rack guides & (3) racks, stainless steel front, sides, plate rail and 10" low profile back guard, 6" stainless steel legs with adjustable feet, 160,000 BTU, CSA Flame, CSA Star, cCSAus, CE, NSF

Manufacturer	Garland US Range
Model Number	GFE36-4G12C
Weight	460 lbs
Width	36″
Depth	34.5″
Height	45.38″
Range Type	standard duty/restaurant range
Base Type	oven base
Plate Thickness	.625" = 5/8"
Exterior Finish	stainless steel front & sides
Top	(4) open burners, (1) 12" griddle with thermostat
Vent	backriser with hi-shelf
Certifications	NSF, CE, cCSAus, CSA Star, CSA Flame
