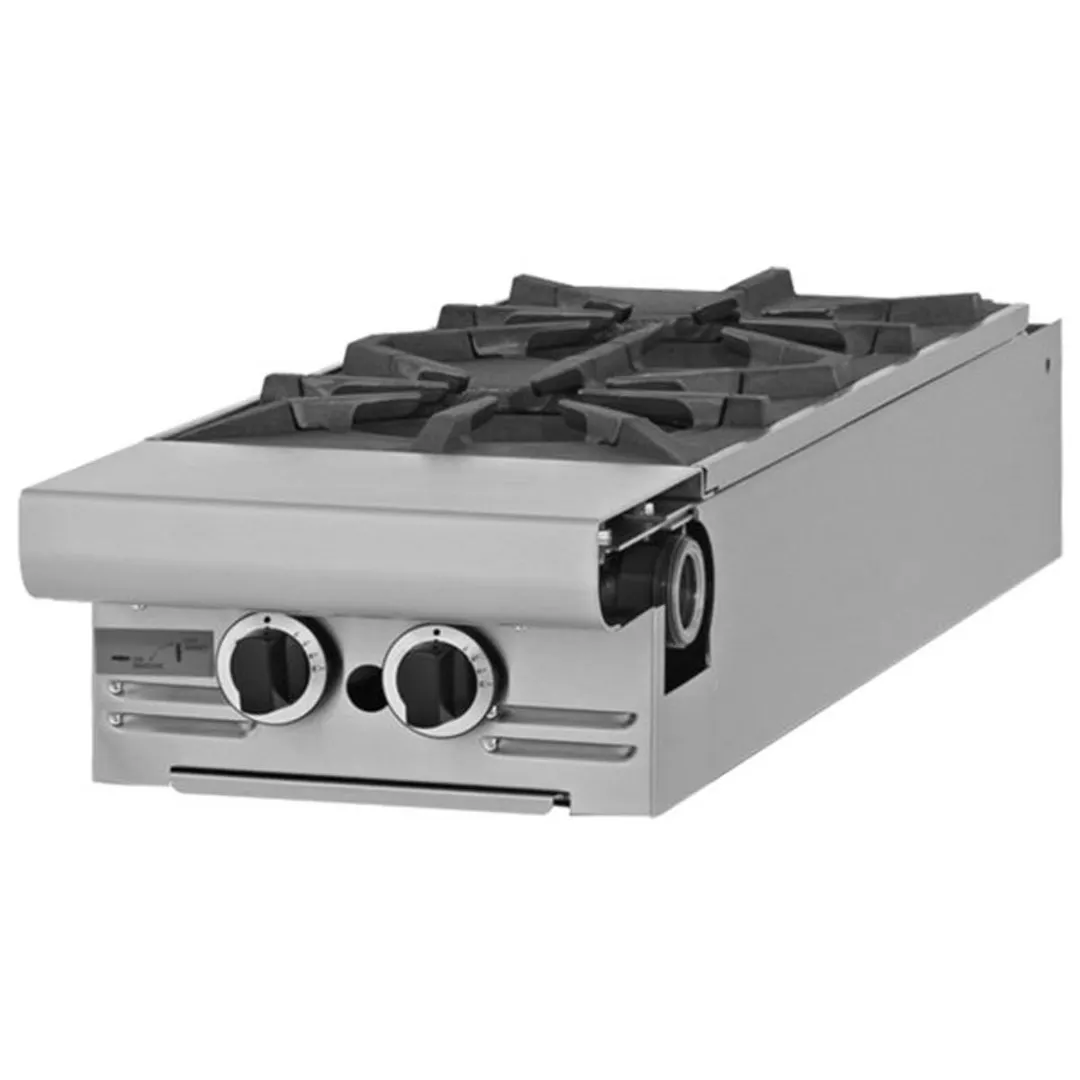

Garland Master Series Open Burner Range Attachment

Specifications

Heavy-duty gas range attachment with storage base, Model M12S. Two (2) 24,000 BTU (7.03 kW) Starfire burners. Heavy-duty cast iron top grates/ring grates. 12" (305mm) wide x 38" (965mm) deep, including 7-1/2" (191mm) deep stainless steel front rail. Stainless steel front and sides. 48,000 BTU (14.06 kW) total. Natural or propane gas. Also available with modular top, suffix T. Free standing units only available with flanged feet deck fasteners to anchor unit.

Standard Features

Stainless steel front and sides
Stainless steel door (M12S Model)
6" (152mm) chrome steel adjustable legs (M12S Model)
7-1/2" (191mm) stainless steel front rail
Two 24,000 BTU (7.03 kW), natural; 20,000 BTU (5.86 kW) propane, open top Starfire burners
Removable ring grate over each burner
Cast iron top grates
Storage base interior of aluminized steel (M12S Model)

From The Manufacturer

Master Series Heavy Duty Range, gas, 12", modular, Add-A-Unit, (2) 24,000 BTU open burners, stainless steel front and sides, 48,000 BTU, CSA Flame, CSA Star, NSF (Garland)

Manufacturer	Garland US Range
Model Number	M12T
Weight	78 lbs
Width	12″
Depth	38″
Height	9.5″
Installation Type	countertop
Range Type	heavy duty/modular range
Type	add-a-unit
Number of Burners	2 burners
Top Configuration	burner
Exterior Finish	stainless steel front & sides
Top	(2) open burners
Total BTU	48,000

	Garland US Range M12T 12" Gas Heavy Duty Range w/ (2) Open Burners, Modular Base, 48.000 BTU	Garland US Range M12S 12" Gas Heavy Duty w/ (2) Open Burners, (1) Cabinet Base, 48.000 BTU	Garland US Range C12-6S 12" Gas Heavy Duty Range w/ (2) Open Burners, Cabinet Base, 70.000 BTU	Garland US Range C12-6M 12" Gas Heavy Duty Range w/ (2) Open Burners, Modular, 70.000 BTU	Montague Company M12-5 12" Gas Heavy Duty Range w/ (2) Open Burners, Modular Stand, 40.000 BTU	Montague Company 12-5S 12" Gas Heavy Duty Range, (2) Open Burner w/ (1) Step-Up, Cabinet Base, 50.000 BTU	Imperial IHR-2-12-M 12" Gas Heavy Duty Range w/ (2) Open Burners, Modular, 70.000 BTU Free Shipping	Imperial IHR-2-12-XB 12" Gas Heavy Duty Range w/ (2) Open Burners, (1) Cabinet Base, 70.000 BTU Free Shipping	Garland US Range C18-7S 18" Gas Heavy Duty Range w/ (2) Open Burners, Cabinet Base, 80.000 BTU
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingPlus Shipping
Burner BTU	Burner BTU-	Burner BTU24,000	Burner BTU35,000	Burner BTU35,000	Burner BTU30,000	Burner BTU30,000	Burner BTU35,000	Burner BTU35,000	Burner BTU40,00
Total BTU	Total BTU25.000 - 53.500	Total BTU25.000 - 53.500	Total BTU54.000 - 99.500	Total BTU54.000 - 99.500	Total BTU25.000 - 53.500	Total BTU25.000 - 53.500	Total BTU54.000 - 99.500	Total BTU54.000 - 99.500	Total BTU54.000 - 99.500
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)12	WIDTH (SIDE - SIDE)12	WIDTH (SIDE - SIDE)12	WIDTH (SIDE - SIDE)12	WIDTH (SIDE - SIDE)12	WIDTH (SIDE - SIDE)12	WIDTH (SIDE - SIDE)12	WIDTH (SIDE - SIDE)12	WIDTH (SIDE - SIDE)18
Manufacturer	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerMontague Company	ManufacturerMontague Company	ManufacturerImperial	ManufacturerImperial	ManufacturerGarland US Range
Top	Top(2) open burners	Top(2) open burners	Top(2) open burners	Top(2) open burners	Top(2) open burners	Top(2) open burners	Top(2) open burners	Top(2) open burners	Top(2) open burners
Type	Typeadd-a-unit	Typeadd-a-unit	Typeadd-a-unit	Typeadd-a-unit	Typeadd-a-unit	Typeadd-a-unit	Typeadd-a-unit	Typeadd-a-unit	Typeadd-a-unit
Base Type	Base Type-	Base TypeNo	Base TypeNo	Base Type-	Base Type-	Base Typecabinet/storage base	Base Type-	Base Typecabinet/storage base	Base TypeNo
Exterior Finish	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front	Exterior Finishstainless steel front	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides
Range Type	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range
Width	Width12"	Width12"	Width12"	Width12"	Width12"	Width12"	Width12"	Width12"	Width18"
Number of Burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners
Top Configuration	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner
Installation Type	Installation Typecountertop	Installation Typefree standing	Installation Typefree standing	Installation Typemodular	Installation Typemodular	Installation Typefree standing	Installation Typemodular	Installation Typefree standing	Installation Typefree standing
Certifications	Certifications-	CertificationsNo	CertificationsNSF, CSA Star, CSA Flame	CertificationsNSF, CSA Star, CSA Flame	CertificationsNSF, CE, cETLus	CertificationsNSF, CE, cETLus	Certifications-	Certifications-	CertificationsNSF, CSA Star, CSA Flame
Plate Thickness	Plate Thickness-	Plate ThicknessNo	Plate Thickness1.000" = 1"	Plate Thickness1.000" = 1"	Plate Thickness.750" = 3/4"	Plate Thickness-	Plate Thickness-	Plate Thickness-	Plate ThicknessNo
Control Type	Control Type-	Control TypeNo	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Type-	Control Type-	Control Typemanual control

Manufacturer	Garland US Range
Model Number	M12T
Weight	78 lbs
Width	12″
Depth	38″
Height	9.5″
Installation Type	countertop
Range Type	heavy duty/modular range
Type	add-a-unit
Number of Burners	2 burners
Top Configuration	burner
Exterior Finish	stainless steel front & sides
Top	(2) open burners
Total BTU	48,000

	Garland US Range M12T 12" Gas Heavy Duty Range w/ (2) Open Burners, Modular Base, 48.000 BTU	Garland US Range M12S 12" Gas Heavy Duty w/ (2) Open Burners, (1) Cabinet Base, 48.000 BTU	Garland US Range C12-6S 12" Gas Heavy Duty Range w/ (2) Open Burners, Cabinet Base, 70.000 BTU	Garland US Range C12-6M 12" Gas Heavy Duty Range w/ (2) Open Burners, Modular, 70.000 BTU	Montague Company M12-5 12" Gas Heavy Duty Range w/ (2) Open Burners, Modular Stand, 40.000 BTU	Montague Company 12-5S 12" Gas Heavy Duty Range, (2) Open Burner w/ (1) Step-Up, Cabinet Base, 50.000 BTU	Imperial IHR-2-12-M 12" Gas Heavy Duty Range w/ (2) Open Burners, Modular, 70.000 BTU Free Shipping	Imperial IHR-2-12-XB 12" Gas Heavy Duty Range w/ (2) Open Burners, (1) Cabinet Base, 70.000 BTU Free Shipping	Garland US Range C18-7S 18" Gas Heavy Duty Range w/ (2) Open Burners, Cabinet Base, 80.000 BTU
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingPlus Shipping
Burner BTU	Burner BTU-	Burner BTU24,000	Burner BTU35,000	Burner BTU35,000	Burner BTU30,000	Burner BTU30,000	Burner BTU35,000	Burner BTU35,000	Burner BTU40,00
Total BTU	Total BTU25.000 - 53.500	Total BTU25.000 - 53.500	Total BTU54.000 - 99.500	Total BTU54.000 - 99.500	Total BTU25.000 - 53.500	Total BTU25.000 - 53.500	Total BTU54.000 - 99.500	Total BTU54.000 - 99.500	Total BTU54.000 - 99.500
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)12	WIDTH (SIDE - SIDE)12	WIDTH (SIDE - SIDE)12	WIDTH (SIDE - SIDE)12	WIDTH (SIDE - SIDE)12	WIDTH (SIDE - SIDE)12	WIDTH (SIDE - SIDE)12	WIDTH (SIDE - SIDE)12	WIDTH (SIDE - SIDE)18
Manufacturer	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerMontague Company	ManufacturerMontague Company	ManufacturerImperial	ManufacturerImperial	ManufacturerGarland US Range
Top	Top(2) open burners	Top(2) open burners	Top(2) open burners	Top(2) open burners	Top(2) open burners	Top(2) open burners	Top(2) open burners	Top(2) open burners	Top(2) open burners
Type	Typeadd-a-unit	Typeadd-a-unit	Typeadd-a-unit	Typeadd-a-unit	Typeadd-a-unit	Typeadd-a-unit	Typeadd-a-unit	Typeadd-a-unit	Typeadd-a-unit
Base Type	Base Type-	Base TypeNo	Base TypeNo	Base Type-	Base Type-	Base Typecabinet/storage base	Base Type-	Base Typecabinet/storage base	Base TypeNo
Exterior Finish	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front	Exterior Finishstainless steel front	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides
Range Type	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range
Width	Width12"	Width12"	Width12"	Width12"	Width12"	Width12"	Width12"	Width12"	Width18"
Number of Burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners
Top Configuration	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner
Installation Type	Installation Typecountertop	Installation Typefree standing	Installation Typefree standing	Installation Typemodular	Installation Typemodular	Installation Typefree standing	Installation Typemodular	Installation Typefree standing	Installation Typefree standing
Certifications	Certifications-	CertificationsNo	CertificationsNSF, CSA Star, CSA Flame	CertificationsNSF, CSA Star, CSA Flame	CertificationsNSF, CE, cETLus	CertificationsNSF, CE, cETLus	Certifications-	Certifications-	CertificationsNSF, CSA Star, CSA Flame
Plate Thickness	Plate Thickness-	Plate ThicknessNo	Plate Thickness1.000" = 1"	Plate Thickness1.000" = 1"	Plate Thickness.750" = 3/4"	Plate Thickness-	Plate Thickness-	Plate Thickness-	Plate ThicknessNo
Control Type	Control Type-	Control TypeNo	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Type-	Control Type-	Control Typemanual control

Garland US Range M12T 12" Gas Heavy Duty Range w/ (2) Open Burners, Modular Base, 48.000 BTU
