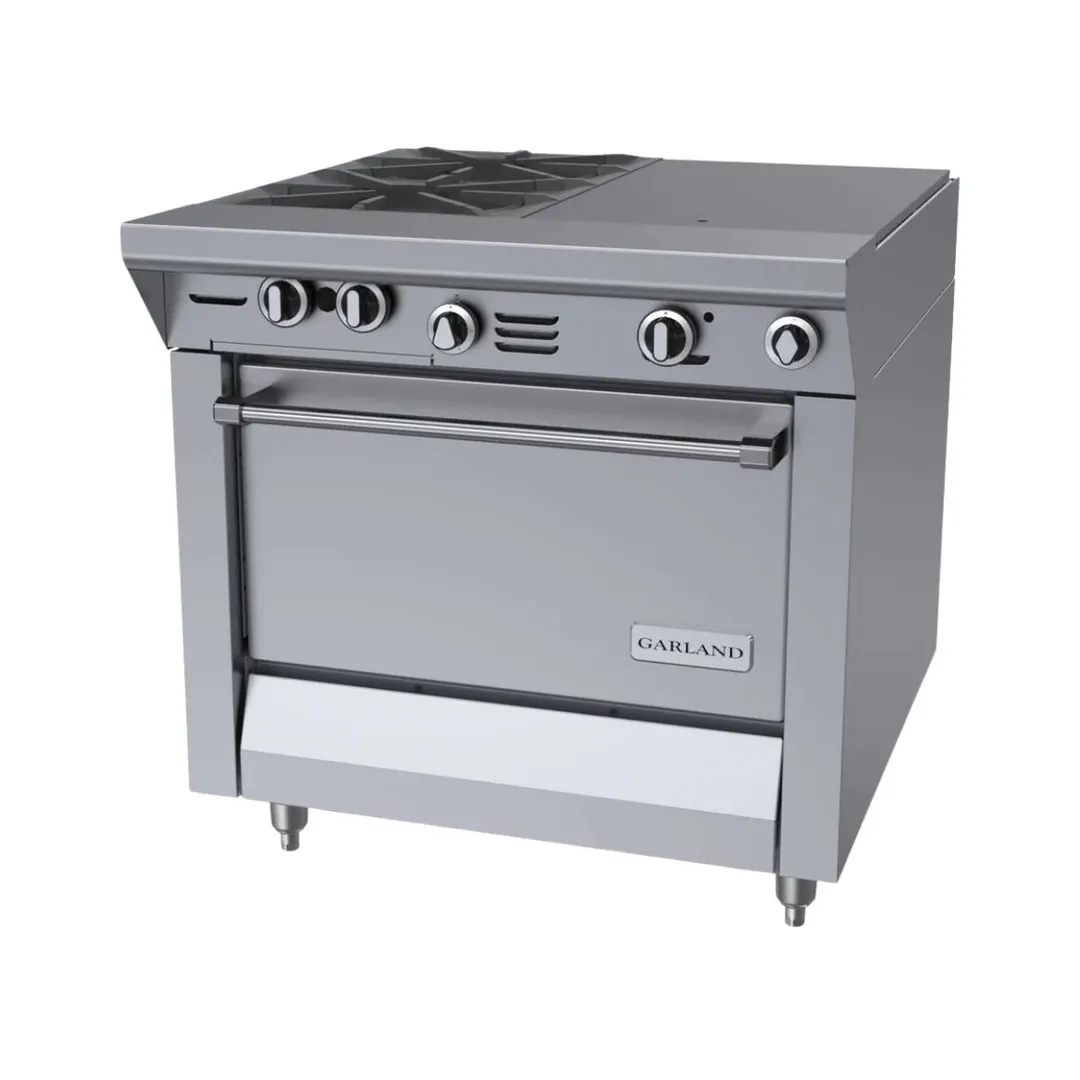

Garland Master Series Heavy Duty Combination Top Range

Specifacations

Heavy-duty gas range with oven, Model M42-6R, combination top. One 17" (432mm) wide even hot top, 30,000 BTU (8.79kW) on left and two 35,000 BTU (10.25kW) Starfire open burners. Heavy duty cast iron top grates/ring grates 34" (864mm) wide x 38" (965mm) deep, including 7-1/2" (191mm) deep stainless steel front rail. Porcelain enamel oven interior with 40,000 BTU (11.72kW) cast iron oven burner. Stainless steel front and sides. Natural or propane gas. Also available with storage base w/ doors, suffix S, and modular top, suffix T. NOTE: Ranges suppled with casters must be installed with an approved restraining device.

Standard Features

Stainless steel front and sides
6" (152mm) chrome steel adj. legs
7-1/2" (191mm) stainless steel front rail
1 heavy duty cast iron even hear top on left with 1 burner rated 30,000 BTU (8.89kW) total
Heavy gauge aluminized steel radiation baffle shield
Two 35,000 BTU (10.25kw), natural or 32,000 BTU (9.37kW) 2- piece Starfire burners with removable heads
Removable ring grates over each open top burner
Cast iron top grates
Stainless steel drip tray under open burners
Piezo Spark ignition for oven
40,000 BTU (11.72kW) natual gas, 35,000 BTU (10.25kW propane gas cast iron oven burner
Fully porcelainized oven interior

From The Manufacturer

Master Series Heavy Duty Range, gas, 34", (2) 35,000 BTU open burners, (1) 17" even heat hot top, standard oven, Piezo ignition, stainless steel front & sides, 6" legs, 140,000 BTU, CSA Flame, CSA Star, NSF (Garland)

Manufacturer	Garland US Range
Model Number	M42-6R
Weight	520 lbs
Width	34″
Depth	38″
Height	36.38″
Installation Type	free standing
Range Type	heavy duty/modular range
Number of Burners	2 burners
Base Type	oven base
Oven Type	standard oven
Number Of Ovens	1
Top Configuration	burner & hot top
Exterior Finish	stainless steel front & sides
Top	(2) open burners, (1) 18" hot top
Total BTU	140,000
Burner BTU	35,000
Oven BTU	40,000

	Garland US Range M42-6R 34" Gas Heavy Duty Range w/ (2) Open Burners, (1) Even Heat Hot Top, (1) Standard Oven, 140.000 BTU	Garland US Range MST42-6R-E 34" Gas Heavy Duty Rangw w/ (2) Open Burners, (1) Even Heat Hot Top, Electric ignition and Flame Fail, (1) Standard Oven, 140.000 BTU	Garland US Range MST54R-E 34" Gas Heavy Duty Range w/ (2) Open Burners, (1) Front Fired Hot Top, (1) Standard Oven, 155.000 BTU	Garland US Range M54R Master Series Heavy Duty Range, Gas, 34"	Garland US Range M43-2R 34" Gas Heavy Duty Range w/ (2) Open Burners, (2) Even Heat Hot Tops, (1) Standard Oven, 132.000 BTU	Garland US Range MST42R-E 34" Gas Heavy Duty Range w/ (2) Open Burners, 17" Griddle Left, (1) Standard Oven, 140.000 BTU	Garland US Range M45R 34" Gas Heavy Duty Range w/ (2) Front Fired Hot Tops, (1) Standard Oven, 130.000 BTU	Garland US Range M43FTR 34" Gas Heavy Duty Range w/ (3) Open Burners, (3) French Tops, (1) Standard Oven, 139.000 BTU	Montague Company 136-14E 36" Gas Heavy Duty Range w/ (2) Open Burners, (1) Even Heat Hot Top, Standard Oven, 140.000 BTU
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping
Total BTU	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500
Burner BTU	Burner BTU35,000	Burner BTU35,000	Burner BTU35,000	Burner BTU35,000	Burner BTU24,000	Burner BTU35,000	Burner BTUNo	Burner BTU18,000	Burner BTU30,000
Oven BTU	Oven BTU40,000	Oven BTU40,000	Oven BTU40,000	Oven BTUNo	Oven BTUNo	Oven BTU40,000	Oven BTU40,000	Oven BTU40,000	Oven BTU40,000
Griddle/Charbroiler BTU	Griddle/Charbroiler BTUNo	Griddle/Charbroiler BTUNo	Griddle/Charbroiler BTUNo	Griddle/Charbroiler BTUNo	Griddle/Charbroiler BTUNo	Griddle/Charbroiler BTU30,000	Griddle/Charbroiler BTUNo	Griddle/Charbroiler BTUNo	Griddle/Charbroiler BTU-
Certifications	CertificationsNo	CertificationsNo	CertificationsNo	CertificationsNo	CertificationsNo	CertificationsNo	CertificationsNo	CertificationsNo	CertificationsNSF, CE, cETLus
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)36
Manufacturer	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerMontague Company
Top	Top(2) open burners, (1) 18" hot top	Top(2) open burners, (1) 18" hot top	Top(2) open burners, (1) 18" hot top	Top(2) open burners, (1) 18" hot top	Top(2) open burners, (2) hot tops	Top(2) open burners, (1) 18" griddle	Top(2) hot tops	Top(3) open burners front, (3) hot tops rear	Top(2) open burners, (1) 18" hot top
Base Type	Base TypeNo	Base TypeNo	Base TypeNo	Base TypeNo	Base TypeNo	Base TypeNo	Base TypeNo	Base TypeNo	Base Typeoven base
Exterior Finish	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front
Range Type	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range
Width	Width34"	Width34"	Width34"	Width34"	Width34"	Width34"	Width34"	Width34"	Width36"
Number of Burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners3 burners	Number of Burners2 burners
Oven Type	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven
Number Of Ovens	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1
Top Configuration	Top Configurationburner & hot top	Top Configurationburner & hot top	Top Configurationburner & hot top	Top Configurationburner & hot top	Top Configurationburner & hot top	Top Configurationburner & griddle	Top Configurationhot top	Top Configurationburner & hot top	Top Configurationburner & hot top
Installation Type	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing
Plate Thickness	Plate ThicknessNo	Plate ThicknessNo	Plate ThicknessNo	Plate ThicknessNo	Plate ThicknessNo	Plate Thickness1.000" = 1"	Plate ThicknessNo	Plate ThicknessNo	Plate Thickness-
Control Type	Control TypeNo	Control TypeNo	Control TypeNo	Control TypeNo	Control TypeNo	Control TypeNo	Control TypeNo	Control TypeNo	Control Typemanual control
Special Features	Special FeaturesNo	Special Featureswith electric pilot ignition	Special FeaturesNo	Special FeaturesNo	Special FeaturesNo	Special FeaturesNo	Special FeaturesNo	Special FeaturesNo	Special Features-

Manufacturer	Garland US Range
Model Number	M42-6R
Weight	520 lbs
Width	34″
Depth	38″
Height	36.38″
Installation Type	free standing
Range Type	heavy duty/modular range
Number of Burners	2 burners
Base Type	oven base
Oven Type	standard oven
Number Of Ovens	1
Top Configuration	burner & hot top
Exterior Finish	stainless steel front & sides
Top	(2) open burners, (1) 18" hot top
Total BTU	140,000
Burner BTU	35,000
Oven BTU	40,000

	Garland US Range M42-6R 34" Gas Heavy Duty Range w/ (2) Open Burners, (1) Even Heat Hot Top, (1) Standard Oven, 140.000 BTU	Garland US Range MST42-6R-E 34" Gas Heavy Duty Rangw w/ (2) Open Burners, (1) Even Heat Hot Top, Electric ignition and Flame Fail, (1) Standard Oven, 140.000 BTU	Garland US Range MST54R-E 34" Gas Heavy Duty Range w/ (2) Open Burners, (1) Front Fired Hot Top, (1) Standard Oven, 155.000 BTU	Garland US Range M54R Master Series Heavy Duty Range, Gas, 34"	Garland US Range M43-2R 34" Gas Heavy Duty Range w/ (2) Open Burners, (2) Even Heat Hot Tops, (1) Standard Oven, 132.000 BTU	Garland US Range MST42R-E 34" Gas Heavy Duty Range w/ (2) Open Burners, 17" Griddle Left, (1) Standard Oven, 140.000 BTU	Garland US Range M45R 34" Gas Heavy Duty Range w/ (2) Front Fired Hot Tops, (1) Standard Oven, 130.000 BTU	Garland US Range M43FTR 34" Gas Heavy Duty Range w/ (3) Open Burners, (3) French Tops, (1) Standard Oven, 139.000 BTU	Montague Company 136-14E 36" Gas Heavy Duty Range w/ (2) Open Burners, (1) Even Heat Hot Top, Standard Oven, 140.000 BTU
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping
Total BTU	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500
Burner BTU	Burner BTU35,000	Burner BTU35,000	Burner BTU35,000	Burner BTU35,000	Burner BTU24,000	Burner BTU35,000	Burner BTUNo	Burner BTU18,000	Burner BTU30,000
Oven BTU	Oven BTU40,000	Oven BTU40,000	Oven BTU40,000	Oven BTUNo	Oven BTUNo	Oven BTU40,000	Oven BTU40,000	Oven BTU40,000	Oven BTU40,000
Griddle/Charbroiler BTU	Griddle/Charbroiler BTUNo	Griddle/Charbroiler BTUNo	Griddle/Charbroiler BTUNo	Griddle/Charbroiler BTUNo	Griddle/Charbroiler BTUNo	Griddle/Charbroiler BTU30,000	Griddle/Charbroiler BTUNo	Griddle/Charbroiler BTUNo	Griddle/Charbroiler BTU-
Certifications	CertificationsNo	CertificationsNo	CertificationsNo	CertificationsNo	CertificationsNo	CertificationsNo	CertificationsNo	CertificationsNo	CertificationsNSF, CE, cETLus
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)36
Manufacturer	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerMontague Company
Top	Top(2) open burners, (1) 18" hot top	Top(2) open burners, (1) 18" hot top	Top(2) open burners, (1) 18" hot top	Top(2) open burners, (1) 18" hot top	Top(2) open burners, (2) hot tops	Top(2) open burners, (1) 18" griddle	Top(2) hot tops	Top(3) open burners front, (3) hot tops rear	Top(2) open burners, (1) 18" hot top
Base Type	Base TypeNo	Base TypeNo	Base TypeNo	Base TypeNo	Base TypeNo	Base TypeNo	Base TypeNo	Base TypeNo	Base Typeoven base
Exterior Finish	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front
Range Type	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range
Width	Width34"	Width34"	Width34"	Width34"	Width34"	Width34"	Width34"	Width34"	Width36"
Number of Burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners2 burners	Number of Burners3 burners	Number of Burners2 burners
Oven Type	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven
Number Of Ovens	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1
Top Configuration	Top Configurationburner & hot top	Top Configurationburner & hot top	Top Configurationburner & hot top	Top Configurationburner & hot top	Top Configurationburner & hot top	Top Configurationburner & griddle	Top Configurationhot top	Top Configurationburner & hot top	Top Configurationburner & hot top
Installation Type	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing
Plate Thickness	Plate ThicknessNo	Plate ThicknessNo	Plate ThicknessNo	Plate ThicknessNo	Plate ThicknessNo	Plate Thickness1.000" = 1"	Plate ThicknessNo	Plate ThicknessNo	Plate Thickness-
Control Type	Control TypeNo	Control TypeNo	Control TypeNo	Control TypeNo	Control TypeNo	Control TypeNo	Control TypeNo	Control TypeNo	Control Typemanual control
Special Features	Special FeaturesNo	Special Featureswith electric pilot ignition	Special FeaturesNo	Special FeaturesNo	Special FeaturesNo	Special FeaturesNo	Special FeaturesNo	Special FeaturesNo	Special Features-

Garland US Range M42-6R 34" Gas Heavy Duty Range w/ (2) Open Burners, (1) Even Heat Hot Top, (1) Standard Oven, 140.000 BTU
