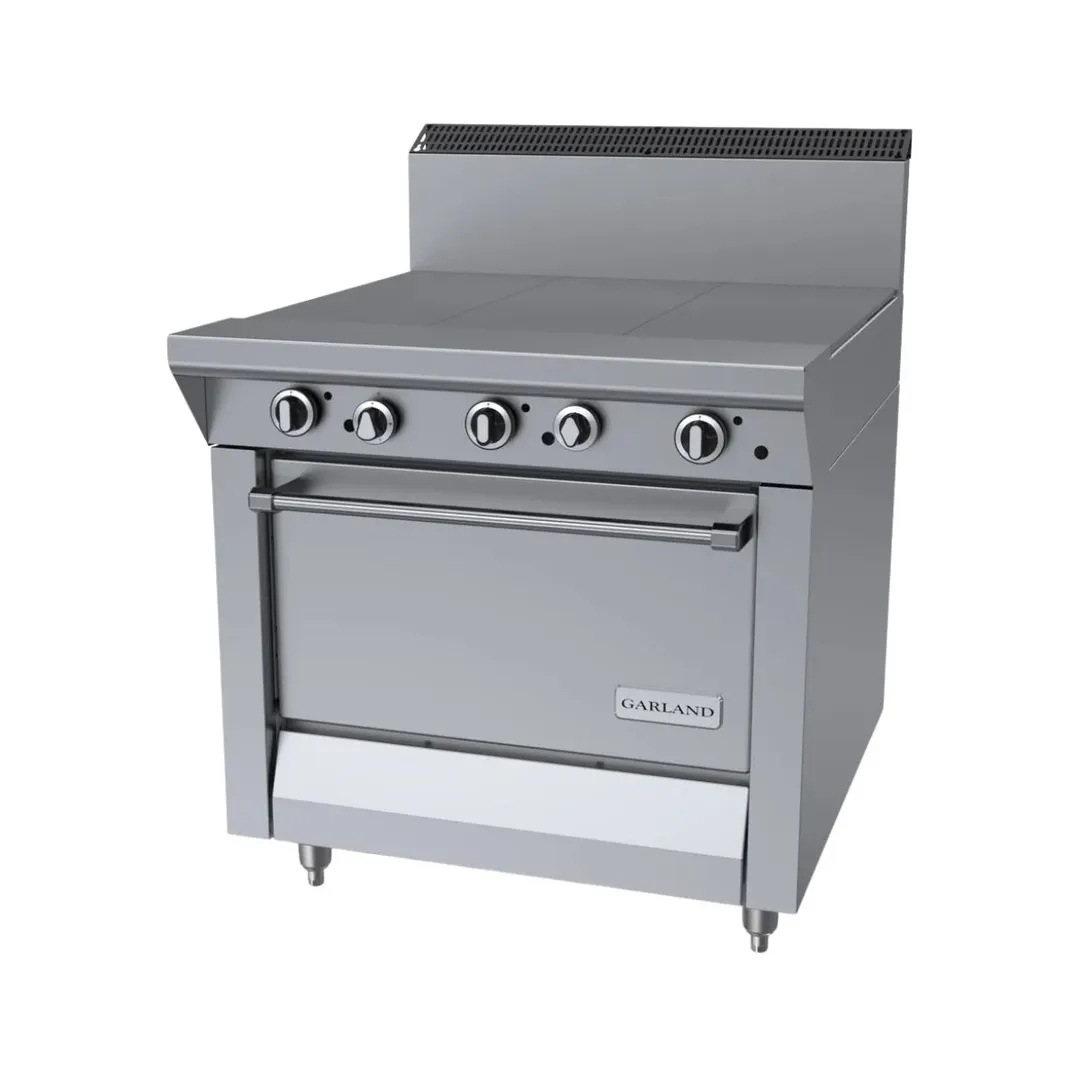

Garland Master Series Heavy Duty Combination Top Range

Specifacations

Heavy duty gas range with oven, open burners and hot top sections combined. Hot top sections each 11-5⁄16" (286mm) wide cast iron even heat, 22,000 BTU (6.45kW). Open top Starfire burners, 24,000 BTU (7.0kW) each, two burners per section with removable cast iron top and ring grates. Range body is 34" (864mm) wide x 38" (965mm) deep, including 7‑1/2" (191mm) deep stainless steel front rail. Porcelain enamel oven interior with cast iron oven burner. Stainless steel front and sides. Natural or propane gas. Models available with oven base sections (suffix R) storage base with cabinet door (suffix S), or modular top units (suffix T).

Standard Features

Stainless steel front and sides.
6" (152mm) chrome steel adj. legs
7‑1/2" (191mm) stainless steel front rail
Two, 24,000 BTU (7kW) Natural, 20,000 BTU (5.86kW) Propane Starfire Burners per section
Removable cast ion top and ring grates
One piece stainless steel drip tray
Extra heavy duty cast iron even heat hot top sections with "H" burners, 22,000 BTU (6.45kW) each
Separate control valves for each burner
Stainless steel burner box bottom
Piezo spark ignition for oven
40,000 BTU (11.72kW) Nat., 35,000 BTU (10.25kW) Pro., cast iron oven burner.
Fully porcelainized oven interior

From The Manufacturer

Master Series Heavy Duty Range, gas, 34", (3) 12" even heat hot tops, standard oven, Piezo ignition, stainless steel front & sides, 6" legs, 106,000 BTU, CSA Flame, CSA Star, NSF (Garland)

Manufacturer	Garland US Range
Model Number	M43-3R
Weight	500 lbs
Width	34″
Depth	38″
Height	36.38″
Installation Type	free standing
Range Type	heavy duty/modular range
Base Type	oven base
Oven Type	standard oven
Number Of Ovens	1
Top Configuration	hot top
Exterior Finish	stainless steel front & sides
Top	(3) hot tops
Total BTU	106,000
Oven BTU	40,000
