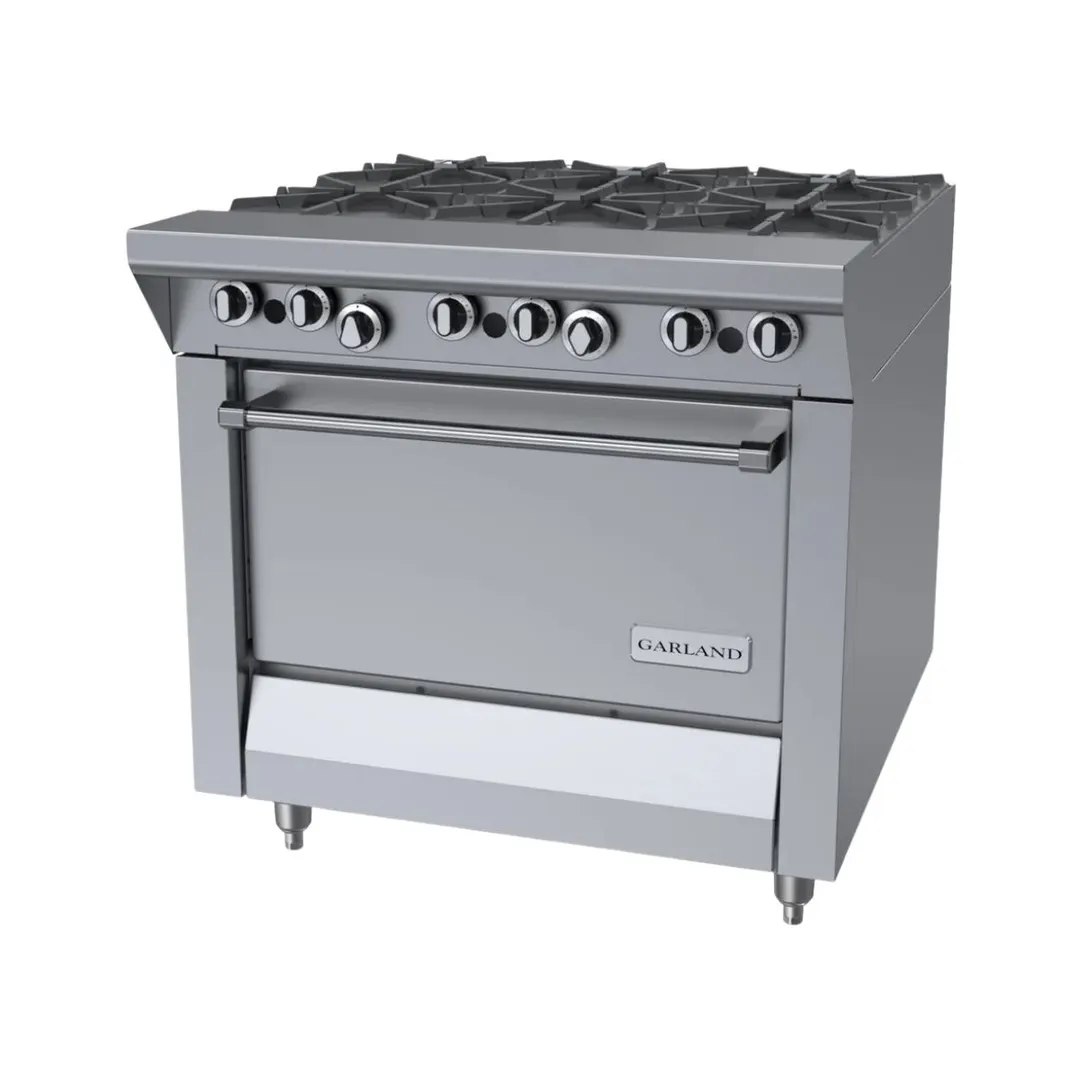

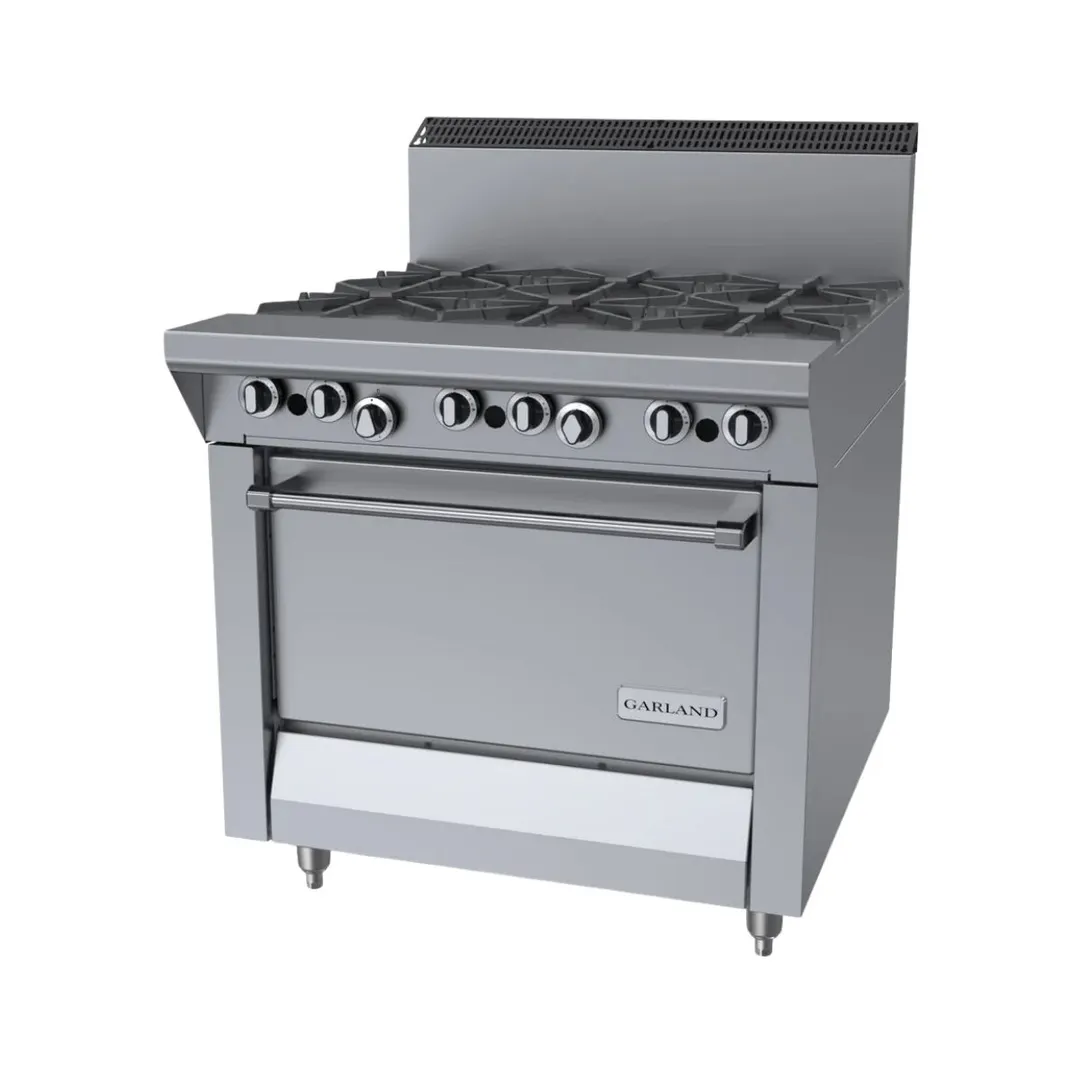

Garland Master Series Heavy Duty Open Burner Top Range

Specifacations

Heavy‑duty gas range with oven, with six (6) 24,000 BTU, (7 kW), Starfire burners. Heavy‑duty cast iron top grates/ring grates. 34" (864mm) wide x 38" (965mm) deep, including 7-1/2" (191mm) deep stainless steel front rail. Porcelain enamel oven interior with 40,000 BTU, (11.72 kW), cast iron burner. Stainless steel front and sides. Natural or propane gas. Also available with storage base with doors, suffix S, and modular top, suffix T. NOTE: Ranges suppled with casters must be installed with an approved restraining device.

Standard Features

Stainless steel front and sides
6" (152mm) chrome steel adj. legs
7-1/2" (191mm) stainless steel front rail
Six (6) 24,000 BTU, (7 kW) natural, 20,000 BTU (5.86kW) propane Starfire burners
Removable ring grate bowl over each burner
Cast iron top grates
One‑piece Stainless Steel drip tray
Piezo spark ignition for oven
Fully porcelainized oven interior
40,000 BTU, (11.72 kW) natural gas, 35,000 BTU (10.75kW) propane gas cast iron oven burner
Storage base interior of aluminized steel

From The Manufacturer

Master Series Heavy Duty Range, gas, 34", (6) 24,000 BTU two-piece Starfire burners, removable heads, standard oven, piezo ignition, drip tray, porcelainized oven interior, stainless steel front & sides, 6" chrome steel adjustable legs, 184,000 BTU, CSA Flame, CSA Star, NSF (Garland)

Manufacturer	Garland US Range
Model Number	M43R
Weight	440 lbs
Width	34″
Depth	38″
Installation Type	free standing
Range Type	heavy duty/modular range
Number of Burners	6 burners
Base Type	oven base
Oven Type	standard oven
Number Of Ovens	1
Top Configuration	burner
Exterior Finish	stainless steel front & sides
Top	(6) open burners
Total BTU	184,000
Burner BTU	24,000
Oven BTU	40,000

	Garland US Range M43R 34" Gas Heavy Duty Range w/ (6) Open Starfire Burners, (1) Standard Oven, 184.000 BTU	Garland US Range MST43R-E 34" Gas Heavy Duty Range w/ (6) Open Burners, Electric Ignition and Flame Fail, (1) Standard Oven, 184.000 BTU	American Range HD34-6-1 34" Gas Heavy Duty Range w/ (6) Open Burners, (1) Standard Oven, 220.000 BTU Free Shipping	American Range HD36-6-1 36" Gas Heavy Duty Range w/ (6) Open Burners, (1) Standard Oven, 220.000 BTU Free Shipping	Vulcan V6B36S 36" Gas Heavy Duty Range w/ (6) Open Burners, (1) Standard Oven, 260.000 BTU Free Shipping	Southbend P36D-BBB 36" Gas Heavy Duty Range w/ (6) Open Burners, (1) Standard Oven, 255.000 BTU Free ShippingQuick Shipping	Southbend P32D-BBB 32" Gas Heavy Duty Range w/ (6) Open Burners, (1) Standard Oven, 255.000 BTU Free Shipping	American Range HD34-6-1C 34" Gas Heavy Duty Range w/ (6) Open Burners, (1) Convection Oven, 210.000 BTU Free Shipping	Imperial IHR-6 36" Gas Heavy Duty Range w/ (6) Open Burners, (1) Standard Oven, 280.000 BTU Free Shipping
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping
Burner BTU	Burner BTU24,000	Burner BTU24,000	Burner BTU30,000	Burner BTU30,000	Burner BTU35,000	Burner BTU35,000	Burner BTU35,000	Burner BTU30,000	Burner BTU35,000
Total BTU	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500
Oven BTU	Oven BTU40,000	Oven BTUNo	Oven BTU40,000	Oven BTU40,000	Oven BTU50,000	Oven BTU45,000	Oven BTU45,000	Oven BTU30,000	Oven BTU40,000
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)32	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)36
Manufacturer	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerAmerican Range	ManufacturerAmerican Range	ManufacturerVulcan	ManufacturerSouthbend	ManufacturerSouthbend	ManufacturerAmerican Range	ManufacturerImperial
Top	Top(6) open burners	Top(6) open burners	Top(6) open burners	Top(6) open burners	Top(6) open burners	Top(6) open burners	Top(6) open burners	Top(6) open burners	Top(6) open burners
Base Type	Base TypeNo	Base TypeNo	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base
Exterior Finish	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides
Range Type	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range
Width	Width34"	Width34"	Width34"	Width36"	Width36"	Width36"	Width32"	Width34"	Width36"
Oven Type	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typeconvection oven	Oven Typestandard oven
Number Of Ovens	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1
Number of Burners	Number of Burners6 burners	Number of Burners6 burners	Number of Burners6 burners	Number of Burners6 burners	Number of Burners6 burners	Number of Burners6 burners	Number of Burners6 burners	Number of Burners6 burners	Number of Burners6 burners
Top Configuration	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner
Installation Type	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing
Control Type	Control TypeNo	Control TypeNo	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Type-
Certifications	CertificationsNo	CertificationsNo	Certifications-	CertificationscETLus, ETL-Sanitation, Made in USA	Certifications-	Certifications-	Certifications-	Certifications-	Certifications-
Plate Thickness	Plate ThicknessNo	Plate ThicknessNo	Plate Thickness-	Plate Thickness1.250" = 1-1/4"	Plate Thickness-	Plate Thickness-	Plate Thickness-	Plate Thickness-	Plate Thickness-
Burner Style	Burner StyleNo	Burner StyleNo	Burner Style-	Burner Style-	Burner Style-	Burner Stylenon-clog burners	Burner Stylenon-clog burners	Burner Style-	Burner Style-
Vent	Vent-	Vent-	Vent-	Vent-	Vent-	Vent-	Ventstub back	Vent-	Vent-

Manufacturer	Garland US Range
Model Number	M43R
Weight	440 lbs
Width	34″
Depth	38″
Installation Type	free standing
Range Type	heavy duty/modular range
Number of Burners	6 burners
Base Type	oven base
Oven Type	standard oven
Number Of Ovens	1
Top Configuration	burner
Exterior Finish	stainless steel front & sides
Top	(6) open burners
Total BTU	184,000
Burner BTU	24,000
Oven BTU	40,000

	Garland US Range M43R 34" Gas Heavy Duty Range w/ (6) Open Starfire Burners, (1) Standard Oven, 184.000 BTU	Garland US Range MST43R-E 34" Gas Heavy Duty Range w/ (6) Open Burners, Electric Ignition and Flame Fail, (1) Standard Oven, 184.000 BTU	American Range HD34-6-1 34" Gas Heavy Duty Range w/ (6) Open Burners, (1) Standard Oven, 220.000 BTU Free Shipping	American Range HD36-6-1 36" Gas Heavy Duty Range w/ (6) Open Burners, (1) Standard Oven, 220.000 BTU Free Shipping	Vulcan V6B36S 36" Gas Heavy Duty Range w/ (6) Open Burners, (1) Standard Oven, 260.000 BTU Free Shipping	Southbend P36D-BBB 36" Gas Heavy Duty Range w/ (6) Open Burners, (1) Standard Oven, 255.000 BTU Free ShippingQuick Shipping	Southbend P32D-BBB 32" Gas Heavy Duty Range w/ (6) Open Burners, (1) Standard Oven, 255.000 BTU Free Shipping	American Range HD34-6-1C 34" Gas Heavy Duty Range w/ (6) Open Burners, (1) Convection Oven, 210.000 BTU Free Shipping	Imperial IHR-6 36" Gas Heavy Duty Range w/ (6) Open Burners, (1) Standard Oven, 280.000 BTU Free Shipping
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping
Burner BTU	Burner BTU24,000	Burner BTU24,000	Burner BTU30,000	Burner BTU30,000	Burner BTU35,000	Burner BTU35,000	Burner BTU35,000	Burner BTU30,000	Burner BTU35,000
Total BTU	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500
Oven BTU	Oven BTU40,000	Oven BTUNo	Oven BTU40,000	Oven BTU40,000	Oven BTU50,000	Oven BTU45,000	Oven BTU45,000	Oven BTU30,000	Oven BTU40,000
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)32	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)36
Manufacturer	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerAmerican Range	ManufacturerAmerican Range	ManufacturerVulcan	ManufacturerSouthbend	ManufacturerSouthbend	ManufacturerAmerican Range	ManufacturerImperial
Top	Top(6) open burners	Top(6) open burners	Top(6) open burners	Top(6) open burners	Top(6) open burners	Top(6) open burners	Top(6) open burners	Top(6) open burners	Top(6) open burners
Base Type	Base TypeNo	Base TypeNo	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base
Exterior Finish	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides
Range Type	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range
Width	Width34"	Width34"	Width34"	Width36"	Width36"	Width36"	Width32"	Width34"	Width36"
Oven Type	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typeconvection oven	Oven Typestandard oven
Number Of Ovens	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1
Number of Burners	Number of Burners6 burners	Number of Burners6 burners	Number of Burners6 burners	Number of Burners6 burners	Number of Burners6 burners	Number of Burners6 burners	Number of Burners6 burners	Number of Burners6 burners	Number of Burners6 burners
Top Configuration	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner
Installation Type	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing
Control Type	Control TypeNo	Control TypeNo	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Type-
Certifications	CertificationsNo	CertificationsNo	Certifications-	CertificationscETLus, ETL-Sanitation, Made in USA	Certifications-	Certifications-	Certifications-	Certifications-	Certifications-
Plate Thickness	Plate ThicknessNo	Plate ThicknessNo	Plate Thickness-	Plate Thickness1.250" = 1-1/4"	Plate Thickness-	Plate Thickness-	Plate Thickness-	Plate Thickness-	Plate Thickness-
Burner Style	Burner StyleNo	Burner StyleNo	Burner Style-	Burner Style-	Burner Style-	Burner Stylenon-clog burners	Burner Stylenon-clog burners	Burner Style-	Burner Style-
Vent	Vent-	Vent-	Vent-	Vent-	Vent-	Vent-	Ventstub back	Vent-	Vent-

Garland US Range M43R 34" Gas Heavy Duty Range w/ (6) Open Starfire Burners, (1) Standard Oven, 184.000 BTU
