Garland Master Series Heavy Duty Open Burner Top Range

Specifacations

Heavy‑duty gas range with oven, Model M44R. Four 35,000 BTU, (10.25 kW), two‑piece Starfire burners. Heavy‑duty cast iron top grates and ring grates. 34" (864mm) wide x 38" (965mm) deep, including 7-1/2" (191mm) deep stainless steel front rail. Porcelain enamel oven interior with 40,000 BTU (11.72 kW) cast iron oven burner. Stainless steel front and sides. 180,000 BTU total. (52.74 kW). Natural or propane gas. Also available with storage base w/doors, suffix S, and modular top, suffix T. NOTE: Ranges suppled with casters must be installed with an approved restraining device.

Standard Features

Stainless steel front and sides
6" (152mm) chrome steel adj. legs
7-1/2" (191mm) stainless steel front rail
Four 35,000 BTU, (10.25 kW), (natural gas) or 32,000 BTU (9.37kW) (propane), two piece Starfire burners with removable heads
Removable ring grate bowl over each burner
Cast iron top grates
One‑piece Stainless Steel drip tray
Piezo spark ignition for oven
Fully porcelainized oven interior
40,000 BTU, (11.72 kW) natural gas or 35,000 BTU (10.25kW) propane, cast iron oven burner
Storage base interior of aluminized steel

From The Manufacturer

Master Series Heavy Duty Range, gas, 34", (4) 35,000 BTU two-piece Starfire burners, removable heads, storage base, drip tray, aluminized steel interior, stainless steel front & sides, 6" chrome steel adjustable legs, 140,000 BTU, CSA Flame, CSA Star, NSF (Garland)

Manufacturer	Garland US Range
Model Number	M44S
Weight	340 lbs
Width	34″
Depth	38″
Height	36.38″
Installation Type	free standing
Range Type	heavy duty/modular range
Number of Burners	4 burners
Base Type	cabinet/storage base
Top Configuration	burner
Exterior Finish	stainless steel front & sides
Top	(4) open burners
Total BTU	140,000
Burner BTU	35,000

	Garland US Range M44S 34" Gas Heavy Duty Range w/ (4) Open Starfire Burners, (1) Cabinet Base, 140.000 BTU	Garland US Range MST44S-E 34" Gas Heavy Duty Range w/ (4) Open Burners, Electric Ignition and Flame Fail, (1) Cabinet Base, 140.000 BTU	Jade JTRH-4-A 24"Gas Heavy Duty Range w/ (4) Open Burners, Cabinet Base, 140.000 BTU	Vulcan V4B36B 36" Gas Heavy Duty Range w/ (4) Open Burners, (1) Cabinet Base, 140.000 BTU Free Shipping	Southbend P24C-BB 24" Gas Heavy Duty Range w/ (4) Open Burners, (1) Cabinet Base, 140.000 BTU Free Shipping	American Range HD34-4-O 34" Gas Heavy Duty Range w/ (4) Open Burners, (1) Cabinet Base, 148.000 BTU Free Shipping	Imperial IHR-4-24-XB 24" Gas Heavy Duty Range w/ (4) Open Burners,(1) Open Cabinet Base, 140.000 BTU Free Shipping	Garland US Range U24-4S 24" Gas Restaurant Range w/ (4) Open Burners, (1) Cabinet Base, 128.000 BTU
Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingPlus Shipping
Burner BTU	Burner BTU35,000	Burner BTU35,000	Burner BTU35,000	Burner BTU35,000	Burner BTU35,000	Burner BTU37,000	Burner BTU35,00	Burner BTU32,000
Total BTU	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU141.000 - 400.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)24	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)24	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)24	WIDTH (SIDE - SIDE)24
Manufacturer	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerJade	ManufacturerVulcan	ManufacturerSouthbend	ManufacturerAmerican Range	ManufacturerImperial	ManufacturerGarland US Range
Top	Top(4) open burners	Top(4) open burners	Top(4) open burners	Top(4) open burners	Top(4) open burners	Top(4) open burners	Top(4) open burners	Top(4) open burners
Type	Type-	Type-	Type-	Type-	Type-	Type-	Typeadd-a-unit	Type-
Base Type	Base TypeNo	Base TypeNo	Base Typecabinet/storage base	Base Typecabinet/storage base	Base Typecabinet/storage base	Base Typecabinet/storage base	Base Typecabinet/storage base	Base Typecabinet/storage base
Exterior Finish	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides
Range Type	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typestandard duty/restaurant range
Width	Width34"	Width34"	Width24"	Width36"	Width24"	Width34"	Width24"	Width24"
Number of Burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners
Top Configuration	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner
Installation Type	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing
Control Type	Control TypeNo	Control TypeNo	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Type-	Control Typemanual control
Certifications	CertificationsNo	CertificationsNo	CertificationsNSF, CSAus	Certifications-	Certifications-	Certifications-	Certifications-	Certifications-
Special Features	Special FeaturesNo	Special Featureswith electric pilot ignition	Special Features-	Special Features-	Special Features-	Special Features-	Special Features-	Special Features-
Burner Style	Burner StyleNo	Burner StyleNo	Burner Style-	Burner Style-	Burner Stylenon-clog burners	Burner Style-	Burner Style-	Burner Style-
Vent	Vent-	Vent-	Vent-	Vent-	Vent-	Vent-	Vent-	Ventbackriser with hi-shelf

Manufacturer	Garland US Range
Model Number	M44S
Weight	340 lbs
Width	34″
Depth	38″
Height	36.38″
Installation Type	free standing
Range Type	heavy duty/modular range
Number of Burners	4 burners
Base Type	cabinet/storage base
Top Configuration	burner
Exterior Finish	stainless steel front & sides
Top	(4) open burners
Total BTU	140,000
Burner BTU	35,000

	Garland US Range M44S 34" Gas Heavy Duty Range w/ (4) Open Starfire Burners, (1) Cabinet Base, 140.000 BTU	Garland US Range MST44S-E 34" Gas Heavy Duty Range w/ (4) Open Burners, Electric Ignition and Flame Fail, (1) Cabinet Base, 140.000 BTU	Jade JTRH-4-A 24"Gas Heavy Duty Range w/ (4) Open Burners, Cabinet Base, 140.000 BTU	Vulcan V4B36B 36" Gas Heavy Duty Range w/ (4) Open Burners, (1) Cabinet Base, 140.000 BTU Free Shipping	Southbend P24C-BB 24" Gas Heavy Duty Range w/ (4) Open Burners, (1) Cabinet Base, 140.000 BTU Free Shipping	American Range HD34-4-O 34" Gas Heavy Duty Range w/ (4) Open Burners, (1) Cabinet Base, 148.000 BTU Free Shipping	Imperial IHR-4-24-XB 24" Gas Heavy Duty Range w/ (4) Open Burners,(1) Open Cabinet Base, 140.000 BTU Free Shipping	Garland US Range U24-4S 24" Gas Restaurant Range w/ (4) Open Burners, (1) Cabinet Base, 128.000 BTU
Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingPlus Shipping
Burner BTU	Burner BTU35,000	Burner BTU35,000	Burner BTU35,000	Burner BTU35,000	Burner BTU35,000	Burner BTU37,000	Burner BTU35,00	Burner BTU32,000
Total BTU	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU141.000 - 400.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)24	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)24	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)24	WIDTH (SIDE - SIDE)24
Manufacturer	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerJade	ManufacturerVulcan	ManufacturerSouthbend	ManufacturerAmerican Range	ManufacturerImperial	ManufacturerGarland US Range
Top	Top(4) open burners	Top(4) open burners	Top(4) open burners	Top(4) open burners	Top(4) open burners	Top(4) open burners	Top(4) open burners	Top(4) open burners
Type	Type-	Type-	Type-	Type-	Type-	Type-	Typeadd-a-unit	Type-
Base Type	Base TypeNo	Base TypeNo	Base Typecabinet/storage base	Base Typecabinet/storage base	Base Typecabinet/storage base	Base Typecabinet/storage base	Base Typecabinet/storage base	Base Typecabinet/storage base
Exterior Finish	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides
Range Type	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typestandard duty/restaurant range
Width	Width34"	Width34"	Width24"	Width36"	Width24"	Width34"	Width24"	Width24"
Number of Burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners
Top Configuration	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner
Installation Type	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing
Control Type	Control TypeNo	Control TypeNo	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Type-	Control Typemanual control
Certifications	CertificationsNo	CertificationsNo	CertificationsNSF, CSAus	Certifications-	Certifications-	Certifications-	Certifications-	Certifications-
Special Features	Special FeaturesNo	Special Featureswith electric pilot ignition	Special Features-	Special Features-	Special Features-	Special Features-	Special Features-	Special Features-
Burner Style	Burner StyleNo	Burner StyleNo	Burner Style-	Burner Style-	Burner Stylenon-clog burners	Burner Style-	Burner Style-	Burner Style-
Vent	Vent-	Vent-	Vent-	Vent-	Vent-	Vent-	Vent-	Ventbackriser with hi-shelf

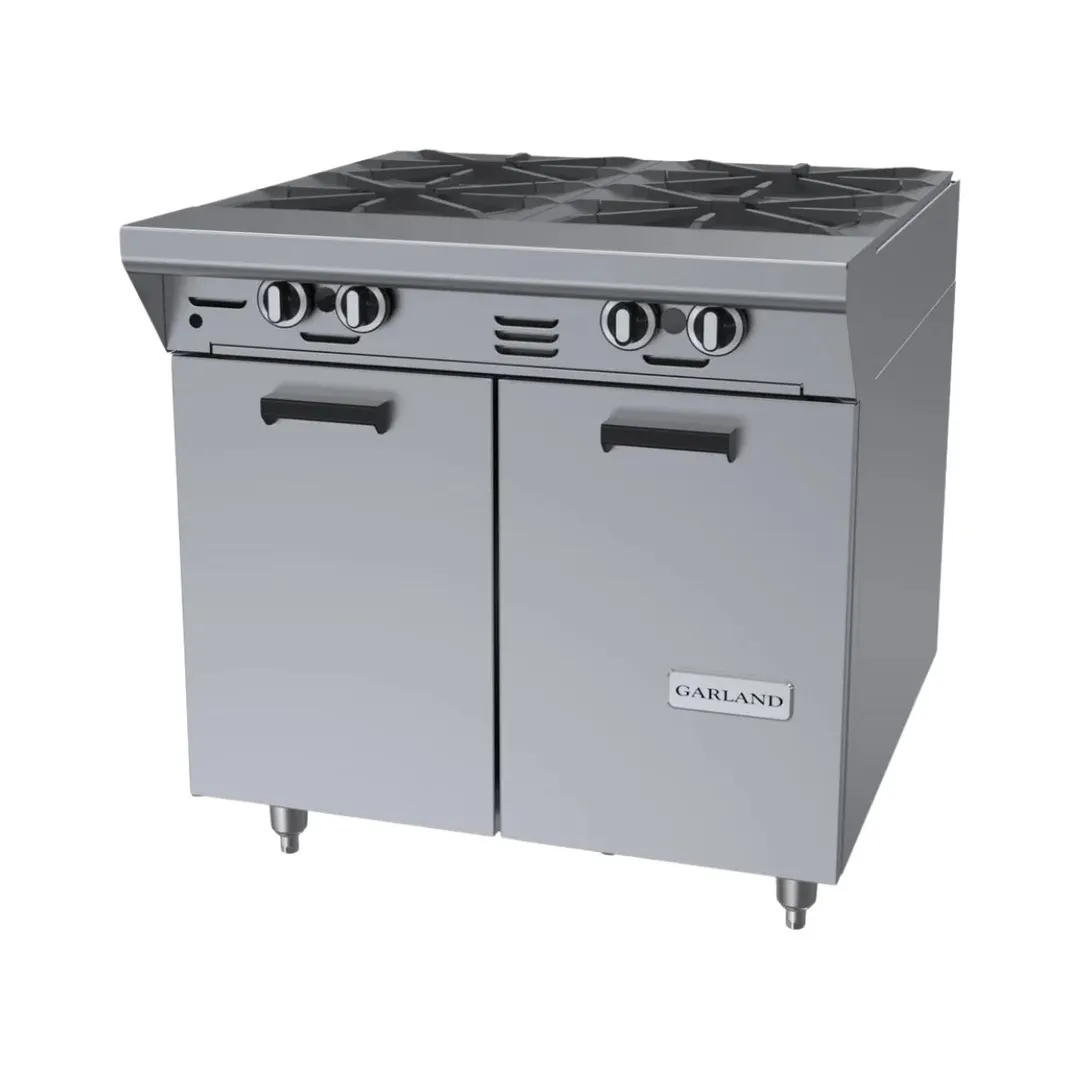

Garland US Range M44S 34" Gas Heavy Duty Range w/ (4) Open Starfire Burners, (1) Cabinet Base, 140.000 BTU
