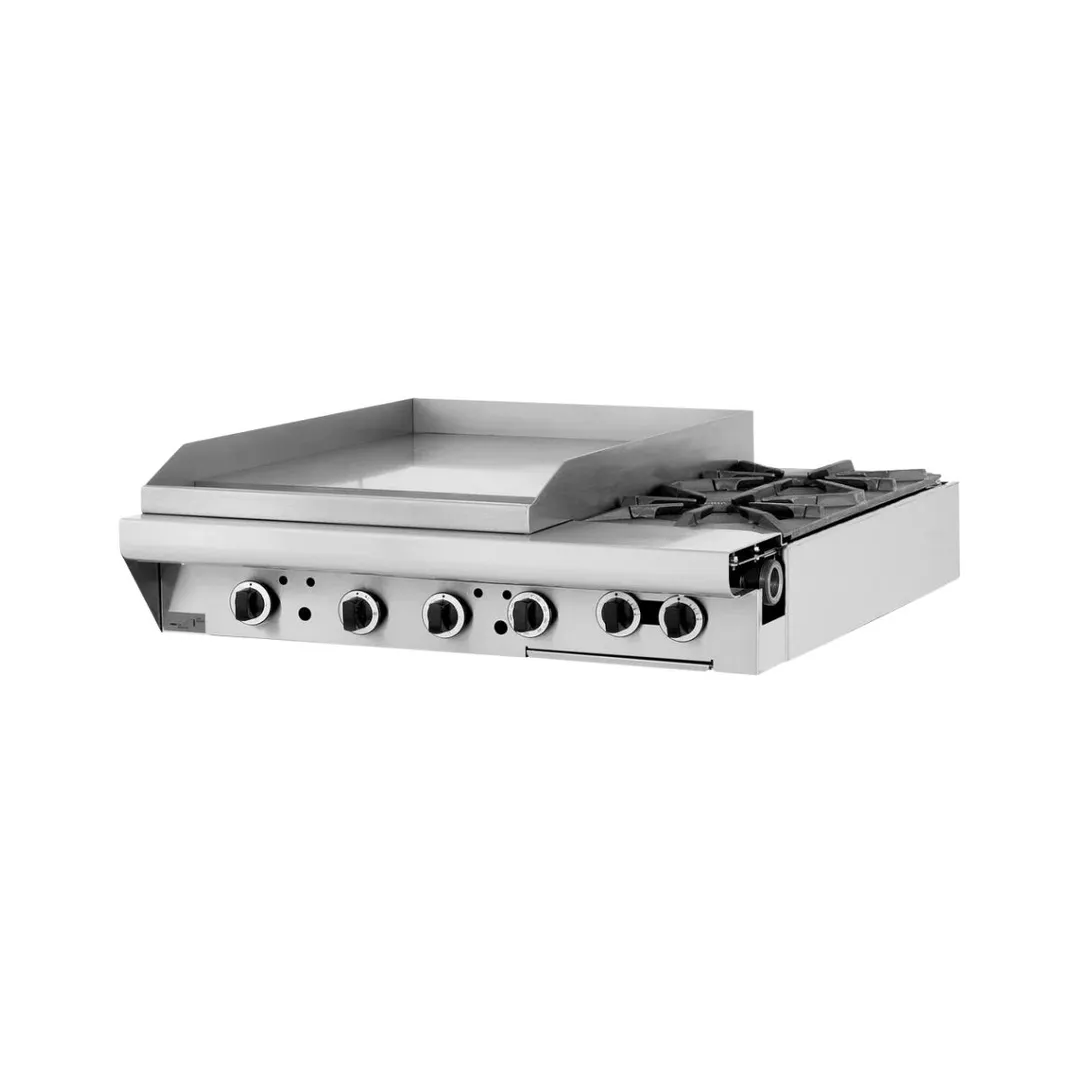

Garland Master Series Heavy Duty Combination Top Range

Specifacations

Heavy duty gas range, Model M47-23R with ovens with one 23" (548mm) wide x 25" (635mm) deep x 1" (25mm) thick griddle. Valve controlled griddle , bordered side and rear continuous welded stainless steel splash guards, 66,000 BTU (19.3kW) total, on left only, and two 24,000 BTU (7.0 kW) Starfire open burners with heavy duty cast iron top grates/ring grates. 34" (864mm) W x 38" (965mm) D, including 7-1/2" (191mm) deep stainless steel front rail. Porcelain enamel oven interior with 40,000 BTU (11.72kW) cast iron burner. Stainless steel front and sides. 154,000 BTU (45.10 kW) total (natural gas). Natural or propane gas. Also available with storage base with doors, M47-23S, and with modular top, M47-23T NOTE: Ranges suppled with casters must be installed with an approved restraining device.

Standard Features

Stainless steel front and side
6" (152mm) chrome steel adj. legs
7-1/2" (191mm) stainless steel front rail
Valve controlled griddle on left with 1" (25mm) thick steel griddle plate & two 33,000 BTU (9.67kW) “H” burners
2-5/16" (591mm) H welded steel splashguards, sides & back
Clip-on stainless steel backsplash
Removable front-mounted stainless steel grease receptacle
Two 24,000 BTU (7kW) natural, 20,000BTU (5.86kW) propane Starfire burners per section.
Removable ring grates over each burner
One-piece stainless steel drip tray
Fully porcelainized oven interior
Piezo Spark ignition for oven
40,000 BTU (11.72kW) natural, 35,000 BTU (10.25kW) propane cast iron oven burner

From The Manufacturer

Master Series Heavy Duty Range, gas, 34", modular, (2) 24,000 BTU open burners, (1) 23" griddle, manual controls, stainless steel front & sides, 104,000 BTU (Garland)

Manufacturer	Garland US Range
Model Number	M47-23T
Weight	295 lbs
Width	34″
Depth	38″
Height	10″
Installation Type	modular
Range Type	heavy duty/modular range
Number of Burners	2 burners
Top Configuration	burner & griddle
Exterior Finish	stainless steel front & sides
Top	(2) open burners, (1) 24" griddle
Total BTU	114,000
Burner BTU	24,000
Griddle/Charbroiler BTU	66,000

	Garland US Range M47-23T 34" Gas Heavy Duty Range w/ (2) Open Burners, 23" Griddle Left, Modular Base, 114.000 BTU	Garland US Range MST42T-E 34" Gas Heavy Duty Range w/ (2) Open Burners, 17" Griddle Left, Electric Ignition and Flame Fail, Modular Base, 103.000 BTU	Garland US Range M48-23T 34" Gas Heavy Duty Range w/ (2) Open Burners, 23" Griddle w/ Thermostatic Controls, Modular Base, 114.000 BTU	Garland US Range M47-23S 34" Gas Heavy Duty Range w/ (2) Open Burners, 23" Griddle Left, (1) Cabinet Base, 114.000 BTU	Garland US Range M42T 34" Gas Heavy Duty Range w/ (2) Open Burners, 17" Griddle Left, Modular Base, 103.000 BTU	Vulcan V2BG24 36" Gas Heavy Duty Range w/ (2) Open Burners, 24"Griddle Right, Modular Base, 130.000 BTU Free Shipping	Southbend P36N-BGG 36" Gas Heavy Duty Range w/ (2) Open Burners, 24" Griddle Right, Modular Base, 134.000 BTU Free Shipping	Garland US Range MST54T-E 34" Gas Heavy Duty Range w/ (2) Open Burners, (1) Front Fired Hot Top, Modular Base, 115.000 BTU	Garland US Range MST42S-E 34" Gas Heavy Duty Range w/ (2) Open Burner, 17" Griddle Left, Electric Ignition, Flame Fail, (1) Cabinet Base, 100.000 BTU
