Garland US Range MST24B 24" Gas Heavy Duty Range w/ 24" Full Briquette Charbroiler, (1) Cabinet Base, 60.000 BTU

SKU GRL-MST24B

$7,686.00

or
for Member Pricing

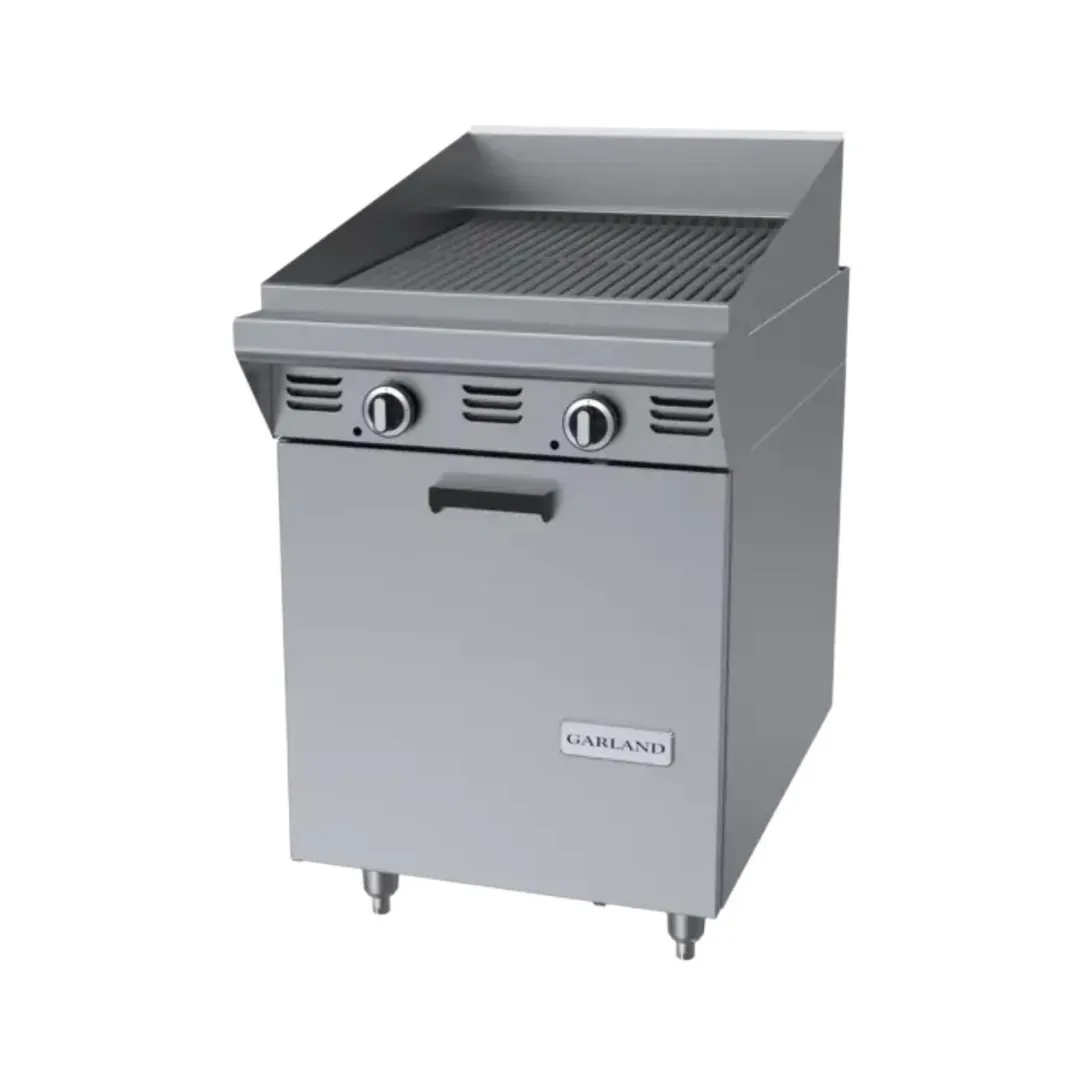

Garland US Range MST24B 24" Gas Heavy Duty Range w/ 24" Full Briquette Charbroiler, (1) Cabinet Base, 60.000 BTU

The image above may not exactly represent the product

$7,686.00

or
for Member Pricing

0% Interest for 30 Days with

Credit Key

Apply Now

Calculate Estimated Shipping Cost

View Wishlist

View Comparelist

Financing Available

Small payments, big returns—view financing details now!

Resources

Spec Sheet

Garland US Range MST24B Specs

Manufacturer	Garland US Range
Model Number	MST24B
Weight	330 lbs
Width	24″
Depth	38″
Height	46.25″
Installation Type	free standing
Range Type	heavy duty/modular range
Base Type	cabinet/storage base
Control Type	manual control
Top Configuration	charbroiler
Special Features	sentry total flame failure protection
Exterior Finish	stainless steel front & sides
Top	(1) charbroiler
Total BTU	60,000
Griddle/Charbroiler BTU	60.000
Griddle/Charbroiler Location	full surface

View All Garland US Range Products >

Description

Reviews

Garland Master Series Heavy Duty Range-Match Char-Broiler

Specifacations

Master Series Char-broiler with stainless steel front and sides. Broiling area consists of heavy duty rack sections which are easily moved for flat or tilt position broiling. Dual sided, cast iron broiler grates with 1/2" (13mm) rounded bar, (board brand) and diamond (fine) pattern on opposite side. 15,000 BTU (4.39 kW) burners controlled by individual Hi-Lo valves. Sentry total flame failure protection for all burners Large capacity full length grease drawers. Heavy-weight, long lasting briquettes. Cabinet, 17" (432mm), 24" (610mm), or 34" (864mm), wide by 34" (869mm) deep, with two stainless steel full-sized hinged doors and front. Natural gas or propane. Available in modular models, suffix BT

Standard Features

Stainless steel front doors
Stainless steel front and sides
Stainless steel front rail
1-1/4" NPT front manifold
Dual sided, cast iron broiler grates with 1/2" (13mm) rounded bar, (board brand) and diamond (fine) pattern on opposite sides
15,000 BTU (4.39 kW) burners,
Piezo spark ignition with constant burning pilots
Storage base interior of aluminized steel
Modular top broilers (suffix "BT"), modular broiler is 14-1/2" (368mm) from broiler base to working height
6" (152mm) chromed steel adjustable legs
Electric Spark ignition on all pilots Suffix -E models
Sentry total flame failure protection for all burners

From The Manufacturer

Master Series Charbroiler, gas, 24" W x 23" D grill area, briquettes, flat/tilt grates, reversible grates, spark ignition, pilot valve with flame fail, storage base, stainless steel front and sides (stainless steel exposed sides on batteries), 6" legs, 60,000 BTU (Garland)
