Garland Master Series Heavy Duty Open Burner Top Range

Specifacations

Heavy‑duty gas range with oven, Model MST44R. Four 30,000 BTU, (8.78 Kw), two‑piece Starfire burners. Sentry total flame failure protection for all burners. Heavy‑duty cast iron top grates and ring grates. 34" (864mm) wide x 38" (965mm) deep, including 7-1/2" (191mm) deep stainless steel front rail. Porcelain enamel oven interior with 40,000 BTU (11.72 kW) cast iron oven burner. Stainless steel front and sides. 160,000 BTU total. (46.84 kW). Natural or propane gas available. Also available with storage base w/doors, suffix S, and modular top, suffix T. NOTE: Ranges suppled with casters must be installed with an approved restraining device.

Standard Features

Stainless steel front and sides
6" (152mm) chrome steel adj. legs
7-1/2" (191mm) stainless steel front rail
Four two -piece Starfire burners with removable heads, rated 30,000 BTU (8.78 kW) CE approved or 35,000 BTU (10.25 Kw) CSA approved models (natural or propane gas)
Removable ring grate bowl over each burner
Cast iron top grates
One‑piece Stainless Steel drip tray
Piezo spark ignition for oven
Fully porcelainized oven interior
40,000 BTU, (11.72 kW) natural or 35,000 BTU (10.25 kW) propane gas, cast iron oven burner
Storage base interior of aluminized steel
Electric Spark ignition on all pilots Suffix -E models
Sentry total flame failure protection for all burners

From The Manufacturer

Master Series Heavy Duty Range, gas, 34", (4) 35,000 BTU open burners, standard oven, electric ignition & flame fail on all burners, stainless steel front & sides, 6" legs, 180,000 BTU, CE, CSA Flame, CSA Star, NSF (Garland)

Manufacturer	Garland US Range
Model Number	MST44R-E
Weight	440 lbs
Width	34″
Depth	38″
Height	36.38″
Installation Type	free standing
Range Type	heavy duty/modular range
Number of Burners	4 burners
Base Type	oven base
Oven Type	standard oven
Number Of Ovens	1
Top Configuration	burner
Special Features	with electric pilot ignition
Exterior Finish	stainless steel front & sides
Top	(4) open burners
Total BTU	180,000
Burner BTU	35,000
Oven BTU	40,000

	Garland US Range MST44R-E 34" Gas Heavy Duty Range w/ (4) Open Burners, Electric Ignition and Flame Fail, (1) Standard Oven, 180.000 BTU	Garland US Range M44R 34" Gas Heavy Duty Range w/ (4) Open Starfire Burners, (1) Standard Oven, 180.000 BTU	American Range HD34-4-1 34" Gas Heavy Duty Range w/ (4) Open Burners, (1) Standard Oven, 188.000 BTU Free Shipping	Vulcan V4B36S 36" Gas Heavy Duty Range w/ (4) Open Burners, (1) Standard Oven, 190.000 BTU Free Shipping	Southbend P36D-XX 36" Gas Heavy Duty Range w/ (4) Open Burners, (1) Standard Oven, 141.000 BTU Free Shipping	Southbend P32D-XX 32" Gas Heavy Duty Range w/ (4) Open Burners, (1) Standard Oven, 225.000 BTU Free Shipping	American Range HD34-4-1C 34" Gas Heavy Duty Range w/ (4) Open Burners, (1) Convection Oven, 178.000 BTU Free Shipping	Imperial IHR-4 36" Gas Heavy Duty Range w/ (4) Open Burners, (1) Standard Oven, 200.000 BTU Free Shipping	Garland US Range MST43R-E 34" Gas Heavy Duty Range w/ (6) Open Burners, Electric Ignition and Flame Fail, (1) Standard Oven, 184.000 BTU
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingPlus Shipping
Total BTU	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500
Burner BTU	Burner BTU35,000	Burner BTU35,000	Burner BTU37,000	Burner BTU35,000	Burner BTU45,000	Burner BTU45,000	Burner BTU37,00	Burner BTU35,000	Burner BTU24,000
Oven BTU	Oven BTU40,000	Oven BTU40,000	Oven BTU40,000	Oven BTU50,000	Oven BTU45,000	Oven BTU45,000	Oven BTU30,000	Oven BTU40,000	Oven BTUNo
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)32	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)34
Manufacturer	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerAmerican Range	ManufacturerVulcan	ManufacturerSouthbend	ManufacturerSouthbend	ManufacturerAmerican Range	ManufacturerImperial	ManufacturerGarland US Range
Top	Top(4) open burners	Top(4) open burners	Top(4) open burners	Top(4) open burners	Top(4) open burners	Top(4) open burners	Top(4) open burners	Top(4) open burners	Top(6) open burners
Base Type	Base TypeNo	Base TypeNo	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base TypeNo
Exterior Finish	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides
Range Type	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range
Width	Width34"	Width34"	Width34"	Width36"	Width36"	Width32"	Width34"	Width36"	Width34"
Oven Type	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typeconvection oven	Oven Typestandard oven	Oven Typestandard oven
Number Of Ovens	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1
Number of Burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners6 burners
Top Configuration	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner
Installation Type	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing
Control Type	Control TypeNo	Control TypeNo	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Type-	Control TypeNo
Special Features	Special Featureswith electric pilot ignition	Special FeaturesNo	Special Features-	Special Features-	Special Features-	Special Features-	Special Features-	Special Features-	Special FeaturesNo
Burner Style	Burner StyleNo	Burner StyleNo	Burner Style-	Burner Style-	Burner Stylepyromax burners	Burner Stylepyromax burners	Burner Style-	Burner Style-	Burner StyleNo
Vent	Vent-	Vent-	Vent-	Vent-	Vent-	Ventbackriser	Vent-	Vent-	Vent-

Manufacturer	Garland US Range
Model Number	MST44R-E
Weight	440 lbs
Width	34″
Depth	38″
Height	36.38″
Installation Type	free standing
Range Type	heavy duty/modular range
Number of Burners	4 burners
Base Type	oven base
Oven Type	standard oven
Number Of Ovens	1
Top Configuration	burner
Special Features	with electric pilot ignition
Exterior Finish	stainless steel front & sides
Top	(4) open burners
Total BTU	180,000
Burner BTU	35,000
Oven BTU	40,000

	Garland US Range MST44R-E 34" Gas Heavy Duty Range w/ (4) Open Burners, Electric Ignition and Flame Fail, (1) Standard Oven, 180.000 BTU	Garland US Range M44R 34" Gas Heavy Duty Range w/ (4) Open Starfire Burners, (1) Standard Oven, 180.000 BTU	American Range HD34-4-1 34" Gas Heavy Duty Range w/ (4) Open Burners, (1) Standard Oven, 188.000 BTU Free Shipping	Vulcan V4B36S 36" Gas Heavy Duty Range w/ (4) Open Burners, (1) Standard Oven, 190.000 BTU Free Shipping	Southbend P36D-XX 36" Gas Heavy Duty Range w/ (4) Open Burners, (1) Standard Oven, 141.000 BTU Free Shipping	Southbend P32D-XX 32" Gas Heavy Duty Range w/ (4) Open Burners, (1) Standard Oven, 225.000 BTU Free Shipping	American Range HD34-4-1C 34" Gas Heavy Duty Range w/ (4) Open Burners, (1) Convection Oven, 178.000 BTU Free Shipping	Imperial IHR-4 36" Gas Heavy Duty Range w/ (4) Open Burners, (1) Standard Oven, 200.000 BTU Free Shipping	Garland US Range MST43R-E 34" Gas Heavy Duty Range w/ (6) Open Burners, Electric Ignition and Flame Fail, (1) Standard Oven, 184.000 BTU
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingPlus Shipping
Total BTU	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500	Total BTU141.000 - 400.500
Burner BTU	Burner BTU35,000	Burner BTU35,000	Burner BTU37,000	Burner BTU35,000	Burner BTU45,000	Burner BTU45,000	Burner BTU37,00	Burner BTU35,000	Burner BTU24,000
Oven BTU	Oven BTU40,000	Oven BTU40,000	Oven BTU40,000	Oven BTU50,000	Oven BTU45,000	Oven BTU45,000	Oven BTU30,000	Oven BTU40,000	Oven BTUNo
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)32	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)34
Manufacturer	ManufacturerGarland US Range	ManufacturerGarland US Range	ManufacturerAmerican Range	ManufacturerVulcan	ManufacturerSouthbend	ManufacturerSouthbend	ManufacturerAmerican Range	ManufacturerImperial	ManufacturerGarland US Range
Top	Top(4) open burners	Top(4) open burners	Top(4) open burners	Top(4) open burners	Top(4) open burners	Top(4) open burners	Top(4) open burners	Top(4) open burners	Top(6) open burners
Base Type	Base TypeNo	Base TypeNo	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base Typeoven base	Base TypeNo
Exterior Finish	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides	Exterior Finishstainless steel front & sides
Range Type	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range	Range Typeheavy duty/modular range
Width	Width34"	Width34"	Width34"	Width36"	Width36"	Width32"	Width34"	Width36"	Width34"
Oven Type	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typestandard oven	Oven Typeconvection oven	Oven Typestandard oven	Oven Typestandard oven
Number Of Ovens	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1	Number Of Ovens1
Number of Burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners6 burners
Top Configuration	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner	Top Configurationburner
Installation Type	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing	Installation Typefree standing
Control Type	Control TypeNo	Control TypeNo	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Typemanual control	Control Type-	Control TypeNo
Special Features	Special Featureswith electric pilot ignition	Special FeaturesNo	Special Features-	Special Features-	Special Features-	Special Features-	Special Features-	Special Features-	Special FeaturesNo
Burner Style	Burner StyleNo	Burner StyleNo	Burner Style-	Burner Style-	Burner Stylepyromax burners	Burner Stylepyromax burners	Burner Style-	Burner Style-	Burner StyleNo
Vent	Vent-	Vent-	Vent-	Vent-	Vent-	Ventbackriser	Vent-	Vent-	Vent-

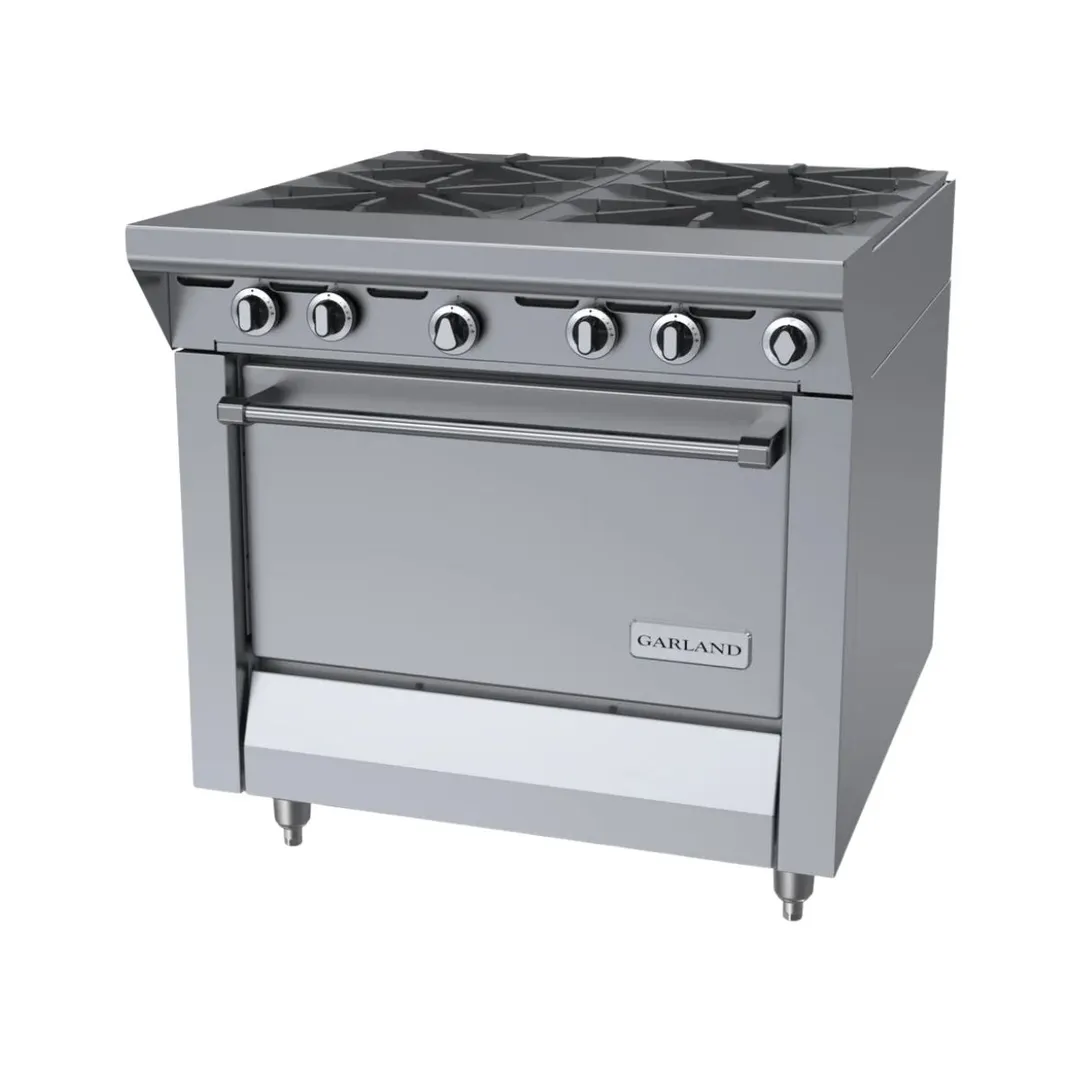

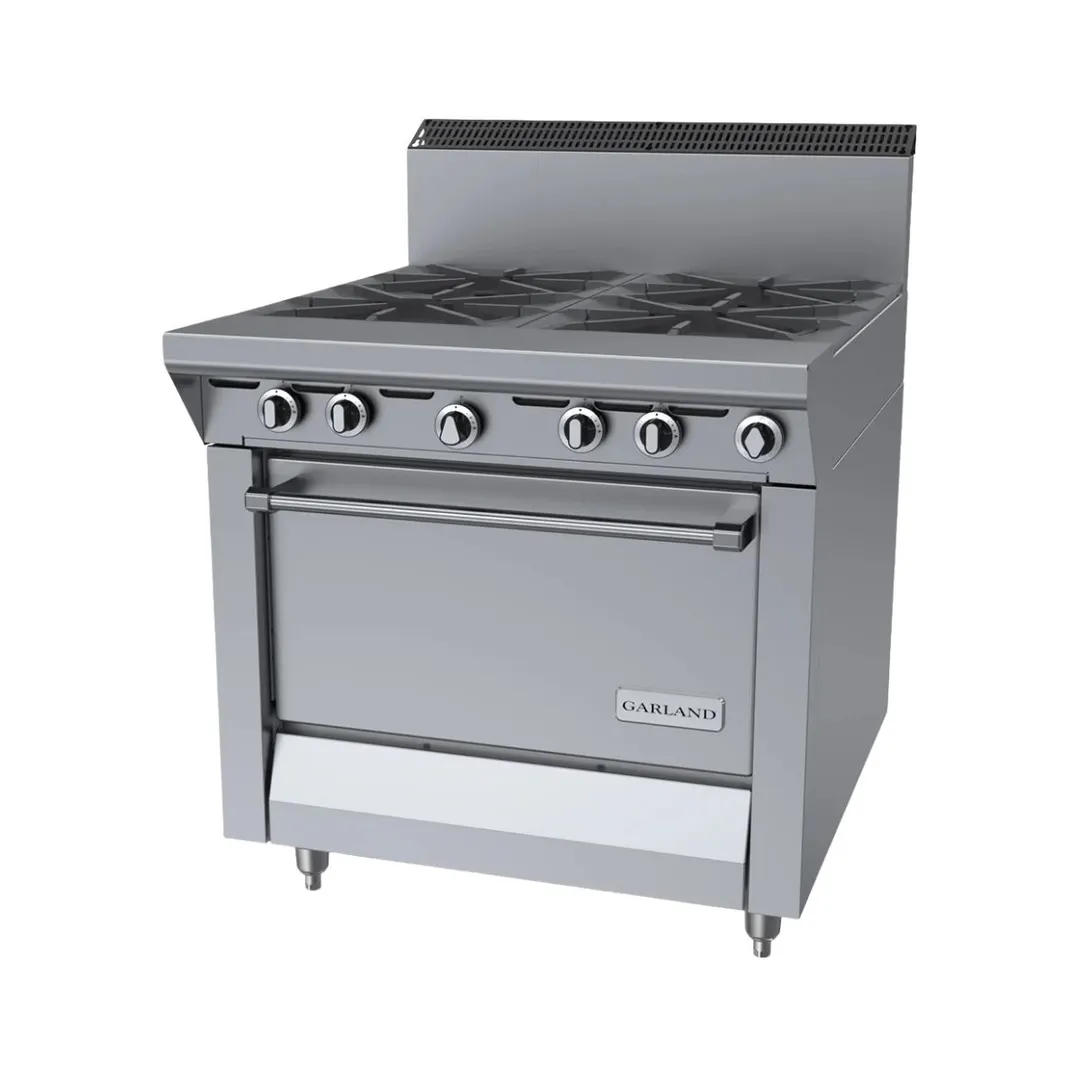

Garland US Range MST44R-E 34" Gas Heavy Duty Range w/ (4) Open Burners, Electric Ignition and Flame Fail, (1) Standard Oven, 180.000 BTU
