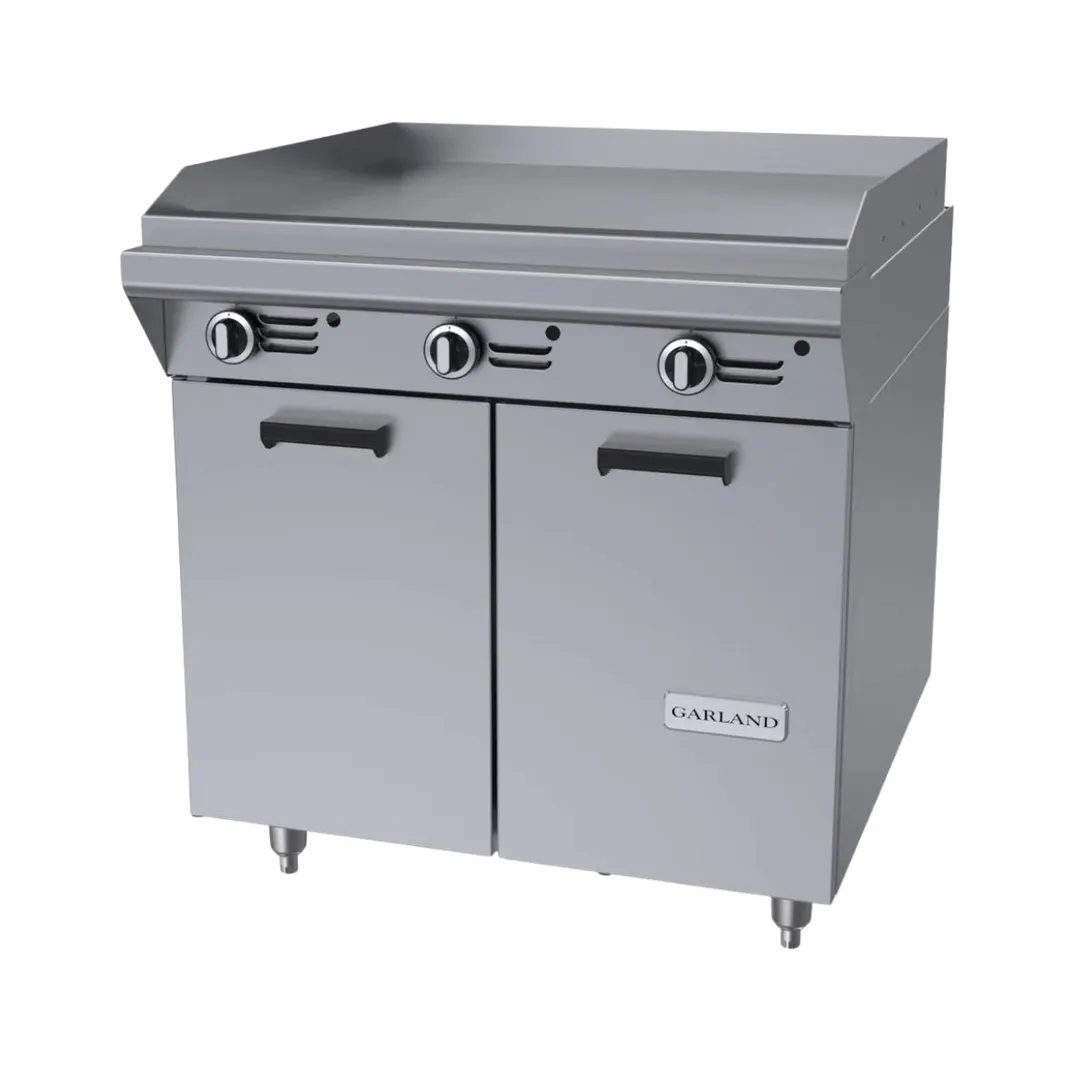

Garland US Range MST47S-E 34" Gas Heavy Duty Range, 34" Full Griddle w/ Manual Controls, Electric Ignition and Flame Fail, (1) Cabinet Base, 90.000 BTU

Specifacations

Heavy‑duty gas range with oven, Model MST47R. One 34" (864mm) wide, valve-controlled griddle. 1" (25mm) thick, 90,000 BTU (26.35 kW) total. 34" (864mm) wide x 38" (965mm) deep, including 7-1/2" (191mm) deep stainless steel front rail. Sentry total flame failure protection for all burners. Porcelain enamel oven interior measuring 26-1/4" (667mm) wide x 13-1/2" (343mm) high x 29" (737mm) deep. 40,000 BTU (11.72 kW) cast iron burner. Stainless steel front and sides. 130,000 BTU (38.07 kW) total, natural gas. Also Available with storage base(s) w/doors, suffix S, and Modular top, suffix T. NOTE: Ranges suppled with casters must be installed with an approved restraining device.

Standard Features

• Standard Features:
• Stainless steel front and sides
• 6" (152mm) chrome steel adj. legs
• 7-1/2" (191mm) stainless steel front rail
• 1" (25mm) thick steel griddle plate
• 2-5/16" (591mm) high welded steel splash guard„ sides and back
• Clip‑on stainless steel backsplash
• Removable front‑mounted stainless steel grease receptacle
• Hi‑Lo valve control for each griddle burner
• Three “H” griddle burners 90,000 BTU (26.35 kW)
• Piezo spark ignition for all pilots
• Fully porcelainized oven interior
• Storage base models with aluminized steel interiors, (Suffix S/S-E)
• Modular Top section (Suffix T/T-E))
• 40,000 BTU (11.72kW) natural gas, 35,000 (10.25 kW) propane gas cast iron oven burner
• Electric Spark ignition on all pilots Suffix -E models
• Sentry total flame failure protection for all burners
