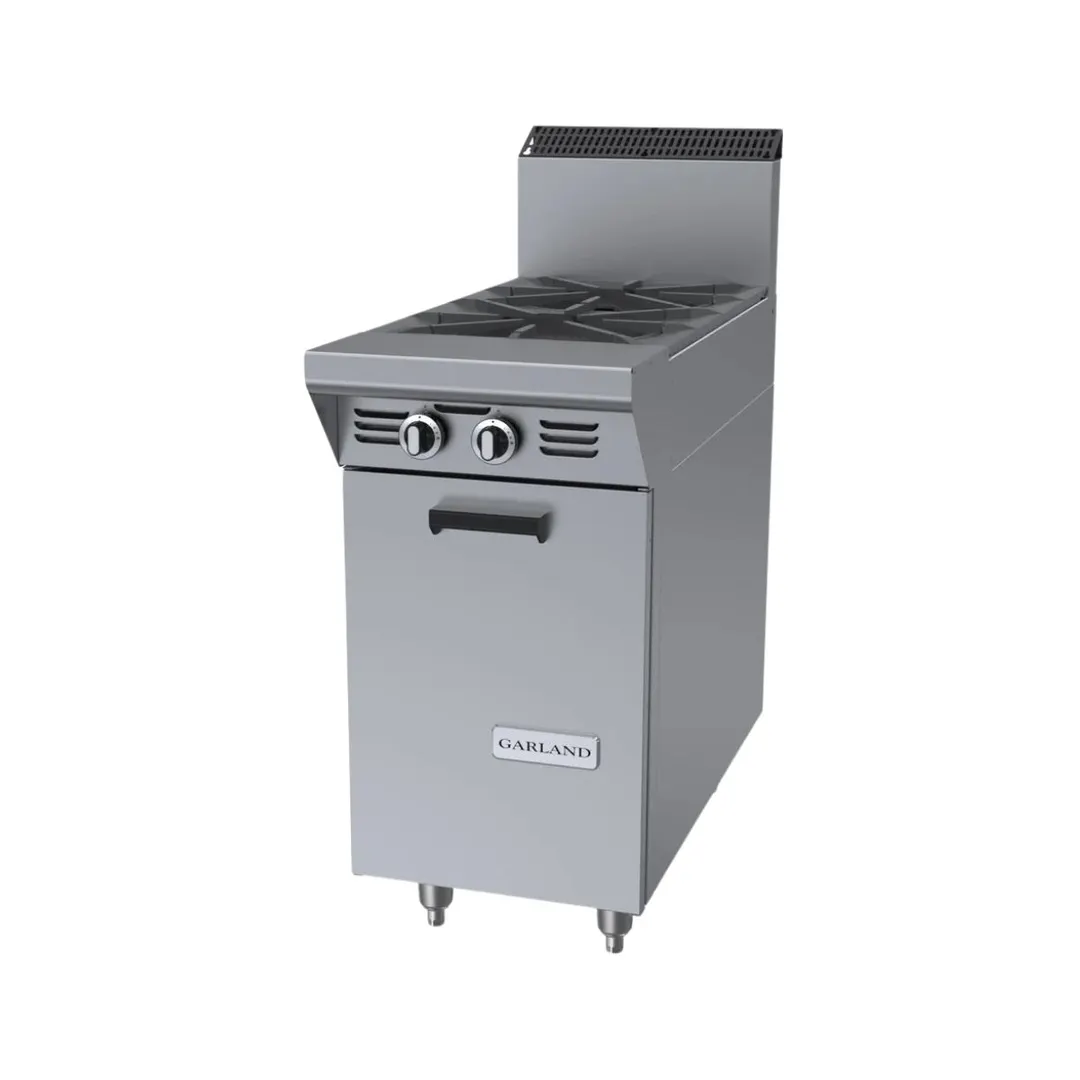

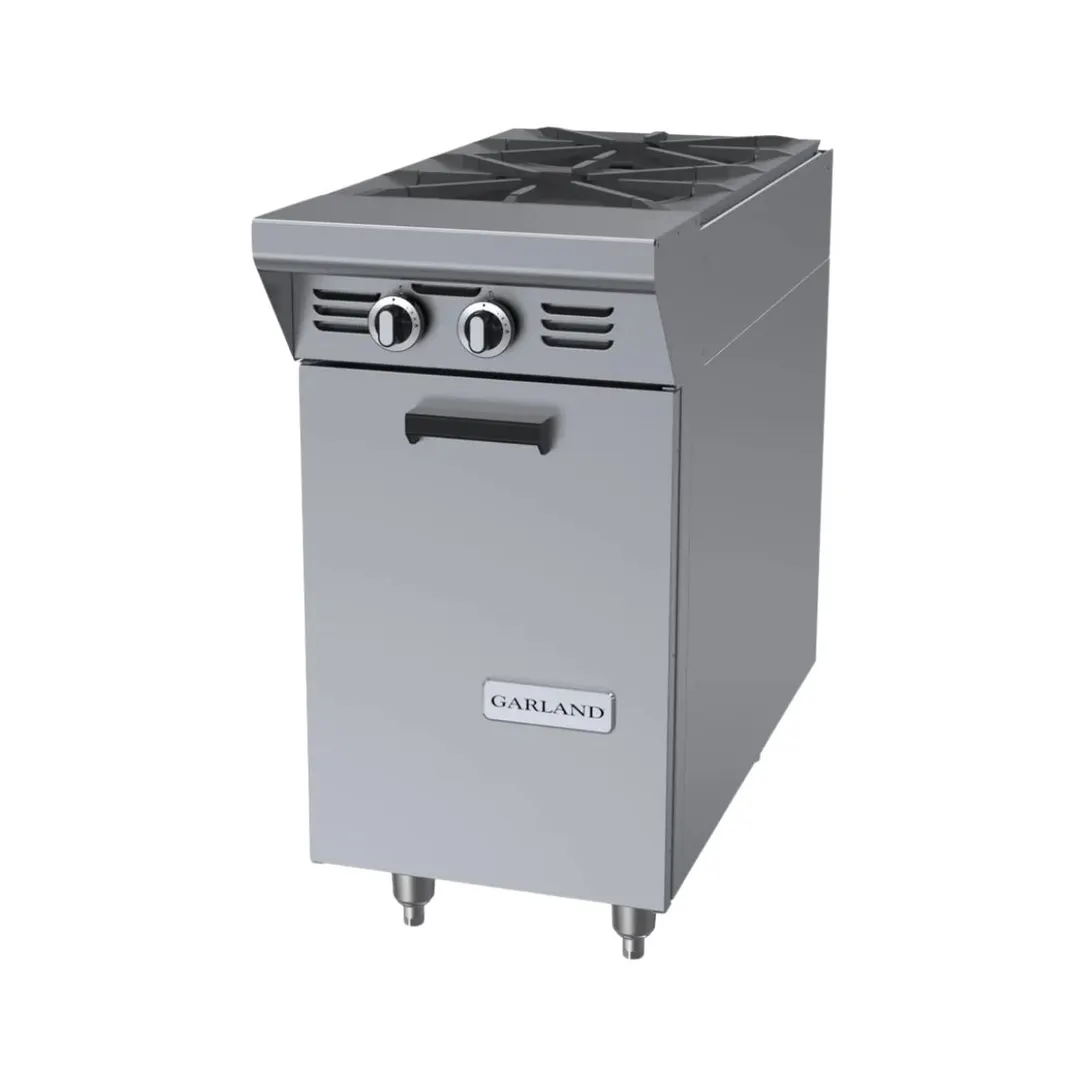

Garland Master Series Open Burner Range Attachment

Specifacations

Heavy‑duty gas range attachment with storage base, Model MST4S. Two (2) 30,000 BTU (8.78 kW) two piece Starfire burners. Sentry total flame failure protection for all burners. Heavy‑duty cast iron top grate/ ring grates. 17" (432mm) wide x 38" (965mm) deep, including 7-1/2" (191 mm) deep stainless steel front rail. Stainless steel front and sides. 60,000 BTU (17.57 kW) total. Natural or propane gas. Also available with modular top, suffix T. NOTE: Ranges suppled with casters must be installed with an approved restraining device.

Standard Features

Standard Features:
Stainless steel front and sides
Stainless steel door
6" (152mm) chrome steel adj. legs
7-1/2" (191mm) stainless steel front rail
Two (2), two -piece Starfire burners with removable heads, rated 30,000 BTU (8.78 kW) CE approved or 35,000 BTU (10.25 Kw) CSA approved models (natural or propane gas)
Removable ring grate bowl over each burner
Cast iron top grates
One piece stainless steel drip tray
Storage base interior of aluminized steel
Electric Spark ignition on all pilots Suffix -E models
Sentry total flame failure protection for all burners

From The Manufacturer

Master Series Range, gas, 17", Add-A-Unit, (2) 35,000 BTU open burners, cast iron grate, storage base, electronic spark ignition, flame failure device, stainless steel front & sides, 6" adjustable legs, 70,000 BTU, CE, CSA Flame, CSA Star, NSF (Garland)

Manufacturer	Garland US Range
Model Number	MST4S-E
Weight	190 lbs
Width	17″
Depth	38″
Height	36.38″
Installation Type	free standing
Range Type	heavy duty/modular range
Number of Burners	2 burners
Base Type	cabinet/storage base
Top Configuration	burner
Special Features	with electric pilot ignition
Exterior Finish	stainless steel front & sides
Top	(2) open burners
Total BTU	70,000
Burner BTU	35,000
